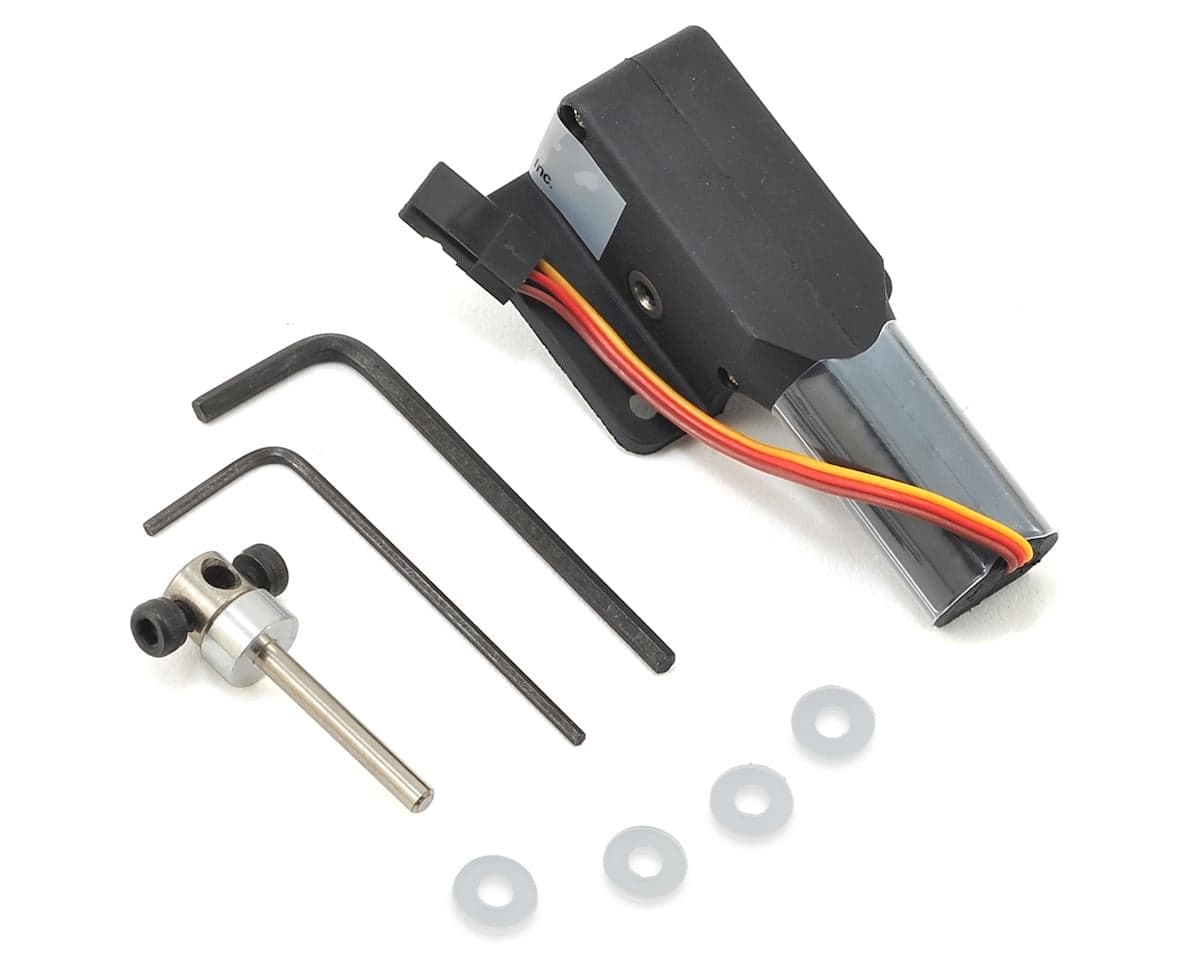

E-flite 10 - 15 Size Main Electric Retract Unit

This is the E-flite 10- to 15-Size Main Electric Retract Unit. Thank you for purchasing the E-flite 10- to 15-Size Electric Retracts. These self-contained units are powered from your model’s receiver and do not require separate servos. The retracts are supplied with coil struts installed, plus adjustable axles, wheel collars, Allen wrenches and a 3-into-1 wire harness (for the tricycle set) or 2-into-1 wire harness (for main gear set). The nose gear unit is steerable and has a slot in the sliding steering arm to prevent binding of the steering cable when retracted.

Features:

• Integrated electric motor with a micro PCB
• Built-in overcurrent protection
• Aircraft Weight: 2.00 - 4.50 lb (0.90 - 2.00kg)

Specifications:
Application: Aircraft 10–15 size
Speed: 4.8V (1.25 seconds), 6.0V (1.0 seconds), 7.4V (.80 seconds)
Weight: 1.3 oz
Motor Type: Electric brushed can
Connector Type: JR, universal
Gear Type: Metal
Current Draw Idle: 5mA
Current Draw Stall: 150mA
Voltage: 4.8–7.4
