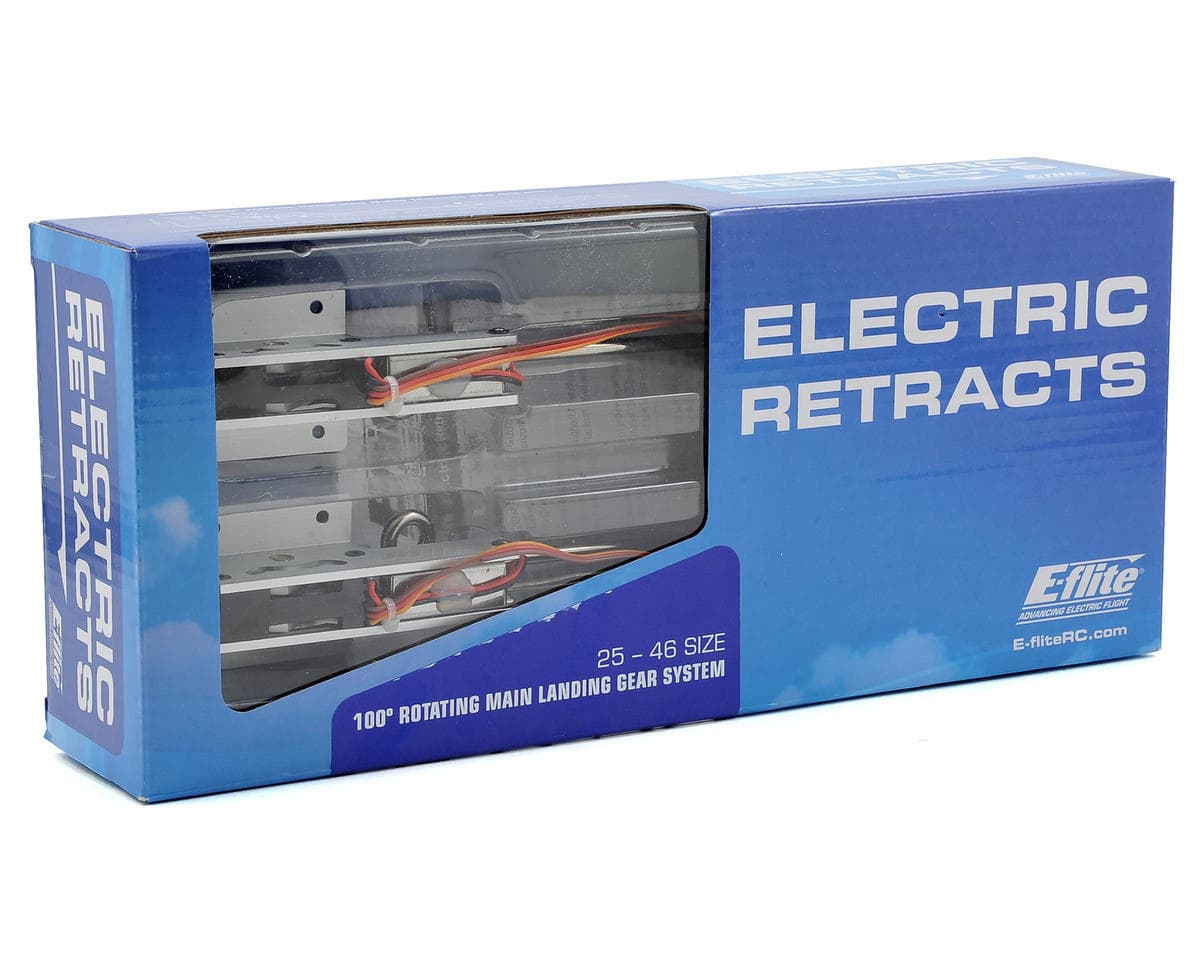

E-flite 25-46 Size 100° Rotating Electric Retracts

This is an optional E-flite 25-46 Size 100° Rotating Electric Retract Set, and is intended for use with the Hangar 9 P-40B Warhawk 50. You don’t have to be a master modeler to add the realism of functioning retracts to your airplane. E-flite’s completely self-contained retract system doesn’t require an air tank, complex linkages or even an extra servo. Simply bolt it into place and plug it into the receiver.

Features:

• All-aluminum, CNC-machined retract unit
• Integrated electric motor with a micro PCB eliminating the need for a retract servo
• Brass wheel collars and fully-bushed brass pivot points for smooth, trouble-free operation
• Built-in over-current protection
• Scale-appearance 100-degree retraction sweep and 90-degree rotation
• Chrome-plated landing gear strut
• Recommended for use in the Hangar 9® F4U-1D Corsair 50 ARF, .46-.55 (HAN2590)

Specifications:
Application: Airplane
Speed: 3 seconds per cycle
Weight: 3.7 oz (105 g) each
Connector Type: Universal
Gear Material: Steel/Brass
Current Draw Idle: 5mA
Current Draw Stall: 800mA (per retract)
Voltage: 4.8–7.2V
