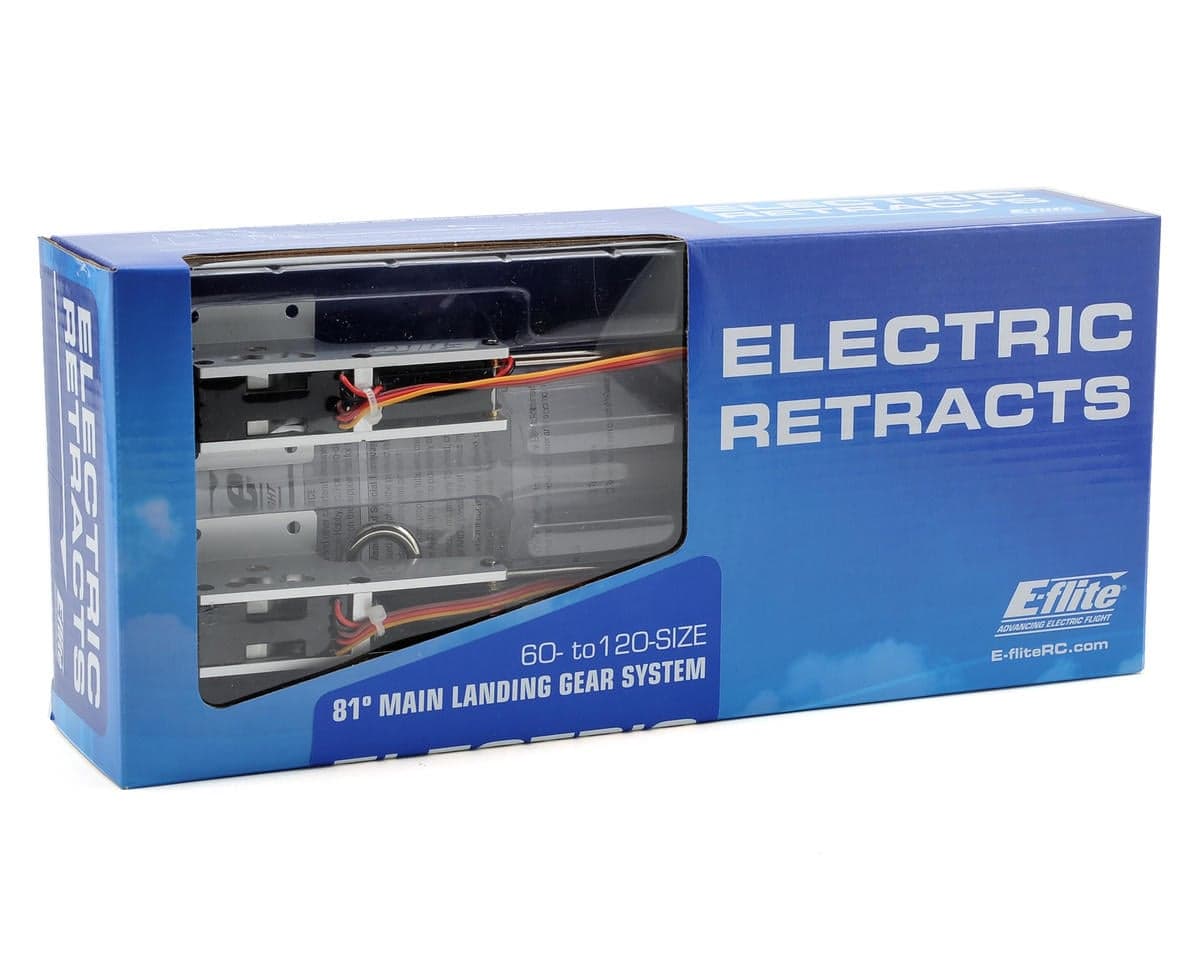

E-flite 60-120 Size 81° Strut Ready Main Electric Retracts
Part # EFLG509
Where to buy
$154.99
Prices are as last seen at the store; stock is not tracked.
About this part
This is an optional E-flite 60-120 Size 81° Strut Ready Main Electric Retract System, and is intended for use with the Hangar 9 Messerschmitt Bf 109F-2 60 airplane. You don’t have to be a master modeler to add the realism of functioning retracts to your airplane. E-flite’s completely self-contained retract system doesn’t require an air tank, complex linkages or even an extra servo. Simply bolt it into place and plug it into the receiver.
Specifications:
- Current Draw:
- Idle: 5mA
- Operating: 900mA (maximum)
- Operating Voltage Range: 4.8–7.4V
- Recommended Aircraft Weight: 8.0–15.0 lb (3.63–6.80 kg)
- Unit Weight: 130g (4.6 oz) each
- Pulse width:
- Trigger Points Down: 1.331ms
- Trigger Points Up: 1.690ms
- Operation FM and DSM:
- FM: 22ms frame rate, 5V signal
- DSM: 20ms frame rate, 3.3V signal
- Sequence Time:
- @ 4.8V: 1.25sec
- @ 6.0V: 1sec
- @ 7.4V: 0.8sec
