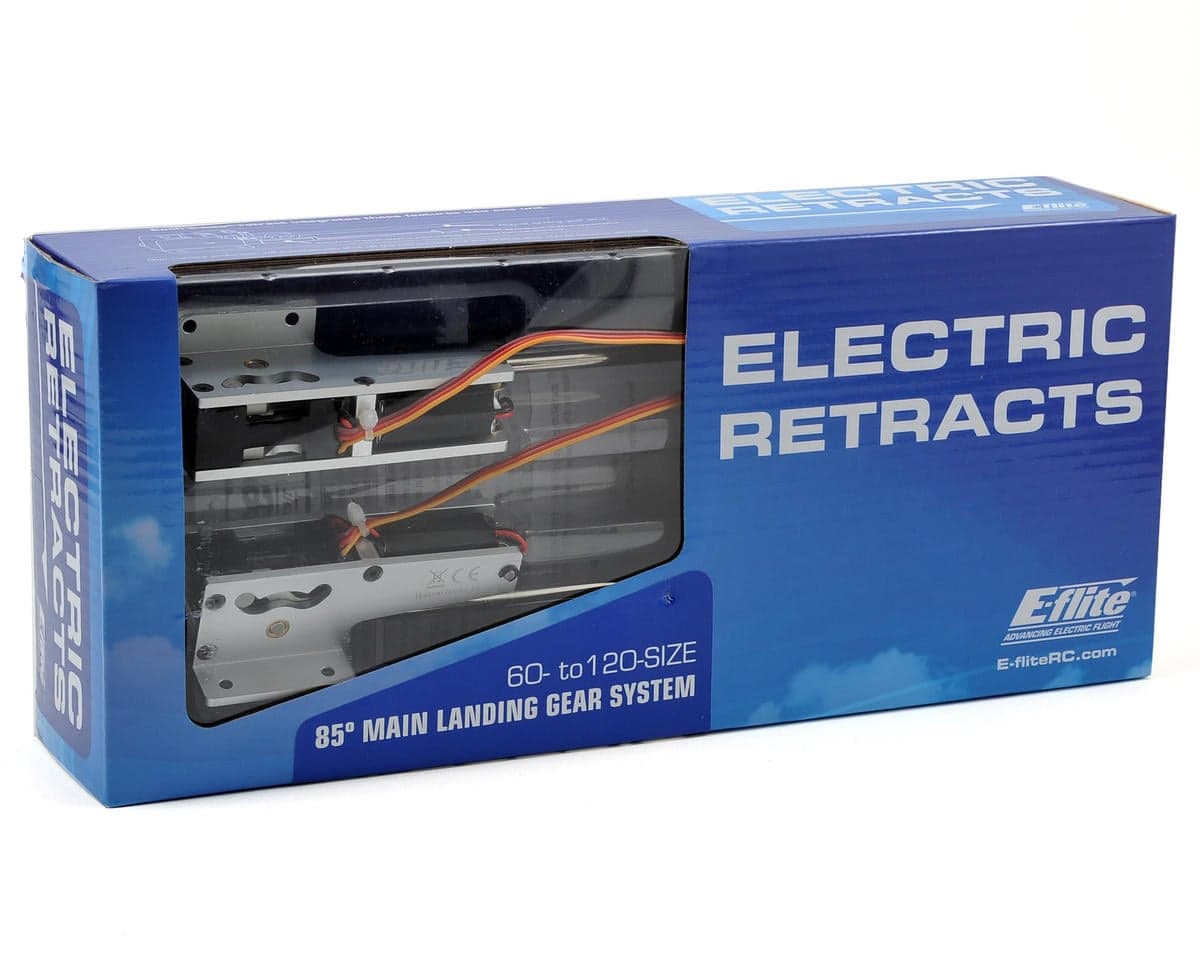

E-flite 60-120 Size 85° Strut Ready Main Electric Retract Set
About this part
This is an optional E-flite 60-120 Size 85° Strut Ready Main Electric Retract System and is intended for use with the Hangar 9 P-47D-1 Thunderbolt 60 ARF. You don’t have to be a master modeler to add the realism of functioning retracts to your airplane. E-flite’s completely self-contained retract system doesn’t require an air tank, complex linkages or even an extra servo. Simply bolt it into place and plug it into the receiver.
NOTE: Must use with E-flite 60-120 P-47 Main Strut Set (EFLG510P47).
Specifications:
- Current Draw:
- Idle: 5mA
- Operating: 900mA (maximum)
- Operating Voltage Range: 4.8–7.4V
- Recommended Aircraft Weight: 8.0–15.0 lb (3.63–6.80 kg)
- Unit Weight: 130g (4.6 oz) each
- Pulse width:
- Trigger Points Down: 1.331ms
- Trigger Points Up: 1.690ms
- Operation FM and DSM:
- FM: 22ms frame rate, 5V signal
- DSM: 20ms frame rate, 3.3V signal
- Sequence Time:
- @ 4.8V: 1.25sec
- @ 6.0V: 1sec
- @ 7.4V: 0.8sec
Reviews3.0 · 2 reviews
These are terrible. Grab screw axle designed is stupid. It’s impossible to center the wheel axle. Grab screws instantly stripped. Poor quality materials.
Put these on a Hangar 9 20cc mustang. Fit perfect with no adjustments needed. Very strong and realistic movement.
