Parts/Complete vehicles & kits/ARF / BNF aircraft/E-flite Carbon-Z Cub SS 2.1m BNF Basic Electric Airplane (2149mm) w/AS3X & Safe Select
E-flite

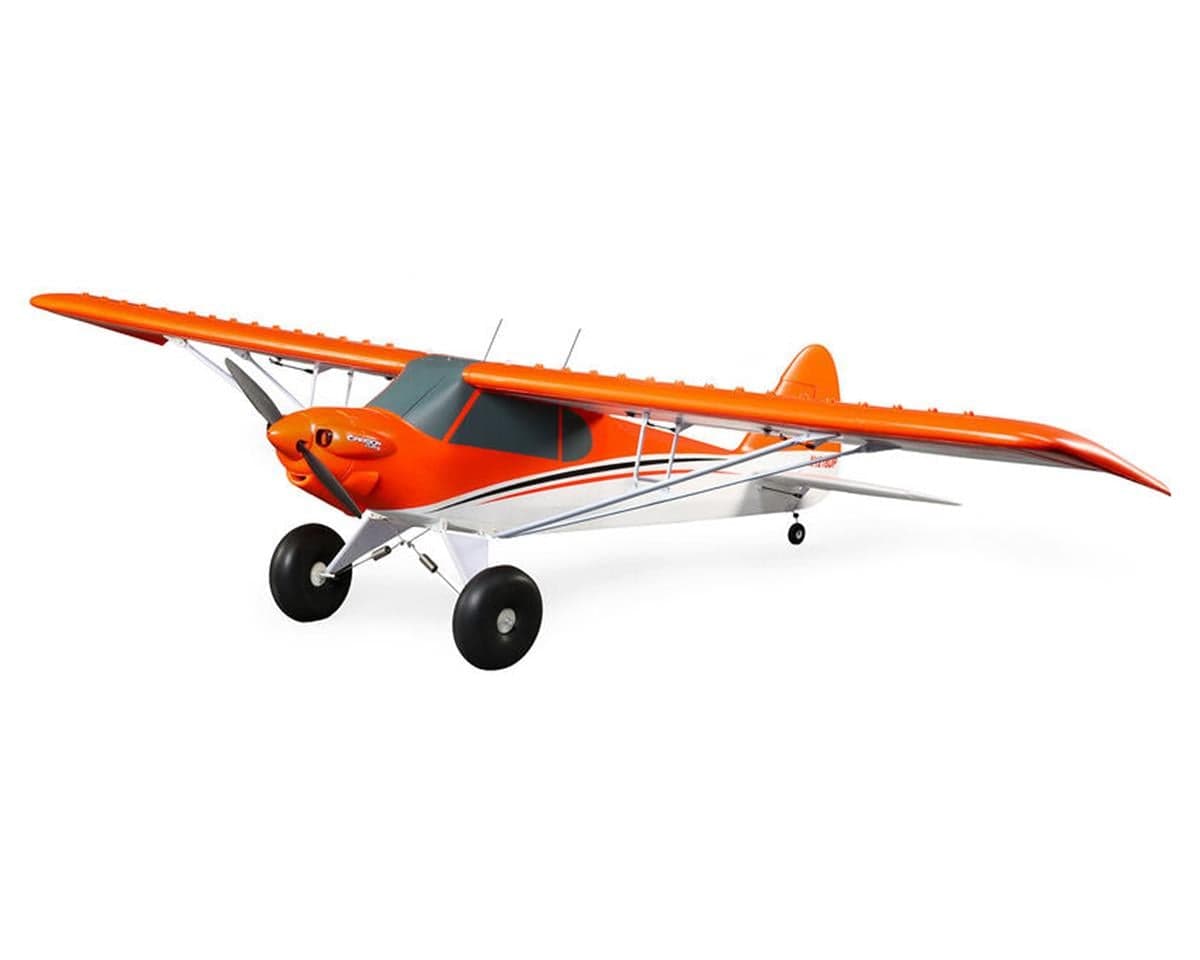

E-flite Carbon-Z Cub SS 2.1m BNF Basic Electric Airplane (2149mm) w/AS3X & Safe Select
Part # EFL1245005.0(2)
Where to buy
$529.99
Prices are as last seen at the store; stock is not tracked.
About this part
The E-flite Carbon-Z Cub SS 2.1m BNF Basic Electric Airplane makes it easier than ever to enjoy a truly unique and versatile giant-scale flying experience. Based on the original Carbon-Z Cub and equipped with an update of convenience, capability and flight performance. The largest performance update is in the main wing design. Drooped wing tips add to the a wing and aileron area for significantly improved slow speed handling and control. Safe Technology is also there to help make this an enjoyable giant scale airplane.
Features:
Features:
- An updated and refined version of the ground-breaking original Carbon-Z Cub
- Giant-scale 84"/2.1m wingspan
- Drooped wing tip design increases wing and aileron area
- Thumbscrews with decorative gas caps and snap-on antennas to easily install/remove the two-piece wing
- Modified flap design allows for full-span aileron and more
- Articulated and shock-absorbing landing gear
- Tundra-style wheels with softer tires for better ground handling
- Fully-molded top and bottom landing gear covers for a more scale-like appearance
- Quick-release, multi-position battery mounting tray fits 4–6S 3200–7000mAh batteries
- Improved motor design with added bearing for smoother performance
- IC5 connector (compatible with EC5 connectors) on the 60-amp ESC for better power delivery
- Spektrum AR637TA 6-Channel AS3X & SAFE Telemetry Receiver
- The unmatched stability and locked-in feel of exclusive AS3X technology
- Six factory-installed digital metal-geared servos
- Tow up to 3-meter span sailplanes with the included aerotow mechanism (servo sold separately)
Specifications:
Completion Level: Bind-N-Fly Basic
Wingspan: 84.6" (2149 mm)
Product Length: 56.3" (1430 mm)
Power Type: Electric
Motor Size: BL50
Approximate Flight Time: 4 - 10 minutes
Recommended Battery: 4-6S 4000-7000mAh LiPo (6S LiPo recommended if taking off from water)
Airfoil Shape: Modified Clark-Y
Wing Loading: 16.6 - 19.3 oz/sq ft (50.7 - 59.0 g/sq dm)
Approximate Assembly Time: Less than 1 hour
CG (Center of Gravity): 4.1 - 4.7" (105 - 120mm) from leading edge of wing measured at fuselage
Spinner Size: 2.4" (61 mm)
Propeller Size: 15x7E
Motor Type: Brushless
Wing Area: 1130 sq in (72.9 sq dm)
Speed: 50mph (80kph)
Minimum Required Radio: 4-channel
Landing Gear: Fixed main with steerable tail wheel
Steering: Steerable tailwheel
Flaps: Yes
Technology: SAFE Select
Servos: Included
Receiver: Included
Speed Control: Included
Battery: Sold Separately
Radio: Sold Separately
Charger: Sold Separately
Includes:
Includes:
- (1) E-flite Carbon-Z Cub SS 2.1m with:
- (1) 60A Brushless ESC (installed)
- (1) Brushless Outrunner Motor (installed)
- (6) Digital, Metal-Geared Servos (installed)
- (1) AR637T DSMX 6-Channel AS3X & SAFE Telemetry Receiver
- (1) Manual
Needed to Complete:
- Full-range 6+ channel Spektrum DSMX/DSM2 compatible transmitter
- 4–6S 14.8–22.2V 3200–7000mAh LiPo with EC5 or IC5 Connector
- Compatible LiPo charger
Reviews5.0 · 2 reviews
Sean Foleyon E-flite Carbon-Z Cub SS 2.1m BNF Basic Electric Airplane (2149mm)
One of the best airplanes Ive had in over 20 years in the hobby. Will fly stol, sport and 3D all in one. Re power it with a power 60 and talon 90 and you'll have a beast of a plane.
Paul Hammonon E-flite Carbon-Z Cub SS 2.1m BNF Basic Electric Airplane (2149mm)
This plane was easy to put together, and fly. Would order another one in a Heartbeat!!
