Parts/Electric power/Brushless motors/E-flite Park 480 Brushless Outrunner Motor, 1020Kv: 3.5mm Bullet
E-flite

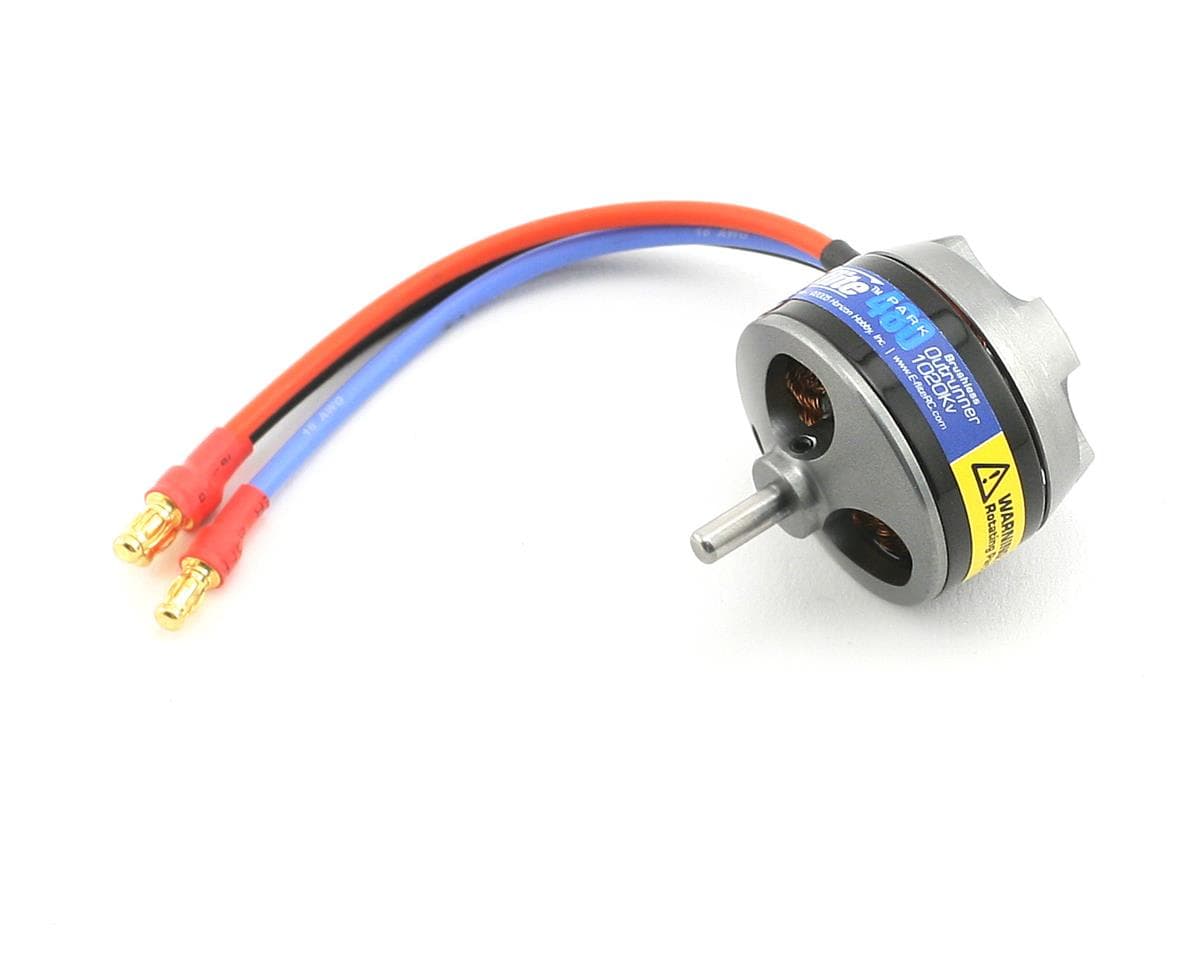

E-flite Park 480 Brushless Outrunner Motor, 1020Kv: 3.5mm Bullet
Part # EFLM1505
Where to buy
$64.99
Prices are as last seen at the store; stock is not tracked.
About this part
Ideal for 3D park flyers weighing 20 to 30 ounces (565 to 850 grams), scale park flyers weighing 25 to 35 ounces (710 to 990 grams), or models requiring up to 275 watts of power.
Features
- High-quality construction with ball bearings and hardened steel shaft
- Ideal for models requiring up to 275 watts of power

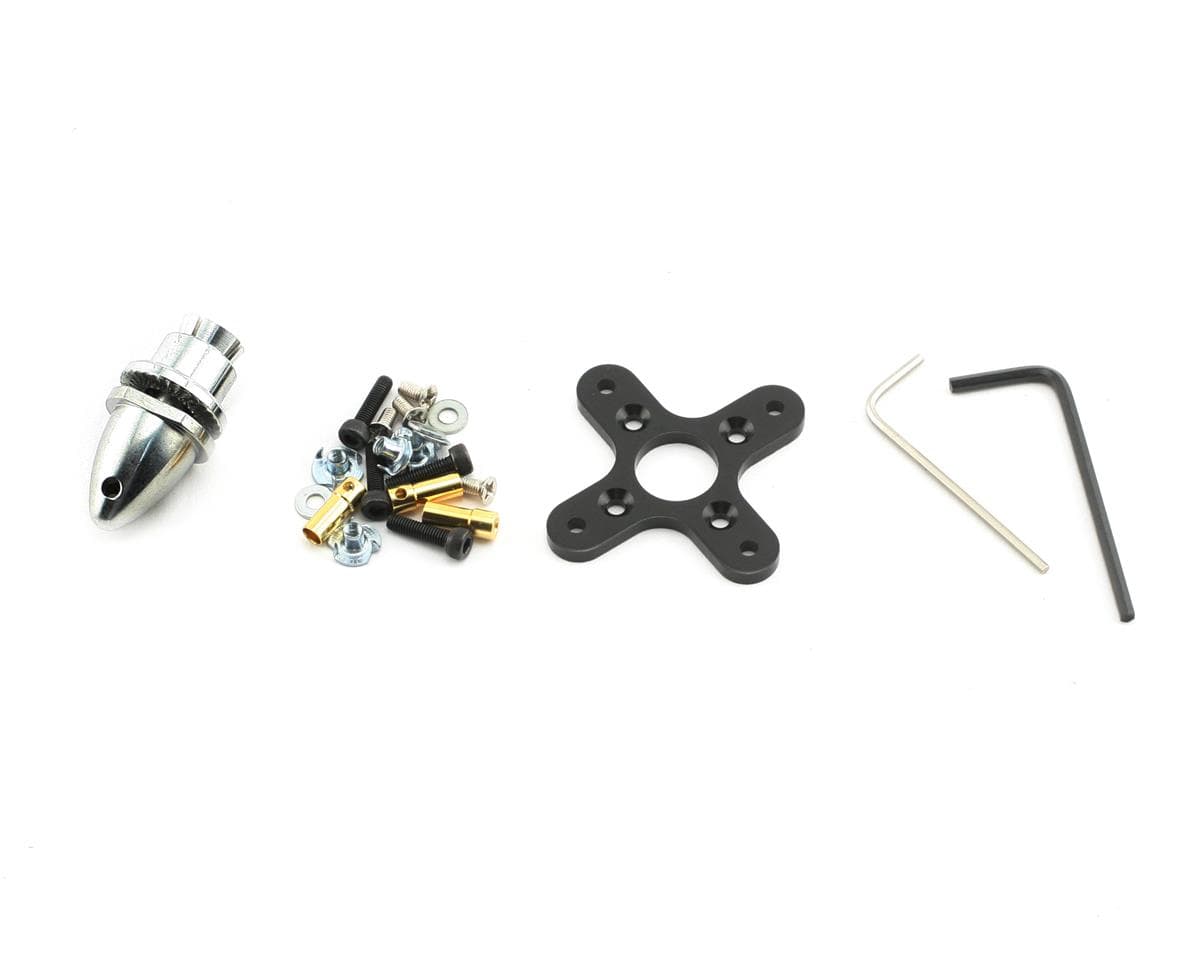

- Includes mount, prop adapters, and mounting hardware
- External rotor design—4mm shaft can easily be reversed for alternative motor installations
- Quiet, lightweight operation
- Ideal for scale park flyers 25–35 oz (710–990 g)
- Perfect match for 3D park flyers weighing 20–30 oz (565–850 g)
- Slotted 14-pole outrunner design
- High-torque, direct-drive alternative to inrunner brushless motors
Specifications
| Shaft Diameter | 4mm (.16 in) |
| Resistance | .06 ohms |
| RPM/Volt (Kv) | 1020 |
| Wire Gauge | 16 AWG |
| Voltage | 7.2 to 12 |
| Connector Type | 3.5mm Bullet |
| Idle Current (Io) | 1.10A @ 8V |
| Bushing Or Bearing | Bearing |
| Motor Type | Brushless |
| Motor Design | Outrunner |
