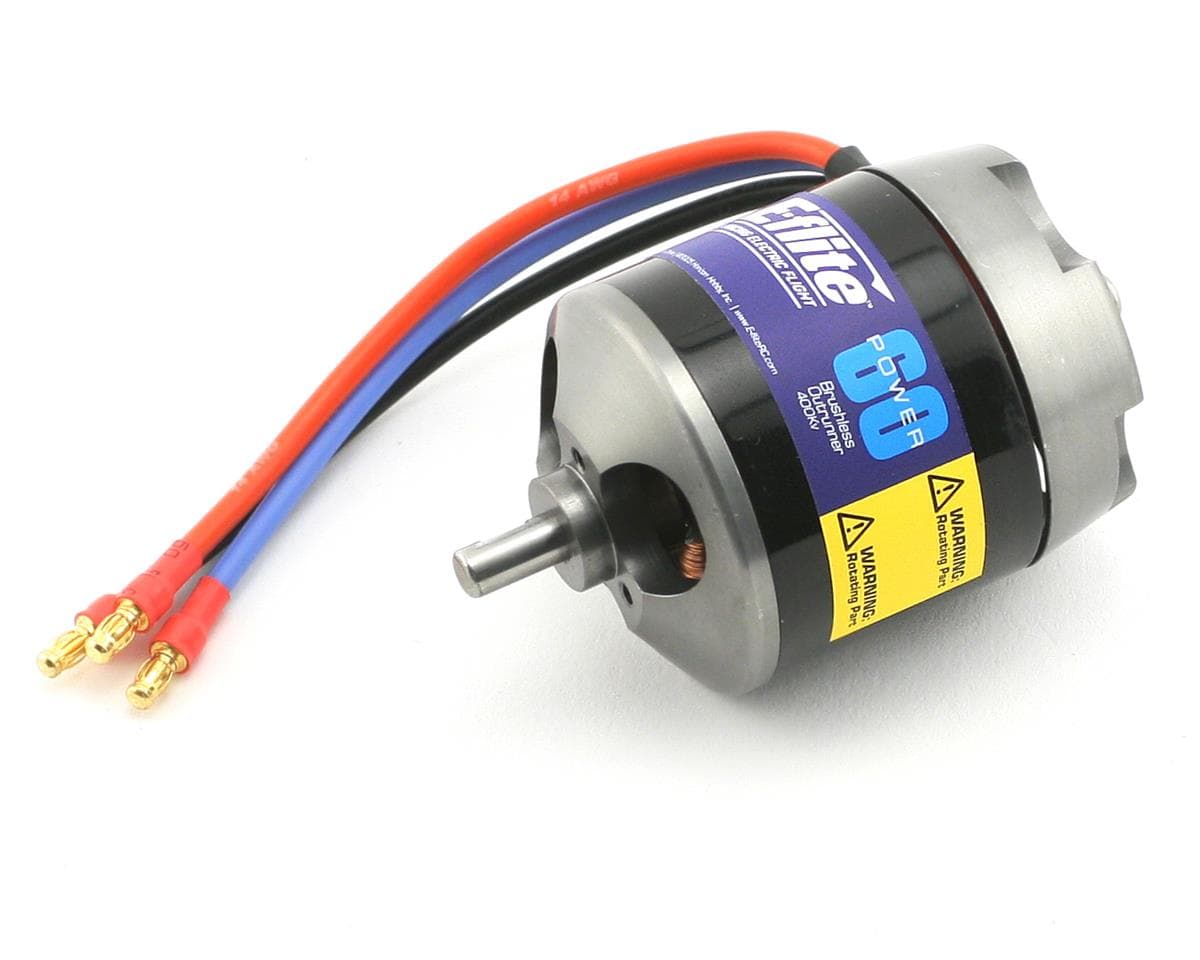

E-flite Power 60 Brushless Outrunner Motor, 400Kv: 3.5mm Bullet
Part # EFLM4060A
Where to buy
$159.99
Prices are as last seen at the store; stock is not tracked.
About this part
Ideal for 60-size sport and scale airplanes weighing 6- to 10-pounds (2.7–4.5 kg), 46-size 3D airplanes up to 7 pounds (3.2 kg), or models requiring up to 1200 watts of power.
Features
- High-quality construction with ball bearings and hardened steel shaft
- Ideal for 46-size 3D airplanes up to 7 lb (3.2 kg)
- Quiet, lightweight operation
- Slotted 14-pole outrunner design
- Ideal for models requiring up to 1200 watts of power
- Equivalent to a 60-size glow engine for 6 to 10 lb (2.7 to 4.5 kg) airplanes
- External rotor design—6mm shaft can easily be reversed for alternative motor installations

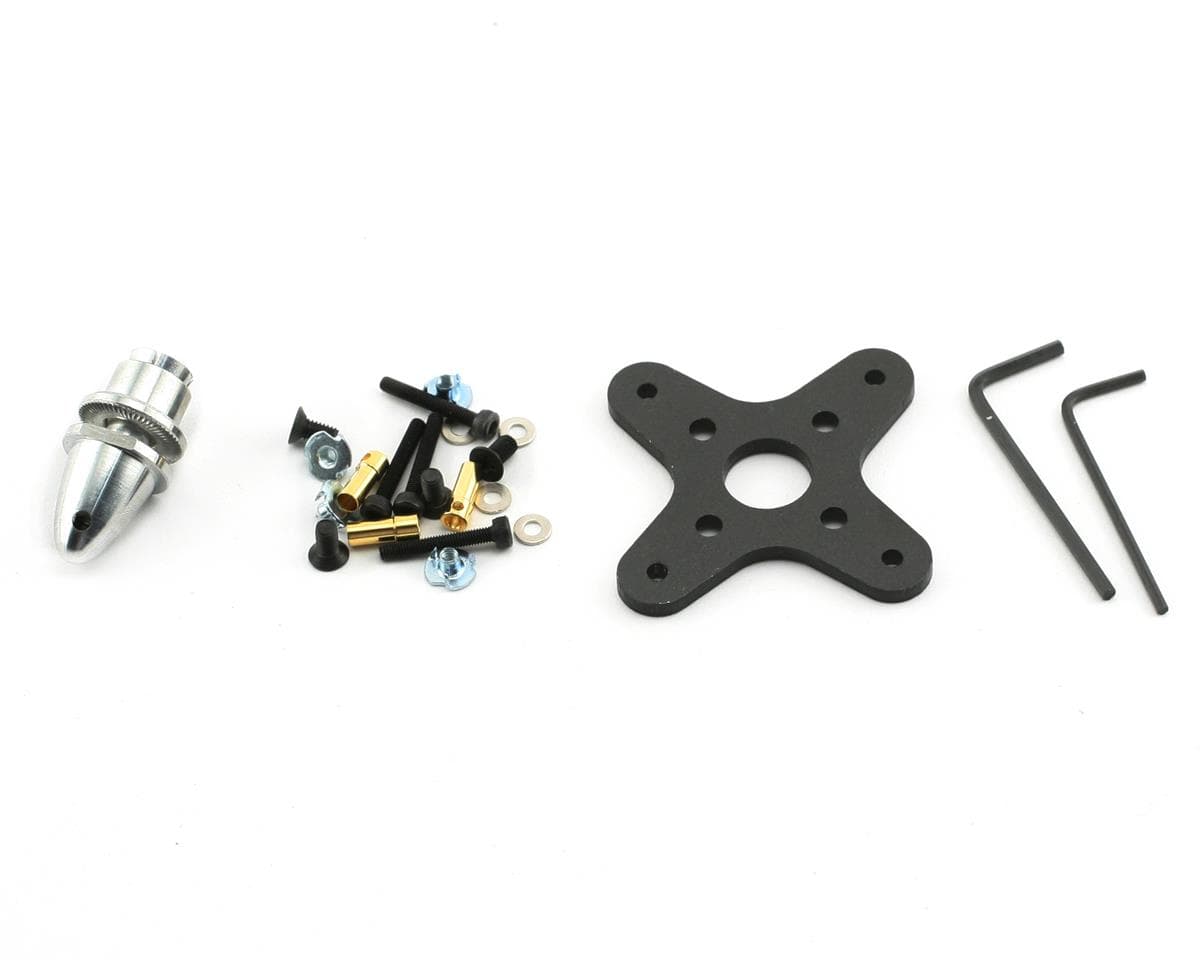

- Includes mount, prop adapters and mounting hardware
- High-torque, direct-drive alternative to inrunner brushless motors
- NOTE: Not recommended to use with E-flite 80-Amp Pro Switch-Mode ESC (EFLA1080B)
Specifications
| Recommended Prop Range | 14x8 to 16x10 |
| Idle Current (Io) | 2.70A @ 10V |
| Shaft Diameter | 6mm (.24 in) |
| Voltage | 18.5 to 28.8 |
| Wire Gauge | 14 AWG |
| RPM/Volt (Kv) | 400 |
| Outer Diameter | 2 in (50mm) |
| Connector Type | 3.5mm Bullet |
| Bushing Or Bearing | Bearing |
| Motor Design | Outrunner |
| Motor Type | Brushless |
