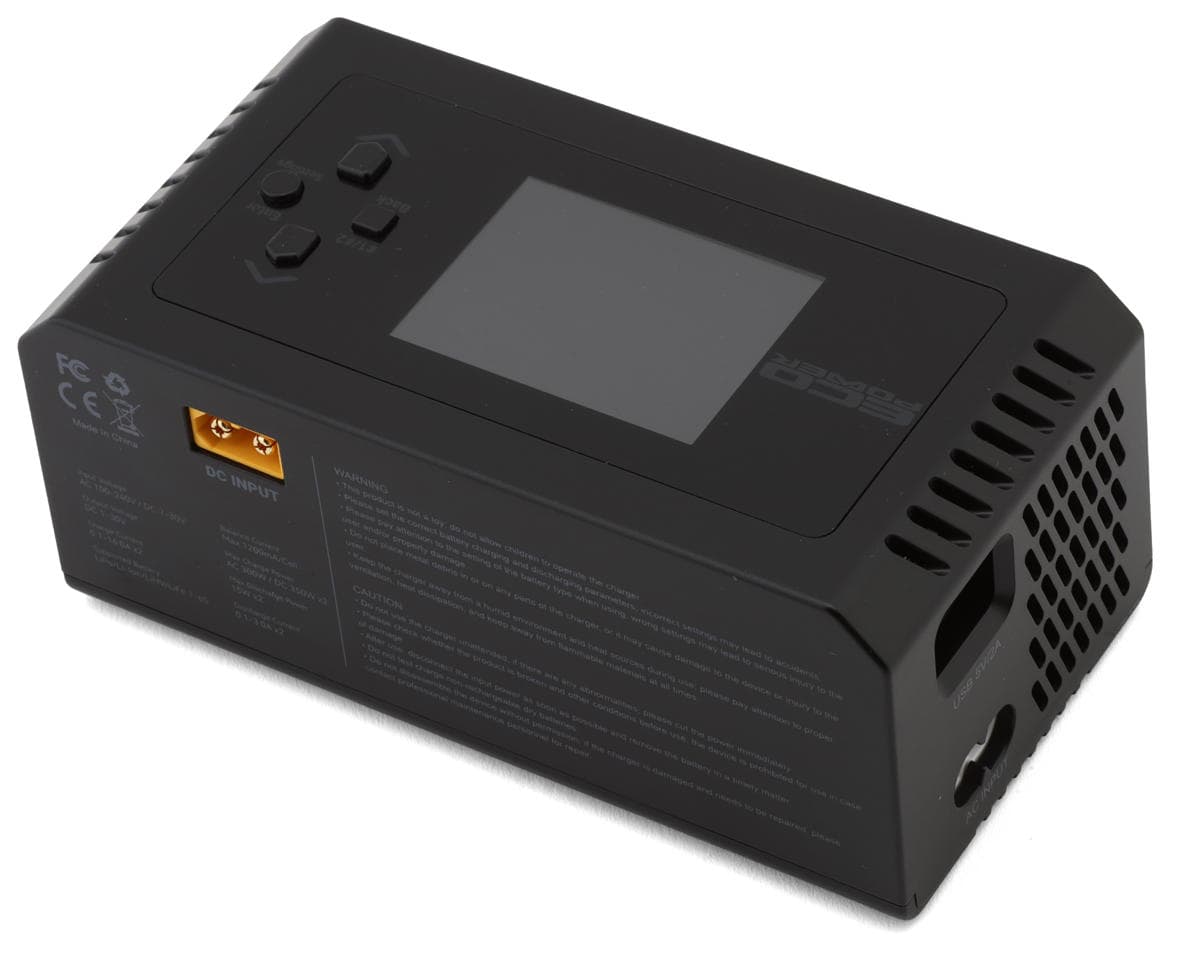

EcoPower "Electron Dual" Intelligent LiPo/LiHV/LiFe AC/DC Charger (6S/16A) (AC-300W) (DC-350W x2)
About this part
Easier, Safer, Smarter Charging with the Electron Dual
The "Electron Dual" Intelligent LiPo/LiHV/LiFe AC/DC Charger by EcoPower offers a comprehensive charging solution for modern battery needs. Designed with safety, efficiency, and user convenience in mind, it caters to both intelligent and non-intelligent batteries. Equipped with an advanced LCD display and automatic functionality, the charger simplifies the process by identifying ideal charging parameters and monitoring real-time performance. Whether you need to charge, discharge, or balance cells, the Electron Dual ensures optimal performance for every battery type.
About the Electron Dual
Dual Channel Charging Efficiency
The Electron Dual allows you to charge two batteries simultaneously, supporting up to 6S LiPo/LiFe/LiHV batteries at sixteen amps each. For advanced needs, its SyncCharging feature combines both channels to deliver a maximum of twenty-three amps. This functionality ensures that users can power through demanding applications with ease and efficiency. Its high current output can reduce charging times significantly, letting you spend more time using your equipment and less time waiting.
Advanced Intelligent Battery Features
This charger is built with an intelligent smart connector that automatically identifies the best charging parameters for compatible batteries. Its intelligent interface provides detailed insights into battery performance, including capacity, cycles, and remaining charge time. These features enhance the user experience, providing transparency and ensuring the health of your batteries. Additionally, the system adjusts charging settings to prevent overcharging, prolonging battery lifespan. Whether you're monitoring a single cell or an entire pack, the Electron Dual offers precise data to help you manage your power needs effectively.
Comprehensive Protection System
Safety is paramount with the Electron Dual, which includes a suite of protection features. Over-voltage, over-temperature, short-circuit, and timer protections safeguard your equipment and batteries during operation. The charger's reliable safety systems allow users to charge confidently without the risk of damage or malfunction. Each layer of protection is designed to prevent potential issues before they arise, ensuring a worry-free experience. Whether you're an experienced user or a beginner, the Electron Dual's built-in safeguards make it simple to operate without compromising security or performance.
Features:
- Dual-channel charging capabilities
- SyncCharging delivers up to twenty-three amps
- Supports LiPo, LiHV, and LiFe batteries
- Intelligent smart connector for auto-parameter setup
- LCD display for detailed real-time monitoring
- Compatibility with intelligent and non-intelligent batteries
- Cell balancing and external discharging options
- DigitalPower mode for versatile power output
- Comprehensive safety protection systems
- Displays detailed battery and charger diagnostics
Includes:

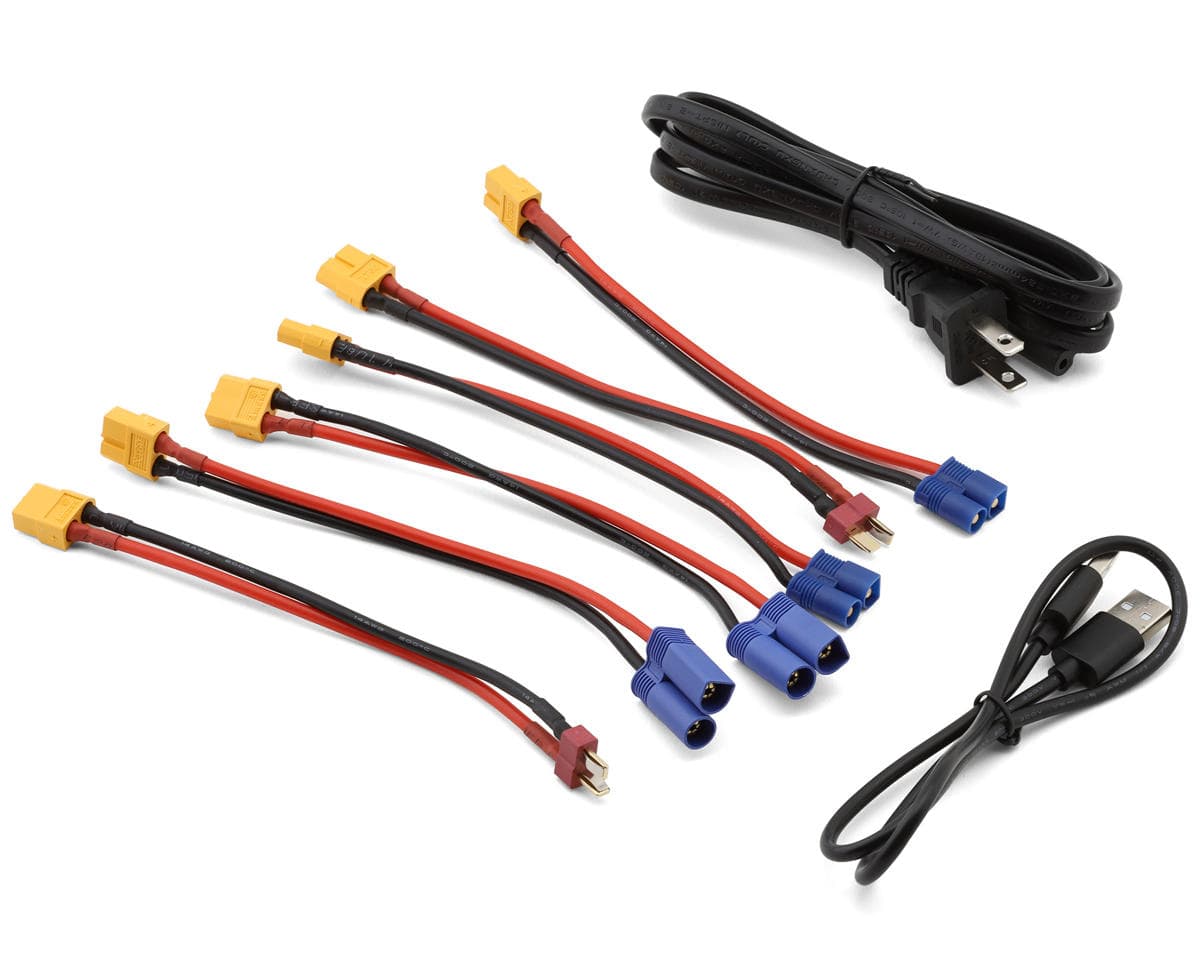

- (1) EcoPower Electron Dual Intelligent Charger
- (1) AC Power Cord
- (1) USB-A Cable
- (2) XT60 to T-Style Adapters
- (2) XT60 to EC3 Adapters
- (2) XT60 to EC5 Adapters
- (1) Instruction Manual
Specifications:
| Input Power | AC/DC |
|---|---|
| AC Input Voltage | 100-240V |
| DC Input Voltage | 7-30V |
| LiPo/LiHV/LiFe Cell Count | 1-6S |
| NiMH/NiCd Cell Count | LiPo Only |
| Pb Battery Voltage | LiPo Only |
| Digital Power Supply | 5-29V |
| Input Connector | DC XT60/AC 2-Prong Polarized |
| Output Connector | XT60 |
| AC Charge Power | 300W |
| DC Charge Power | 350W (x2) |
| Discharge Power | 15W (x2) |
| Charge Current | 0.1-16A (x2) |
| Discharge Current | 0.1-3A |
| Balance Current | 1200mAh/Cell |
| Dimensions | 5.71x2.99x2.44in (145x76x62mm) |
| Weight | 18.7oz (530g) |
*Note: Firmware software is only supported through Windows 7 and Windows 10 operating systems. Please use the "Resources" tab to update the firmware.
Manuals:
Electron Dual Manual
EcoPower Warranty Information
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.4 · 14 reviews
I had two Gens Ace iMars chargers which did not balance accurately, (even when correctly calibrated) which caused the first cell in a battery to be considerably lower than it should have been after charging (like almost 50 mV off from the factory on both chargers). I decided to look for a similar charger with the same form factor and I stumbled upon the Electron Dual, which is a rebranded iMars D300. However, despite being pretty much the same product the Electron Dual is very accurate when balancing and doesn’t have any problems at all charging and storaging. I have mine set to 4.18 v/cell and after charging a 6s 6000mAh LiPo, the final voltages ranged from 4.189v to 4.183v, which seems really good compared to my other chargers. As i mentioned before, it’s very similar to the iMars D300, other than the redesigned cooling vents which the D300 doesn’t have. This similarity becomes even more obvious as my crawler G-Tech 4300 LiHV packs are recognized by the Electron Dual and begin charging as normal with the correct settings, which is a win in my book as I now have an accurate charger that can also charge G-Tech batteries automatically. The quality of the charger feels great and nothing vibrates or makes strange noises. However, two things the D300 has that the Dual doesn’t seem to have is the ability to charge NiMH or set the menus to alternate languages. For me, this isn’t an issue, but if you want to charge older batteries or are not an English speaker, these could pose a problem. Other than that, it’s a great charger and I’ll definitely be replacing my D300s with these.
I've only used it twice so far but works really great for the price. I like how it's compact and small so I can take it to the races with me.
Works great! I love being able to just plug the battery in and the charger takes care of the rest.
Worst charger I have ever owned. The voltage readouts for the cells are wildly inaccurate. The fan is noisy. It ruined a set of brand new SMC batteries when I was cycling them. Set the discharge to 3.5V but it took them all the way down to 2.8V. I have been in touch with Gens Ace and Amain support about this and they refuse to do anything.
Awesome charger, small, compact and super easy to use. Also charges super fast.
Reviewers generally praise the charger as compact, easy to use, fast, and good value, particularly for beginners and racers who travel. One detailed reviewer, a verified owner who previously used a similar iMars-based charger, reports that this unit balances accurately and finishes charging with cell voltages close to the set target. Criticism is more mixed: one reviewer reports inaccurate cell voltage readouts, a noisy fan, and over-discharge of new batteries, and says the manufacturer and battery brands did not respond. Another notes that balance boards are not included, and one reviewer found it will not charge a smart battery without the smart connection, even with an adapter. Several reviews are brief and do not mention specifics.
- + Compact and portable
- + Easy to use and navigate
- + Fast charging
- + Good value for the price
- − Balance boards not included
- − Inaccurate cell voltage readout (single report)
- − Noisy fan (single report)
- − Will not charge smart batteries without smart connection
