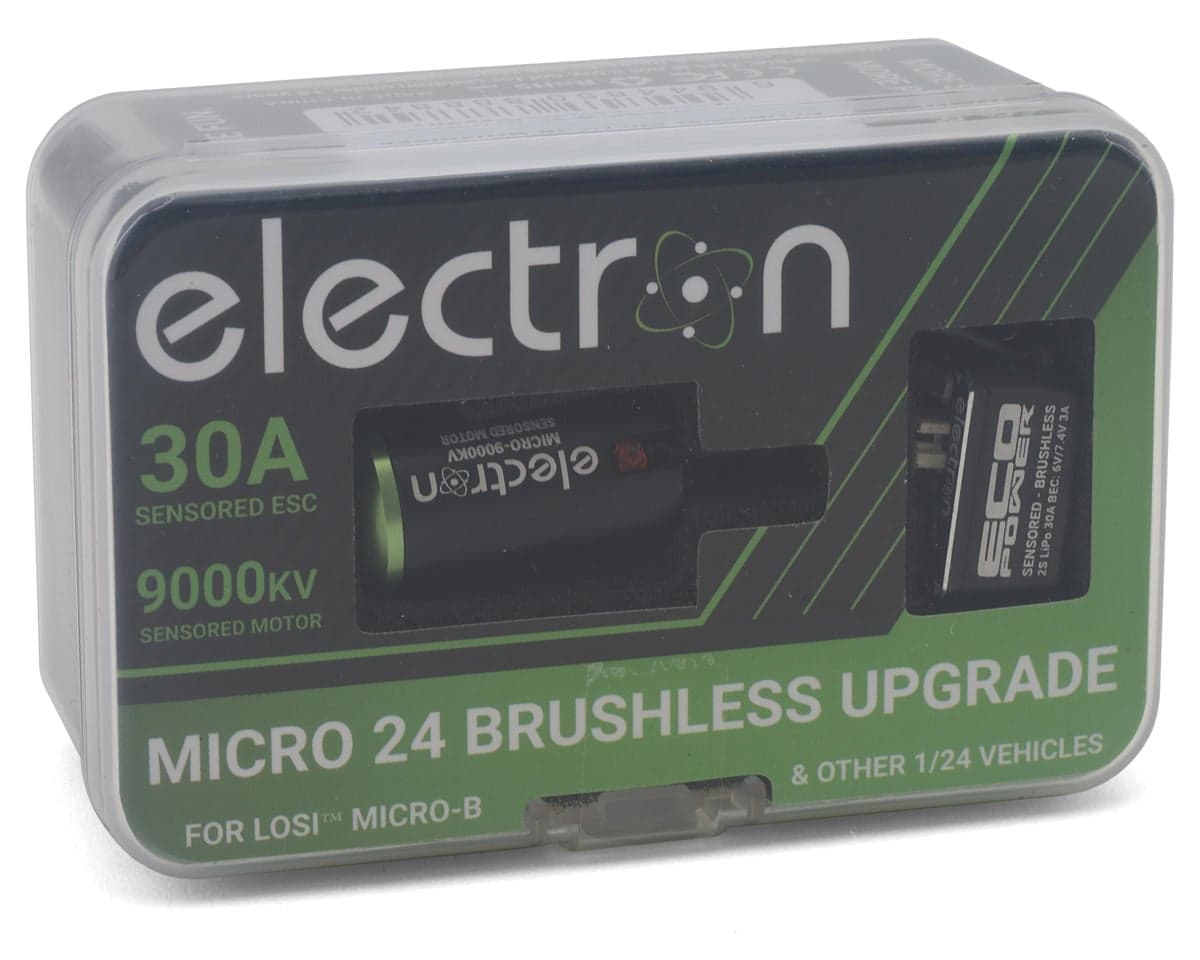

EcoPower "Electron" Micro 24 Brushless Upgrade Combo (Sensored ESC & Motor) For Losi™ Micro-B/T
About this part
Plug-N-Play Brushless Micro-B/T Upgrade!
The EcoPower "Electron" Micro 24 Brushless Upgrade Combo is the ultimate performance boost, specifically designed to upgrade Losi Micro-B and Micro-T vehicles. Featuring a high-output brushless ESC and compact form factor, this combo delivers exceptional power, responsiveness, and control in tight spaces. Its lightweight construction and CNC aluminum housing ensure both durability and thermal efficiency. Whether you're racing on a tight indoor track or just want to upgrade your micro rig, this combo gives you pro-level capability in a mini package.
About the Brushless ESC & Motor Combo
Compact and Lightweight Power
Tiny Size, Big Output: The Electron ESC is engineered to deliver impressive performance in an ultra-compact design. Measuring just 21x13.8x11mm and weighing only 7.6g (including wires), it fits effortlessly into even the tightest RC builds. Despite its small footprint, it handles a continuous 30A output with no compromise in power delivery—perfect for micro racing platforms that demand high efficiency and performance.
Advanced Customization and Control
Tune It Your Way: With optional support for a separately sold program card, users can access a wide range of adjustable parameters including throttle curves, brake force, motor timing, and more. This allows for highly tailored performance suited to different tracks, driving styles, and battery types. Calibration is quick and easy, ensuring your setup is dialed in with minimal hassle, and a clear LED indicator system helps you stay informed on ESC status during operation.
Built-in Protection and Thermal Design
Smart, Durable, Reliable: Built with a full CNC aluminum housing, the ESC ensures excellent heat dissipation and durability under demanding conditions. It also features intelligent protection systems such as thermal shutdown, low voltage cutoff, signal loss detection, and sensor cable disconnection alerts. Each potential fault is indicated by a specific LED flash pattern, allowing for quick diagnostics and reduced risk of long-term damage to your components.
Features:
- Ultra-compact size for tight installations
- 30A continuous and peak output
- Lightweight for better power-to-weight ratio
- Full CNC aluminum case for better heat dissipation
- Sensorless brushless motor compatibility
- Easy calibration and setup via LED feedback
- Optional program card for tuning settings
- Built-in 6.0V/7.4V 3A BEC
- Supports 2S LiPo input (6.0–8.4V)
- LED-based protection feedback for troubleshooting

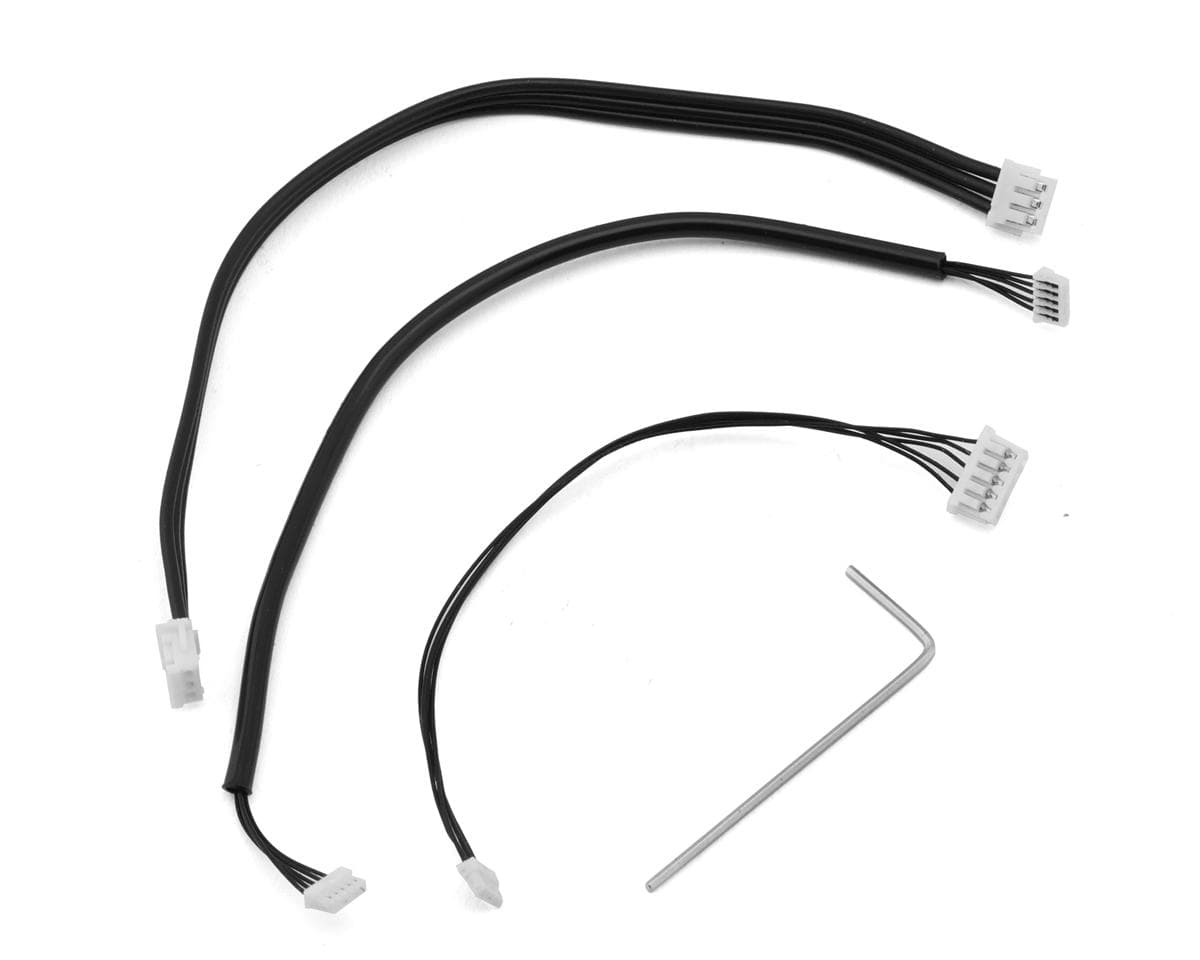

Includes:
- (1) EcoPower Electron 30A Brushless ESC
- (1) 100mm BEC Wire
- (1) Sensor Cable
- (1) Hex Wrench
- (1) Pre-soldered ESC Motor Leads
- (1) User Manual
- Note: Micro 24 Program Card includes cable for connecting to full size receivers
Specifications:
ESC
|
|||||||||||||||||||||||||||||||||
Motor
|
|||||||||||||||||||||||||||||||||
ESC Manual
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews2.2 · 6 reviews
Before I finished installing it in my Micro-B immediately I noticed that the wire lengths were not designed for this vehicle. The battery lead is way too long and the sensor cable is several inches longer than the motor wires. During installation I found it is NOT drop-in. The battery holder plate will need to be shaved down to allow the motor to clear it, and some tabs in the receiver tray need to be removed. The ESC will NOT fit in the stock body, but seems to barely fit inside the Jconcepts S2 body. It’s definitely very zippy, but there is a noticeable delay when applying a hard throttle punch that doesn’t occur when you roll on the throttle. The battery connector used is not designed for wire-to-wire connection. If you pull on the wires instead of the plastic housing, you will pull the metal contacts out of the housing. I got this on sale for $70.
Motor gets extremely hot and runs through a battery in less than 2 minutes. I bought two and will be returning the unopened kit and changing to a different brand. Would not recommend at all. Seems like a coin flip if you get a good kit or not. Not worth the chance IMO.
Mine gets very very hot with little use and proper gear mesh etc. i cant put a smaller pinion on even after trying different motor plates. I strongly would not recommend this product and regret my purchase A main did refund me for this so I still would never hesitate purchasing anything from a main. Exceptional customer service
Easy to install and now my Micro-B rips! Super fast and has not overheated. Biggest performance boost to my car so far.
I have had some bad luck with this. It doesn't fit nicely in the micro b and required some modification to get it to fit. After this, I have noticed that it gets really hot quickly. I have a lot of experience setting mesh on gears so I know it's not adding any unwanted resistance. I have even set my nb4 + radio to limit 60% output on it. The other problem now is that the esc has been flashing signalling an issue with the sensor wire. I changed it and it still isn't working. I wouldn't recommend buying this.
Reviewers report a fast, responsive ride from this brushless combo, with one reviewer finding it easy to install. Overheating is the dominant complaint: several owners say the motor gets very hot quickly and drains a battery in under two minutes, with one noting the problem persisted even without the drivetrain attached. Installation is reported as not drop-in on the Losi Micro-B, requiring modifications such as shaving a battery plate, removing receiver tray tabs, or using a different body. Other issues include overlong wiring, a throttle punch delay, a sensor-wire fault warning, and a programming card that is needed but sold separately. One reviewer reports a workaround using thermal pads. Most reviews are negative, and the sample is small.
- + Strong acceleration and speed
- + Easy installation for one owner
- + Reported good customer service on refund
- − Motor and ESC overheat quickly
- − Not drop-in fit; requires modification
- − Overlong wires and sensor cable
- − Program card required and sold separately
