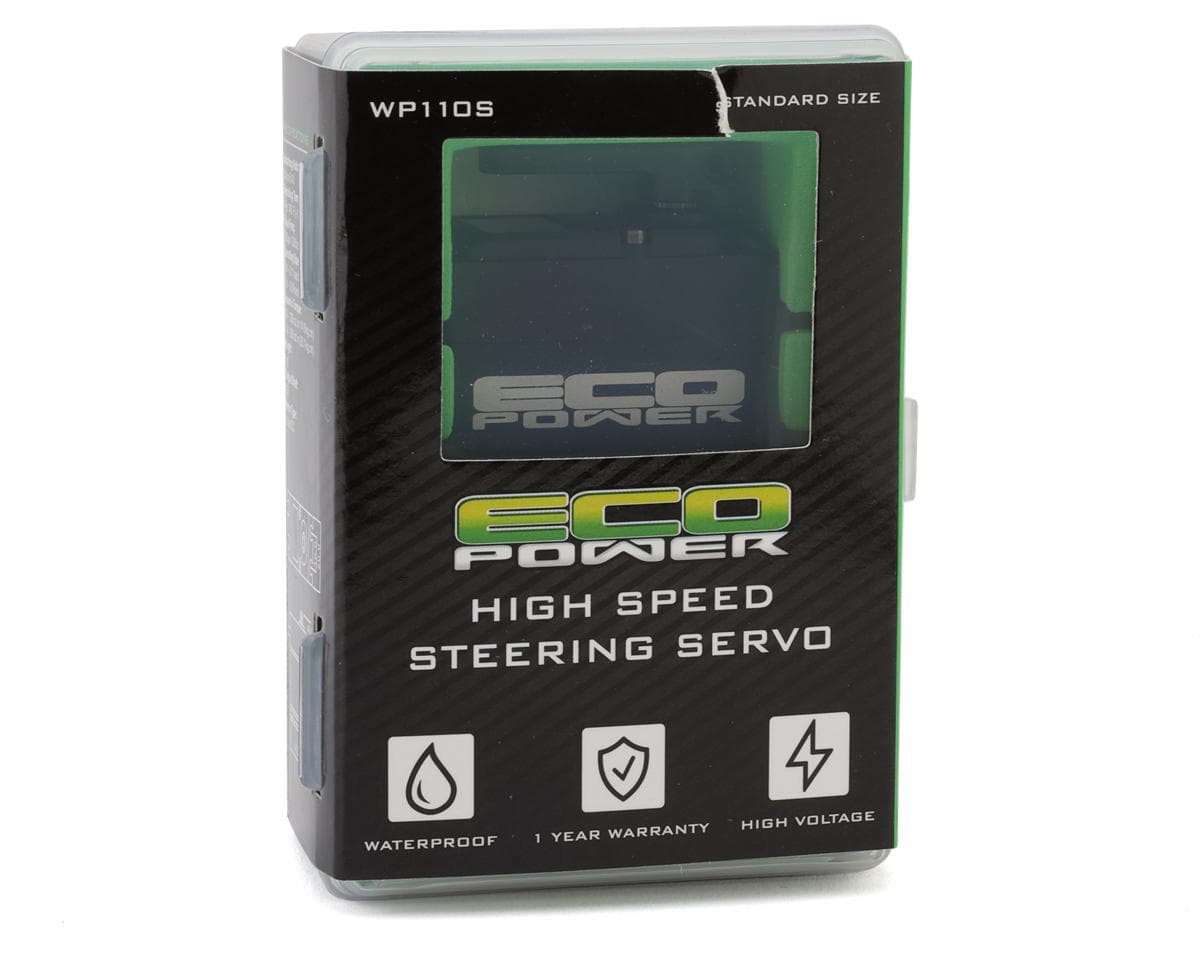

EcoPower WP110S Waterproof High Speed Metal Gear Servo for 1/10 2wd Traxxas™, ARRMA™, Losi™ & other vehicles
About this part
The EcoPower WP110S Cored Waterproof "High Speed" Metal Gear Digital Servo is a great option if you are looking for an affordable, waterproof RTR servo upgrade. This high speed version of the EcoPower WP110T cranks out 280 oz-in of torque at 7.4V, with 0.09sec/60°! This makes it a great choice for 1/10 bashing, 1/10 racing, RC boat and even RC airplane applications. Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
The WP110S is waterproof up to 1-meter so driving in the rain, puddles, snow and mud are not an issue. With .09 transit speed at 7.4V, the WP110S is fast enough to make is a good choice for steering, aileron control and much more! Metal gears were used to create a durable gear train that is easily serviced, and the plastic case with aluminum center section keeps the servo running cool while remaining lightweight. Plus, the digital circuitry allows compatibility with vehicles that use traction control/gyro systems, making the WP110S a viable option for models that are equipped with a stability system. Want more? We back it with a 1 year warranty - so grab a handful of throttle and drive with confidence knowing that the weather is not going to slow you down.
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- Affordable option for 1/10 trucks, 2WD and 4WD 1/10 buggies, boats and more!
- Waterproof up to 1 meter
- 280 oz-in of torque @ 7.4V, and .09 transit speed
- Digital circuitry
- Cored motor
- Metal gears
- Lightweight plastic upper and lower case w/black anodized aluminum center case
- Dual ball bearings
- 220mm servo lead

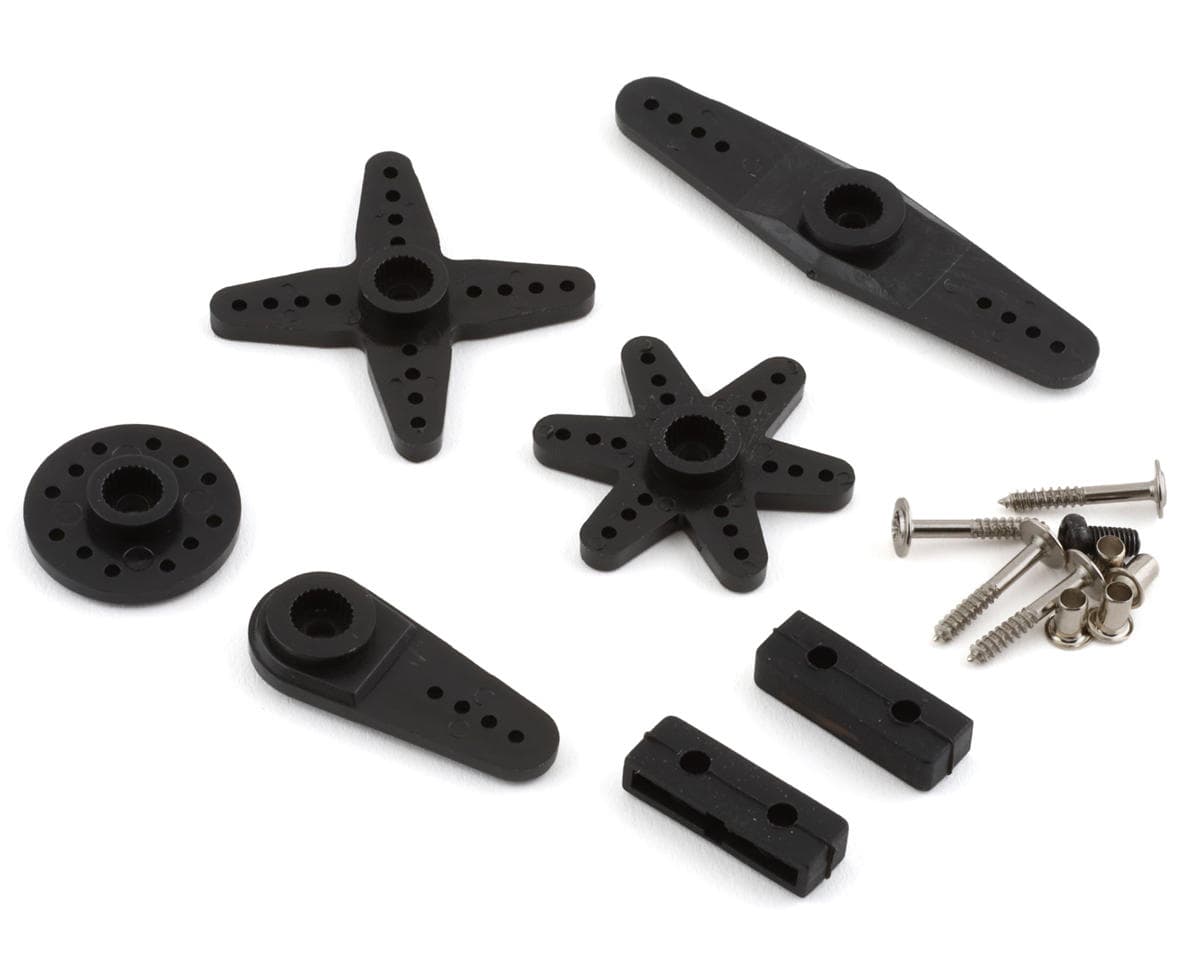

- Includes plastic star, 4 way, dual, single and round arm type servo horns and mounting hardware
- 1 Year warranty against manufacturer defects*
| Servo Model
|
WP110S
|
| Recommended Application | 1/10 Scale Surface
|
| Waterproof
|
Yes
|
| Operating Voltage | 6.0V - 8.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V | 0.11/60° sec |
| Operating Speed @ 7.4V | 0.09/60° sec |
| Dynamic Torque @ 6.0V | 206 oz-in (14.8 kg-cm) |
| Dynamic Torque @ 7.4V | 280 oz-in (20.1 kg-cm) |
| Motor Type | Cored DC |
| Output Shaft | 25 Tooth |
| Gears | Metal w/Lifetime Gear Warranty
|
| Weight | 53g |
| Pulse/Frequency | 1520Us / 333hz |
NOTE: Be sure to set your End Point Adjustments when using this servo to ensure long life and performance. For more information on End Point Adjustments, please watch the video below.
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews3.2 · 10 reviews
Good servo for the money. Using this as a throttle servo on my Mugen MBX8R. 4 stars because it doesn't always center perfect but on the track as a throttle servo I can't really notice a problem. Edit: second time out using it, it started smoking and stopped working. Appears to have shorted out and caught fire. Edit 2: Amain took care of me quickly and the warranty was great. If the second servo works better I'll update my review as flukes can happen with anything. Hopefully my smokey servo was just a one off. Edit 3: replacement servo appears to be working well.
Bought two of them for euro trucks. neither servo will center. Should of stuck to savox
This servo worked great on my fury 223s! Plenty of speed and power and comes with a lot of servo horns, would highly recommend
Bought 3 2 work well as they should. One won’t center every time
Mine just plain does not work. Right out of the box, it centered when plugged into the receiver. Then, it does nothing. The Savox it was set to replace does still react (poorly), so the fault is not in the receiver or transmitter.
Reviewers of the EcoPower WP110S are split. Several praise its speed, power and value for the price, and some report trouble-free use on 1/10 vehicles including a Slash and a Fury 223s. A recurring complaint is centering: multiple reviewers say the servo does not center reliably, and one describes it as slow and veering. Other reports include a unit that stopped working, one that smoked and failed during a second outing (a replacement was reported to work), a unit that did nothing after setup, and a screw that came loose after one run. One reviewer also mentioned owning other variants (WP110T) without issue. Ratings range from 1 to 5 stars, and the reviews do not agree on overall reliability.
- + Good speed and power
- + Good value for the price
- + Comes with multiple servo horns
- + Works well on some vehicles
- − Often fails to center properly
- − Some units stop working or fail
- − Reports of loose screws
- − Reported as slow by one reviewer
