EcoPower WP110T Waterproof High Torque Metal Gear Servo for 1/10 2WD Traxxas®, ARRMA®, Losi® & Other Vehicles
About this part
The EcoPower WP110T Cored Waterproof "High Torque" Metal Gear Servo is a great choice if you are looking for an affordable, waterproof RTR upgrade. The WP110T pumps out 280 oz-in of torque at 6.0V, making it an excellent option for 1/10 monster trucks, 2WD and 4WD 1/10 buggies, as well as boats, and other surface applications that can benefit from a high torque, waterproof servo. Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
The WP110T is waterproof up to 1-meter so driving in the rain, puddles, snow and mud are not an issue. With .16 transit speed at 6.0V, the WP110T is fast enough to make is a good choice for 2 speed and dig shift servo applications as well! Metal gears were used to create a durable gear train that is easily serviced, and the plastic case with aluminum center section keeps the servo running cool while remaining lightweight. Plus, the digital circuitry allows compatibility with vehicles that use traction control/gyro systems, making the WP110T a viable option for models that are equipped with a stability system. Want more? We back it with a 1 year warranty - so grab a handful of throttle and drive with confidence knowing that the weather is not going to slow you down.
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- Includes one aluminum clamping servo horn
- Affordable option for 1/10 monster trucks, 2WD and 4WD 1/10 buggies, boats and more!
- Waterproof up to 1 meter
- 280 oz-in of torque @ 6.0V, and .16 transit speed
- Digital circuitry
- Cored motor
- Metal gears
- Lightweight plastic upper and lower case with black anodized aluminum center case
- Dual ball bearings
- 220mm servo lead

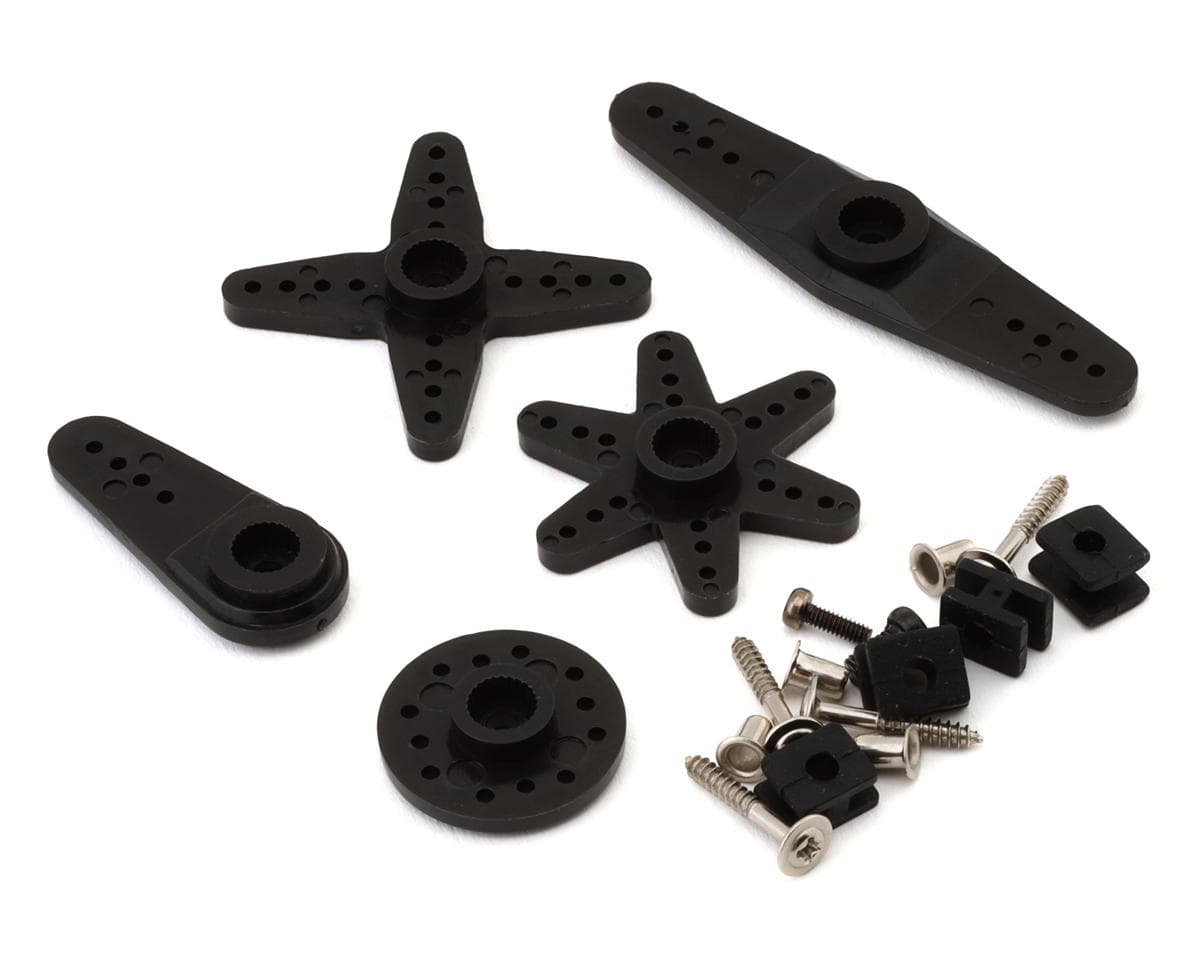

- Includes plastic star, 4 way, dual, single and round arm type servo horns and mounting hardware
- 1 Year warranty against manufacturer defects*
| Servo Model
|
WP110T
|
| Recommended Application | 1/10 Scale Surface
|
| Waterproof
|
Yes
|
| Operating Voltage | 4.8V - 7.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 4.8V | 0.18/60° sec |
| Operating Speed @ 6.0V | 0.16/60° sec |
| Operating Speed @ 7.4V | 0.14/60° sec |
| Dynamic Torque @ 4.8V | 175 oz-in (12.6 kg-cm) |
| Dynamic Torque @ 6.0V | 280 oz-in (20.1 kg-cm) |
| Dynamic Torque @ 7.4V | 334 oz-in (23.9 kg-cm) |
| Motor Type | Cored DC |
| Output Shaft | 25 Tooth |
| Gears | Metal w/Lifetime Gear Warranty
|
| Weight | 1.87oz (53g) |
| Pulse/Frequency | 1520µs / 333hz |
Note: Be sure to set your End Point Adjustments when using this servo to ensure long life and performance. For more information on End Point Adjustments, please watch the video below.
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews3.9 · 48 reviews
I had a bad experience with this servo and after writing a poor review of it, Amain customer service contacted me to find out some more information. We determined that my servo was an early version which has since been upgraded. They assured me that I shouldn't have experienced the issue and that they have done extensive testing and stand by the product. They sent me a replacement servo at no cost to me. I'm giving this servo 5 stars due to the incredible customer service I received. Im going to give it a shot in my rc boat again, I feel confident it will perform well. I would like to thank Amain, that kind of service is hard to find nowadays and is truly appreciated. Update 9/8/21 Well,servo was submerged for about 2-3 minutes about 10inches deep in my sunk rc boat again. After the last failure I had with one I took extra precautions and plastic dip sprayed entire servo, put an o-ring under the horn with lots of grease. To no avail, servo failed again. Moisture got inside and ruined potentientiometer again. Amain is still an awsome company but this servo is splashproof at best. I would not recommend it for an RC boat.
I purchased a total of 5 of these servos. 3 of them failed durring the first battery they ran on. All three of the failed servos failed in the same way. A tooth broke off the large gear under the smaller gear where the servo horn attaches. I contacted customer service explaining the issue and they promptly responded asking for pictures. I sent two pictures of two of the servos clearly showing the broken tooth and have not heard back from them in 2 business days. My disappointment in this product is only eclipsed by my disappointment in their customer service.
I love these servos, I run them in all my rc vehicles..
I bought 3 of these to replace the dual servos in my E Revo 2.0 plus a spare. A year later I still haven’t needed the spare. These things have plenty of power and are as responsive as you could expect. A friend recommended them to me and I’d definitely recommend these to anyone!
Great servo for most if you’re looking durability, torque and waterproof. I ran a single one of these in a ERevo 2.0 for a while and while it’s a tad slow for that, it was completely serviceable. I would say it’s likely equivalent in feel to the stock dual servos. However, I would like so suggest a alternate version of this servo. For many 1/10 scale applications a higher speed servo would be a much more noticeable upgrade vs the higher torque. I would say the 110s (there’s a idea for the name) would be an excellent option if it provided a minimum of 180oz in of torque and around a .10 transit on 6v. Maybe a adding in a little more torque and settling for a .11 would be fine as well but it seems to me like a piece of the market no high quality name has quite tackled yet and I would love to see that come to market. It would easily become my go to 1/10 basher and street servo.
Reviewers generally find the EcoPower WP110T a strong value servo, praising its torque, waterproofing, metal gears and easy installation in a range of 1/10 vehicles, with several noting it outperforms stock servos. Responsiveness is described as adequate rather than fast, with some reviewers wishing for more speed. Reliability is the main point of disagreement: a number of reviewers report servos overheating, locking up, stripping teeth or failing within a few runs or months, while others report long service lives. Several reviewers say customer service handled replacements promptly, though one reported no response to photo requests. Reviews appear to span multiple production versions, and one reviewer noted an early version that has since been upgraded.
- + Strong torque for the price
- + Waterproof and metal gear construction
- + Easy direct bolt-on installation
- + Long service life for many owners
- − Overheating and failure reported on some units
- − Gears stripping or teeth breaking
- − Slower than some competing servos
- − Inconsistent reliability between units
