EcoPower WP173-X24 Aluminum Digital Micro Servo Direct Fit For Axial™ SCX24 (HV) (Waterproof)
About this part
The Revolution of Powerful Mini Servos!
EcoPower is proud to introduce the WP173-X24 Aluminum Digital Micro High-Voltage Servo! The most innovative and powerful micro servo tailored specially for the Axial™ SCX24 platforms as the ultimate performance upgrade! Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
About the WP173-X24 Servo
Design

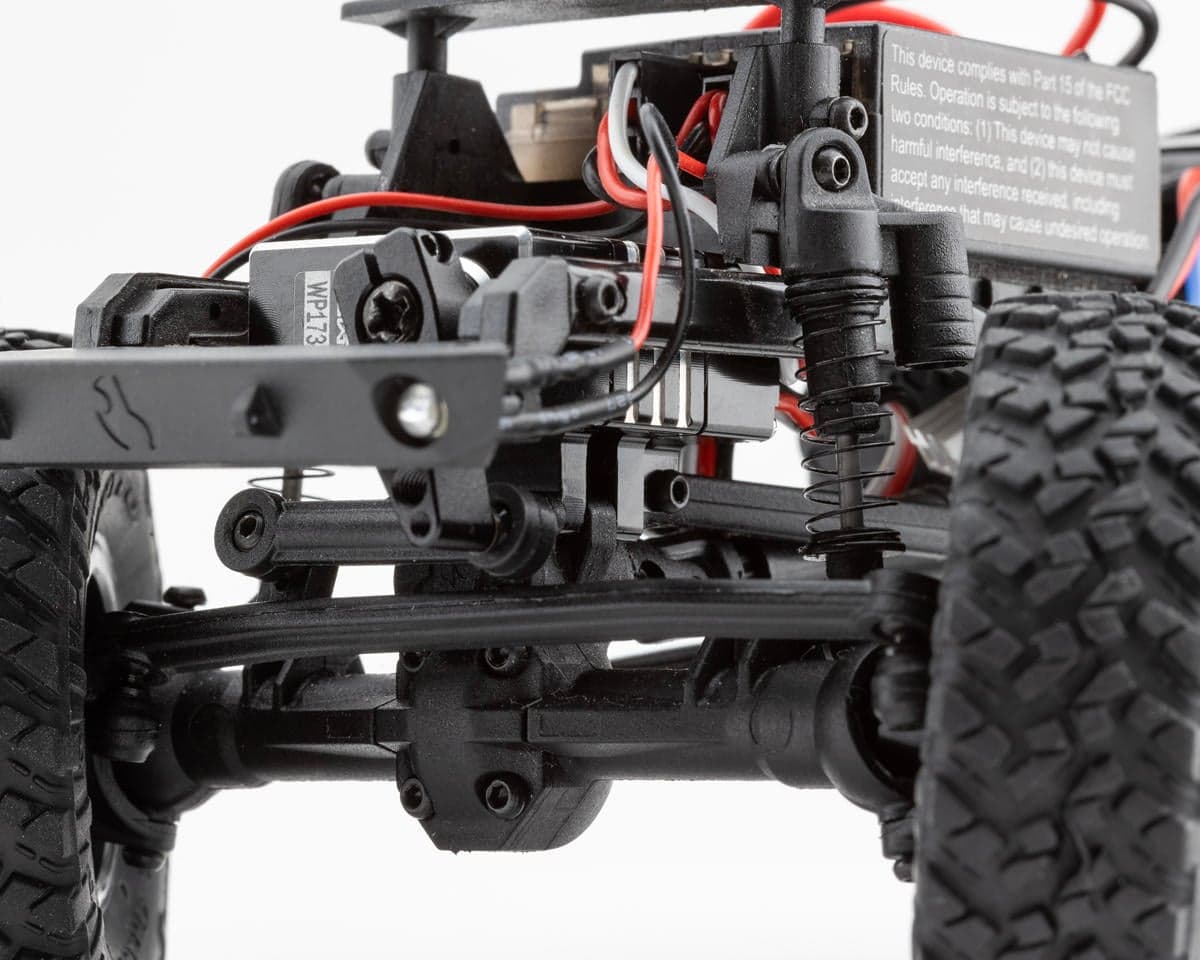

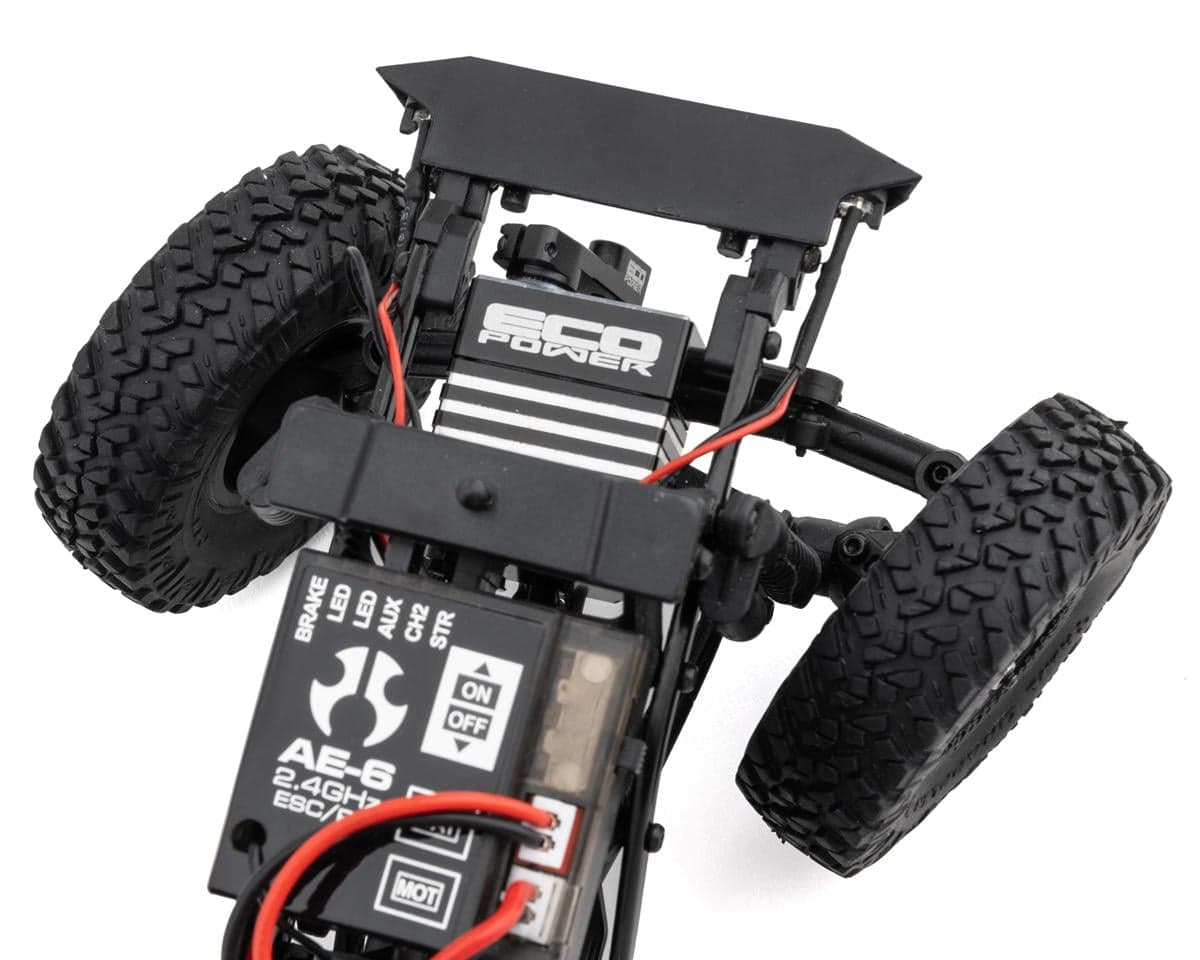

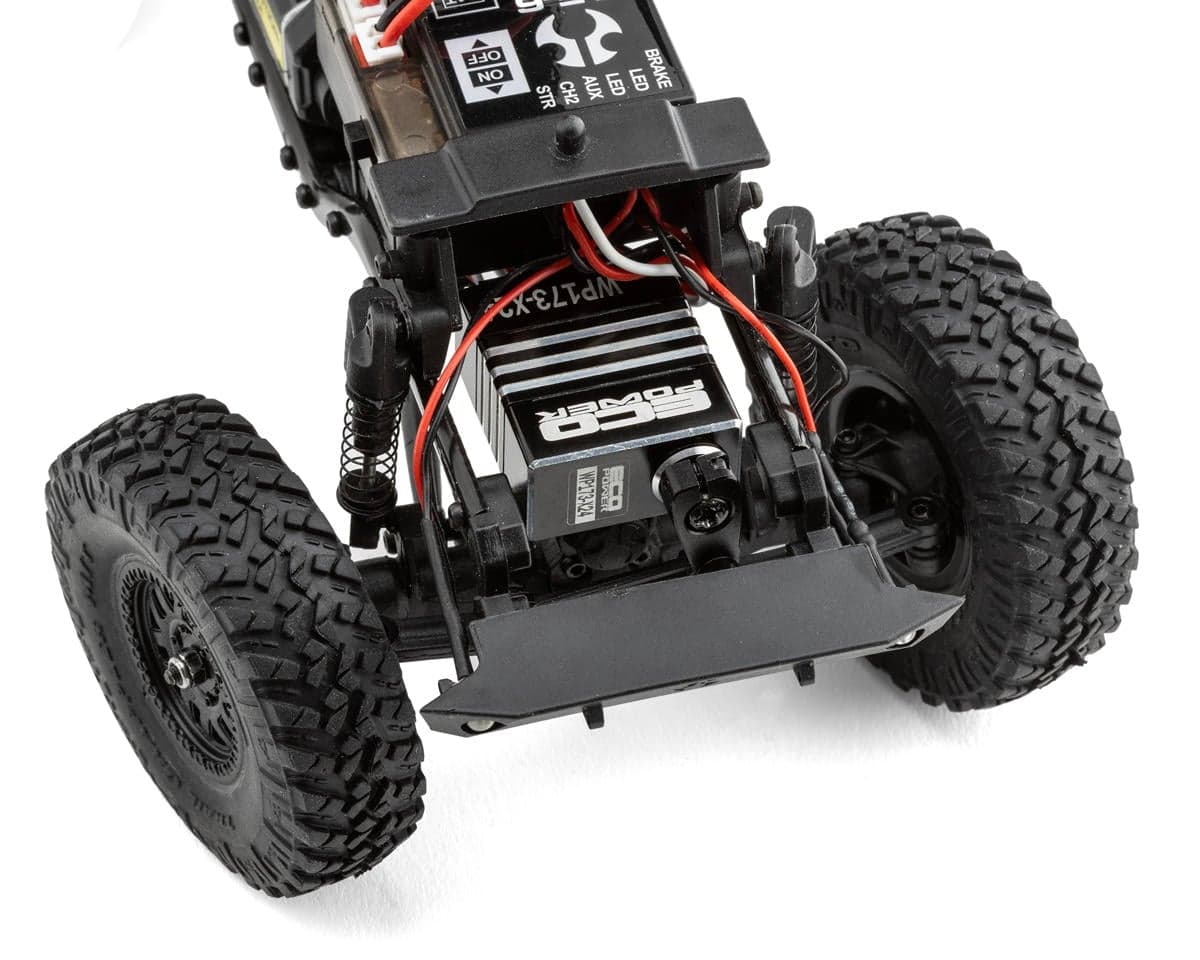

Unlike all other traditional servos on the market, the EcoPower WP173-X24 micro Servo features a first of its kind innovative built-in direct axle and links mount system that revolutionized the game by allowing the WP173 to be directly mounted to the SCX24 axles with no need for a servo mount! This brilliant mounting system provides a sturdy and rigid fit with extra clearance between the chassis rails!
Extreme Torque & Speed
Whether you are into hardcore Comp rock crawling, backyard crawling or just hitting the trails, a high-torque and speed steering servo will always be at the top of the upgrade list, especially for rigs with heavier tuning weights and wheels! This EcoPower WP173-X24 micro servo is capable of outputting 173oz.in (12.5Kg-cm) of torque and 0.07 sec/60 of speed at 8.4 Volts to turn even the heaviest micro rig wheels smoothly, precisely and with ease!
Robust Construction & Drivetrain
When it comes to durability and reliability, the EcoPower WP173-X24 micro servo is fitted with all metal heavy-duty gears, an all-aluminum finned case to maximize heat dissipation and an aluminum 25T servo horn to ensure maximum durability and flex-free operation under the harshest conditions! In addition, the EcoPower WP173-X24 is fully elements and waterproof! Allowing you to navigate through wet and dirt-filled trails with peace of mind!
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- The ultimate upgrade for Axial™ SCX24
- Extreme torque and speed levels
- Innovative direct axle mount
- Eliminates the need for separate servo mount
- All CNC-machined aluminum case
- 1-year warranty!
- High voltage capable of operating on up to 8.4 Volts!
- HD all metal gears and output shaft spline
- Waterproof design
- Powerful coreless motor
Includes:
- (1) Lifetime Gear Warranty

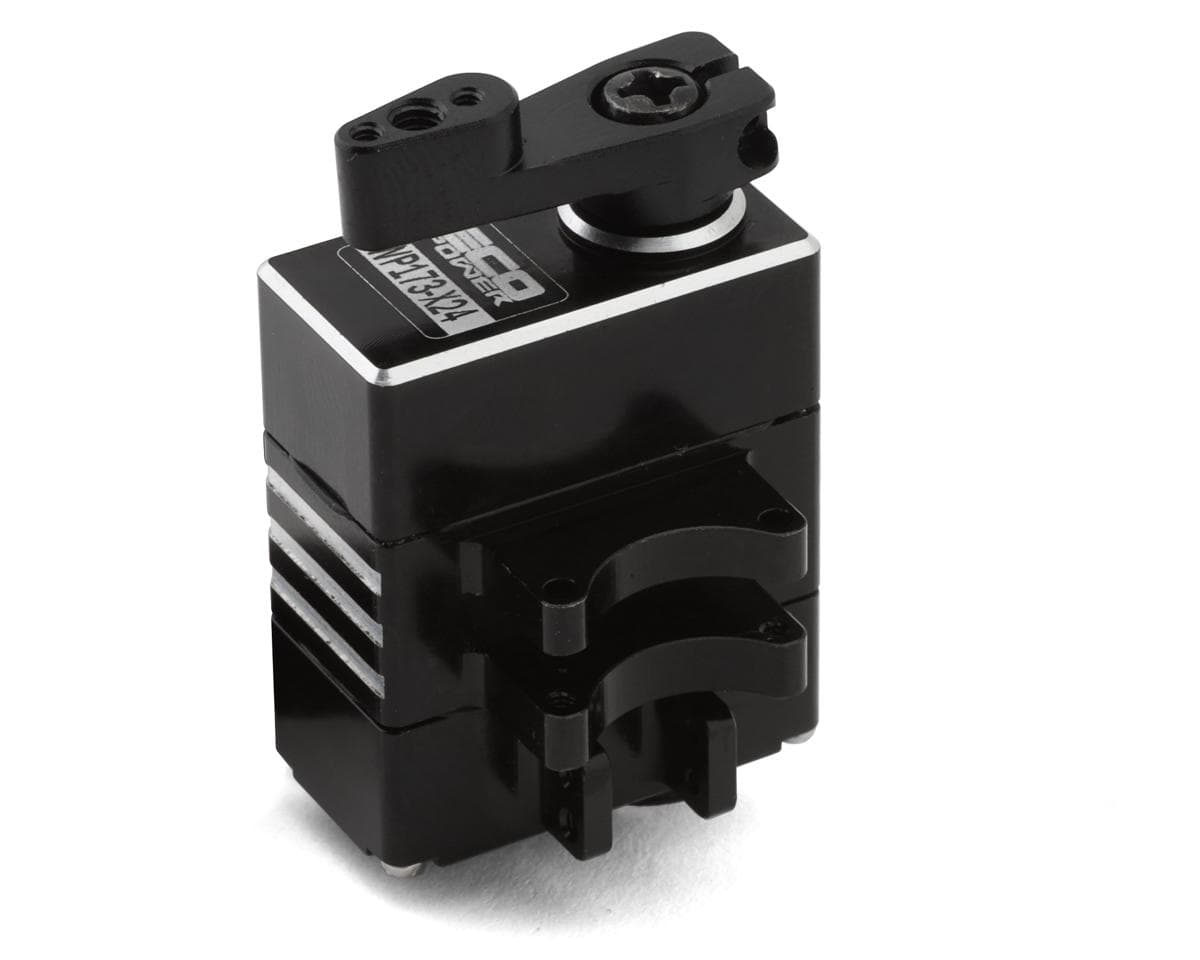

- (1) WP173-X24 Aluminum Digital Micro Servo
- (1) Aluminum Servo Horn

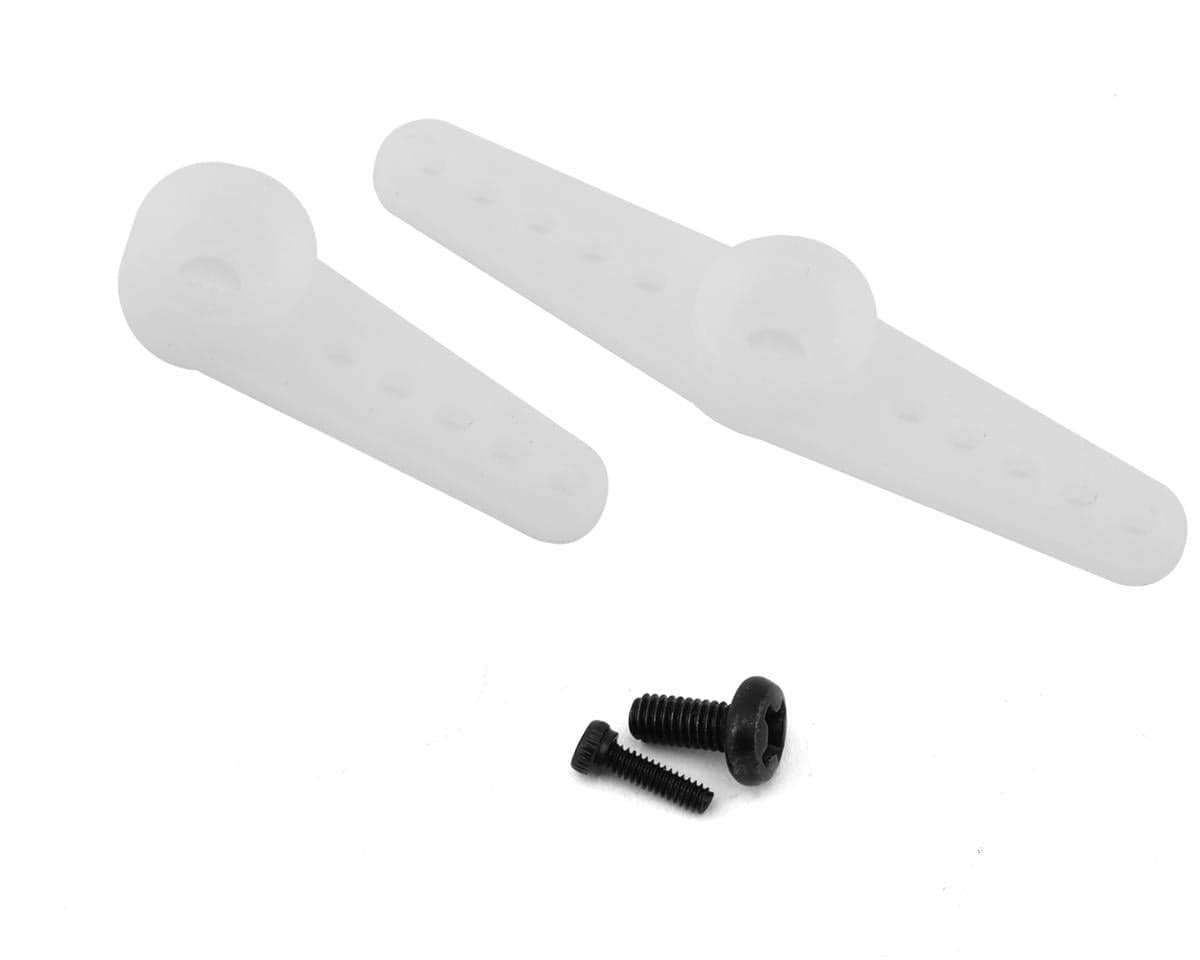

- (2) Composite Servo Horns
Specifications:
| Application | 1/24 & 1/18 |
|---|---|
| Input Voltage | 6V-8.4V |
| Speed | |
| @6.0V: | 0.09 sec/60 |
| @8.4V: | 0.07 sec/60 |
| Torque: | |
| @6.0V: | 123oz.in (8.9Kg-cm) |
| @8.4V: | 173oz.in (12.5Kg-cm) |
| Motor | Digital Coreless |
| Output Shaft | Mini 25T |
| Gear Material | Metal w/Lifetime Gear Warranty |
| Dimensions (LxWxH) | 0.9x0.47x1.25in (23x12x31.75mm) |
| Weight | 16g |
*Tech Note: This servo is compatible with all SCX24 platforms and wheelbase EXCEPT the Deadbolt version!
**Tech Note: Do not exceed 8.4 Volt as it might damage the servo
***Tech Note: Although this servo is waterproof, submerging it under water for longer periods may degrade and decay the seal points
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews3.2 · 5 reviews
Gears stripped a couple months in warranty does not cover gears and from what I can tell they don’t sell replacement gears?
Im only 3 batteries in and already need a gearset !!! Just normal crawling with an scx24 gladiator!!! Im hoping its a fluke...very disappointed to say the least!!! Was on stock v2 esc so not a good sign if you want to run it at 8.4v....bummer.....Update... Amain was very quick to warranty the servo and make it right !!
Seems to be a great servo good power nice quality, but unfortunately doesn’t work with the MEUS Scx24 axles the dif cover plate contacts the link mount that is on the servo and won’t allow you to mount this servo on that axle. Will mount on stock style axle and dif covers.
Awesome upgrade for the scx24. Direct fit and easy to install
Didn’t even make it 2 months. The direct mount to stock axles was nice but wouldn’t buy this again.
Five verified owners rated this SCX24 direct-fit waterproof aluminum digital micro servo between 1 and 5 out of 5, averaging about 3.2. Two reviewers reported gear stripping within a few months, one of whom noted the warranty excluded gears and that replacement gearsets were not apparently sold. One reviewer said the servo was quickly warrantied by the seller after gear failure. Reviewers agree it fits stock-style axles and differentials with a direct mount and is easy to install. One reviewer praised power and build quality but found it incompatible with MEUS SCX24 axles because the differential cover contacts the link mount on the servo. Gear durability is the recurring concern, and reviews are few.
- + Direct fit on stock SCX24 axles
- + Easy installation
- + Good power and build quality
- + Quick warranty replacement reported
- − Gears strip after a few months
- − Gears not covered by warranty or available as spares
- − Incompatible with MEUS SCX24 axles
- − Fails to last beyond two months for some owners
