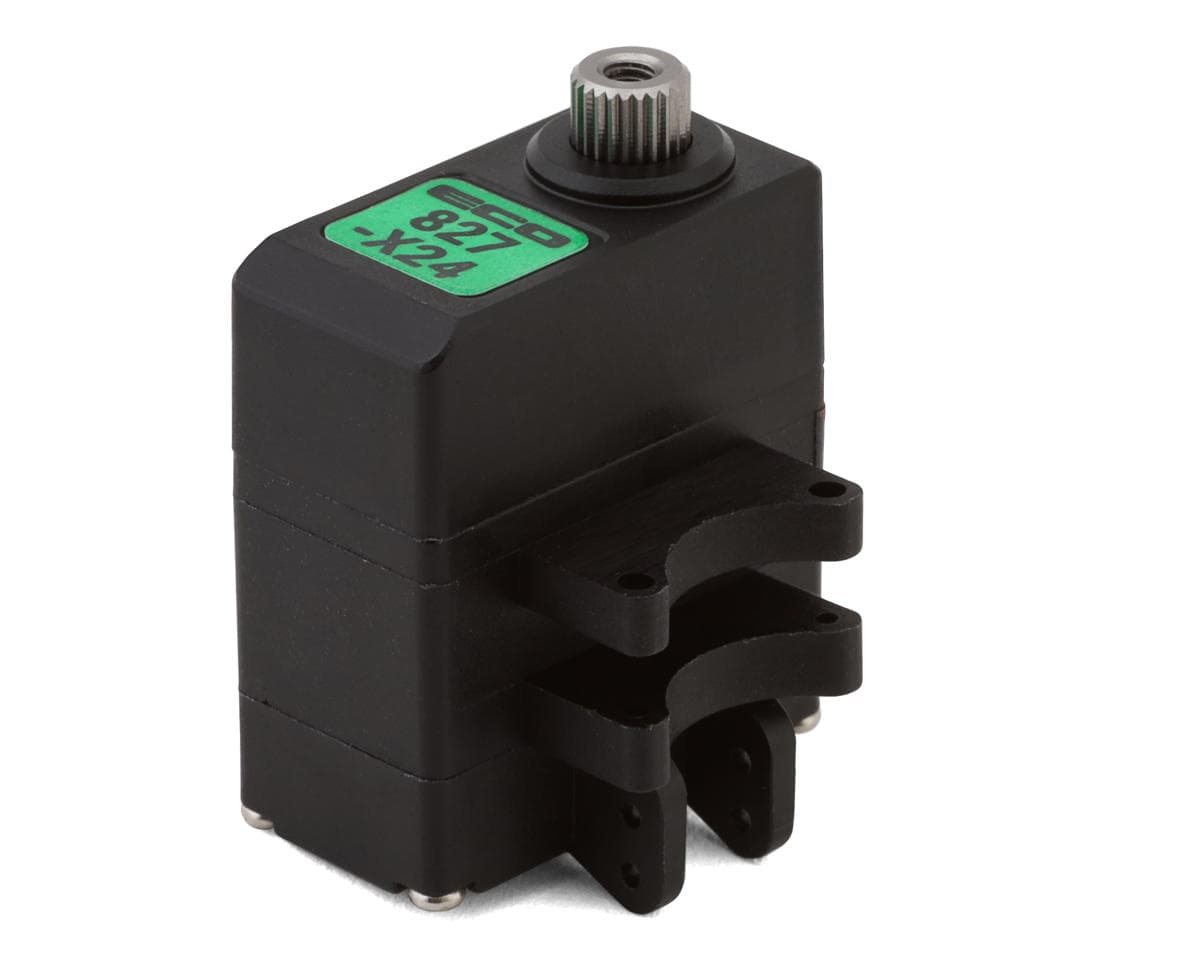

EcoPower WP827-X24 Metal Gear Micro Servo Direct Fit For Axial™ SCX24 (HV) (Waterproof)
About this part
The Revolution of Powerful Budget Mini Servos!
EcoPower is proud to introduce the WP827-X24 Digital Micro High-Voltage Servo, an innovative and budget-friendly upgrade designed specifically for Axial SCX24 platforms. Built for improved performance and durability, it's the perfect solution for enhancing your micro crawler's steering precision. Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
About the WP827-X24 Servo
Design

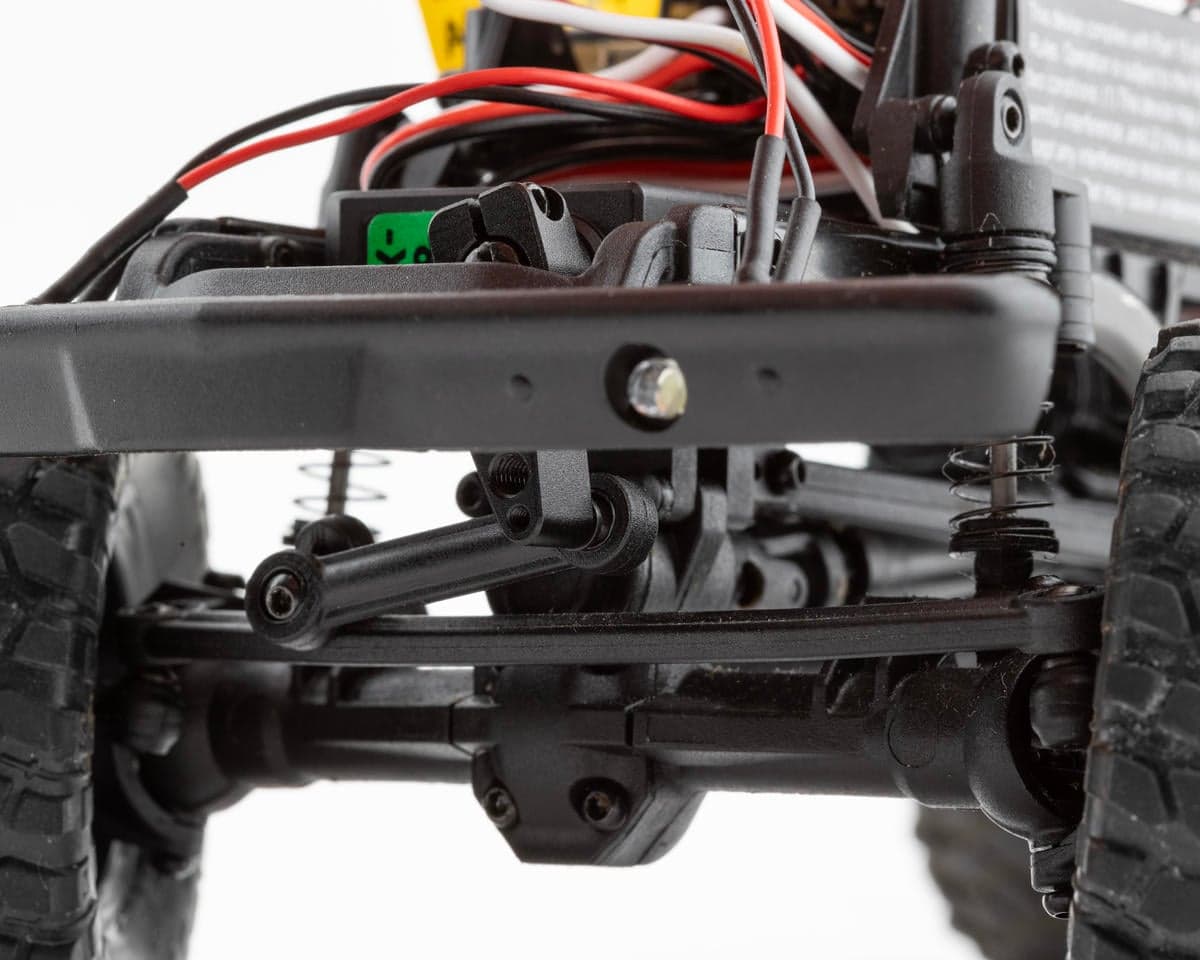

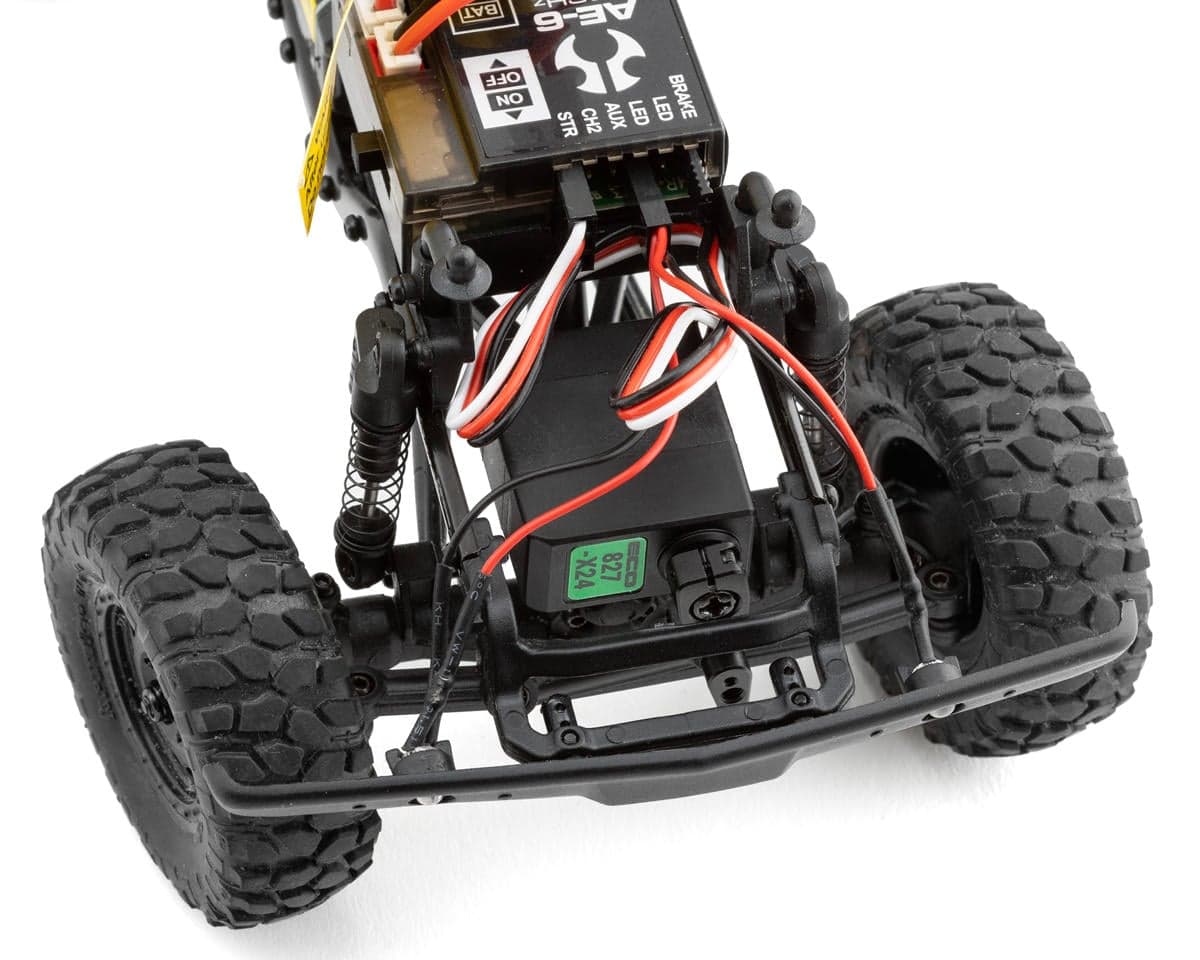

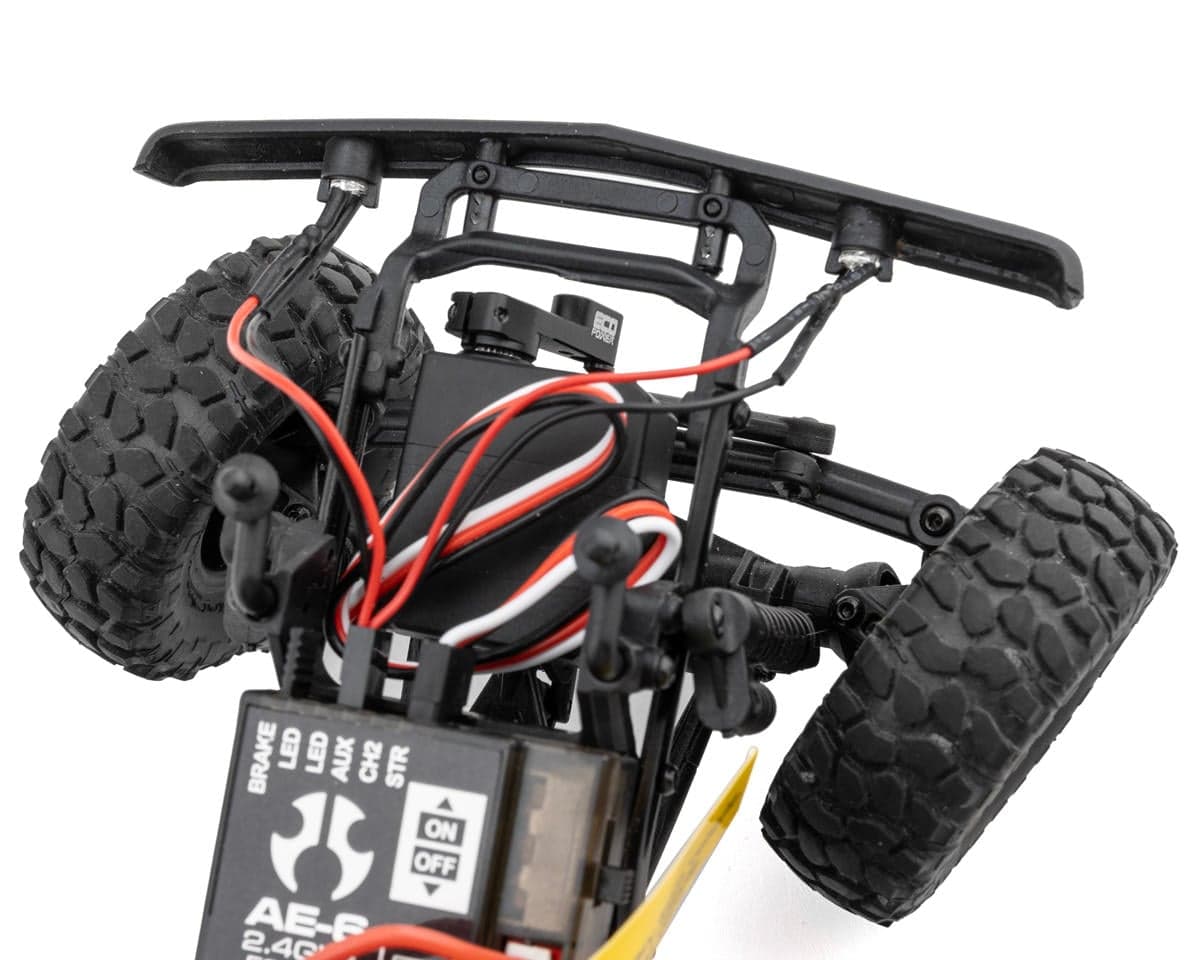

Unlike all other traditional servos on the market, the EcoPower WP827-X24 micro Servo features a first of its kind innovative built-in direct axle and links mount system that revolutionized the game by allowing the WP827-X24 to be directly mounted to the SCX24 axles with no need for a servo mount! This brilliant mounting system provides a sturdy and rigid fit with extra clearance between the chassis rails!
High Torque & Speed
Whether you are into hardcore Comp rock crawling, backyard crawling or just hitting the trails, a high-torque and speed steering servo will always be at the top of the upgrade list, especially for rigs equipped with heavier tuning weights and wheels! This EcoPower WP827-X24 micro servo is capable of outputting 62.5oz.in (4.5Kg-CM) of torque and 0.08 sec/60 of speed at 8.4 Volts that will help your SCX24 elevate steering performance and precision to take on harder lines and harsher trails!
Robust Construction & Drivetrain
When it comes to durability and reliability, the EcoPower WP827-X24 micro servo is fitted with all metal heavy-duty gears, output shaft spline and an aluminum mini 25T servo horn to ensure maximum durability and flex-free operation under the harshest conditions! In addition, the EcoPower WP827-X24 is fully elements and waterproof! Allowing you to navigate through wet and dirt-filled trails with peace of mind!
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- The ultimate budget upgrade for Axial™ SCX24
- High torque and speed output
- Innovative direct axle mount
- Eliminates the need for separate servo mount
- High voltage capable of operating on up to 8.4 Volts!
- HD all metal gears and output shaft spline
- Waterproof design
- Powerful coreless motor
- Includes a CNC-machined aluminum horn with multiple mounting holes
- 1-year warranty
Includes:
- (1) Lifetime Gear Warranty
- (1) WP827-X24 Digital Micro Servo

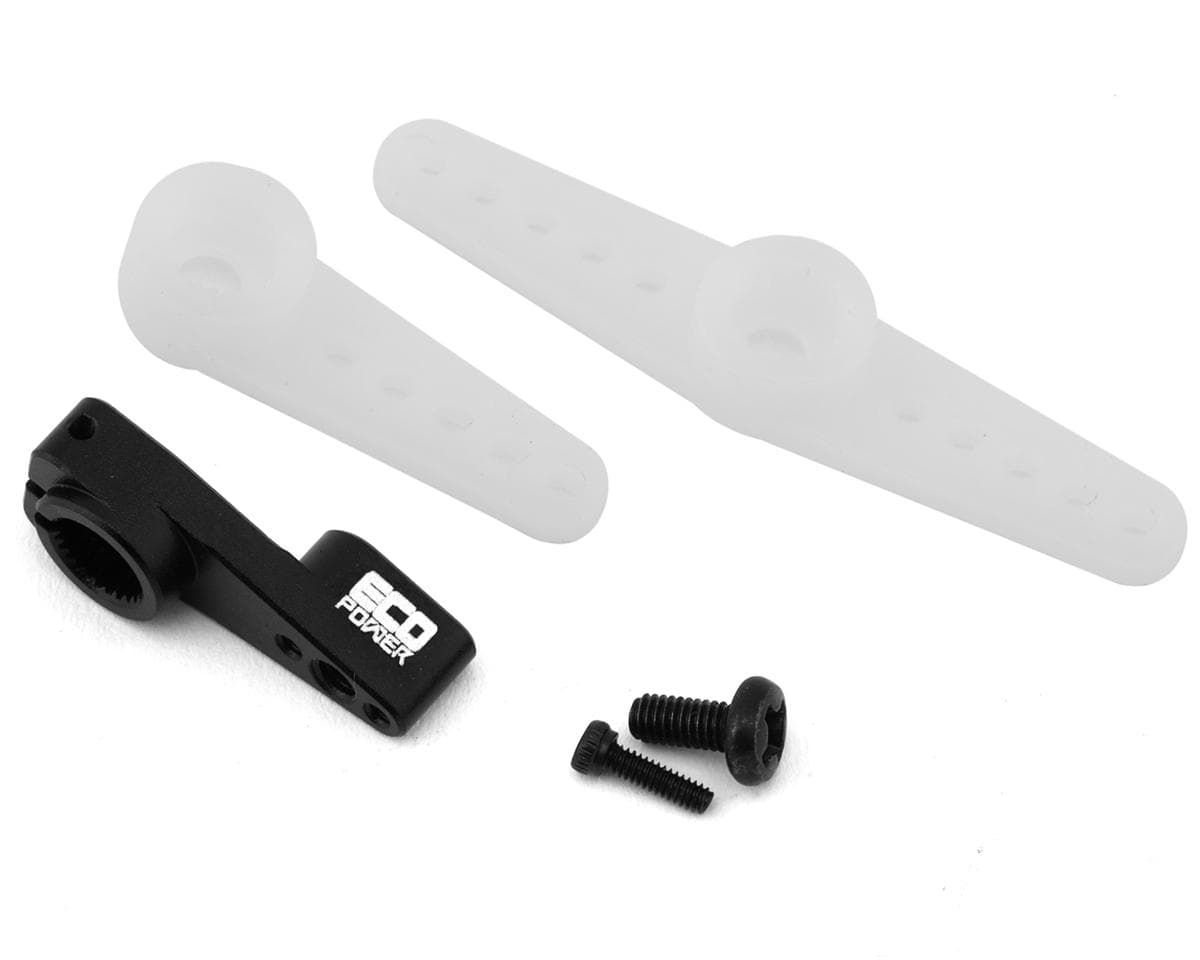

- (1) Aluminum Servo Horn
- (2) Composite Servo Horns
Specifications:
| Application | 1/24 & 1/18 |
|---|---|
| Input Voltage | 6V-8.4V |
| Speed | |
| @6.0V: | 0.10 sec/60 |
| @8.4V: | 0.08 sec/60 |
| Torque: | |
| @6.0V: | 48.6oz.in (3.5Kg-CM) |
| @8.4V: | 62.5oz.in (4.5Kg-CM) |
| Motor | Digital Coreless |
| Output Shaft | Mini 25T |
| Gear Material | Metal w/Lifetime Gear Warranty |
| Dimensions (LxWxH) | 0.9x0.47x1.25in (23x12x31.75mm) |
| Weight | 16g |
*Tech Note: This servo is compatible with all SCX24 platforms and wheelbase EXCEPT the Deadbolt & Betty versions!
**Tech Note: Do not exceed 8.4 Volt as it might damage the servo
***Tech Note: Although this servo is waterproof, submerging it under water for longer periods may degrade and decay the seal points
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews3.1 · 15 reviews
The installation is easy and the extra clearance you get is awesome, however, my servo is not as powerful as I would have liked. My rig has a lot of brass and weighs 406 grams. This servo struggles to turn the tires and it's really slow. I ended up removing it and installing a cheap Emax servo and I was amazed that the Emax servo has no problems turning the wheels from lock-to-lock. It's a shame because the specs seemed good, but in the end I'll probably not use it again. Perhaps it works better on a stock rig that isn't loaded down with brass. Update 09/30/2024: I was contacted by Brian in customer service as he was concerned that I wasn't 100% satisfied with the servo. He felt that I may have gotten a faulty servo and offered to send me a replacement. The replacement was delivered within a few days and I immediately installed it in my SCX24. The new servo worked brilliantly. It had plenty of torque - it did not struggle turning the heavy wheels and I was impressed with the speed for an affordable servo. I changed my rating to 5 stars because the servo works very well and A-Main's excellent customer service is second to none.
It should be noted that this doesn't fit the MEUS Racing Isokinetic axle - the spacing of servo mount screw holes on the axle are slightly wider than stock and don't line up with the mounting holes on this servo. Put it on a stock axle, but this seems to have as little power as a stock server. Should call it Eco(lackof)Power.
I bought this to replace a dead stock servo. It works well and mine seems stronger than the factory servo...but I can't use it. It doesn't fit the B-17 Betty version that I have. It runs directly into the receiver/front shock mount like it would in a Deadbolt (but they say the Deadbolt is the only one it won't fit). Also, the wires are way longer than they need to be. It also doesn't come with a screw to mount the horn to the servo and the stock servo horn and screw don't fit it. My regular EcoPower 827 with aluminum mount in my other SCX24 is definitely stronger.
Perfect servo upgrade for my 24. Dropped right in and is way better than the stock servo. Love that it includes the aluminum servo horn too.
Fits good but sucks rampcrab and meus way more tourq my rig is just to heavy for this servo
Reviewers are divided on this direct-fit metal gear micro servo for the Axial SCX24. Several praise the easy installation, extra clearance, and performance on stock or lightly upgraded rigs, with some calling it a clear step up from the stock servo. Others report it is too weak for heavier builds, especially those with brass weights or larger tires, and some describe it as weaker than the stock servo. Reported fit problems include incompatibility with a MEUS Racing axle, a B-17 Betty body clearance issue, and a missing horn screw. One reviewer had a failure after a battery-pack impact, which was replaced by the seller. Several reviewers mention prompt customer service. Reports on performance are contradictory, and the split appears to track rig weight and tire setup.
- + Easy installation
- + Extra clearance
- + Clear upgrade on stock rigs
- + Includes aluminum servo horn
- − Weak on heavy or brass-loaded rigs
- − Slow turning on heavier builds
- − Fit issues with some axles and bodies
- − Missing horn screw
