About this part
Next Generation Color Screen 1/8 Brushless ESC
The Elceram Oxide 1/8 Brushless ESC is a cutting-edge speed controller designed for high-performance 1/8 off-road RC vehicles. Utilizing Advanced Cooling Technology with an Aluminum Oxide ceramic heatsink, this ESC offers superior thermal conductivity and durability under extreme loads. With real-time battery current and discharge monitoring, advanced intelligent algorithms, and reverse polarity protection, the Oxide 1/8 is built for efficiency, reliability, and performance. Its integrated TFT LCD color display provides instant access to settings and data without the need for external programming interfaces.
About the Oxide 1/8 ESC
Innovative Display and Easy Programming

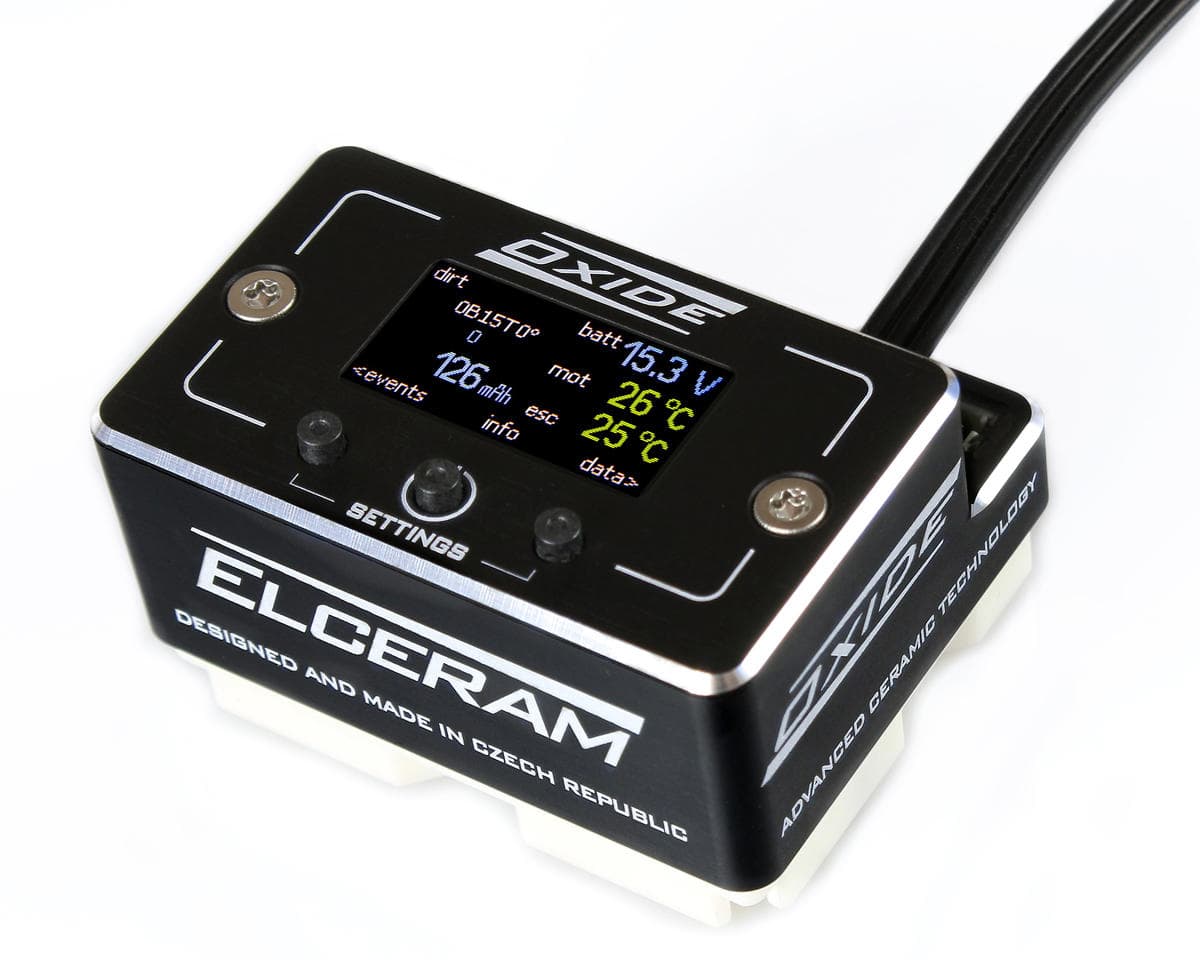

The TFT LCD color display on the Oxide 1/8 makes setup and monitoring incredibly simple. With a 160x80 pixel resolution, all parameters and diagnostics can be accessed directly from the ESC. Three intuitive buttons allow for quick navigation, enabling users to make adjustments in seconds. This built-in interface eliminates the need for programming cards or mobile apps, ensuring a streamlined and user-friendly experience.
Advanced Cooling and Durability
Elceram has developed a unique Aluminum Oxide heatsink that provides direct MOSFET cooling without additional thermal resistance layers. This advanced cooling system ensures efficient heat dissipation, allowing the ESC to handle high loads and extreme temperatures. Thick silver and copper layers in its construction further reduce internal resistance, enhancing efficiency and longevity. The compact and low-weight design helps optimize stability in 1/8 off-road vehicles.
Precision Control and Smart Protection
The Oxide 1/8 features real-time monitoring of battery voltage, motor temperature, and ESC performance. Its intelligent algorithms detect motor failures, sensor issues, and other potential problems before they cause damage. Additionally, reverse polarity protection prevents accidental damage from incorrect wiring. With zero timing (Blinky Mode) support, customizable throttle and brake settings, and race data logging, this ESC delivers precision control for competitive racing.
Features:
- TFT LCD color display for real-time monitoring and easy programming
- Advanced Cooling Technology with Aluminum Oxide heatsink
- Direct MOSFET cooling for improved thermal efficiency
- Reverse polarity protection for enhanced durability
- Real-time monitoring of battery current, ESC temperature, and motor diagnostics
- Customizable throttle, brake, boost, and turbo timing settings
- Intelligent protection algorithms to prevent damage from mechanical or motor failures
- Zero timing (Blinky Mode) support for competition use
- Compact and lightweight design for improved vehicle stability
- Easy installation with double-sided tape or 2.5mm screws
Includes:
- (1) Oxide 1/8 Brushless ESC
- (1) Set of External Capacitors
- (1) 200mm AWG11 Wires
- (1) BEC Cable (180mm, grey stripe as negative)
- (1) Quick Start Guide
Specifications:
| Suggested Application | 1/8 |
|---|---|
| Motor Type | Brushless - Sensored |
| Input Voltage | 2-4S LiPo (7.4-14.8V) |
| Continuous Current | 200A |
| Burst Current | 1500A |
| Dimensions (LxWxH) | 1.97x1.58x1.10in (50x40x28mm) |
| Weight | 3.95oz (112g) |
| Motor Limits | 2300Kv |
| BEC Voltage | 6.0-8.5V (Adjustable) |
| BEC Continuous Current | 5A |
| BEC Peak Current | 15A |
| Motor Connector | Solder Type |
| Battery Connector | Solder Type |
| Motor Wire | - |
| Battery Wire | - |
| Programmable | Yes |
Reviews5.0 · 1 review
I did an unbox and install video for this ESC over on YT. Fantastic ESC so far! It’s super smooth on acceleration and braking. The only one issue I had to deal with is heat - get a fan blowing on this ESC or you will likely thermal and be limping on the track. I’ve read that this ESC has oodles of protections - heat shouldn’t kill it (under 170C), a failed motor sensor shouldn’t kill it (HW speedos can be killed by a bad motor sensor), reverse polarity shouldn’t kill it. So far it’s super solid and buttery smooth on the throttle. I will be buying another one for another one of my race kits.
