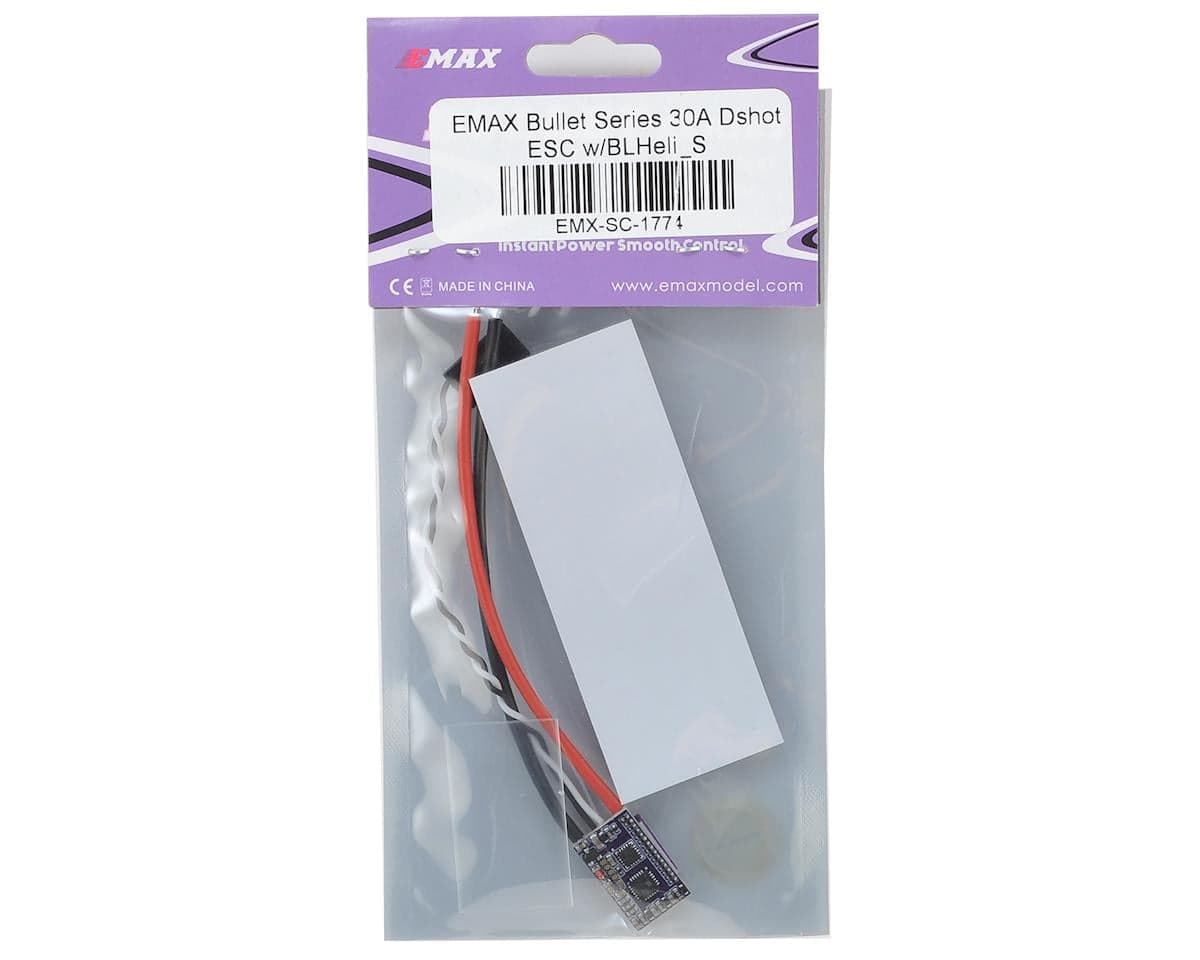

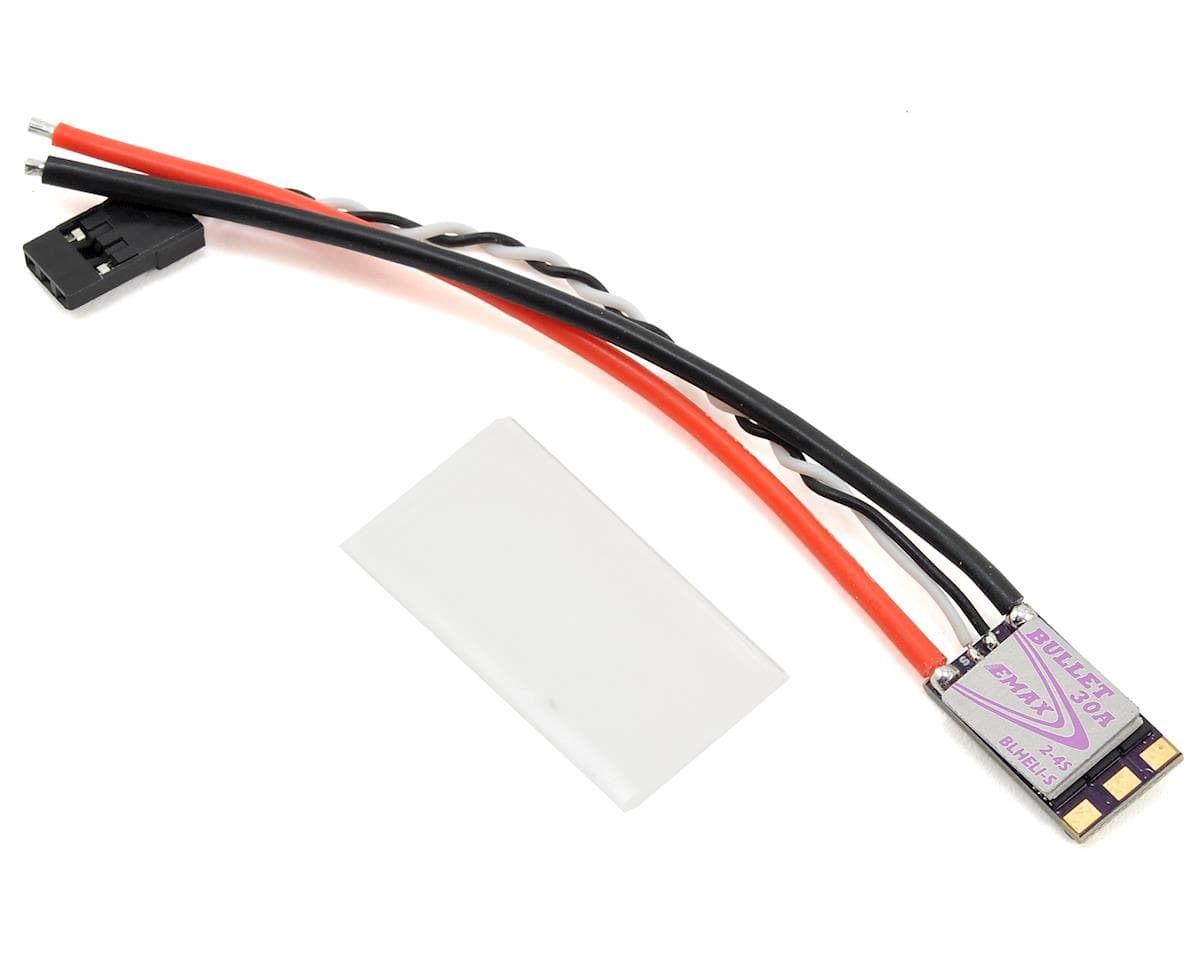

EMAX Bullet Series 30A Dshot ESC w/BLHeli_S
About this part
The EMAX Bullet Series of ESC's offer an excellent array of features that have became high in demand. The first clear feature is their physical size compared to competitors, forget the previous "small" ESC's within each amperage class because EMAX has shrunk the size down substantially. The BLHeli_S Firmware equipped on the Bullet ESC's also now support DSHOT*** and also Multishot, and OneShot protocols. Additionally the built in heat sink provides both lower overall core temperature and impact resistance against propeller strikes.
NOTE***: The Bullet 35A does not directly support DSHOT out of the package.
Features:
- BLHeli_S Firmware
- DSHOT/MultiShot/OneShot Support
- MOSFETS sourced from Toshiba Japan
- Murata Ceramic Capacitors
- 3oz High-TG PCB Board
Specifications:
Input Voltage: 2 -4 cells, 2S-4S LiPo
Constant Current: 30 Amps
Burst Current: 35 Amps
Weight: 5g w/ wires, 4g bare board (wires removed)
Dimensions: 12x20x5.5mm (board dimensions only)
Battery Wire: 18awg
Throttle Wire: 105mm
BEC: None
Reviews3.5 · 2 reviews
I saw the prior review from years ago 2015. I cannot agree with that however there are different batches of things produced. My experience with the Emax 30amp Bullet Esc has be awesome!! I have not had any burst into flames like the Little Bee's back in the day. I find these ESCs to be very robust and take a beating. It's been my ESC of choice since 2015, it is now 2024 and they are still flying! For proof checkout my FPV playlist on YouTube https://youtu.be/PtFX8PM-_WY
The esc’s are very small and burn very easily. I was at the end of a 3:40 flight and one caught on fire. I suggest getting the EMAX formula 45 amp. I was using them with the Emax rs 2205 2300kv motors with 5.1x4x3v1s props
