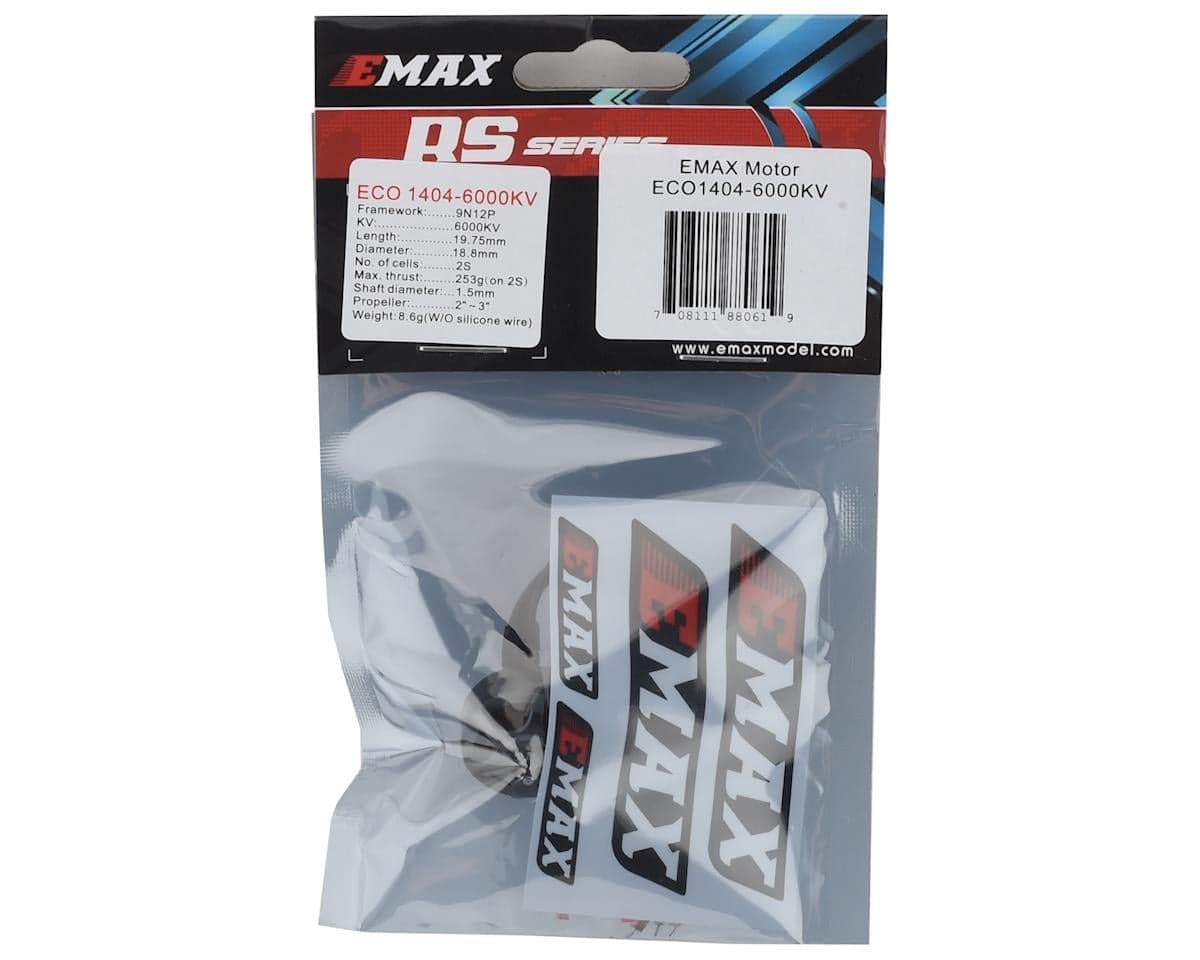

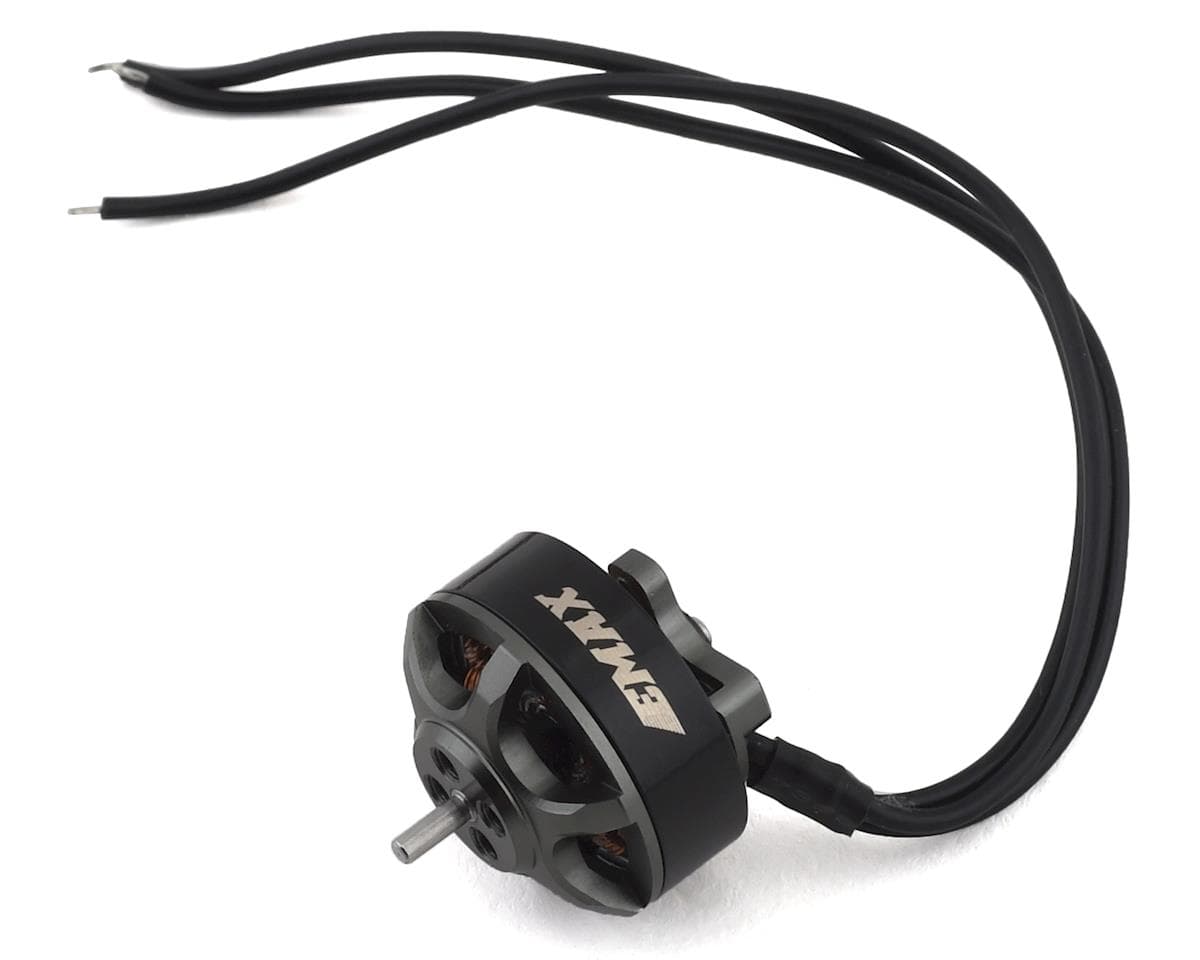

Name: EMAX ECO Micro Series 1404 Brushless Motor (6000Kv)
Brand: EMAX
SKU: EMX-708111880619
Price: 12.99 USD

EMAX ECO Micro Series 1404 Brushless Motor (6000Kv)

AMain Hobbies

<div>This is the EMAX ECO Micro Series 1407 3300kv Brushless Motor.
</div>
<div>
  <br>
</div>
<div><strong>Features:</strong>
</div>
<div>
  <ul>
    <li>Precision durable ball-bearings</li>
    <li>Steel shaft for high strength</li>
    <li>Anodizing for finish and corrosion resistance</li>
    <li>12x12mm hole pattern</li>
    <li>Multi-strand copper windings</li>
    <li>90mm 26 AWG silicone wire</li>
  </ul>
</div>
<div><strong>Specifications:</strong>
</div>
<div><strong>Framework: </strong>9N12P
</div>
<div><strong>Length:</strong> 19.75mm
</div>
<div><strong>Diameter:</strong> 18.8mm
</div>
<div><strong>Propeller:</strong> 2.5" - 4"
</div>
<div><strong>Weight:</strong> 8.6g (W/O Silicone Wire)
</div>
<div><strong>Prop adapter shaft diameter:</strong> 1.5mm
</div>
<div><strong>Bearing Shaft:</strong> 2mm
</div>
<div><strong>Shaft Thread:</strong> CW
</div>
<div><strong>Idle Current:</strong> 1.0A(7V)
</div>
<div><strong>Internal Resistance: </strong>120
</div>
<div><strong>Peak Current(3s/4s):</strong> 14A(4S)
</div>
<div><strong>Max.Power:</strong> 120W(4S)
</div>
<div><strong>Propeller:</strong> 2"- 3"
</div>
<div><strong>Lead:</strong> 28#AGW 100mm
</div>
<div>
  <br>
</div>
<div>
  <br>
</div>

This is the EMAX ECO Micro Series 1407 3300kv Brushless Motor. Features: Precision durable ball-bearings Steel shaft for high strength Anodizing for finish and corrosion resistance 12x12mm hole pattern Multi-strand copper windings 90mm 26 AWG silicone wire Specifications: Framework: 9N12P Length: 19.75mm Diameter: 18.8mm Propeller: 2.5" - 4" Weight: 8.6g (W/O Silicone Wire) Prop adapter shaft diameter: 1.5mm Bearing Shaft: 2mm Shaft Thread: CW Idle Current: 1.0A(7V) Internal Resistance: 120 Peak Current(3s/4s): 14A(4S) Max.Power: 120W(4S) Propeller: 2"- 3" Lead: 28#AGW 100mm
