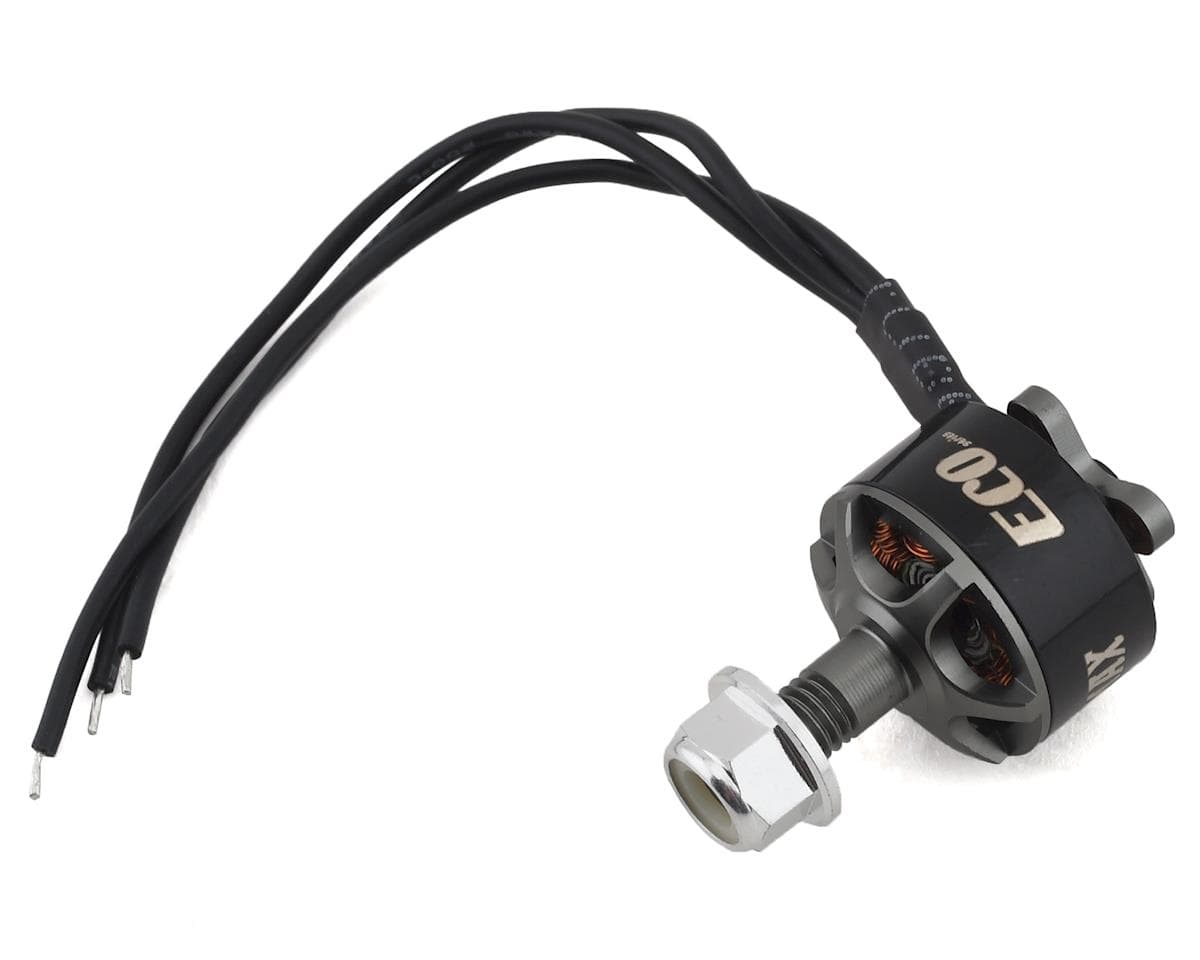

Name: EMAX ECO Micro Series 1407 Brushless Motor (2800Kv)
Brand: EMAX
SKU: EMX-708111880626
Price: 12.99 USD

EMAX ECO Micro Series 1407 Brushless Motor (2800Kv)

AMain Hobbies

<div>This is the EMAX ECO Micro Series 1407 2800kv Brushless Motor.
</div>
<div>
  <br>
</div>
<div><strong>Features:</strong>
</div>
<div>
  <ul>
    <li>Precision durable ball-bearings</li>
    <li>Steel shaft for high strength</li>
    <li>Anodizing for finish and corrosion resistance</li>
    <li>12x12mm hole pattern</li>
    <li>Multi-strand copper windings</li>
    <li>90mm 26 AWG silicone wire&nbsp;</li>
  </ul>
</div>
<div><strong>Specifications:</strong>
</div>
<div><strong>Framework:</strong> 9N12P
</div>
<div><strong>Length:</strong> 31.2mm
</div>
<div><strong>Diameter:</strong> 18.8mm
</div>
<div><strong>Propeller:</strong> 3" - 4"
</div>
<div><strong>Weight:</strong> 13.7g (W/O Silicone Wire)
</div>
<div><strong>Prop adapter:</strong> M5
</div>
<div><strong>Bearing Shaft:</strong> 2mm
</div>
<div><strong>Shaft Thread:</strong> CW
</div>
<div><strong>Idle Current:</strong> 0.7A
</div>
<div><strong>Internal Resistance:</strong> 180
</div>
<div><strong>Peak Current(10s):</strong> 13.6A
</div>
<div><strong>Max.Power:</strong> 220W
</div>
<div><strong>Propeller:</strong> 3" - 4"
</div>
<div><strong>Lead:</strong> 26#AGW 90mm
</div>
<div>
  <br>
</div>
<div>
  <br>
</div>

This is the EMAX ECO Micro Series 1407 2800kv Brushless Motor. Features: Precision durable ball-bearings Steel shaft for high strength Anodizing for finish and corrosion resistance 12x12mm hole pattern Multi-strand copper windings 90mm 26 AWG silicone wire&nbsp; Specifications: Framework: 9N12P Length: 31.2mm Diameter: 18.8mm Propeller: 3" - 4" Weight: 13.7g (W/O Silicone Wire) Prop adapter: M5 Bearing Shaft: 2mm Shaft Thread: CW Idle Current: 0.7A Internal Resistance: 180 Peak Current(10s): 13.6A Max.Power: 220W Propeller: 3" - 4" Lead: 26#AGW 90mm
