EMAX
EMAX GT2215/09 1180kV Brushless Motor
Part # EMX-MT-04092.0(1)
Fits
Flite Test Battle BuddiesFlite Test ExplorerFlite Test MustangFlite Test Bloody WonderFlite Test Bloody BaronFlite Test DusterFlite Test BushwackerFlite Test Sea OtterFlite Test Versa WingFlite Test A-10Flite Test Simple StorchFlite Test CorsairFlite Test 3 Pack SwappableFlite Test Baby BlenderFlite Test LegacyFlite Test FT RacerFlite Test MiG-3Flite Test FT EdgeFlite Test FT-3DFlite Test CruiserFlite Test ViggenFlite Test SpitfireFlite Test Sea AngelFlite Test SportsterFlite Test P-38Flite Test P-47Flite Test Sea DuckFlite Test SpearFlite Test P40
Where to buy
$18.99
Prices are as last seen at the store; stock is not tracked.
About this part
Emax GT2215/09 1180kV Brushless Motor. Originally found in the EMax Power Pack "C".
| Model | Cell Count | kV | Prop | RPM | Max Current (<60S) | Thrust |
|
GT2215/09 |
3s LiPo (11.1V) |
1180 |
10x4.7 | 8300 | 26A | 1250g |
| GT2215/09 | 3s LiPo (11.1V) | 1180 | 10x6 | 8850 | 24A | 1140g |
Specifications
Input Voltage: 2-3s LiPo (7.4-11.1V)
Stator Dimensions: 22x15mm
Shaft Diameter: 4mm
Weight: 70g
Mounting Dimensions: 16x19mm w/3mm hole
Recommended Model Weight: 300-1100g (AUW with Battery)
Recommended Prop: 10x4.7 - 11x3.8
Includes:
- (1) EMax GT2215/09 Brushless Motor

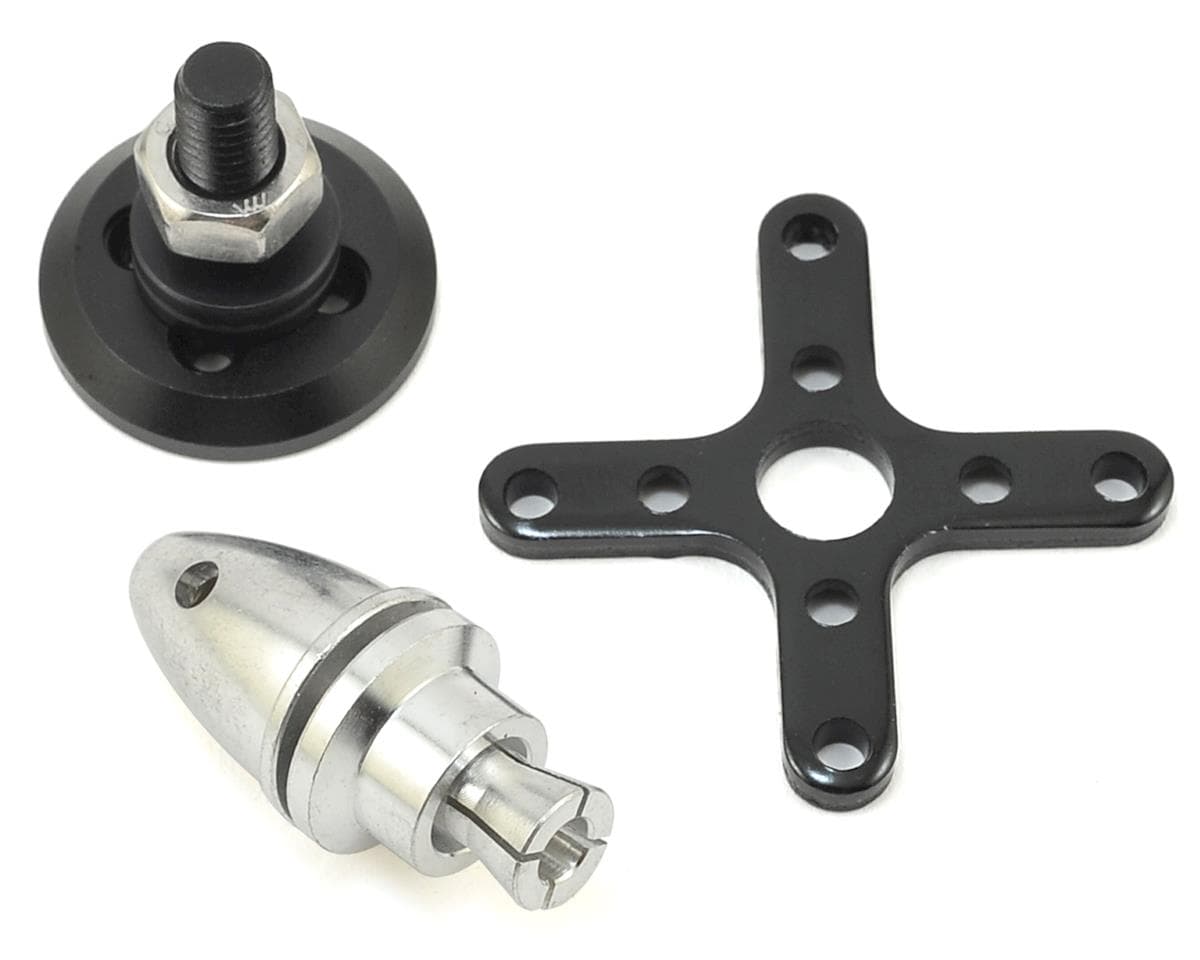

- (1) Bolt on Prop Adatpter w/Hex Nut
- (1) Clamp Style Prop Adapter

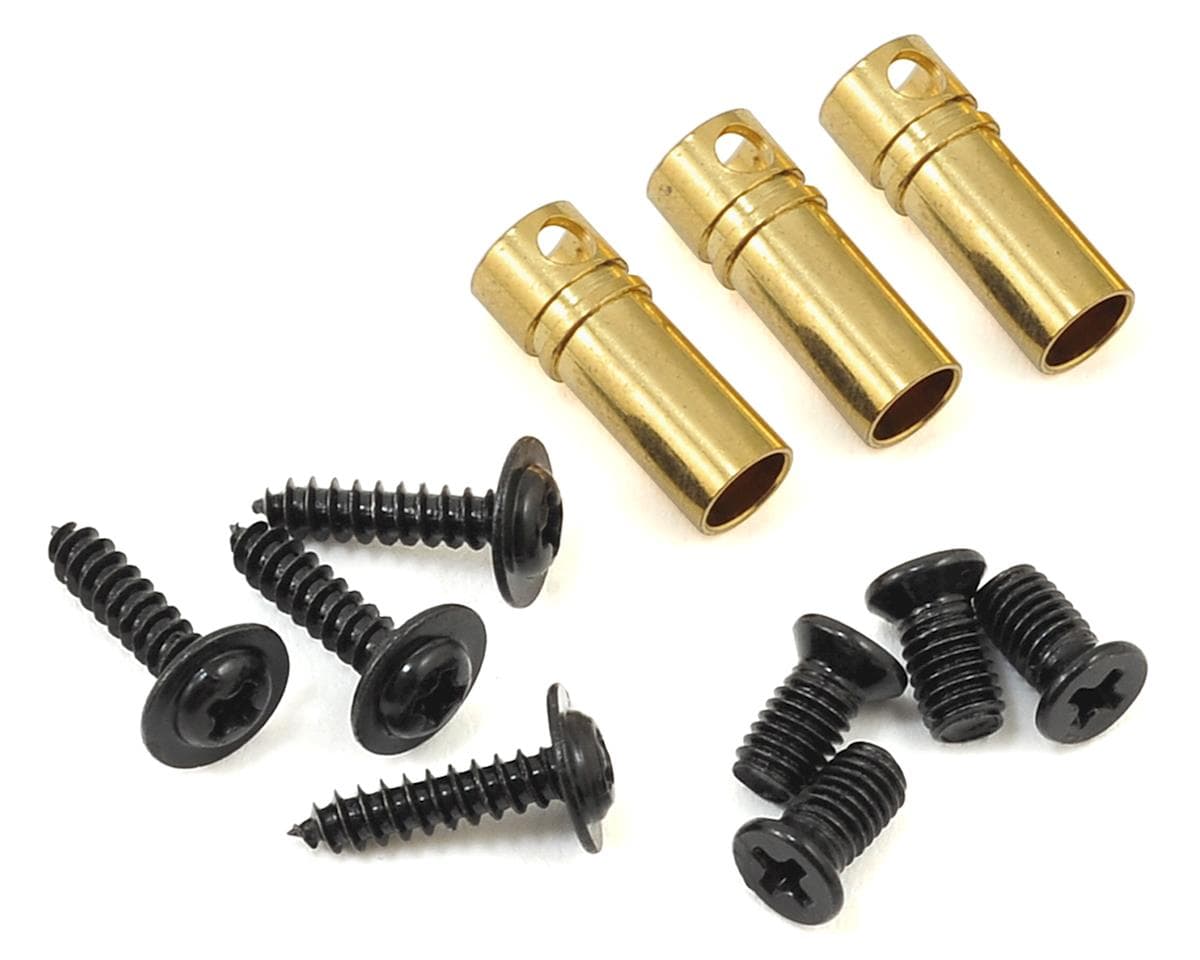

- (3) Female Bullet Connectors
- (1) "X" Style Motor Mount
Reviews2.0 · 1 review
Simeon PerkinsMay 29, 2020on EMAX GT2215/09 1180kV Brushless Motor
the motor itself is great but the wires are horrible the bullet connectors fell off, and I couldn't solder them back on because of the material the wires are made out of. so I had to use crimp splicers and they don't work all that well.
1 found this helpful
Builds using this part
No builds use this part yet — add it to yours from the build editor.
