Fantom 12V DC Power Supply w/Protective Front Cover (12V/75A/900W)
Fantom

Fantom 12V DC Power Supply w/Protective Front Cover (12V/75A/900W)

Part # FAN285904.3(3)
Power suppliesAircraftLandcraftRotorcraftWatercraft
Where to buy
$99.99
AMain Hobbies
Seen Oct 12, 2026
$99.99Buy
Prices are as last seen at the store; stock is not tracked.

About this part

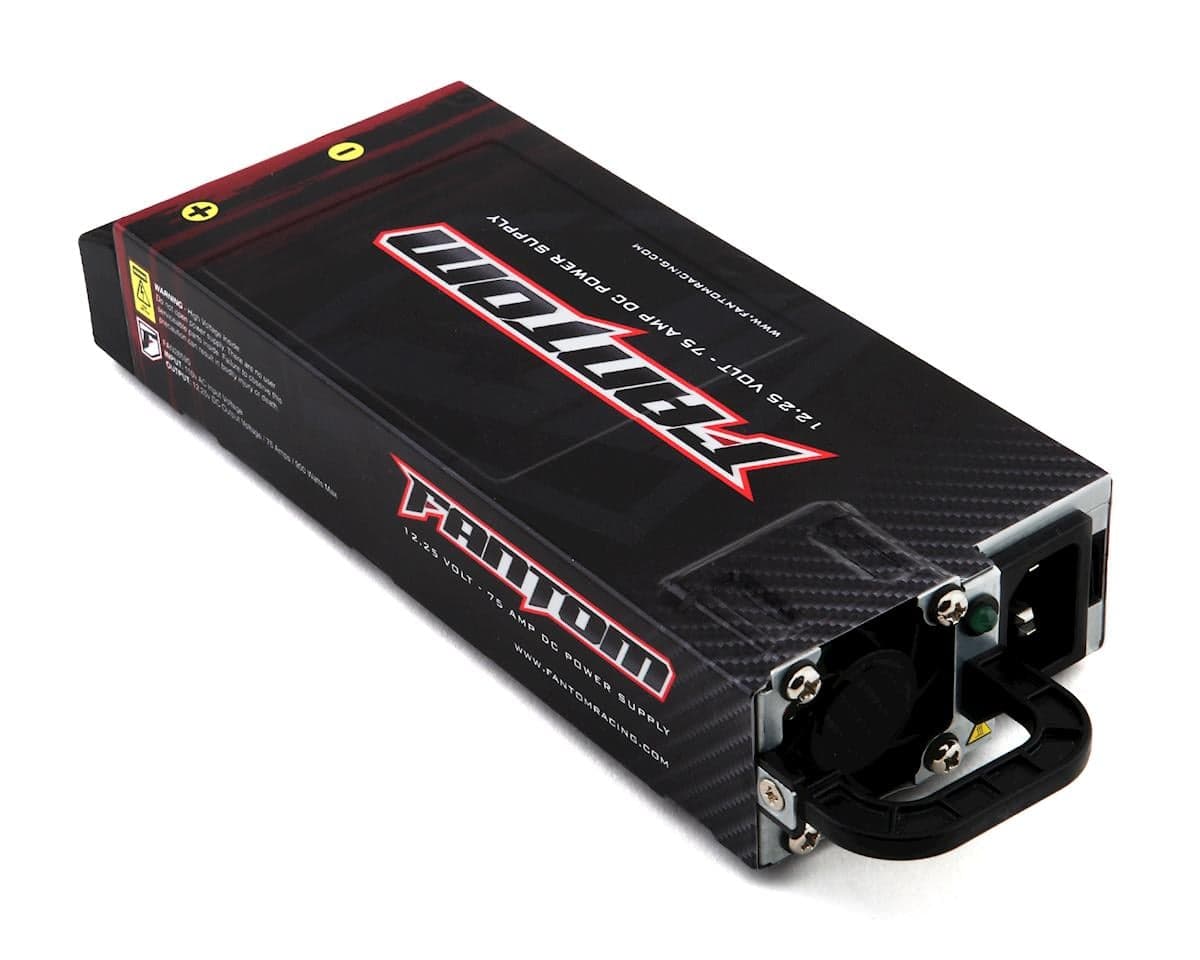

This is the Fantom 12 Volt DC, 75 Amp, 900 Watt Power Supply with Protective Front Cover. Get the most out of your battery charger with this high-performance power supply. It provides enough clean, reliable power to charge your batteries at capabilities that match other high-end chargers.

Features:
  • Over-Voltage Protection
  • Low-Voltage Protection
  • Over-Current Protection
  • Over-Temperature Protection
  • Short Circuit Protection
  • 3 Sets of 4mm Female Gold Bullet Output Connectors
  • Cooling Fan w/ Auto Fan Speed
  • Completely Vinyl Wrapped with Premium Material and Fantom Graphics
  • Includes Protective Cover to Protect Connectors
  • Includes 6-foot Heavy-Duty Power Cord
  • Handle
  • Rubber Feet
Specifications:
Input Voltage: 100v to 240v AC (50 – 60 Hz)
Output Voltage: 12.25v DC
Output Current: 75A Max
Output WATTS: 900W Max
Dimensions: 8.5 (9.75 w/ handle) x 3.5 x 1.5? Inches
Weight: Approx. 2.25 lbs

WARNING: Do not connect power supplies together in series to produce more voltage. This can cause permanent damage to your power supply and/or charger, which is not covered under warranty.
CA Residents Prop 65 Warning WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...

Reviews4.3 · 3 reviews

Daniel Rivas MendozaVerified owneron Fantom 12V DC Power Supply w/Protective Front Cover (12V/75A/900W)

It is my first experience with Lipos-chargers-power supply. They go for my MP9e This is great. I am using it and it is of very good quality and power. If you hang out with Electric a lot, you must have it

1 found this helpful
Travis WitkoskiVerified owneron Fantom 12V DC Power Supply w/Protective Front Cover (12V/75A/900W)

It’s a good power supply gets hot though. Much more than my much more that died. My biggest problem is I have to put something against the power cord to hold it in. It’ll just fall out if bumped or moved. Maybe It’s just mine I don’t really know but it does what it’s supposed to do.

Bill Nelsonon Fantom 12V DC Power Supply w/Protective Front Cover (12V/75A/900W)

. Stopped working after third time used and have not been able to get it replaced by Fantom ,before this review. Well, it took a while but Fantom came through and I have a new Power Supply. It is compact and has all the power I need. My fingers are crossed.

What reviewers say

Reviewers generally find the 12V/75A/900W power supply powerful and well built for charging and running electric RC equipment. One reviewer reports it runs noticeably hot, and another says the power cord does not stay seated and falls out when bumped. A third reviewer reports the unit failed after three uses, and says Fantom eventually replaced it after a slow warranty process. Overall the reviews are few and mixed on reliability, with the performance praise coming from a small sample.

  • + Strong power output
  • + Good build quality
  • + Compact size
  • + Replacement handled by manufacturer
  • − Runs hot
  • − Power cord falls out when bumped
  • − Unit failed after three uses
  • − Slow replacement process
Summary generated from the reviews above.
