Fantom AXON X10 Ceramic Motor Bearings (2)
Fantom

Fantom AXON X10 Ceramic Motor Bearings (2)

Part # FAN536155.0(1)
Where to buy
$13.99
AMain Hobbies
Seen Oct 12, 2026
$13.99Buy
Prices are as last seen at the store; stock is not tracked.

About this part

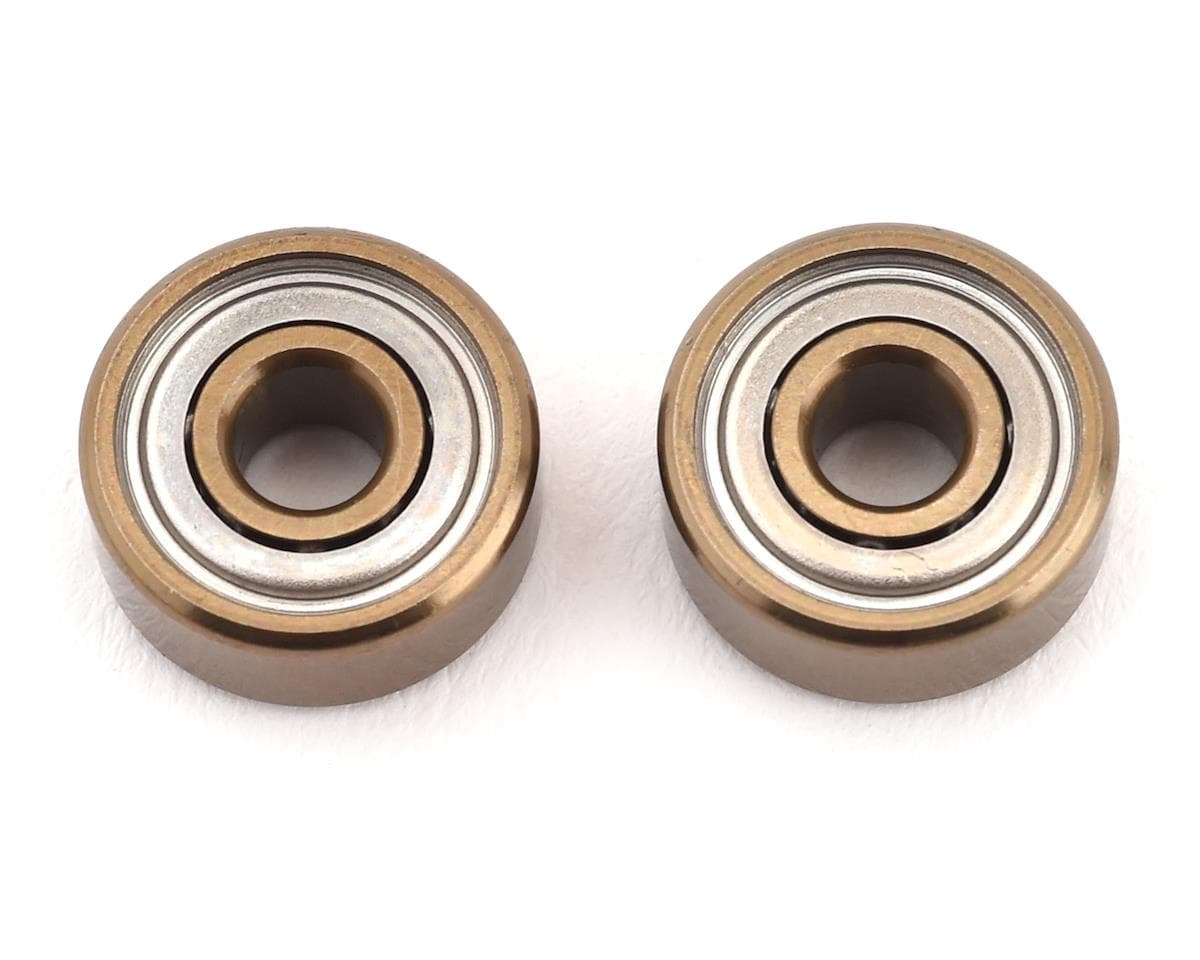

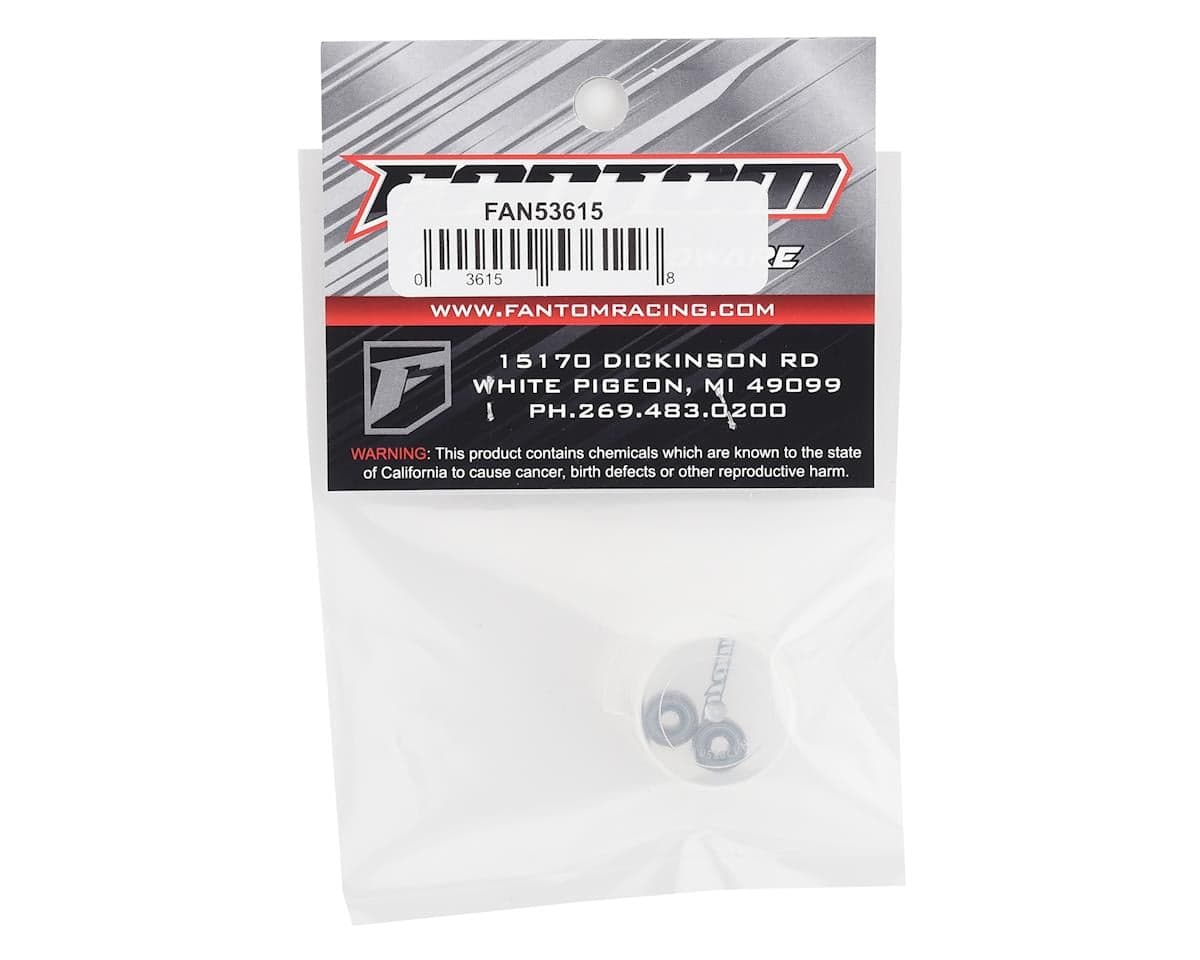

This is a pair of the Fantom AXON X10 Hybrid SUJ2 Pro Motor Bearings. These bearings are incredibly high-tolerance and feature special SUJ2 material balls and a proprietary coating on the races. The SUJ2 balls are not ceramic and not stainless steel. SUJ2 material is harder than stainless steel and tougher than ceramic. The proprietary coating on the races reduces the rolling resistance and adds to the durability, making them the most free spinning, accurate, and durable bearings available for r/c motors. In addition, these bearings also feature no-contact seals, for virtually no drag caused by the seals. These bearings are lighter and capable of achieving higher RPM's compared to standard chrome steel bearings. Add a pair of these to your motor for one of the easiest ways to increase its performance! Includes reusable storage container and two bearings.

These bearings also fit all other brand motors using this size bearing.

Specifications:
Bearing Race Material: Stainless Steel with Proprietary Coating
Ball Material: Special SUJ2
I.D.: .125"
O.D.:  .375"
Width: .156"
Shield Type: Removeable Stainless Steel No-Contact (balls and inner race)
Lubrication: Light viscocity oil (for regular maintainance we recommend our FAN54301 bearing oil)
Weight: 1.18 grams
Rating: ABEC 9
CA Residents Prop 65 Warning WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...

Reviews5.0 · 1 review

Mr QiVerified owneron Fantom AXON X10 Ceramic Motor Bearings (2)

Super smooth, standard size - fit just about every 1/10 motor out there. I used them in a Motiv MC4. DO IT!
