About this part

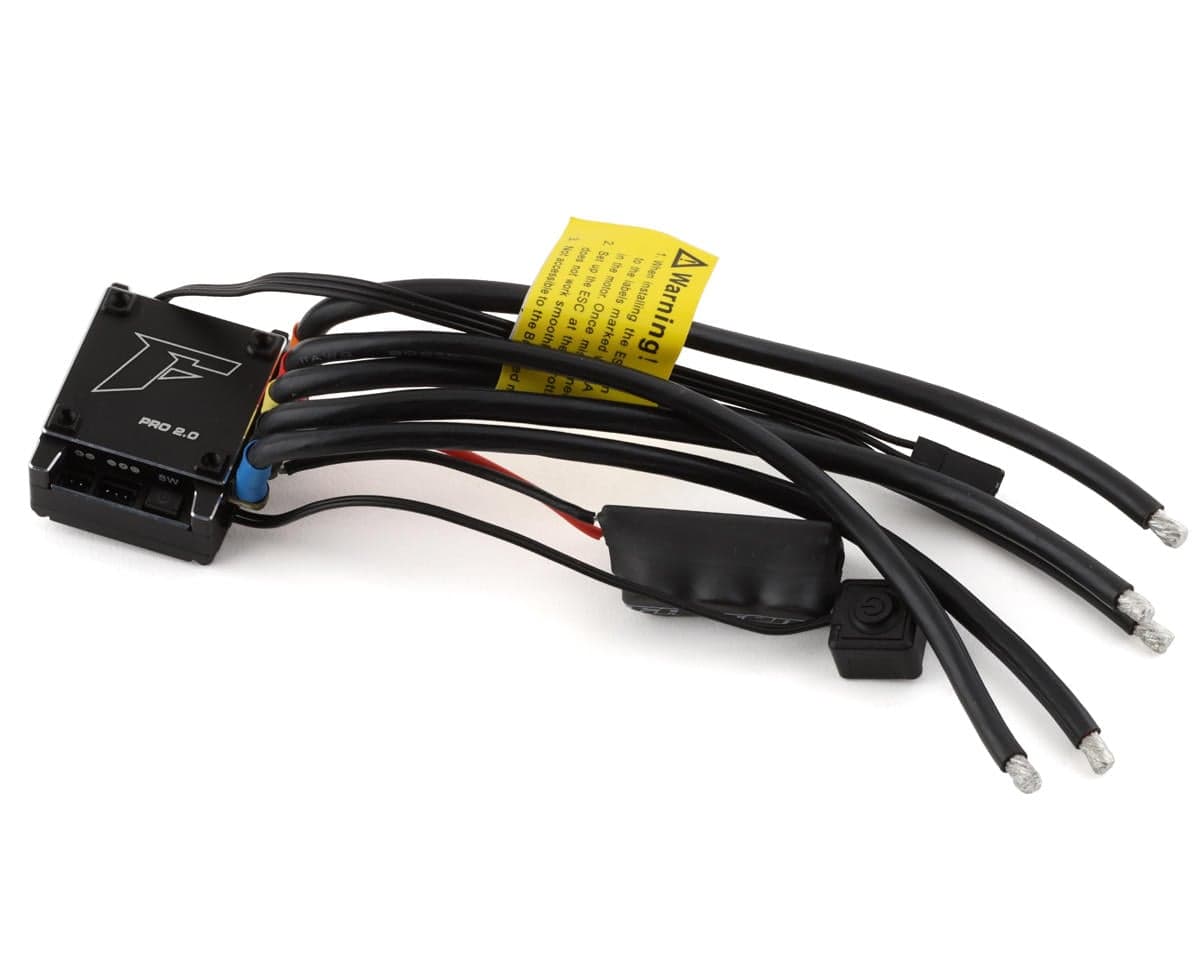

Fantom Racing FR-10 Pro 2.0 2S 1/10 Brushless Sensored Competition ESC. This is the second iteration of the FR-10 ESC and features many updates to give you an edge over the competition. The heart of the FR-10 2.0 PRO is the high-performance 32-bit CPU and firmware, providing you with buttery smooth throttle response, unmatched power delivery, and all the adjustable parameters you’ve come to expect from a pro racing ESC!
Features:
- CNC Machined Aluminum Case w/Integrated Heat Sink
- Ultra-Low Resistance FET Board
- 3 Max Power Capacitors
- Heavy-Duty Solder Posts
- Precision Throttle & Brake Frequency Adjustment
- Ultra Precision Throttle, Brake, and Punch Control
Specifications:
- Continuous Current: 160 Amps
- Burst Current: 760 Amps
- Battery Input: 2-3 cell LiPo
- BEC Output: 6.0V, 7.4V / 6A (Switch BEC)
- Dimensions: (L) 37mm x (W) 38.2mm x (H) 31.5mm
- Sensored: Yes
- Sensorless: Compatible but not optimal
- Motor Limit: 2S LiPo / 4.5T 540 or 3S LiPo / 6.5T 540
