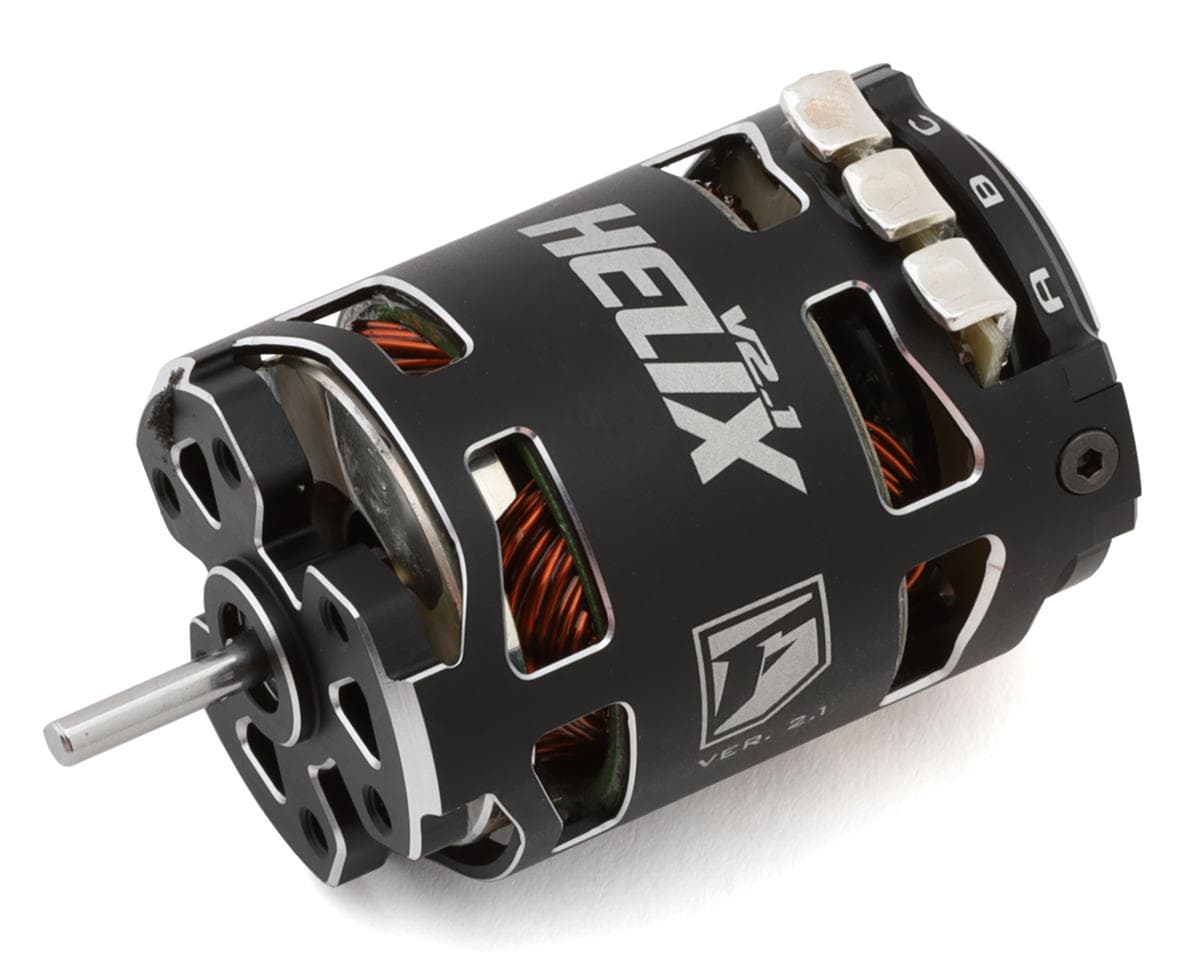

Fantom Helix V2.1 "Team Edition" Spec Sensored Brushless Motor (17.5T)
About this part
Motor Overview:
The Fantom Helix V2.1 "Team Edition" Spec Sensored Brushless Motor is engineered to meet current ROAR regulations while delivering the performance expected from Fantom's championship-winning motor platform. Built using extensive research and development conducted in the USA, this Team Edition motor combines a stealthy appearance with a 26-millimeter maximum-length rotor and a proven patented stator design that maximizes torque, RPM, and efficiency for competitive racing applications.
About the Helix V2.1 Team Edition
Team Edition Performance & Precision
The Helix V2.1 refines Fantom's successful motor architecture with premium materials and precision manufacturing throughout. A dual end-balanced 12.3-millimeter high-torque rotor, high-strength heat-resistant magnet formula, and premium Kawasaki® steel stator plates work together to provide consistent power delivery and durability. The sensor board is engineered for maximum accuracy and reliability, while the high-inductance, low-resistance plated collector ring and solder tabs help reduce electrical losses. A precision-machined one-piece can, CNC-machined T6 6061 aluminum end plate, high-RPM bearings, and optimized venting system promote efficient operation and heat dissipation. Each Team Edition motor is professionally assembled, inspected, and tested to Fantom's strict standards, with detailed performance data included in the box. This motor also meets BRCA, IFMAR, and EFRA specifications and carries ROAR approval for sanctioned competition.
Features:
- Designed to meet current ROAR regulations
- Patented stator design that increases torque, RPM, and efficiency
- Industry-exclusive dual end-balanced 26mm maximum-length rotor
- Includes a 12.3mm high-torque rotor with a heat-resistant magnet formula
- Employs a sensor board that maximizes accuracy and reliability
- Utilizes premium Kawasaki steel stator plates and pure copper wire

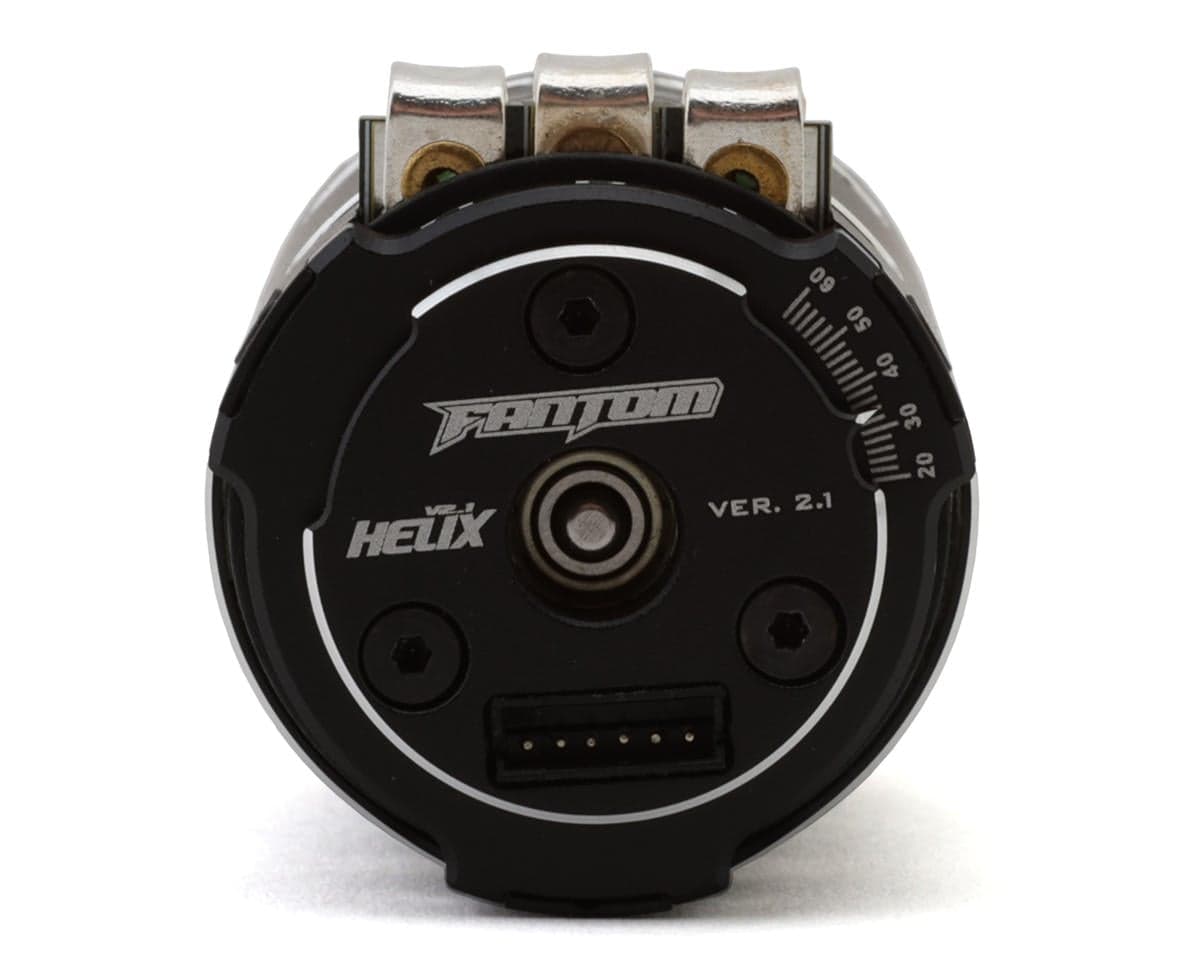

- Precision-machined one-piece can and CNC-machined aluminum end plate
Includes:
- (1) Helix V2.1 "Team Edition" Spec Sensored Brushless Motor (17.5T)

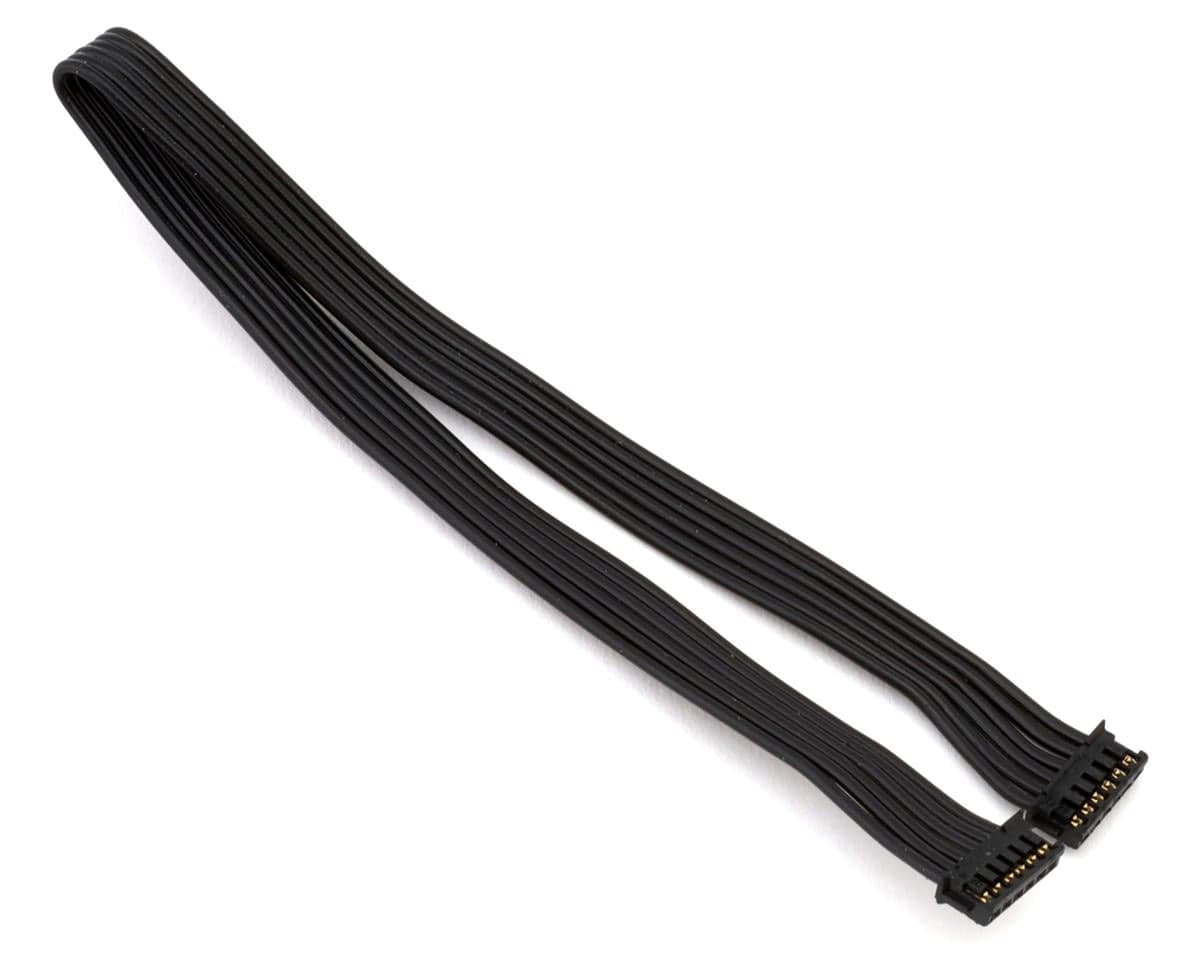

- (1) Sensor Cable
Specifications:
| Type | Brushless Sensored |
|---|---|
| Turns | 17.5T |
| Input Voltage | 2S |
| Pole/Slot | - |
| Max RPM | - |
| Motor Length | 2.61in (66.25mm) |
| Motor Diameter | 1.41in (35.85mm) |
| Shaft Diameter | 1/8in (3.175mm) |
| Weight | - |
