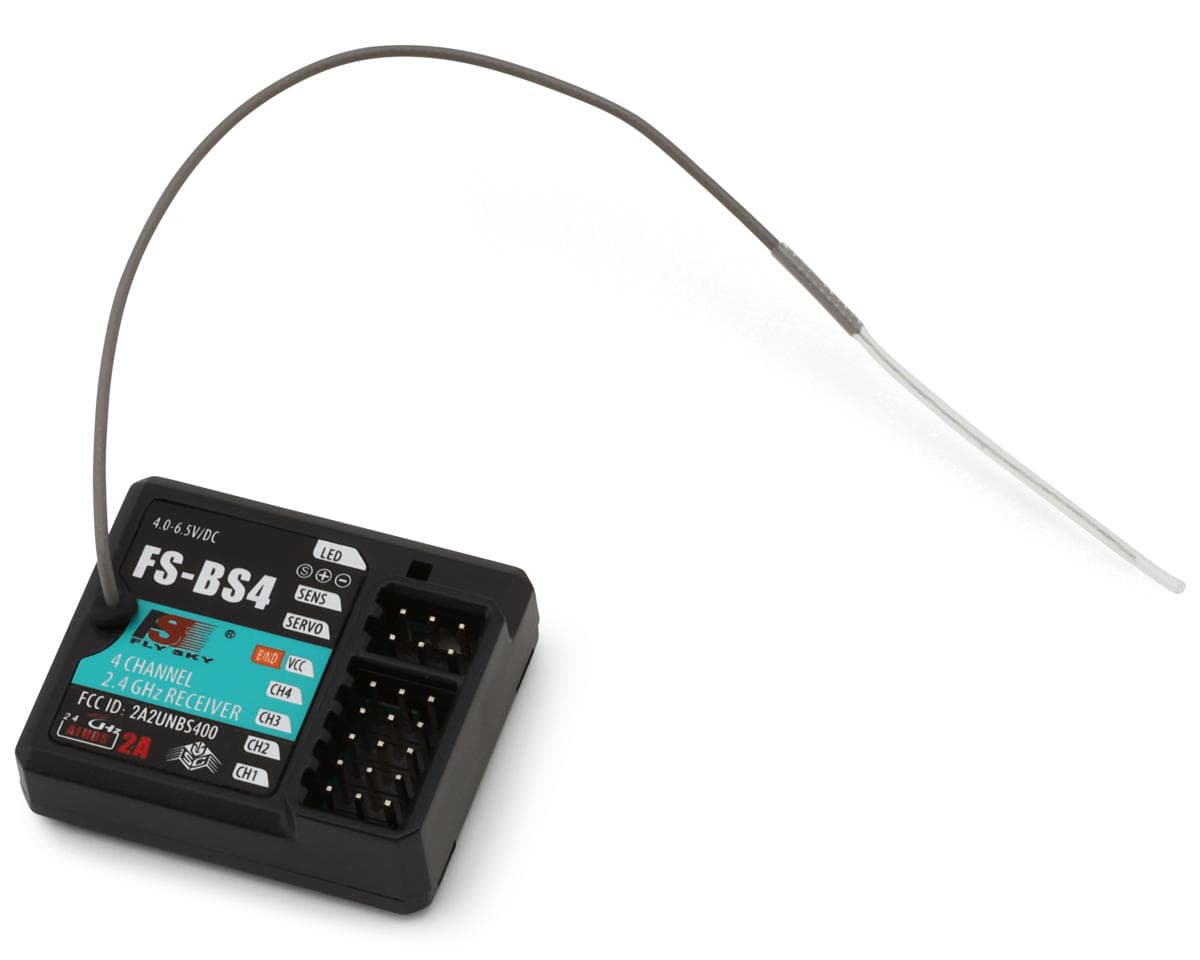

Flysky 4-Channel AFHDS 2A Receiver W/Gyro
About this part
Receiver Overview:
The Flysky 4-Channel AFHDS 2A Receiver with Gyro is a versatile and feature-packed receiver designed to enhance control and stability for a variety of RC applications. Built on the reliable AFHDS 2A protocol and operating on a 2.4GHz frequency, it ensures a secure connection between your transmitter and model. With added gyro stabilization, this receiver is ideal for users seeking improved handling and smoother operation in cars, boats, and aircraft. Its multi-protocol support and compact size make it a go-to choice for both hobbyists and advanced users.
About the Receiver
Feature Highlights
Packed with advanced features, the Flysky 4-Channel Receiver offers broad compatibility with PWM, PPM, i.bus, and s.bus outputs, giving users flexible installation options. The built-in gyro enhances performance by helping stabilize motion, especially useful in off-road and flight conditions. This receiver supports RSSI (signal strength feedback) and online updates, ensuring you stay in tune with your setup. Compact yet powerful, it delivers consistent signal within a 100 to 300-meter ground range and performs reliably across various temperature and humidity conditions.
Features:
- 4 PWM output channels
- Built-in gyro stabilization
- Operates on 2.4GHz frequency
- AFHDS 2A protocol support
- Up to 300m ground range
- Multi-protocol data ports: PWM/PPM/i.bus/s.bus
- RSSI supported
- Online update capable
- Compact and lightweight at 10g
- Temperature and humidity tolerant

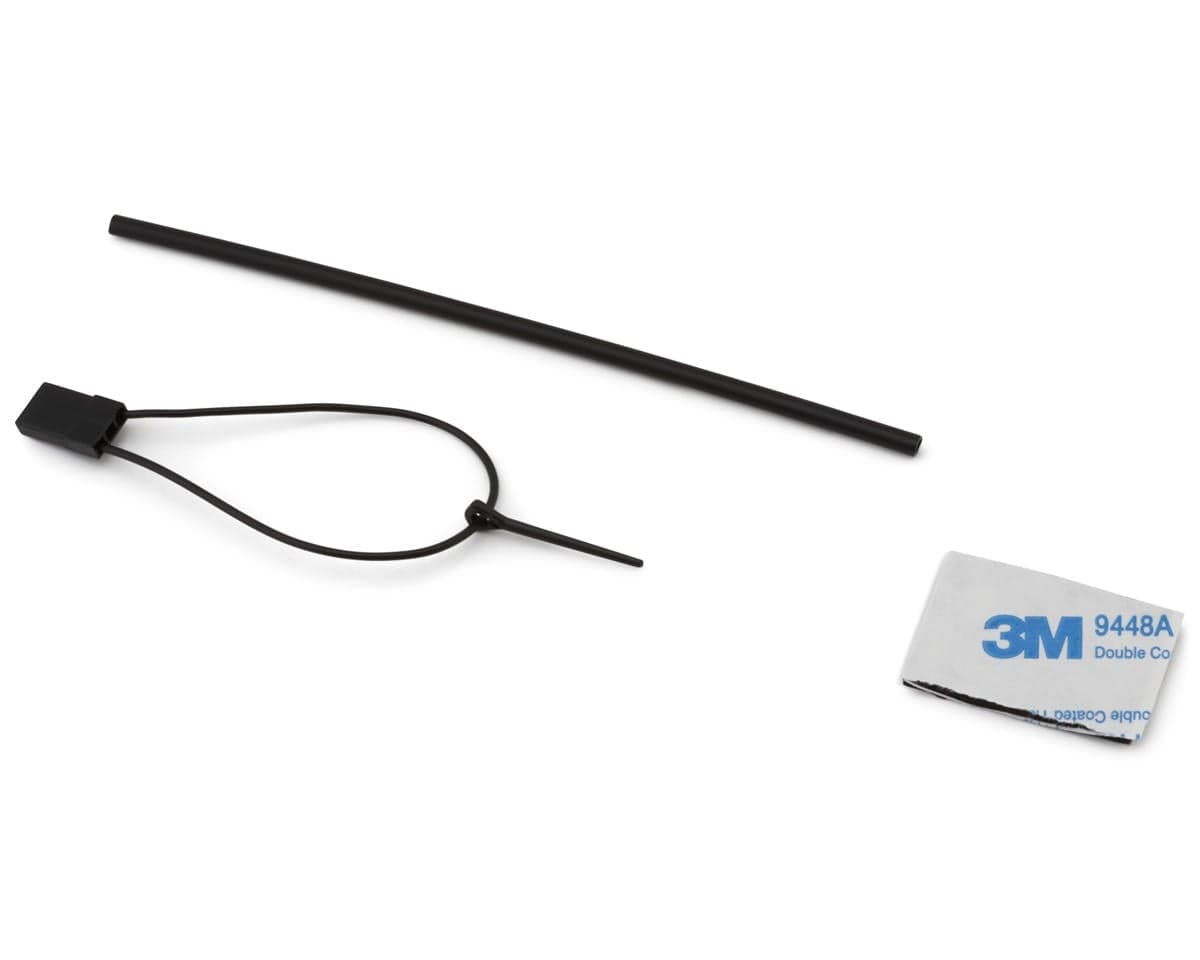

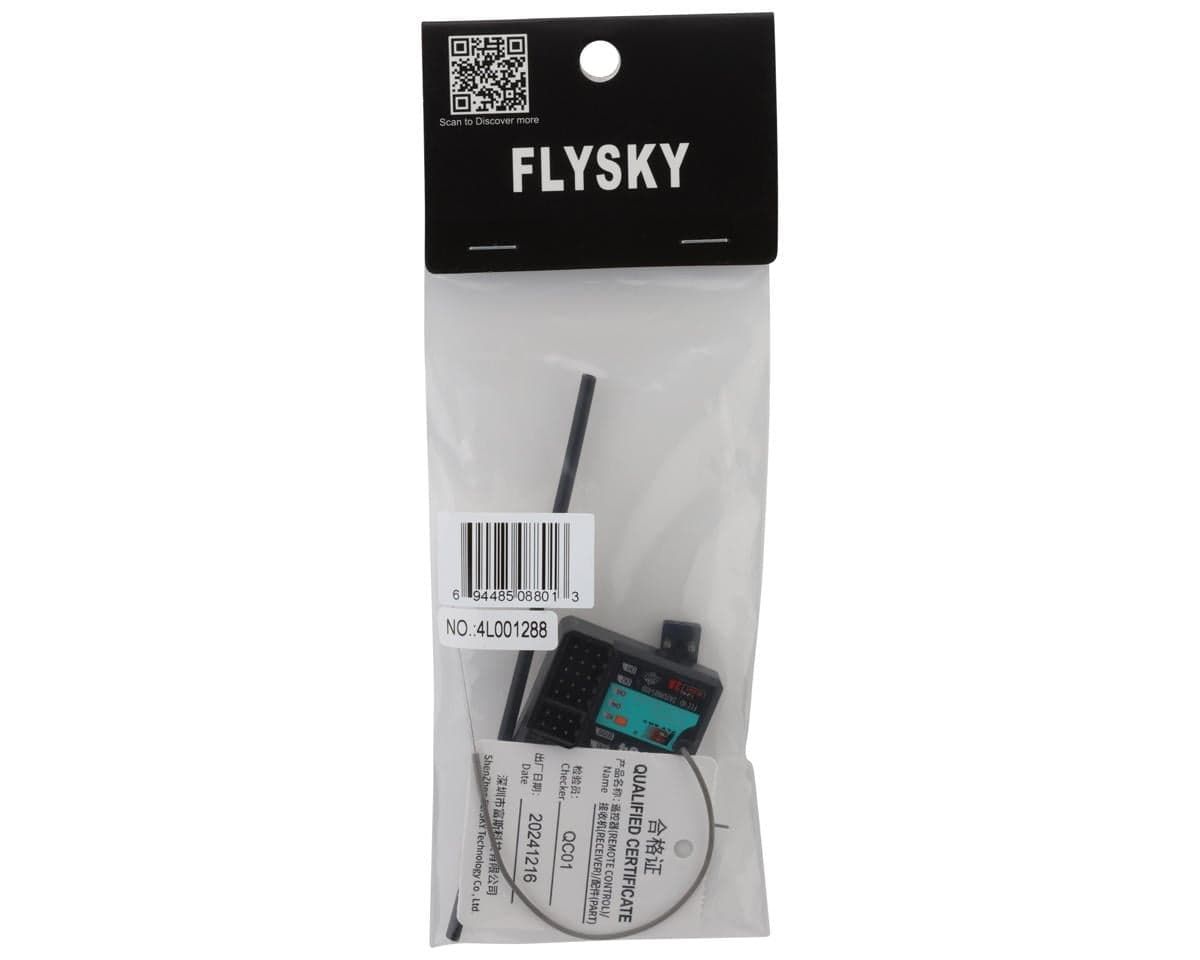

Includes:
- (1) 4-Channel AFHDS 2A Receiver W/Gyro
- (1) Antenna Tube
- (1) Bind Plug
Specifications:
| Channels | 4 |
|---|---|
| Frequency | 2.4GHz |
| Protocol | AFHDS 2A |
| Range | 328-984ft (100-300m) |
| Input Power | 4.0-6.5V |
| Dimensions | 1.39x1.17x0.52in (35.4x29.6x13mm) |
| Weight | 0.35oz (10g) |
Reviews5.0 · 1 review
These receivers (and the telemetry modules that work with it) are amazing! I use a RadioMaster MT12 surface radio, and this receiver has been the best overall, to the point where I use it in almost every car. The range seems excellent, response time is top-notch, the failsafes work perfectly and are tunable super easily in EdgeTX, and to top it off, FlySky has a range of reliable telemetry modules for voltage, temperature, etc. The best feature is the excellent gyro system which supports steering correction and throttle limiting, with a Priority adjustment so that you can keep the gyro on while still maintaining a high level of control. I personally don't care for the throttle limiting, but the steering corrections are on point. It is similar to TSM and AVC, but it actually gives you more tuning options than AVC and especially TSM. In EdgeTX Multi-module AFHDS-2A and GYRO_ON mode: CH13 - ST_Gain CH14 - TH_Gain CH15 -Priority CH16 - Calib
