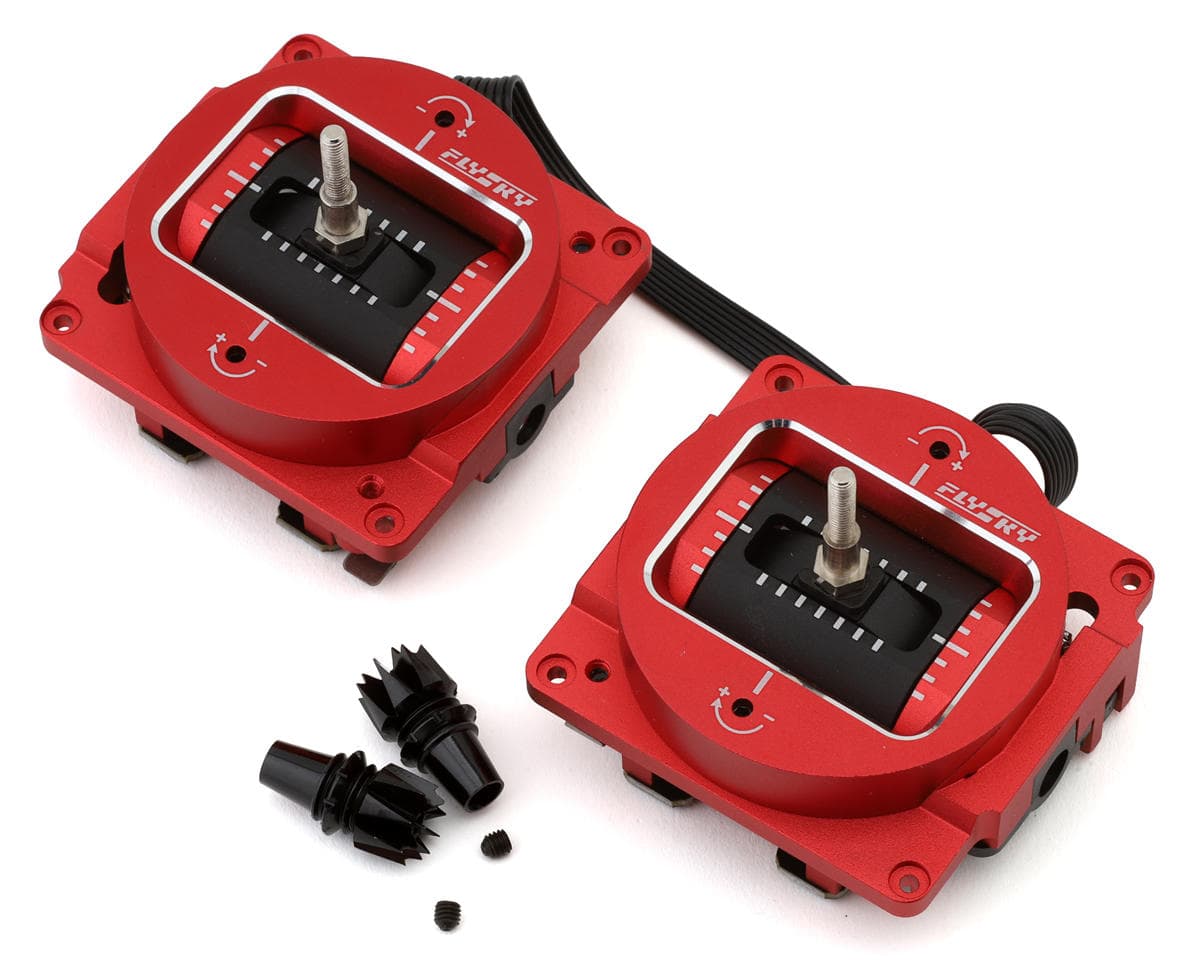

Flysky Aluminum Hall Gimbal Set (Red) (PL18/NV14)
About this part
Gimbal Set Overview:
The Flysky Aluminum Hall Gimbal Set is an optional upgrade designed for pilots using the Flysky PL18 or NV14 transmitters. This enhanced gimbal assembly upgrades the stock units with a refined three-axis Hall magnetic sensing system that delivers smoother, more accurate control input.
About the Aluminum Hall Gimbal Set
Refined Control & Performance
Built around a non-contact Hall sensing design, this gimbal set offers an adjustable mechanical angle and a tunable stroke range from 38° to 54°, allowing pilots to tailor feel and response. Each unit weighs just 71 grams and is anodized for a clean, professional appearance that complements high-end transmitters. The combination of magnetic sensing, customizable configuration, and durable aluminum construction provides a noticeable upgrade in precision and longevity.
Features:
- Three-axis Hall magnetic sensing system
- Non-contact sensing for smooth and consistent input
- Adjustable throttle return-to-center behavior
- Adjustable mechanical stroke range from 38° to 54°
- Lightweight 71-gram aluminum construction
- Anodized finish for a sleek and professional look

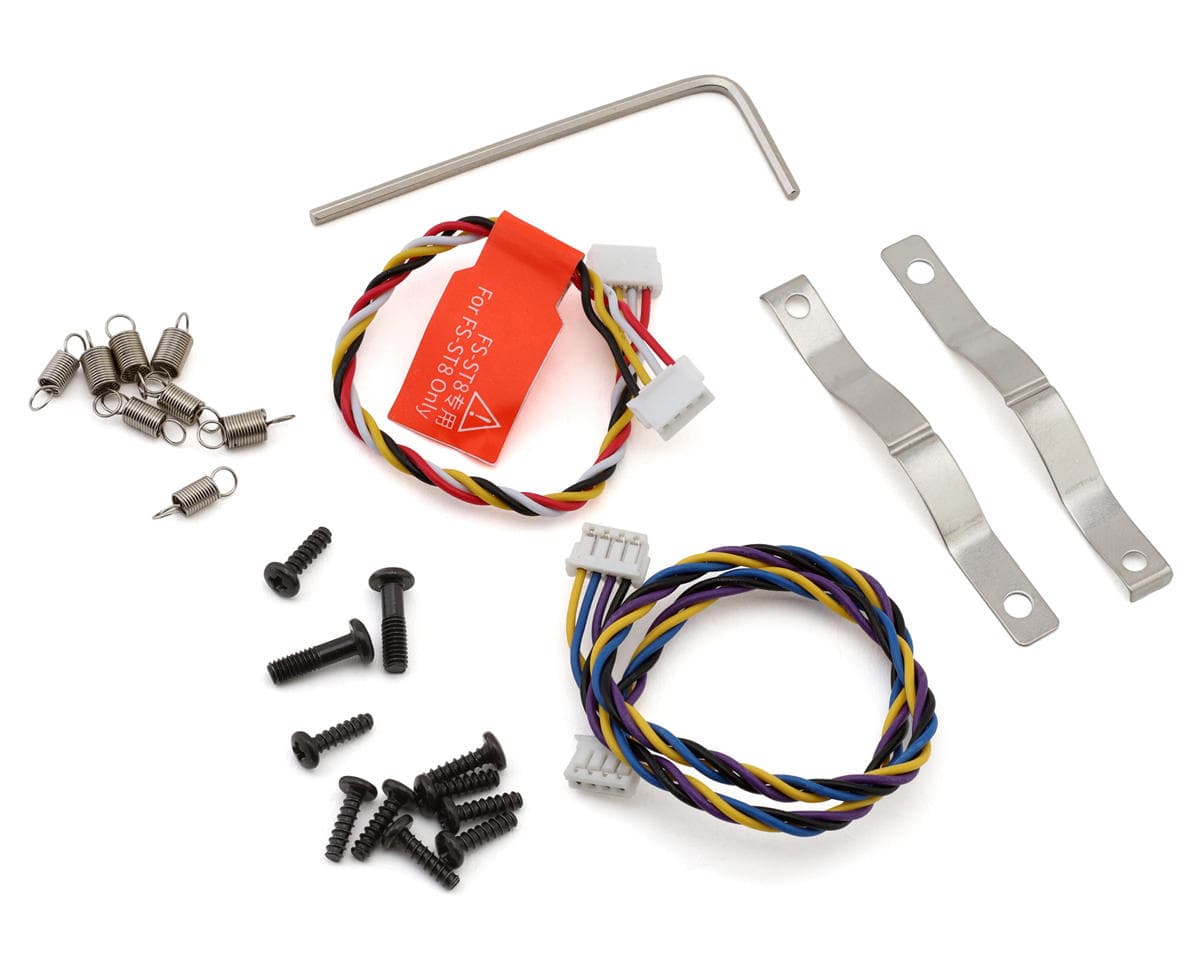

Includes:
- (1) Throttle Aluminum Hall Gimbal
- (1) Centering Aluminum Hall Gimbal
- (8) Centering Springs
- Mounting Hardware
- Product Manual
Specifications:
| Sensor Type | Hall |
|---|---|
| Operating Voltage | 3.3V DC |
| Travel Adjustment Range | 38-54° |
| Operating Temperature Range | 14-140°F (-10-60°C) |
| Dimensions | 2.09x1.97x1.04in (53x50x26.5mm) |
| Weight (Each) | 2.5oz (71g) |
