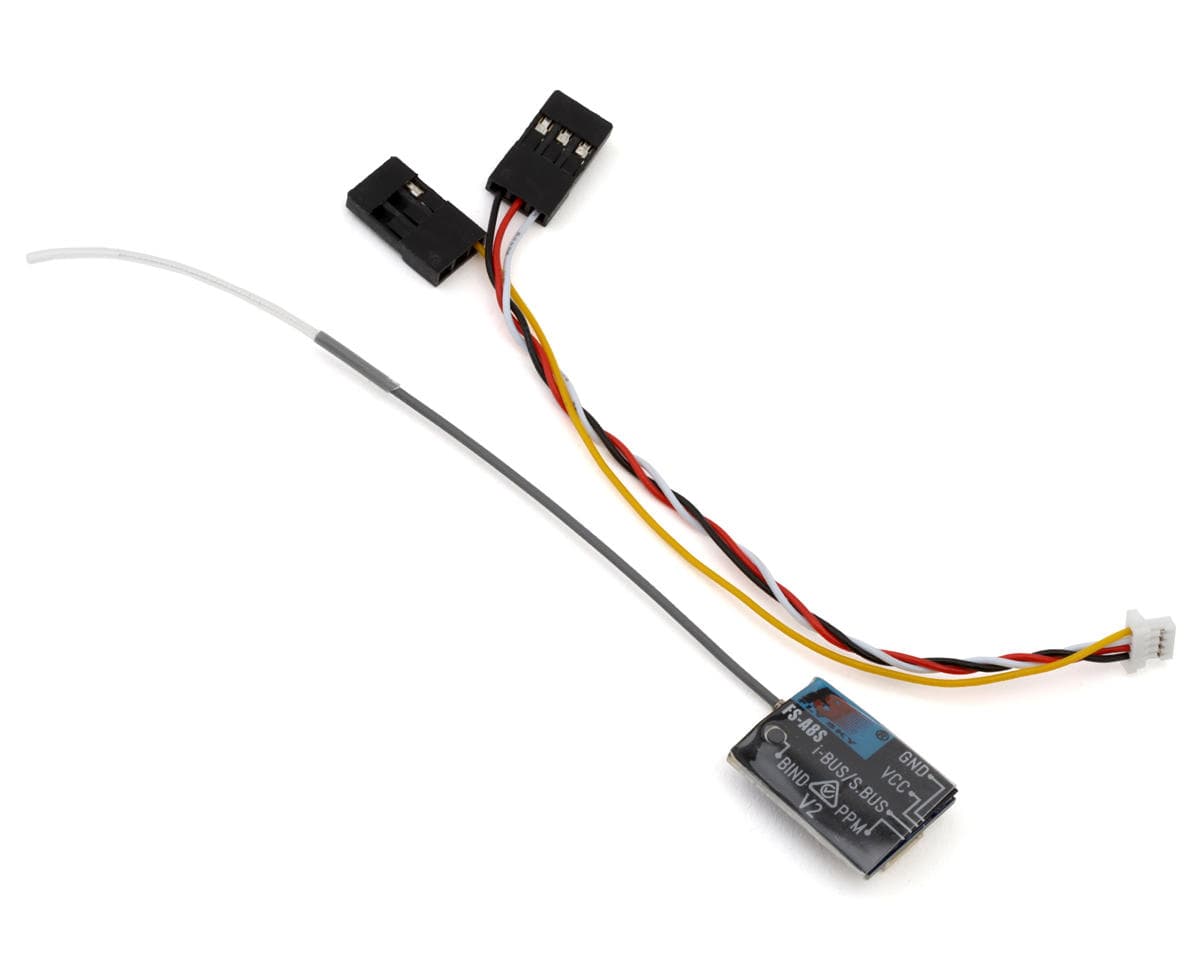

Flysky FS-A8S Micro FPV 8-Channel Omni-Directional AFHDS 2A Air Receiver
About this part
Receiver Overview:
FS-A8S Micro FPV 8-Channel Omni-Directional AFHDS 2A Air Receiver from Flysky is a compact and lightweight solution designed for micro FPV and multi-rotor aircraft. The FS-A8S receiver delivers reliable signal performance in an ultra-small form factor, making it ideal for space- and weight-sensitive builds. Utilizing Flysky’s proven AFHDS 2A protocol, it ensures stable communication and responsive control. With support for multiple output methods, this receiver offers excellent flexibility for modern flight controllers.
About the FS-A8S
Compact Multi-Rotor Receiver with Advanced Protocol Support
Designed specifically for multi-rotor applications, the FS-A8S supports standard PPM output and i-BUS connectivity for up to 18 channels. Its omni-directional design and frequency-hopping technology help reduce interference while maintaining consistent signal quality. The receiver’s low latency and efficient power consumption contribute to smooth flight performance, while its wide input voltage range allows compatibility with various power setups. LED status indication simplifies setup and operation during installation.
Features:
- Ultra-compact micro receiver design
- AFHDS 2A protocol support
- Omni-directional signal reception
- PPM 8-channel output
- i-BUS support up to 18 channels
- Lightweight 1.2g construction
- Low latency signal response
- Wide 4.0–8.4V input range
Includes:
- (1) Flysky FS-A8S 2.4GHz Micro Receiver
Specifications:
| Channels | PPM 8/i-Bus 18 |
|---|---|
| Frequency | 2.4GHz |
| Protocol | AFHDS 2A (GFSK) |
| Range | Full |
| Input Power | 4.0–8.4V |
| Dimensions | 0.79x0.57x0.21in (20x14x5.3mm) |
| Weight | 0.04oz (1.2g) |
