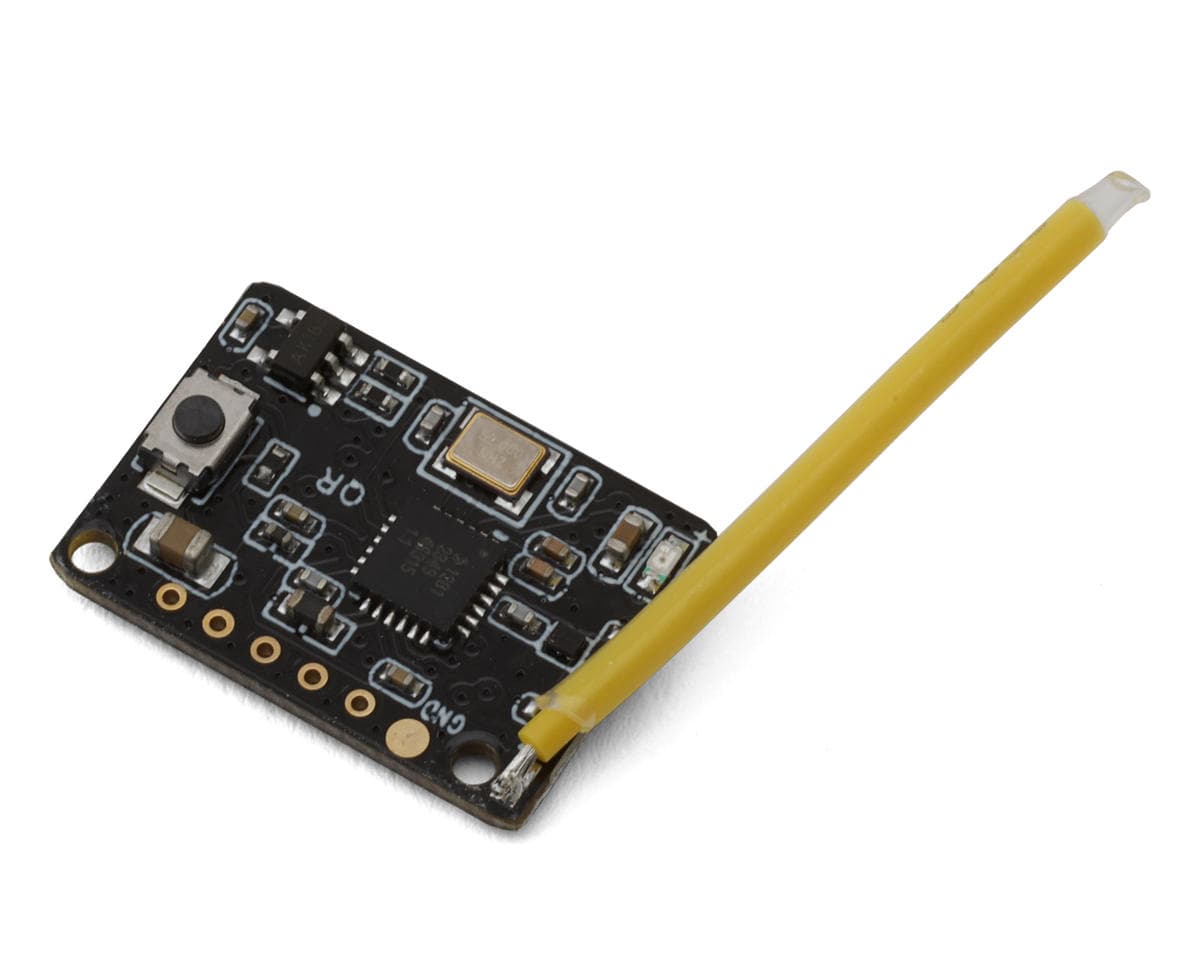

Flysky FS-MiniZRF3 Micro Mini-Z Evo Receiver
About this part
Receiver Overview:
FlySky FS-MiniZRF3 Micro Mini-Z Evo Receiver. This receiver operates on the 2.4GHz frequency band and utilizes the AFHDS3 (Automatic Frequency Hopping Digital System 3) protocol, which ensures a stable and interference-free connection. It is lightweight and compact, supports four channels, and operates on a wide voltage range, all of which make this receiver the perfect match for compatible AFHDS3 capable transmitters.
Features:
- Seamless integration with compatible FlySky AFHDS3 Transmitters
- Lightweight and compact, making it suitable for Mini-Z Chassis
- Easy-to-use bind button for quick and straightforward binding
- Fail-safe settings enhance safety by ensuring the model behaves predictably in case of signal loss
- Utilizes the AFHDS3 protocol
Specifications:
- Input Voltage: 3.3V
- Frequency: 2.4GHz
- Protocol: AFHDS3
- Antenna: Dual
- Dimensions: 0.7x0.5x0.1in (20x14x3.5mm)
- Weight: 0.08oz (2.5g)
Includes:

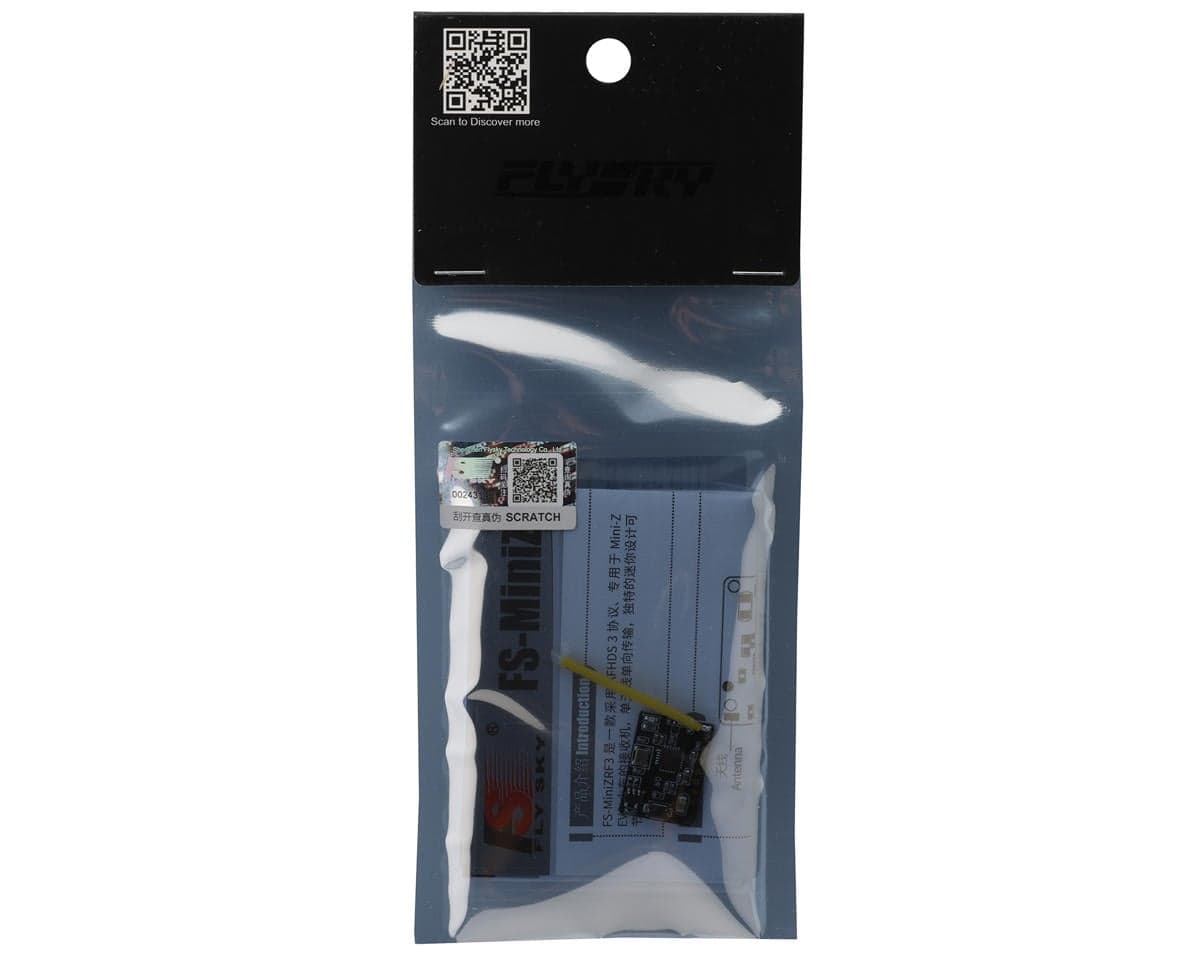

- (1) FS-MiniZRF3 Micro Mini-Z Evo Receiver
Reviews5.0 · 1 review
This receiver is for the Evo #2, which is the frequency that must match your transmitter. It is a must-have for the 04; the 02 and 03 can also use it. I saw it on a mains compatibility list. I used it on the 8500 chassis set; no other receiver worked because it's evo 2 only, and the Noble 4+ has evo 2 on its list of frequencies. Make sure you buy the one for your transmitter and get the plug in for mini z that goes in the body of the transmitter the noble 4+. The 04 is the updated on the better electronics. not all 02 and 03 will work so get the right receiver.
