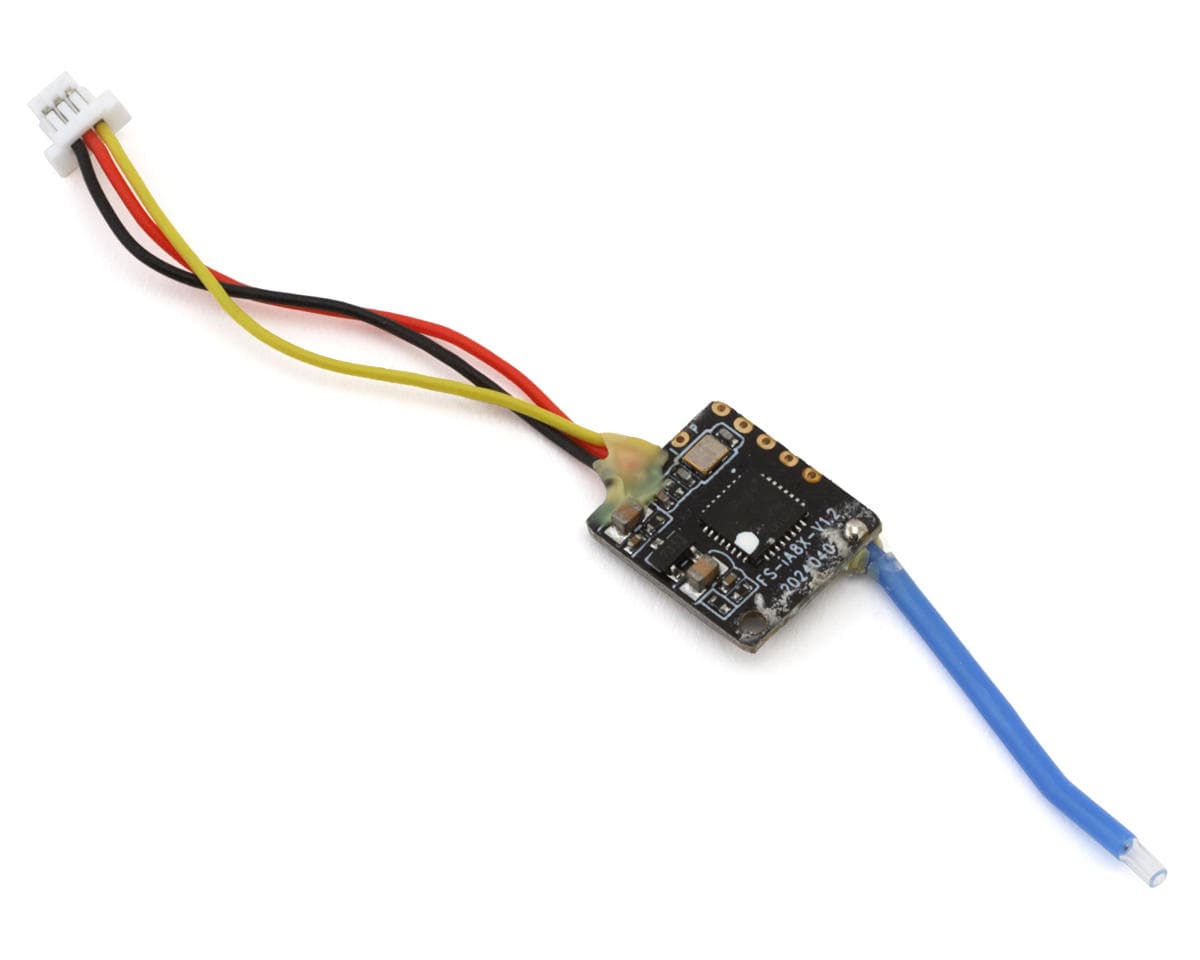

Flysky iA8X Micro FPV AFHDS 2A 2.4GHz 8-Channel Bi-Directional Air Receiver
About this part
Receiver Overview:
The Flysky iA8X Micro FPV AFHDS 2A 2.4GHz 8-Channel Bi-Directional Air Receiver is a lightweight, space-efficient option built specifically for micro multirotor platforms. Its compact design makes it an excellent fit for Micro FPV drones, where every gram and millimeter count, while still delivering the stable performance expected from the AFHDS 2A protocol.
About the iA8X Micro FPV AFHDS 2A Receiver
Streamlined Connectivity
This receiver uses a single-antenna bi-directional design, allowing it to maintain reliable communication while keeping the installation simple. Unlike traditional receivers that rely on PWM outputs, the iA8X Micro FPV receiver supports PPM and i-BUS, giving pilots cleaner wiring, reduced weight, and faster signal handling—ideal for modern flight controllers and tight micro-frame layouts.
Features:
- Compact design ideal for Micro FPV drones
- Operates on the AFHDS 2A protocol for stable communication
- Single-antenna bi-directional receiver
- Supports PPM and i-BUS outputs
- Lightweight, streamlined installation for tight builds
- Fast, efficient signal handling for responsive flight control
Includes:
- (1) iA8X Micro FPV AFHDS 2A 2.4GHz 8-Channel Bi-Directional Air Receiver
- Product Manual
Specifications:
| Channels | 8 |
|---|---|
| Frequency | 2.4GHz |
| Protocol | AFHDS 2A |
| Range | 100-300m |
| Data Output | PPM/i-BUS |
| Input Power | 4.0-8.4V |
| Dimensions | 0.59x0.51x0.12in (15x13x3mm) |
| Weight | 0.04oz (1.1g) |
