Flysky R4D 2-In-1 ANT 4-Channel ESC Receiver w/LED Controller
About this part
ESC Receiver Overview:
The Flysky R4D 2-In-1 4-Channel ESC Receiver with LED Controller is a versatile all-in-one solution for RC hobbyists who demand efficiency and performance. Designed for use with a wide range of 1/10 vehicles—including crawlers, short course trucks, and on-road models—this compact receiver combines a 4-channel ANT protocol receiver with a built-in 40A brushed ESC and a 6-port LED light controller. Its robust design includes multiple layers of protection and supports automatic binding for fast setup. Whether you're upgrading an existing build or starting fresh, the FS-R4D simplifies wiring while boosting control and functionality.
About the ESC Receiver
Key Features and Benefits
The R4D 2-in-1 receiver streamlines your RC electronics by combining multiple essential functions into one unit. It supports up to 3S LiPo batteries and delivers reliable power through a 6V/3A BEC, making it compatible with a range of brushed motors from 280 to 550 size. With two-way signal transmission, LED light control, and built-in protection features, it offers both convenience and safety. The device is waterproof rated at PPX7, allowing for worry-free use in wet or muddy conditions, and provides a signal range of over 150 meters for dependable control.
Features:
- Integrated 40A brushed ESC
- 4-channel ANT protocol receiver
- Built-in 6-port LED light controller
- Supports brushed motors from 280 to 550 size
- Two-way signal communication
- Waterproof PPX7 rating
- Automatic binding with compatible transmitters
- Over-voltage, overheat, and locked rotor protection
- Up to 3S LiPo or 9-cell NiMH battery compatibility
- 150m+ signal range
Includes:

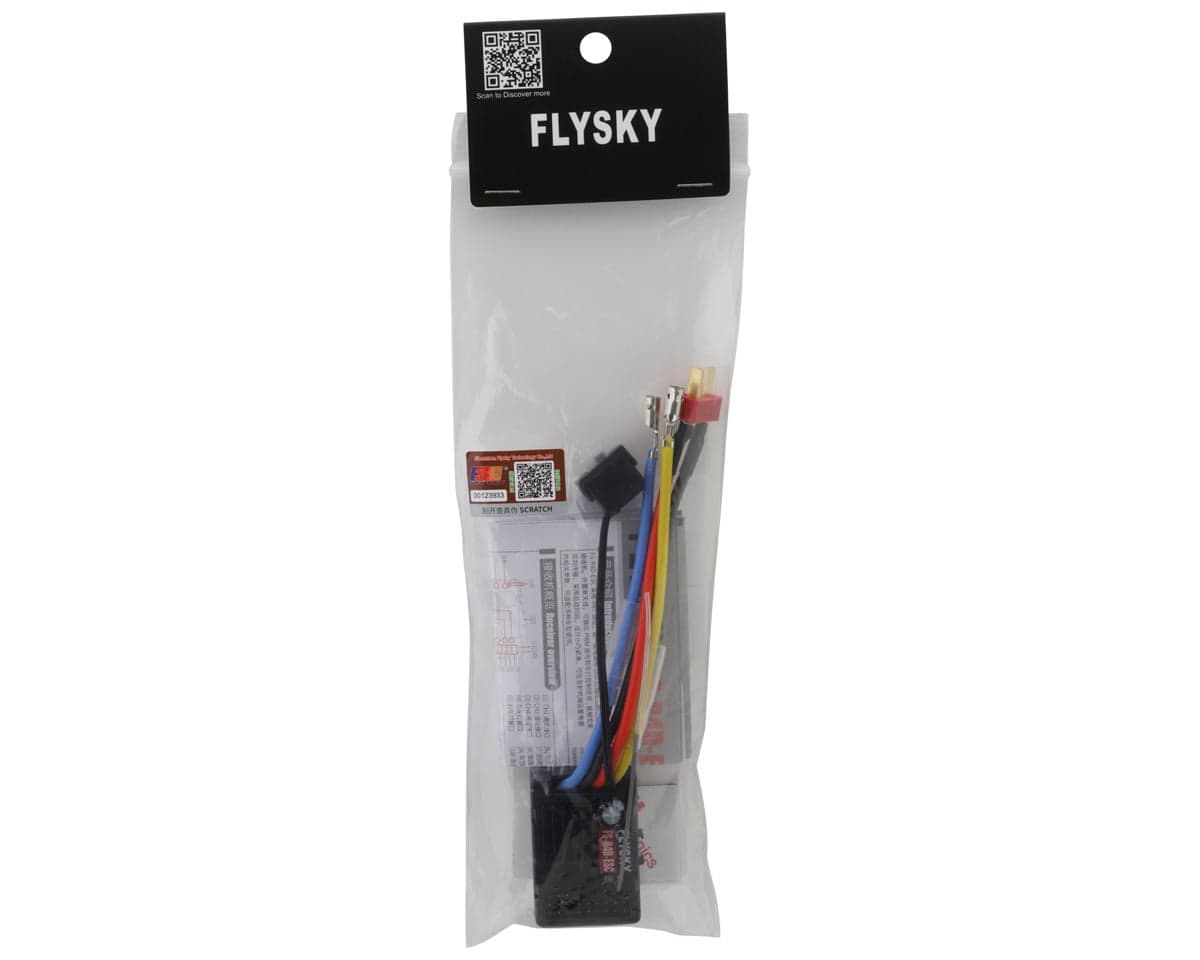

- (1) R4D 2-in-1 4-Channel ESC Receiver with LED Controller

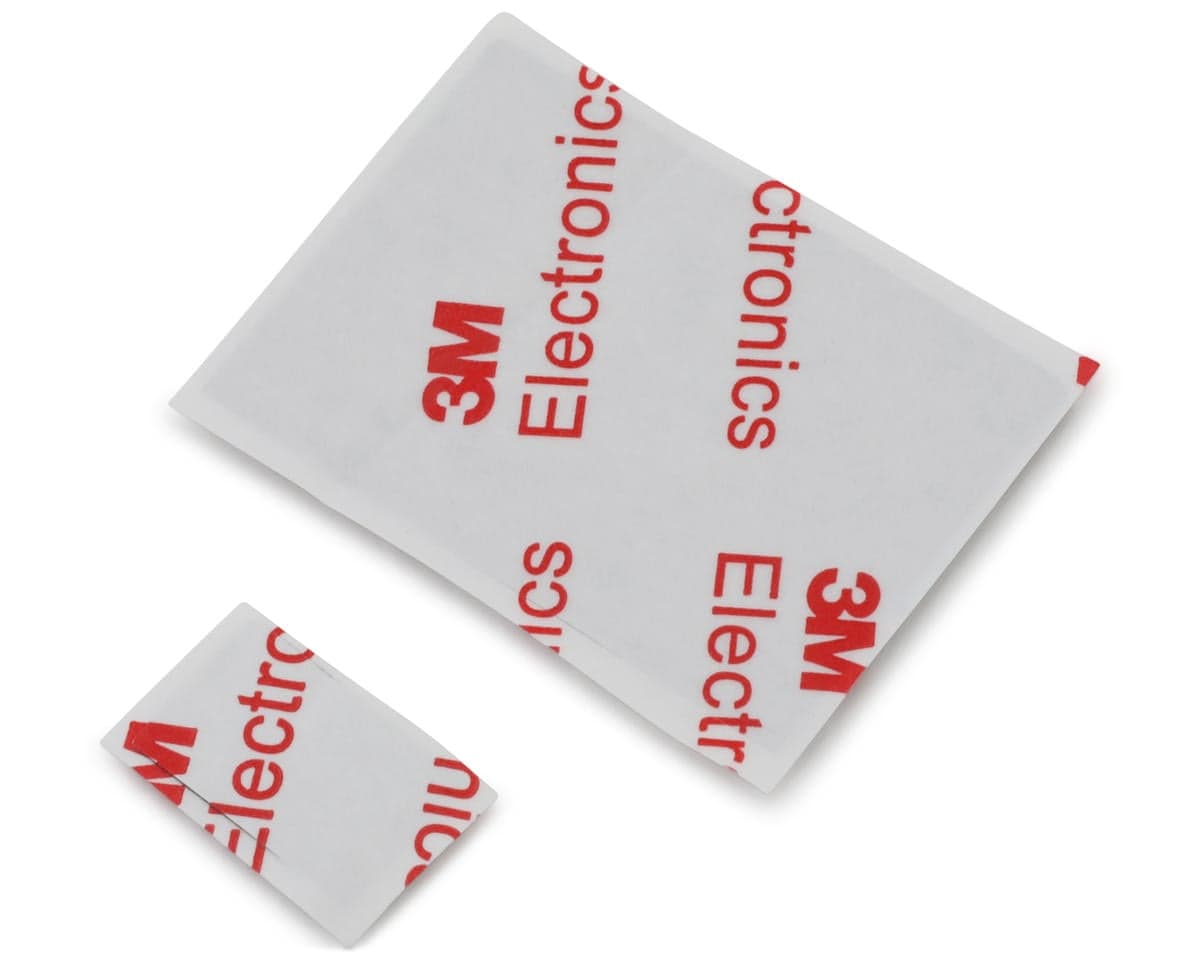

- (1) Mounting Tape
- (1) Manual
Specifications:
| Channels | 4 |
|---|---|
| Frequency | 2.4GHz |
| Protocol | ANT |
| Range | ft (150m) |
| Input Power | 2-3S LiPo |
| Motor Type | Brushed |
| Motor Size | 550/540 |
| BEC Output | 6V/3A |
| Dimensions | 1.73x1.18x0.66in (44x30x16.7mm) |
| Weight | 1.52oz (43g) |
Reviews4.0 · 3 reviews
Works great. Don't listen to the comment about drag brake as you can tune it thru the radio. I'm using it on my Losi Nascar paired with a Flysky G7p and it's smooth and very responsive. Great product and the price is even better.
This is the ESC/Receiver found in the Element Enduro Bushido+ and Zuul IFS. For what it is it is very impressive. Great low speed control. Controls hour LEDs. The transmitter that comes with the Elements allows you to adjust drag brake on the fly. Great little 2 in 1 unit!
This is a great idea but executed poorly. You can not program out instant 100% drag brake making this a crawler only esc / rx combo. If you could just turn off the drag brake this would open up a world of opportunity for this thing, especially custom micro projects. If a crawler with 100% instant drag brake in forward and no drag brake in reverse is what you seek, this may be it. Bummed.
Reviewers generally find the R4D receiver and ESC combo responsive and smooth, with good low-speed control and LED control praised, and one reviewer notes the value is strong. The main point of disagreement concerns drag brake: one reviewer says it can be tuned via the radio, including on the fly with the Element transmitter, while another reports that instant 100% drag brake cannot be programmed out, limiting use outside crawlers. Two reviews are from verified owners and one is unverified. Reviews reference use in a Losi Nascar with a Flysky G7p transmitter and in Element Enduro Bushido+ and Zuul IFS models. Overall sample is small.
- + Smooth and responsive control
- + Good low-speed control
- + Controls LEDs
- + Strong value for price
- − Drag brake cannot be fully disabled in one review
- − Limited suitability outside crawlers per one reviewer
