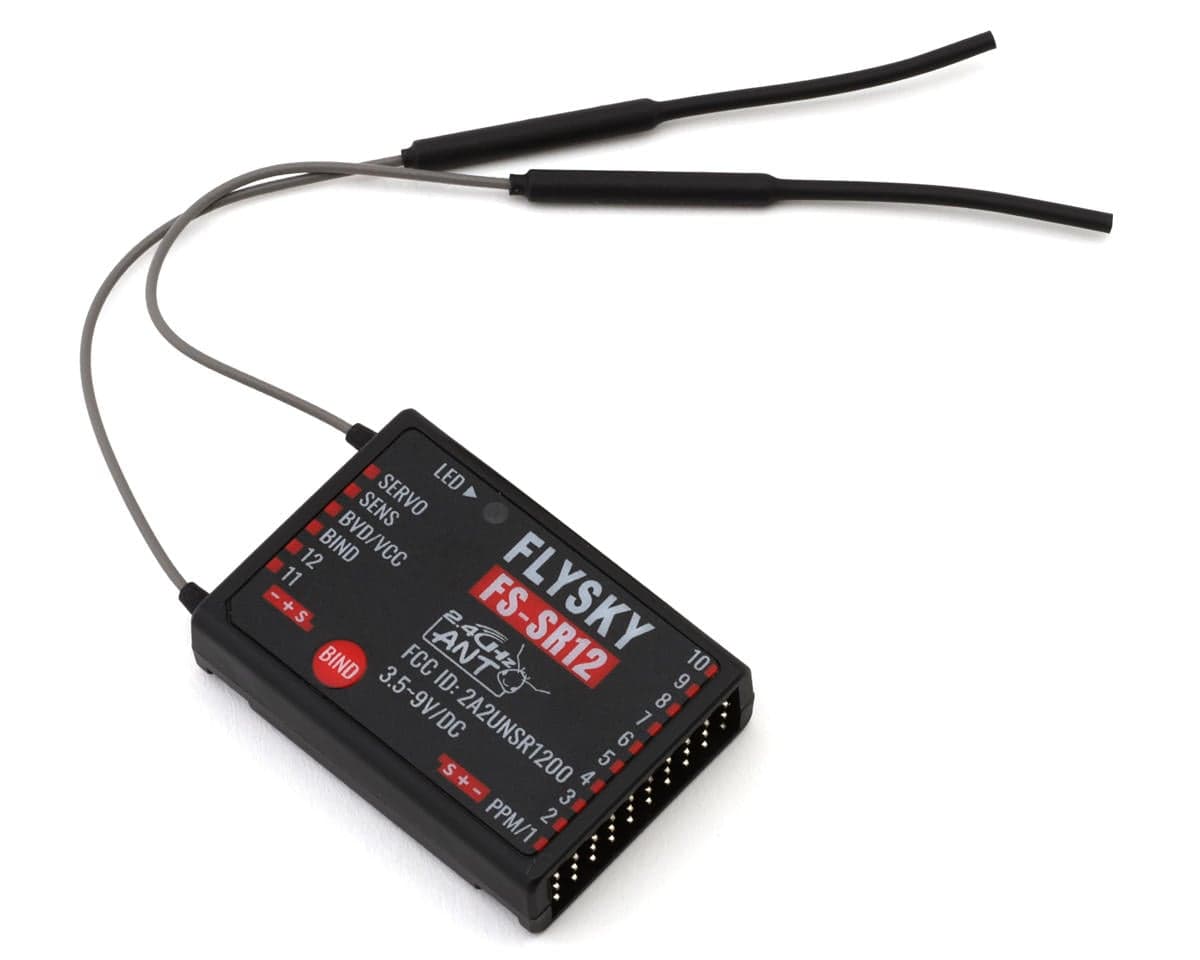

Flysky SR12 ANT 12-Channel 2.4GHz Air Receiver
About this part
Receiver Overview:
The Flysky SR12 ANT 12-Channel 2.4GHz Air Receiver is a versatile, compact receiver designed to deliver stable, responsive control across a wide range of aircraft. Operating on the trusted 2.4GHz frequency with the ANT protocol, it provides a reliable communication link ideal for fixed-wing models, gliders, multirotors, and other air platforms that benefit from multi-channel flexibility.
About the SR12 ANT 12-Channel Receiver
Stable & Reliable Communication
Equipped with a dual-antenna system, the SR12 ensures strong, consistent signal performance while also supporting two-way transmission for enhanced communication reliability. With twelve PWM output channels, it offers extensive setup options, making it perfect for aircraft that use additional accessories or advanced control surfaces. Its compact form factor makes installation easy, even in tighter fuselages or streamlined builds.
Features:
- Operates on the trusted 2.4GHz frequency
- Uses the ANT protocol for stable, responsive communication
- Dual antennas provide strong signal and two-way transmission
- Supports twelve PWM output channels for complex aircraft setups
- Compact design fits a wide range of airframes
Includes:
- (1) SR12 ANT 12-Channel 2.4GHz Air Receiver
- Product Manual
Specifications:
| Channels | 12 |
|---|---|
| Frequency | 2.4GHz |
| Protocol | ANT |
| Range | 1500m |
| Data Output | PWM/PPM/i-BUS/S.BUS |
| Input Power | 3.5-9V |
| Dimensions | 1.76x1.26x0.44in (44.8x32x11.3mm) |
| Weight | 0.46oz (13g) |
