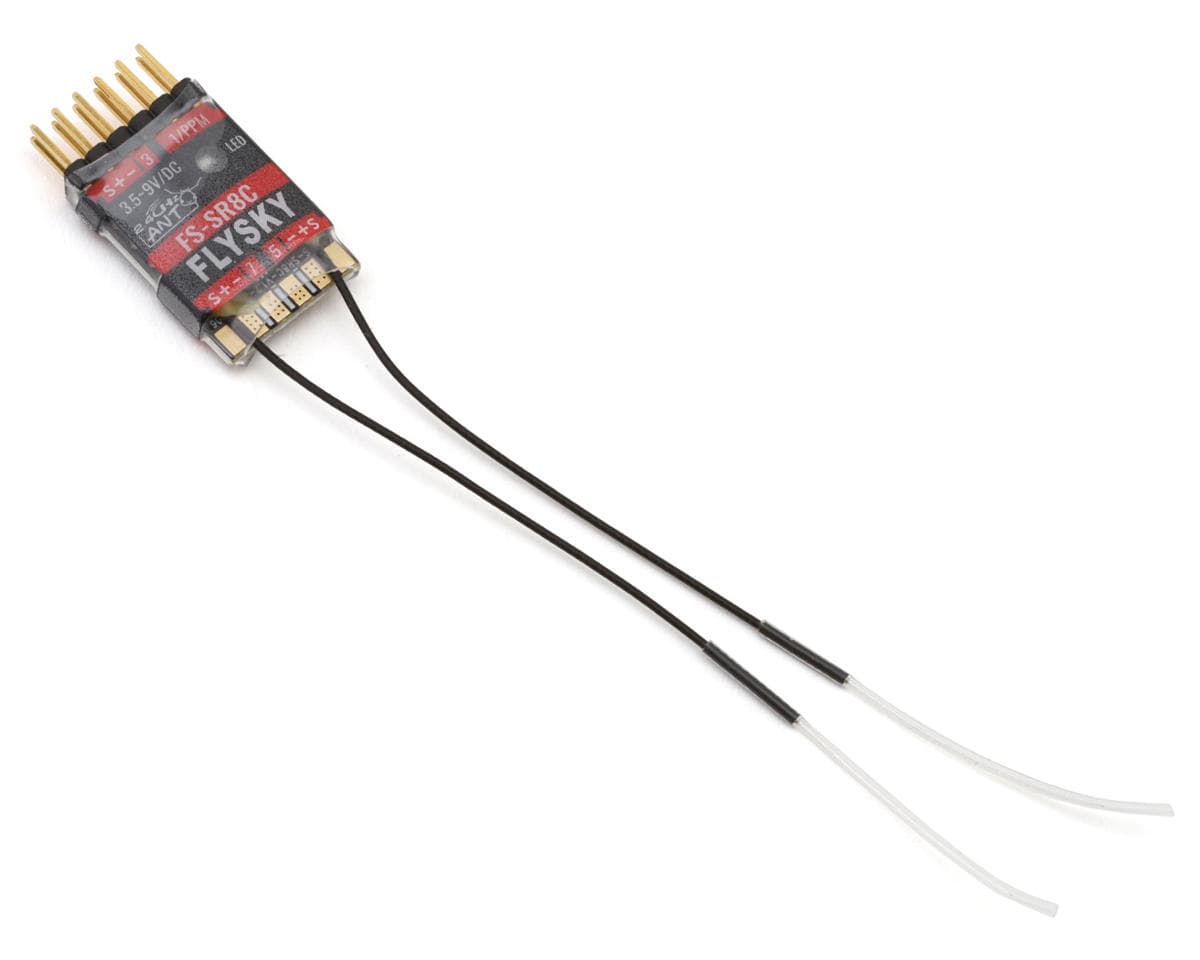

Flysky SR8C Mini ANT 2.4GHz 8-Channel Air Receiver w/4 Pre-Installed Channels
About this part
Receiver Overview:
The Flysky SR8C Mini ANT 2.4GHz 8-Channel Air Receiver is designed for pilots who need maximum performance in compact size. Using Flysky's ANT protocol, the SR8C delivers fast, stable, and interference-resistant control for aircraft, gliders, fixed-wing models, multirotors, and robotic applications. Despite its lightweight design, it includes dual antennas for strong signal reliability, supports full telemetry return with compatible transmitters, and offers multiple output formats including PWM, PPM, i-BUS, and S.BUS.
About the SR8C Mini ANT 8-Channel Air Receiver
Compact Design
The SR8C features eight total PWM channels, and ships with four channels equipped and ready to use right out of the box. The remaining four channels are fully supported and can be activated by soldering on the included pins, giving you the option to keep the receiver ultra-light or expand its capabilities as your model requires. Additional features such as optional battery voltage detection (BVD) and online updates make the SR8C a flexible, high-performance receiver that grows with your needs.
Features:
- Compact design for tight installations
- ANT protocol delivers fast response and high stability
- Four pre-installed channels with support for up to eight channels
- Dual antennas for strong and reliable 2.4GHz signal

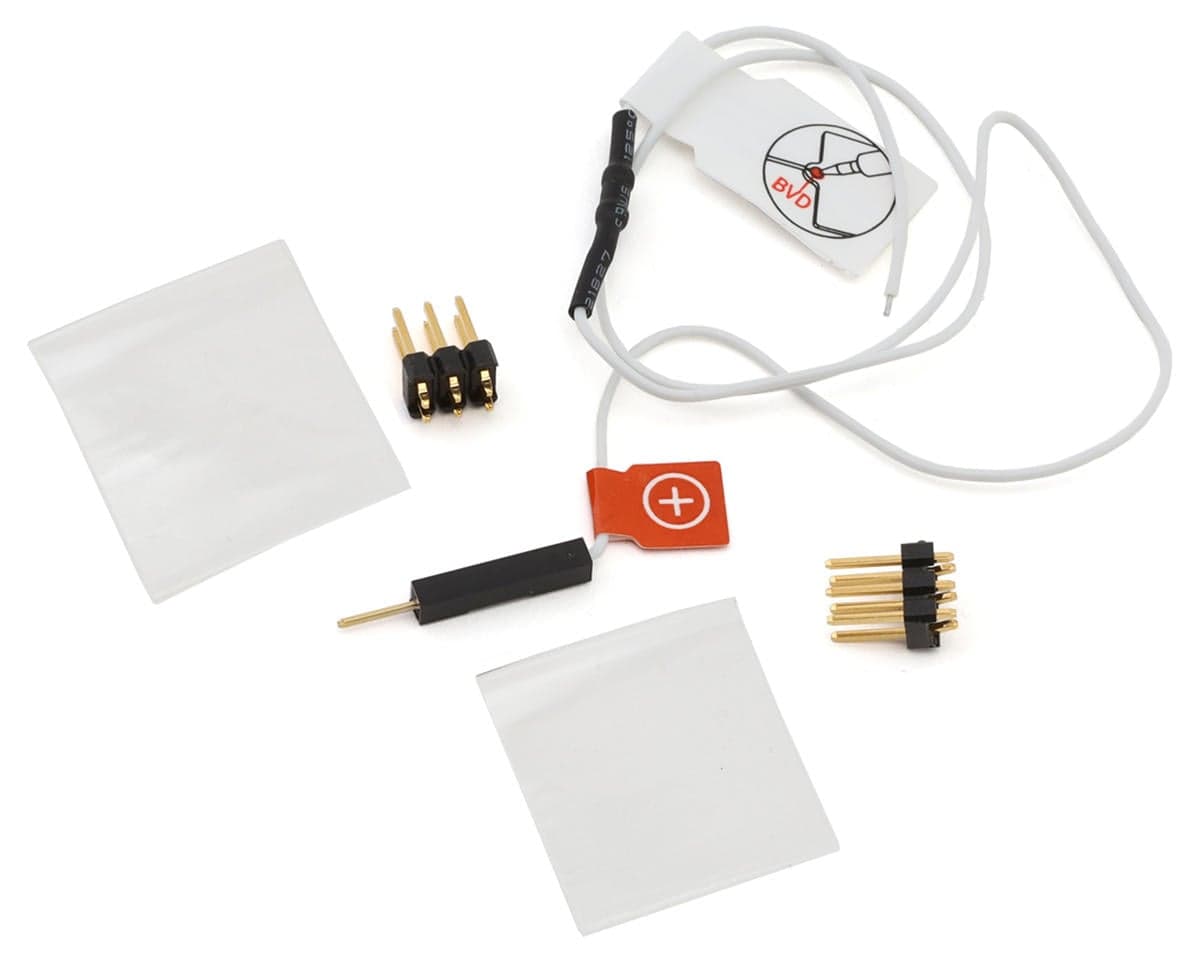

Includes:
- (1) SR8C Mini ANT 2.4GHz 8-Channel Air Receiver
- (1) Wiring Harness
- (2) Additional Pin Headers
- (2) Heat Shrink Tubes
- Product Manual
Specifications:
| Channels | 8 (4 Pre-Installed) |
|---|---|
| Frequency | 2.4GHz |
| Protocol | AFHDS 3 |
| Range | - |
| Data Output | PWM/PPM/i-BUS/S.BUS |
| Input Power | 3.5-9V |
| Dimensions | 0.87x0.59x0.12in (22x15x3mm) |
| Weight | 0.04oz (1g) |
*Tech Note: This receiver is equipped with four PWM channels out of the box, and can be increased to eight by soldering the included pins.
