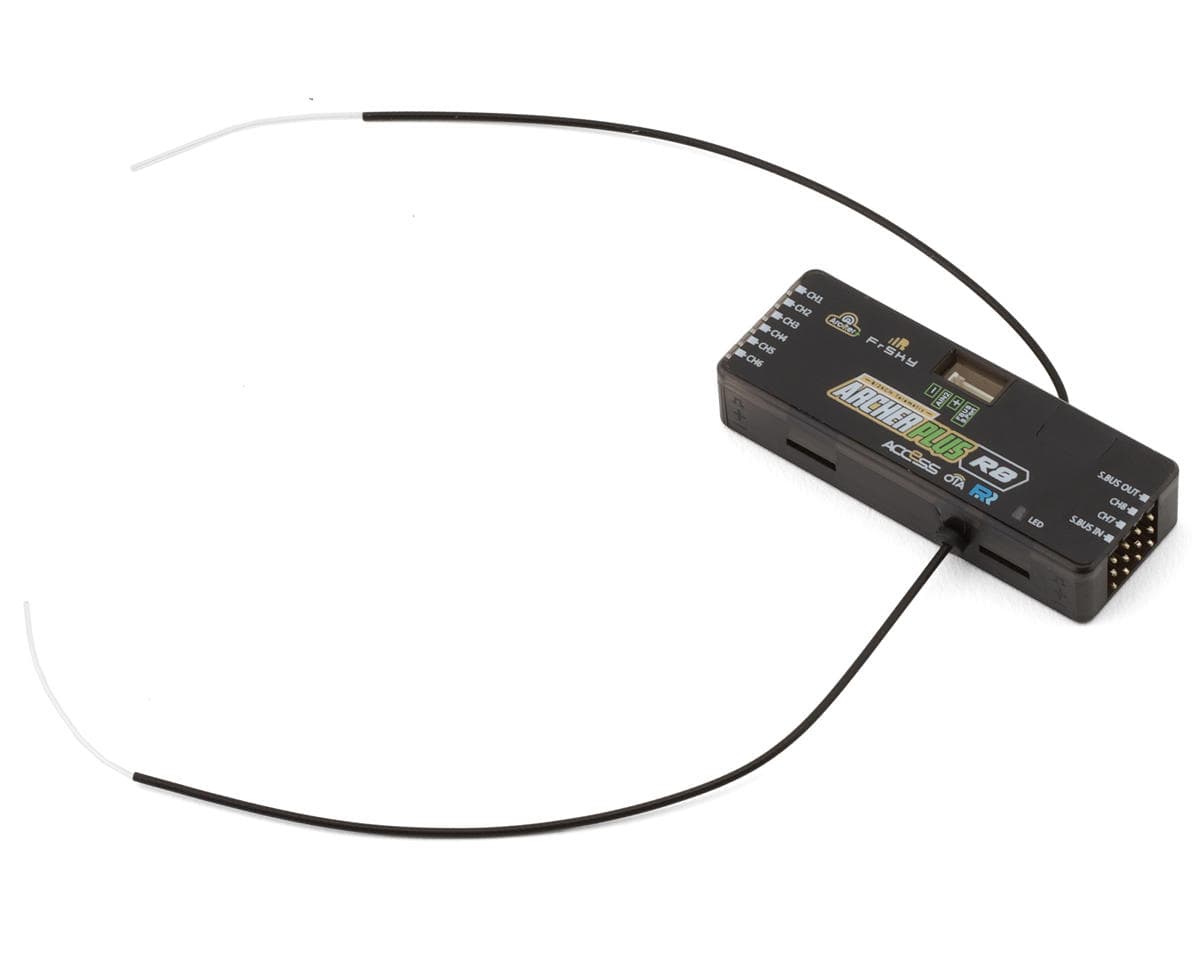

FrSky Archer Plus R8 8-Channel 2.4Ghz Receiver

Receiver Overview:

This is the FrSky Archer Plus R8 8-Channel Receiver. Designed for enhanced RF performance the R8 features advanced anti-RF interference technology and supports dual-mode operation with both ACCESS and ACCST D16 protocols. With its compact size and versatile channel configuration, the Archer Plus R8 is ideal for a wide range of RC applications, ensuring reliable control and telemetry data preservation.

Features:

• Enhanced anti-RF interference capability
• Dual-mode compatibility with ACCESS and ACCST D16
• Black-box functionality for flight data preservation
• 8 high-precision PWM channels
• Redundancy support via SBUS In and Out ports
• FBUS protocol compatibility for telemetry device pairing
• Dual detachable antennas for extended range
• Compact and lightweight design
• Compatible with various RC models and setups
• Easy integration with FrSky radio transmitters

Specifications:

• Dimensions: 2.13x0.79x0.39in. (54x20x10mm)
• Weight: 0.35oz (9.8g)
• Operating Voltage Range: 3.5 -10V
• Operating Current: 65mA@5V
• Control Range: Full range* with telemetry
• Channels: 8
• Modulation: ACCESS, ACCST D16
• Antenna Type: IPEX4
• Compatibility: Supports PWM, SBUS, FBUS, S.Port

Includes:

• (1) Archer Plus R8 8-Channel Receiver

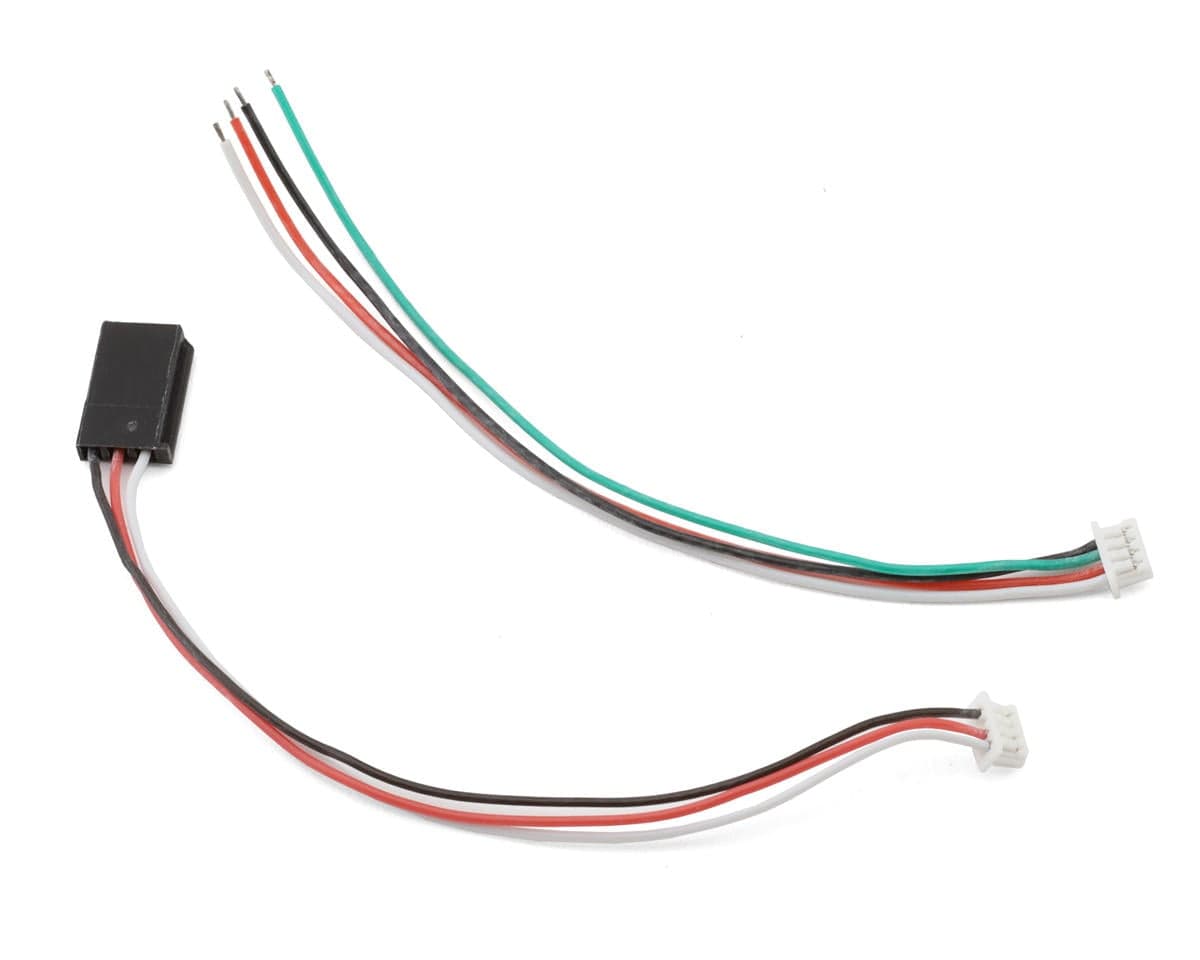

• (1) Wiring Harness
