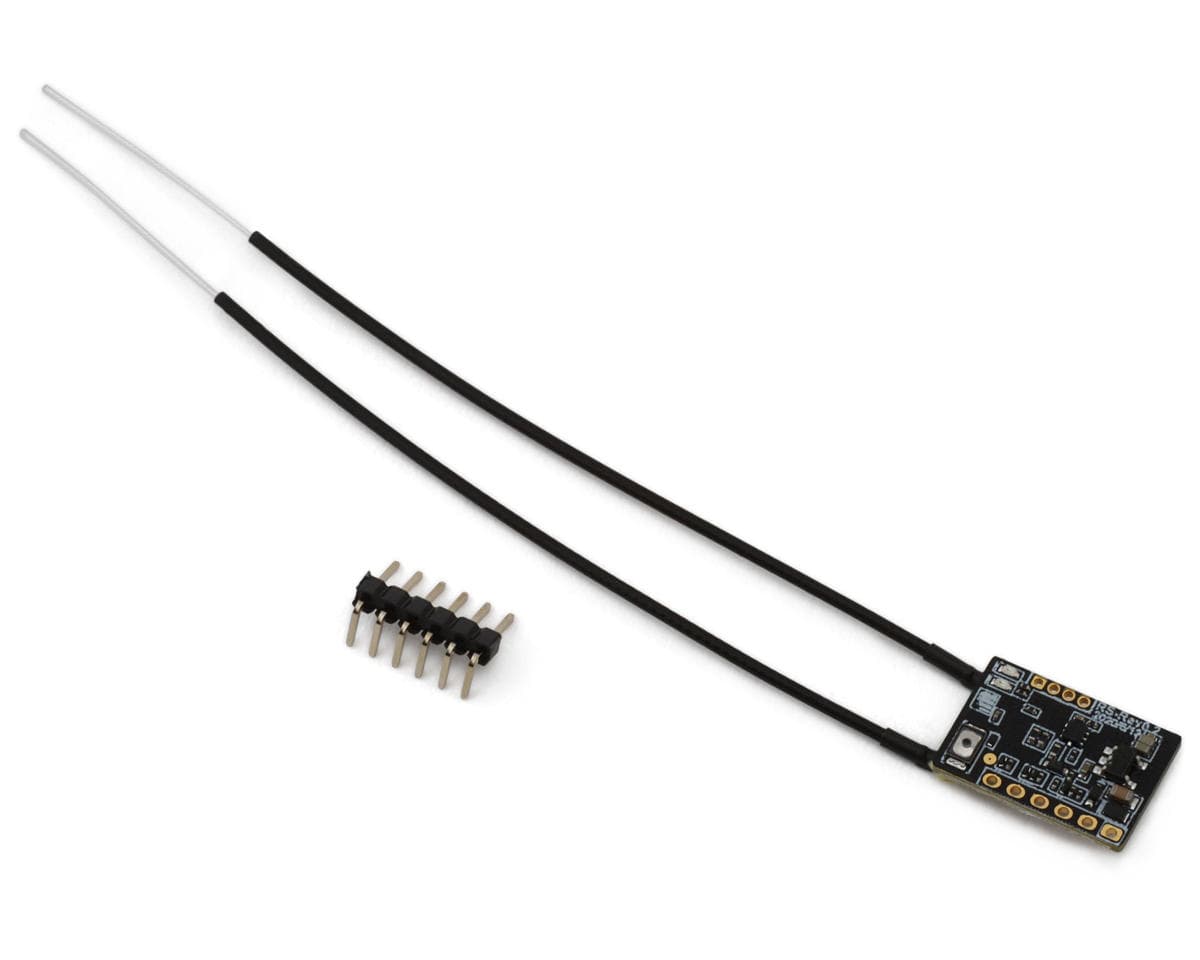

FrSky Archer Plus RS 2.4GHz Receiver

Receiver Overview:

This is the Archer Plus RS 2.4GHz Receiver from FrSky. The Archer Plus Series enhances the already robust Archer line with new features, including improved anti-RF-Interference capabilities for a more stable RF performance. These receivers support both ACCESS and ACCST D16 modes, offering seamless protocol matching during the binding process and providing OTA wireless firmware upgrades, increased range, and enhanced telemetry performance.

Features:

• Enhanced anti-RF-Interference capability
• Supports both ACCESS and ACCST D16 modes
• OTA wireless firmware upgrades
• Increased range and telemetry performance
• Configurable telemetry power (RS)
• S.Port / F.Port / FBUS switching
• VFR indicators
• Dual detachable/replaceable antennas
• Inverted S.Port for easy flight controller connection
• Redundancy receiver capability

Specifications:

• Input Voltage: 3.5-10V
• Frequency: 2.4GHz
• Channels: 16/24
• Compatible Transmitters: All FrSky ACCESS/ACCST D16 transmitters
• Antenna: IPEX4
• Dimensions: 0.63x0.43in (16x11mm)
• Weight: 0.05oz (1.3g)

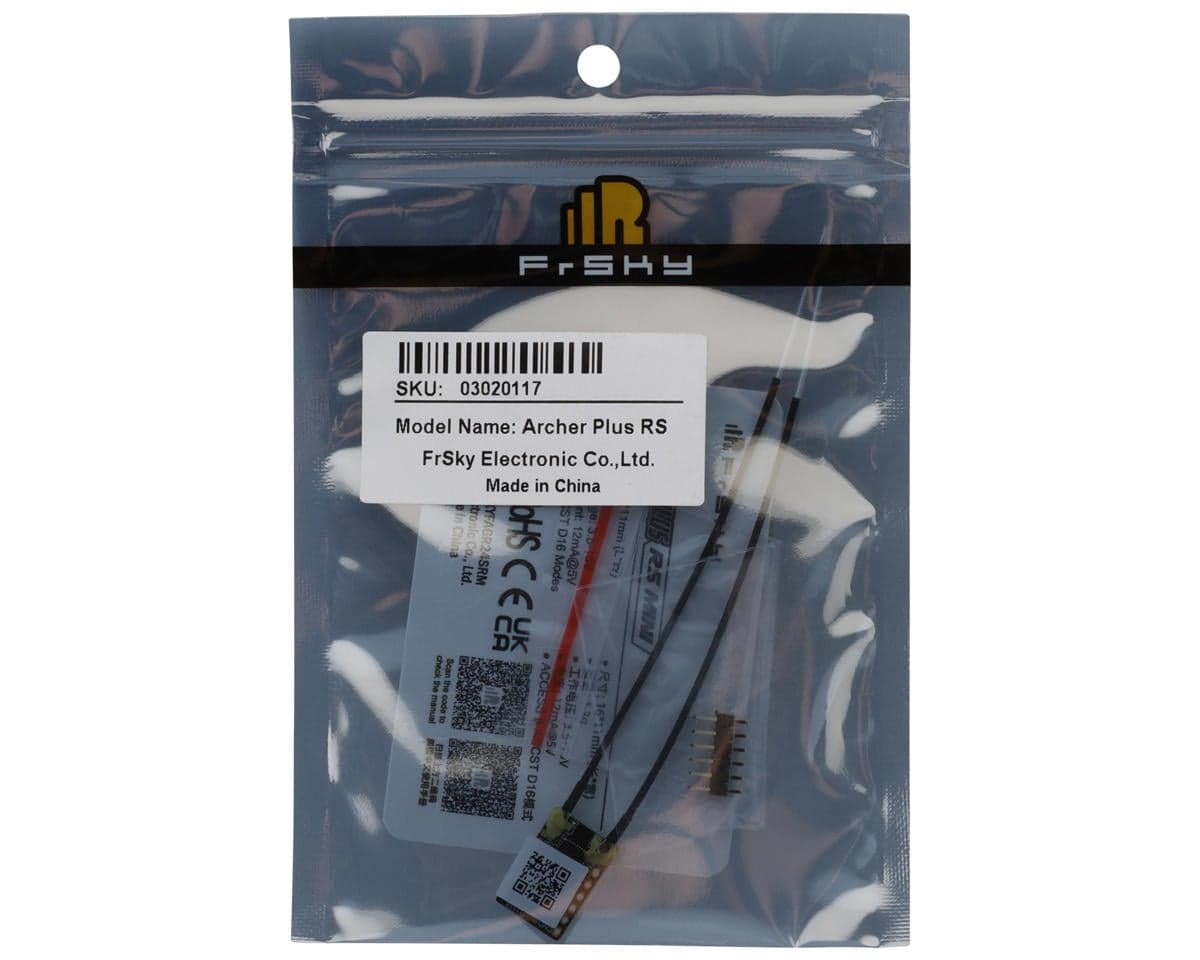

Includes:

• (1) Archer Plus RS 2.4GHz Receiver
• (1) Pinset
