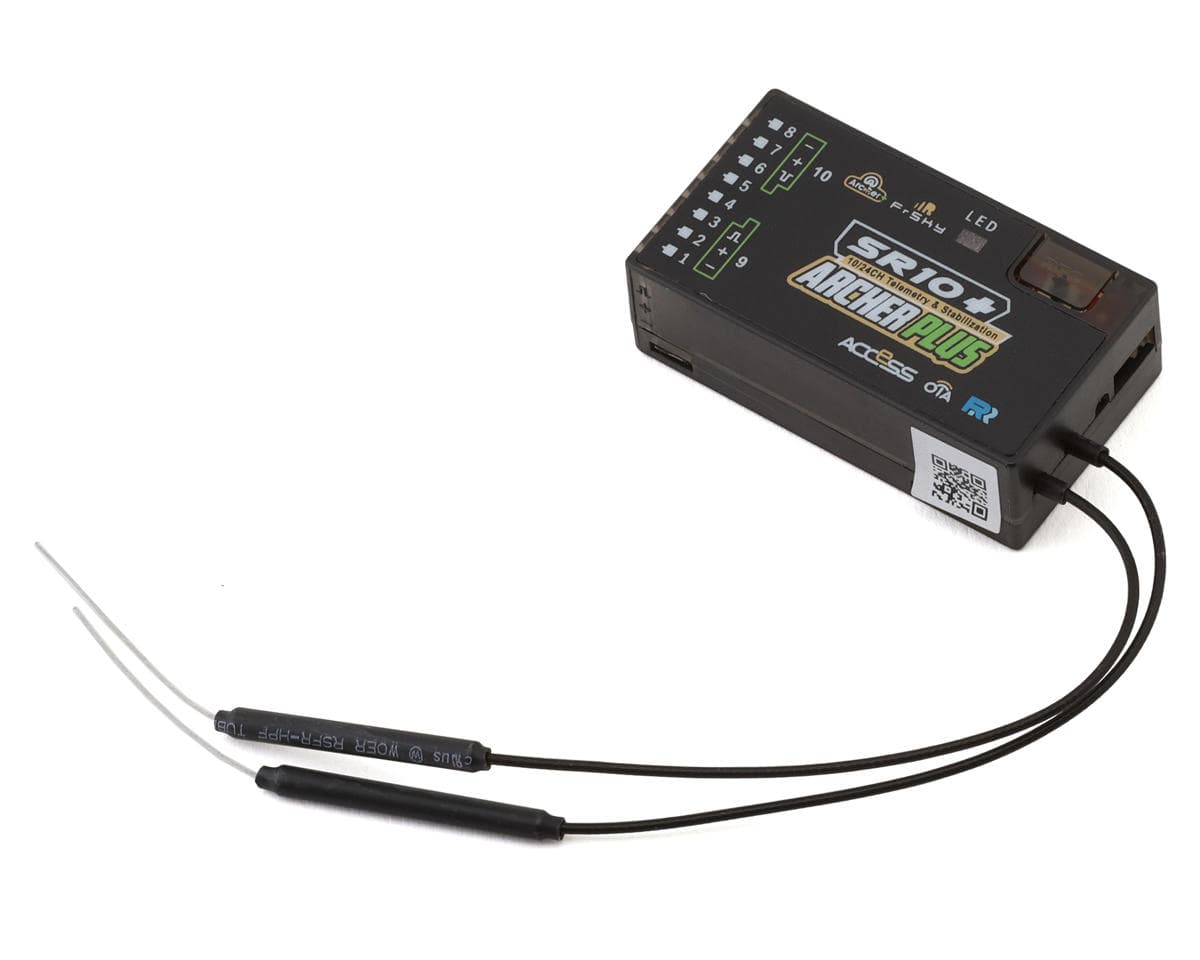

FrSky Archer Plus SR10+ 10-Channels Receiver

FrSky Archer Plus SR10+ 10-Channel Receiver Overview:

The FrSky Archer Plus SR10+ 10-Channel Receiver, incorporating cutting-edge technology, is a gyro-stabilized receiver with a built-in 3-axis gyroscope and 3-axis accelerometer. It provides 10 high-precision PWM channel outputs, offering various flight modes and configuration options to cater to different preferences. The receiver boasts excellent signal reception and optimal range with dual detachable antennas, ensuring a seamless and reliable connection during flights. Moreover, it offers redundancy capabilities and anti-vibration performance, making it a top choice for discerning hobbyists!

The SR10 PRO can also be used as a redundancy receiver along with any other FrSky Access capable receiver equipped with an SBUS port. The SR10 PRO 10-channel receivers’ noticeable features are its Anti-vibration performance and dual-battery ports for redundancy. In addition, all of the Archer receivers are hyper-matched with the Access protocol. They not only feature wireless firmware upgrades, and increased range and telemetry performance, the SR10 Pro also supports more functions like configurable telemetry power, S.Port/F.Port/FBUS switching and FLR output with additional valuable features under development to unlock the true potential of the Access protocol.

Features:

• Access Protocol with Over The Air (OTA)
• Built-in 3-axis gyroscope and 3-axis accelerometer sensor
• 16/24 Configurable SBUS Channels
• 10 high-precision PWM Channels
• Multiple flight modes and configuration methods (LUA & Freelink)
• Supports signal redundancy (SBUS In)
• Supports power redundancy (Dual battery ports)
• Full control range with telemetry
• S.Port / F.Port / FBUS
• Anti-interference in spark-ignition
• Anti-Vibration
• External battery / device voltage detection

Specifications:

• Dimension: 48.5x33x17mm (LxWxH)
• Weight: 23g
• Operating Voltage Range: 3.5 -10V
• Operating Current: >60mA@5V
• Control Range: Full range* with telemetry (*Full Range: >2km, the range may vary based on local conditions.)
• Voltage Measurement Range via AIN2 (External device): 0-36V
• Compatibility: All FrSky Access transmitters

Includes:

• (1) FrSky Archer Plus SR10+ 10-Channel Receiver
