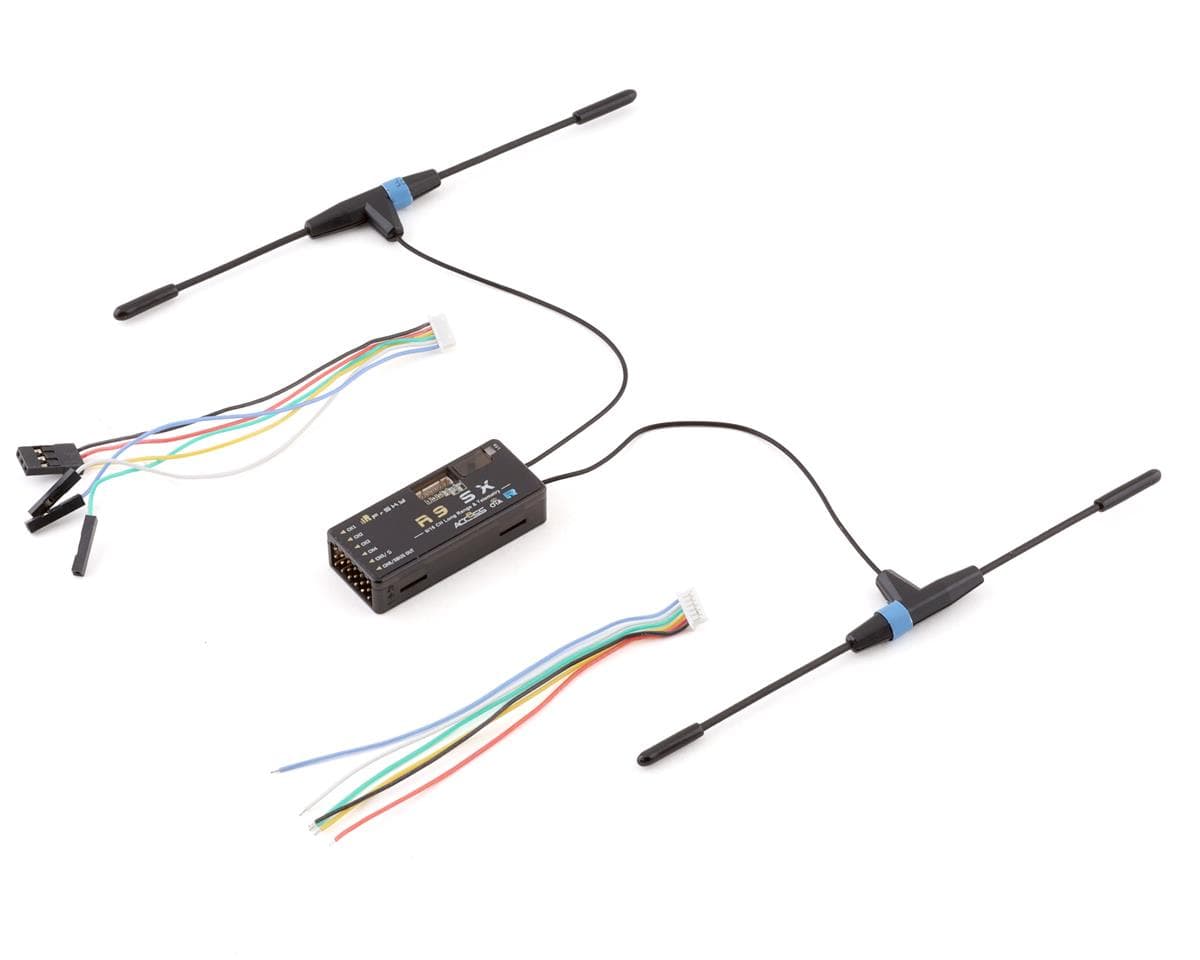

FrSky R9 SX Receiver

The FrSky R9 SX Receiver is an updated version of the R9 Slim series of receivers. This receiver adds 3-pin servo connectors for a full 6 PWM channels. The dual antenna design adds redundancy and helps make sure your transmitter and receiver are connected. This receiver can also be configured to use S.Port or SBUS. Package includes one receiver with antenna and two wiring harnesses.

Features:

• ACCESS protocol with OTA function support
• 900MHz / 868MHz long-range with low latency
• Durable design
• 6 standard servo connectors (default PWM channel)
• Switchable CH5 / CH6 into S.Port / SBUS Output channels
• Support S.Port / F.Port (Configurable in OpenTX / FrOS menu)
• Signal redundancy function
• External battery detection
• Detachable Ipex1 connector antenna

Specifications:

Frequency: 868MHz / 915MHz

Dimension: 36x17x7mm (47.5x20.5x11mm including case)

Weight: 8.8g (13g including case)

Numbers of Channel: 6 PWM / 16 SBUS (CH16 outputs RSSI)

Operating Voltage: 3.5V-12.6V DC

Operating Current: <100mA @ 5V

Compatibility: R9M Lite / R9M Lite Pro / R9M 2019 with ACCESS firmware
