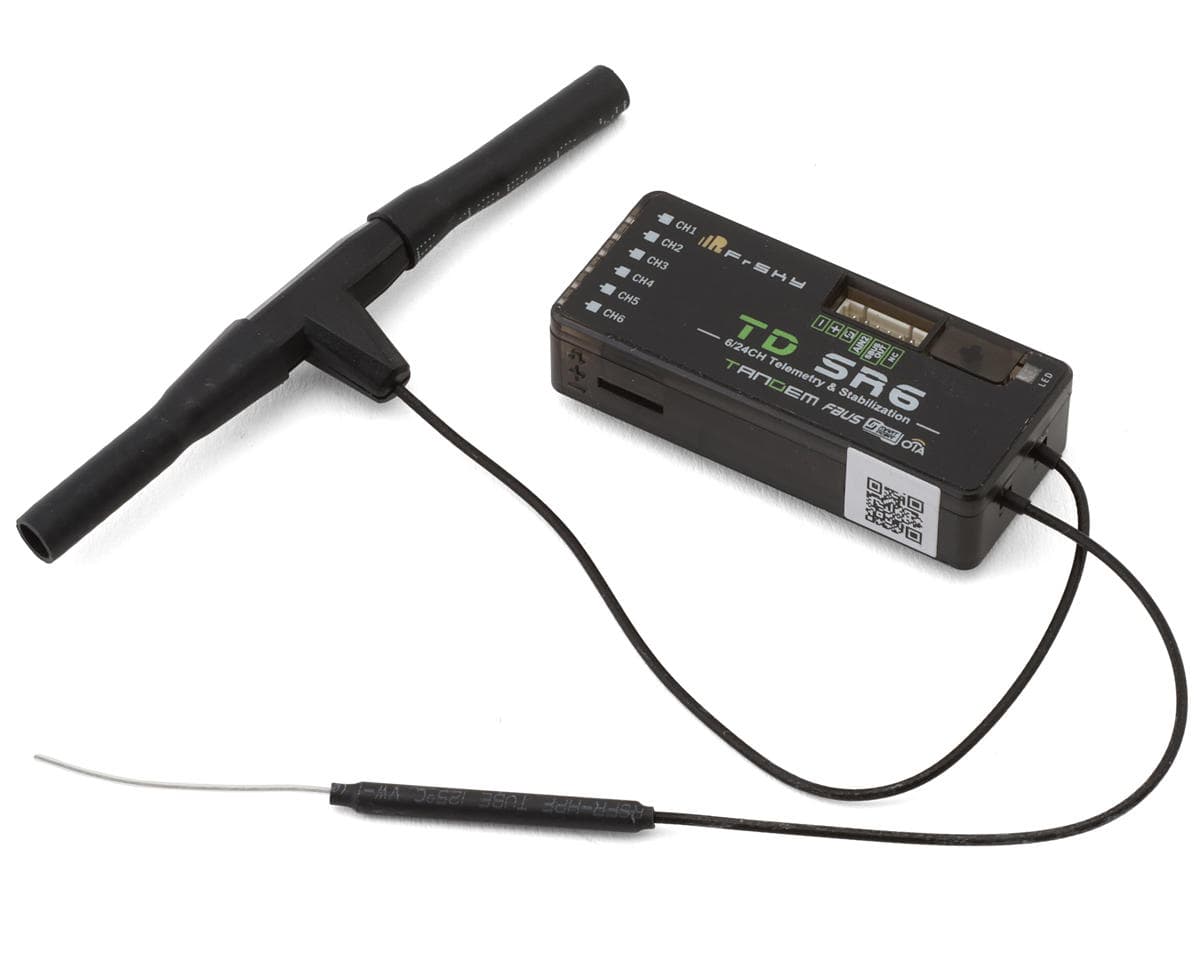

FrSky TD SR6 6-Channel 2.4Ghz/900Mhz Receiver

Receiver Overview:

The TD SR6 6-Channel Receiver from FrSky is a cutting-edge radio control component offering dual-band functionality at both 2.4GHz and 900MHz frequencies. This receiver ensures reliable signal transmission with low latency and extended range capabilities, making it ideal for RC enthusiasts seeking superior performance. With a compact and lightweight design, the TD SR6 is suitable for various applications and integrates advanced features such as built-in stabilization functions for precise control and a black box module for recording telemetry data during flight. The receiver supports flexible configuration with 6 PWM channel ports and compatibility with telemetry devices through FBUS/S.Port protocols.

Equipped with a dual-band antenna design for multi-directional coverage, the TD SR6 receiver provides enhanced signal reception across remote areas. Its 4ms race mode with telemetry ensures fast response times, making it perfect for racing applications where responsiveness is critical. Additionally, the TD SR6 supports Over-The-Air firmware updates for convenient maintenance and optimization. This receiver is a must-have for RC hobbyists looking to enhance their control systems with advanced dual-band technology and reliable performance.

Features:

• Simultaneous working 2.4G & 900M dual-band TD mode
• Dual-band antenna design for multi-directional coverage
• Compact lightweight design
• Built-in Stabilization Function
• Black Box function
• 4ms race mode with telemetry
• Long control range (Range varies based on the RF Power settings)
• Over-The-Air (OTA) FW update
• 6 PWM channel ports
• FBUS / S.Port

Specifications:

• Dimensions: 1.87x0.80x0.43in. (47.5×20.4×10.9mm)
• Weight: 0.81oz (11.5g)
• Operating Voltage Range: 3.5 -10V
• Operating Current: 110mA@5V
• Control Range: Full range* with telemetry
• Channels: 6
• Modulation: Triple Antenna (2) 2.4Ghz & (1) 900Mhz
• Compatibility: Supports PWM, SBUS, FBUS, S.Port

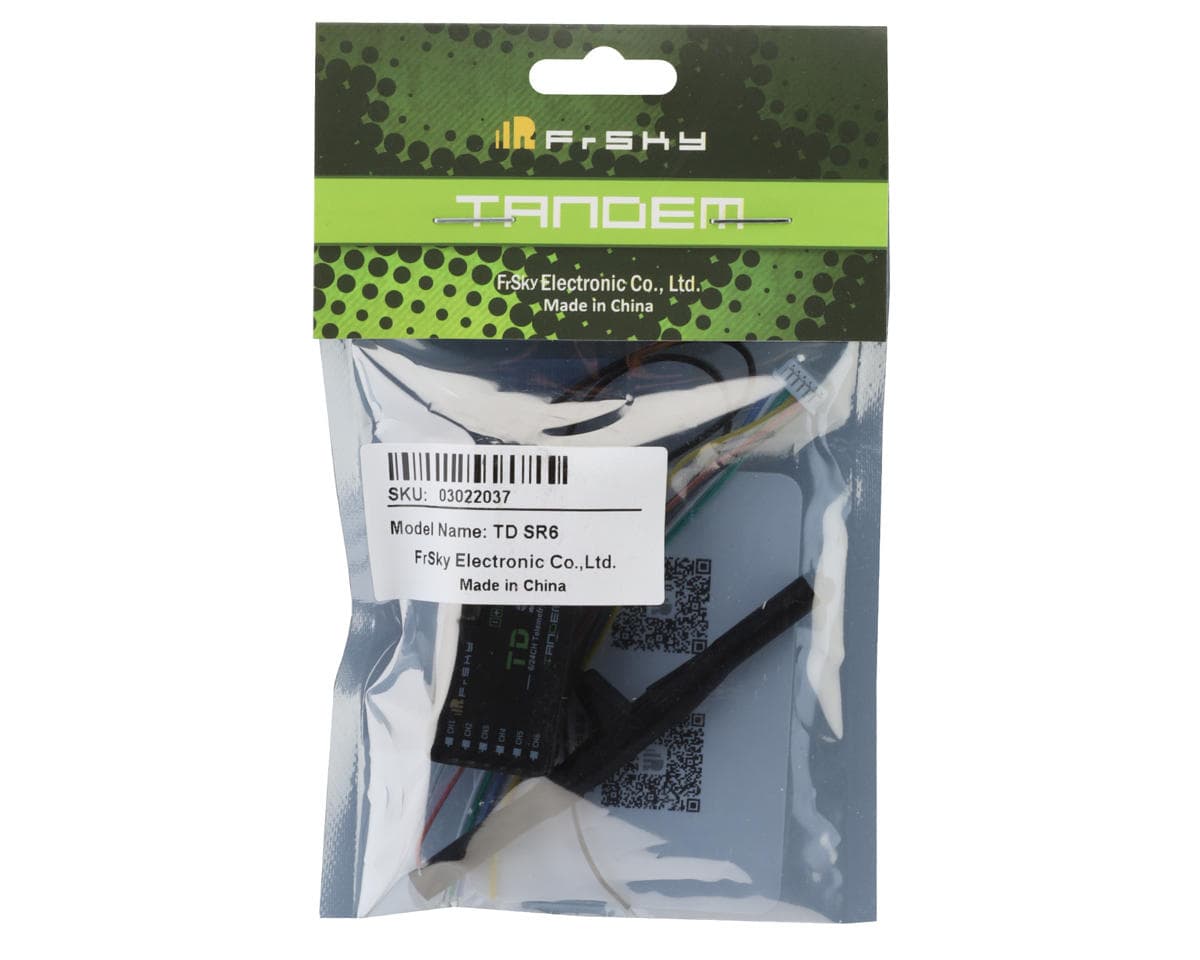

Includes:

• (1) TD SR6 6-Channel Receiver

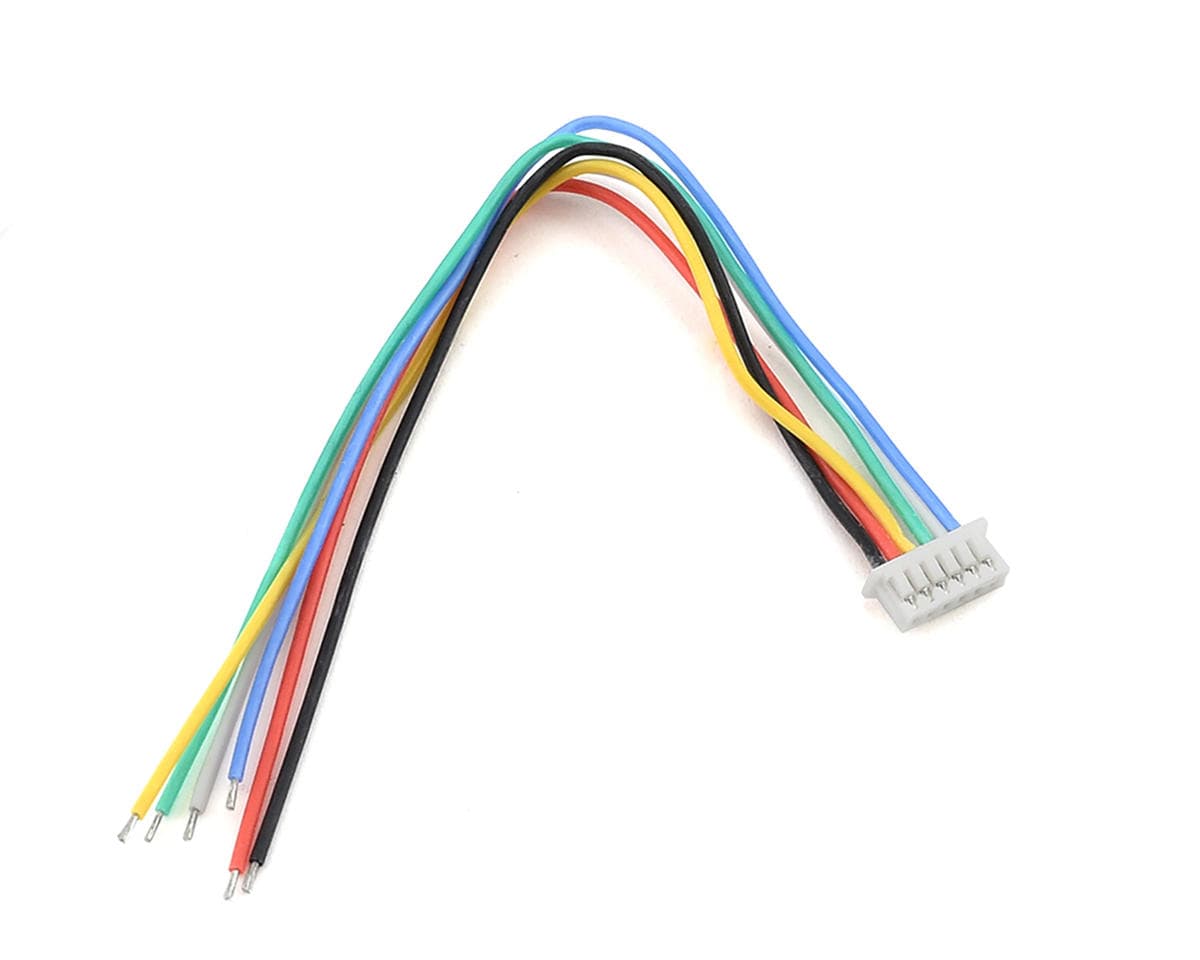

• (1) Wiring Harness
• (1) Manual
