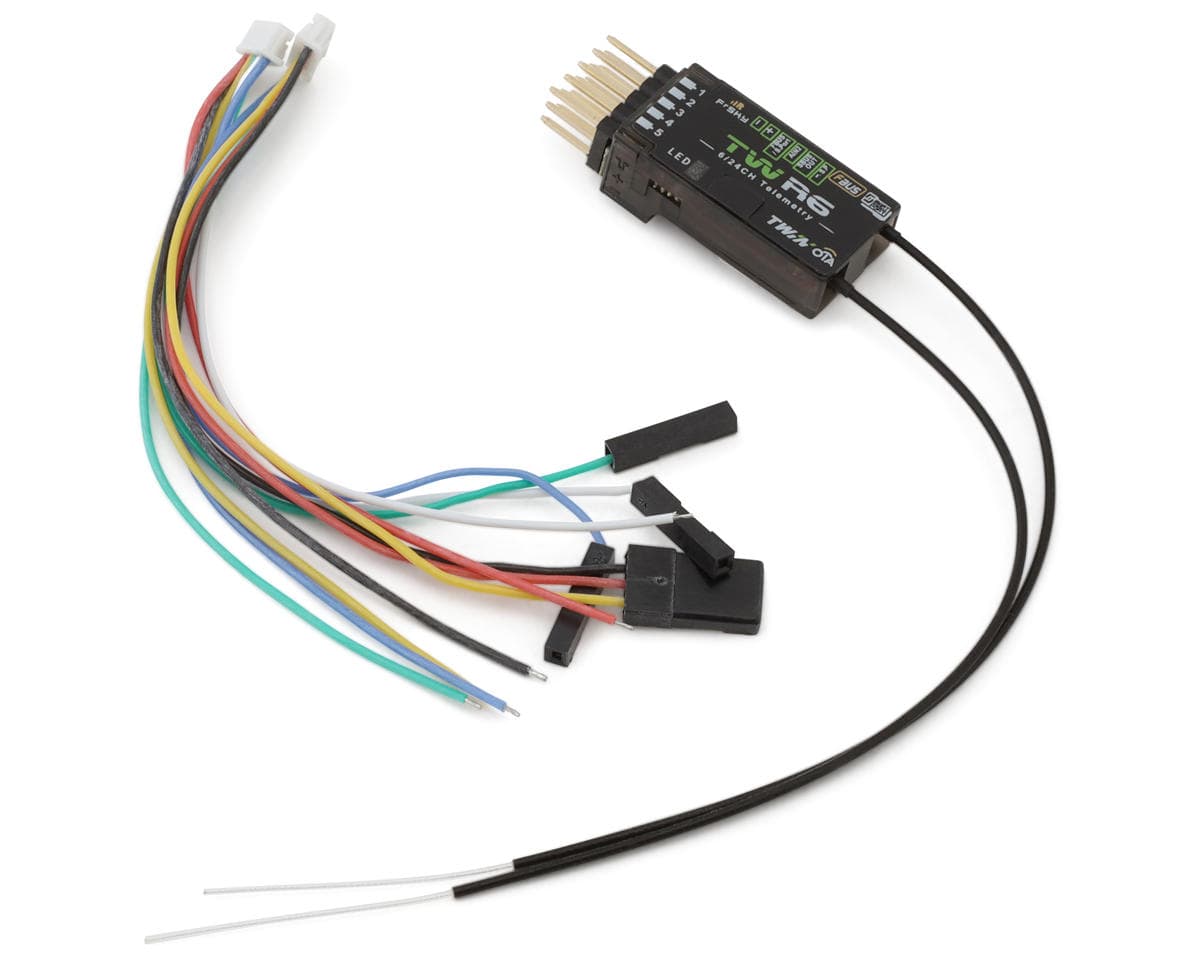

FrSky TW R6 6-Channel 2.4Ghz Receiver

Receiver Overview:

The FrSky TW-R6 is a compact, long-range receiver designed for optimal performance in RC applications. It features dual antennas for enhanced signal reception and redundancy, ensuring reliable connectivity. Compatible with ACCESS protocol, it supports telemetry and OTA firmware updates, making it a versatile choice for RC enthusiasts seeking robust and efficient performance.

Features:

• Simultaneous working dual 2.4G TW mode
• High-precision variometer sensor
• Black-Box function for telemetry recording
• 4ms race mode with telemetry support
• Long control range (RF Power settings dependent)
• Over-The-Air (OTA) firmware update capability
• 6 PWM channel ports
• SBUS Out (supports 16CH / 24CH mode)
• FBUS / S.Port telemetry functions
• Inverted S.Port for easy flight controller connectivity

Specifications:

• Dimensions: 1.5x0.58x0.37in. (38.1x14.6x9.5mm)
• Weight: 0.18oz (5g)
• Operating Voltage Range: 3.5 -10V
• Operating Current: 60mA@5V
• Control Range: Full range* with telemetry
• Channels: 6
• Modulation: 2.4Ghz
• Compatibility: Supports PWM, SBUS, FBUS, S.Port

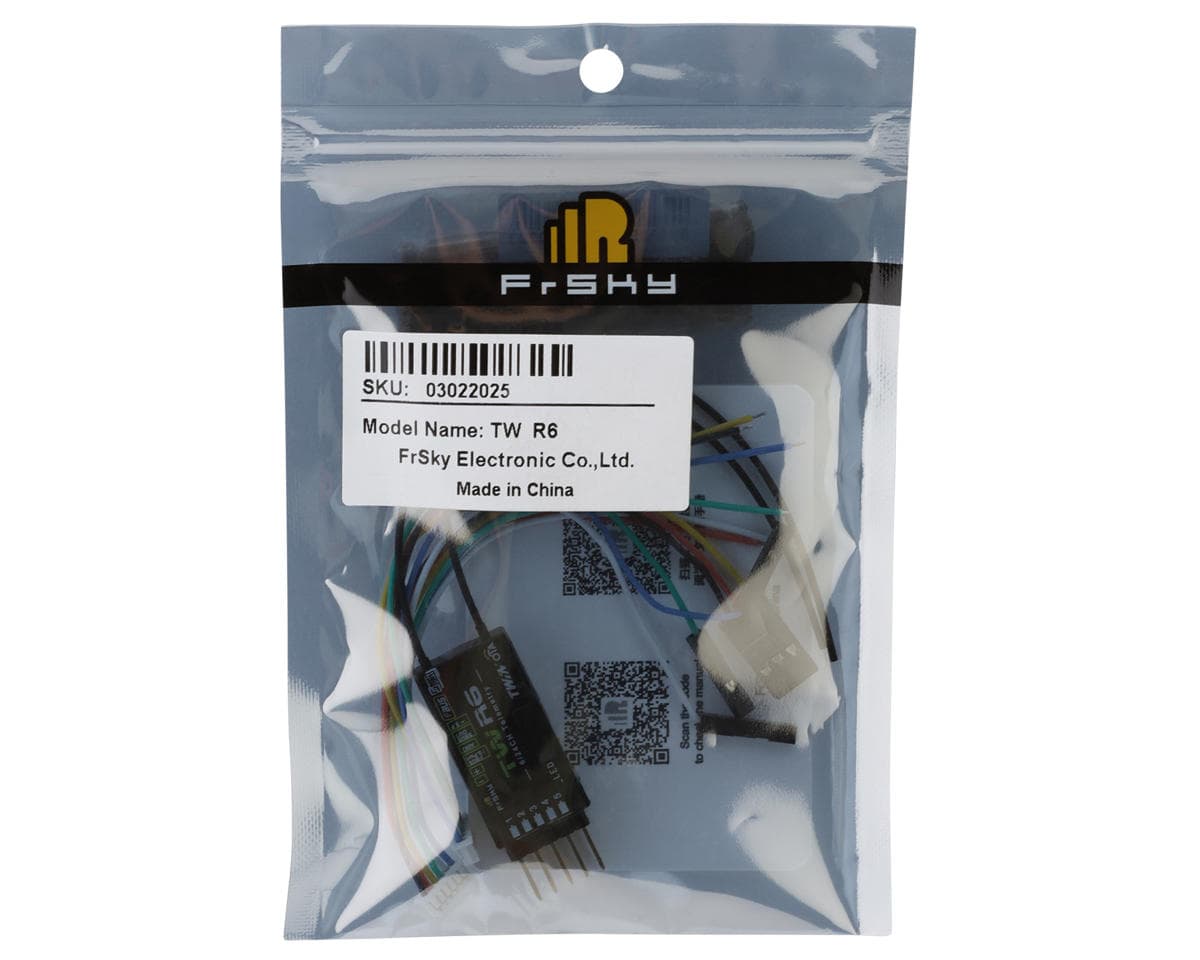

Includes:

• (1) TW R6 6-Channel 2.4Ghz Receiver
• (1) Wiring Harness
