Parts/Electric power/Brushless motors/Furitek FX118 Micro Brushless Motor by Komodo w/15T Steel Pinion Gear (3450kV)
Furitek

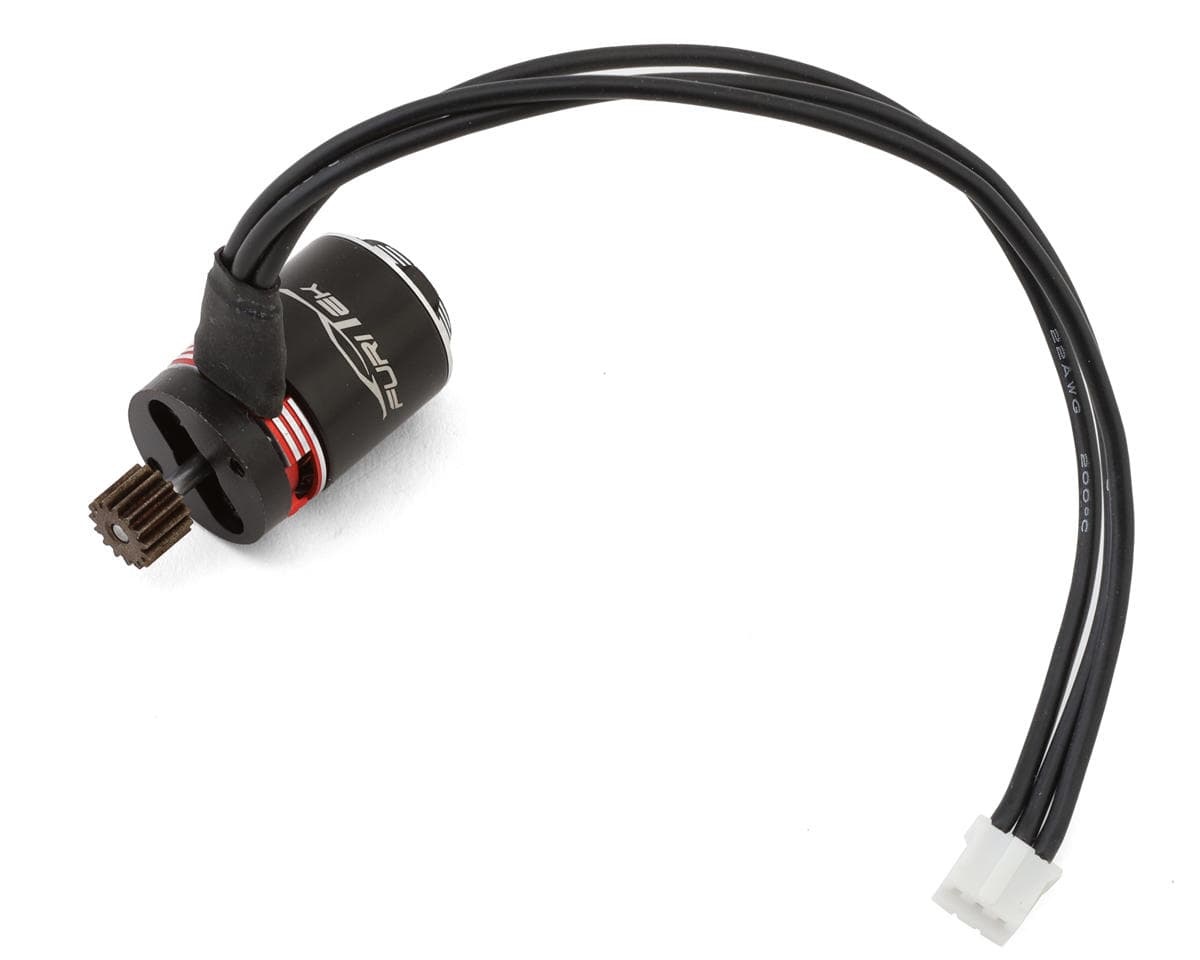

Furitek FX118 Micro Brushless Motor by Komodo w/15T Steel Pinion Gear (3450kV)
Part # FTK-FUR-2424
Fits
Where to buy
$34.99
Prices are as last seen at the store; stock is not tracked.
About this part
Motor Overview:
The Furitek FX118 Micro Brushless Motor by Komodo is a high torque option for space conscious builds. Don't let the size of this motor fool you. A 12-pole motor design with a precision balanced rotor allows for extremely low RPM while maintaining maximum torque and efficiency. Package includes one micro motor with pre-installed steel pinion gear.
Features:
- 12 Pole hi-torque motor design
- Super thin (0.2 mm) stator laminations
- Japanese NMB High RPM ABEC5 bearings
- Precision balanced rotor for best reliability and maximum RPM
- CNC machined 6061 T6 billet aluminum heatsink can
- Precision engineered for maximum energy conversion
- High purity and higher temperature single copper windings
- Excellent heat dissipation for maximum efficiency
Specifications:
- kV(RPM/Motor: 3450
- No-load Current: 0.7A @10V
- Watt: 120W
- Input Voltage: 2-3S
- Max Current: 10A
- Slot/Pole: 12
- Motor Size: 15.5x20.6mm
- Shaft Size: 1.5x6mm
- Weight: 17.5g

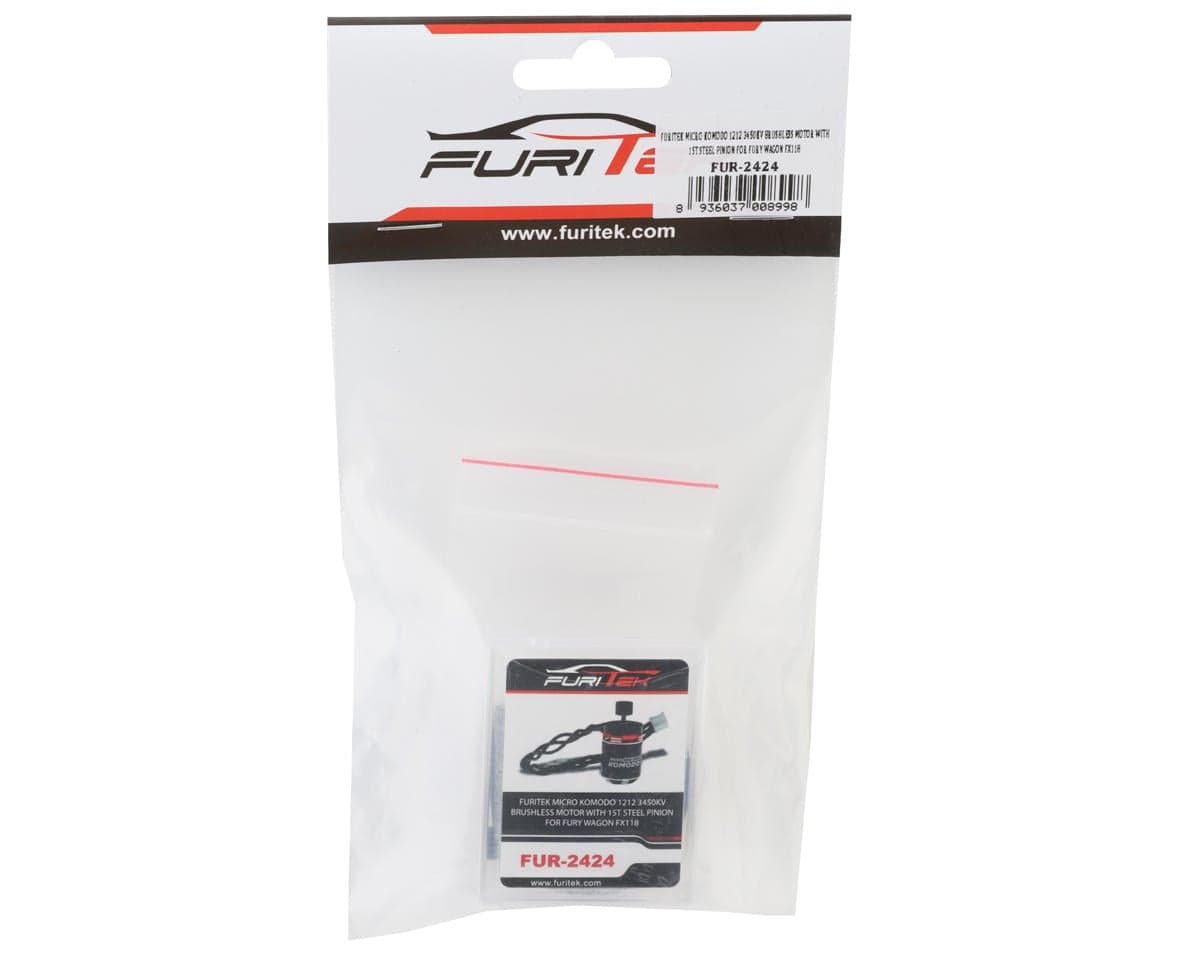

Includes:
- (1) FX118 Micro Brushless Motor 3450kV by Komodo
- (1) 15T Steel Pinion Gear
