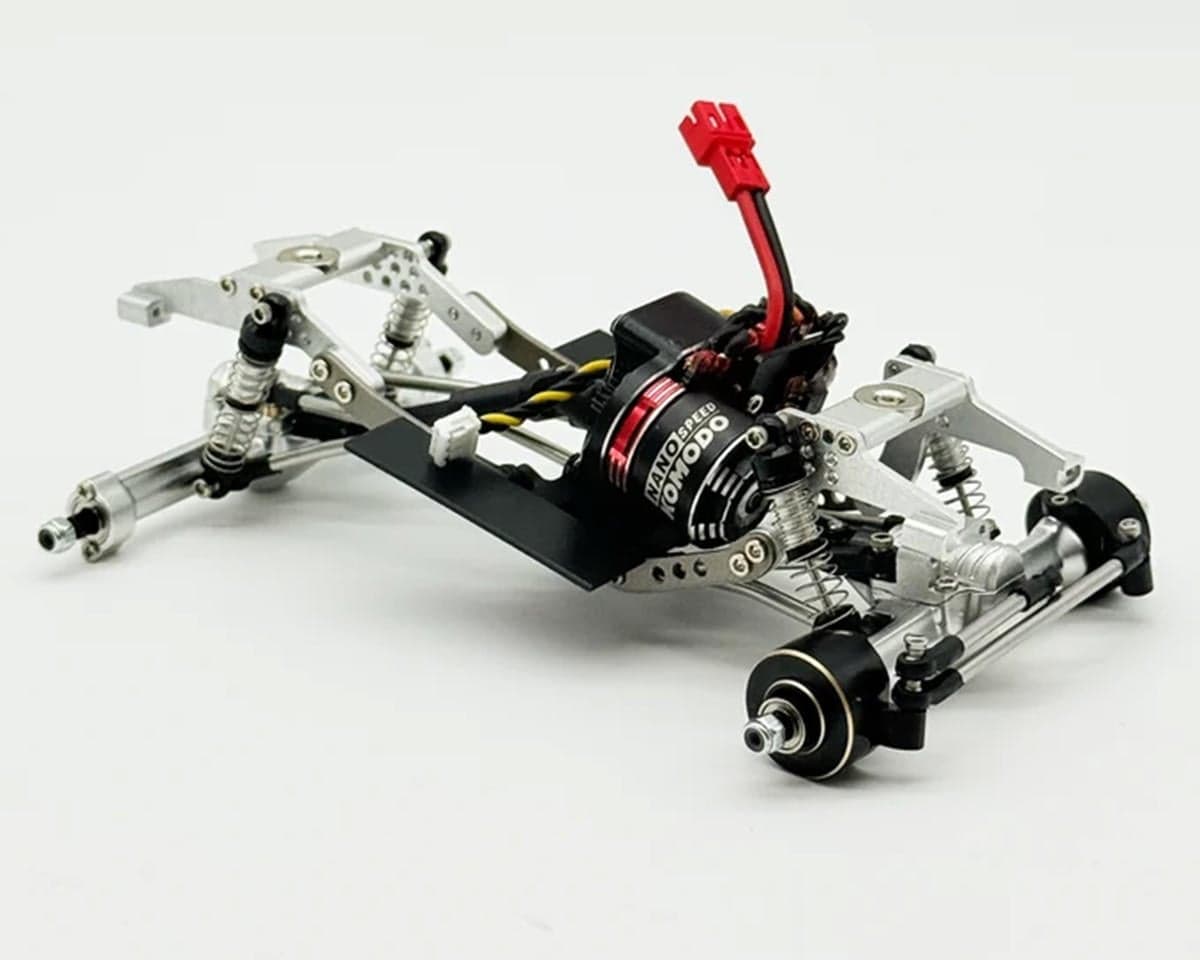

Furitek Krawl 30 Fullrange Comp 1/30 Micro Rock Crawler Assembled Roller (Clear) w/TRI-Unity30 Next-Gen FOC Brushless System
About this part
Fully-Loaded 1/30 Scale Brushless Comp Crawler Chassis
Build it your way and attack the terrain with the Furitek Krawl 30 Fullrange Comp, combining a lightweight titanium chassis, TRI-Unity30 FOC brushless power, ultra-smooth low-speed control, and competition-ready geometry in a pre-assembled platform.
About the Krawl 30 Fullrange Comp
Competition Focused Foundation
The Furitek Krawl 30 Fullrange Comp gives experienced builders a pre-assembled competition platform without locking them into a one-size-fits-all setup. The titanium chassis, axles, suspension, and TRI-Unity30 Fullrange Drive™ arrive assembled, letting you focus on selecting your own radio system, steering servo, wheels, and tires. It is a strong starting point for creating a micro crawler tailored to your driving style and terrain.
Fullrange Performance
The TRI-Unity30 system combines a brushless motor, geared transmission, and Furitek FOC ESC into one compact drivetrain. Field-Oriented Control provides smooth, precise throttle control at ultra-low speeds, while the geared transmission delivers a much wider usable speed range for obstacles that require momentum. Built-in WiFi tuning through the FuriCar App also makes supported ESC adjustments quick and convenient.
Low-CG Handling
The lightweight titanium frame and compact drivetrain placement help keep weight low for a more balanced and predictable chassis. Wide aluminum axles, brass front steering knuckle weights, high-clearance links, and a 21° angled skid work together to improve stability and chassis clearance over technical terrain. The builder-selected wheels, tires, battery position, and body allow you to further tune the finished crawler's overall balance.
Built For Tuning
The Krawl 30 gives you control over the components that have the biggest impact on driving feel. Choose your own steering servo and radio system, then select wheel weight and tire compound based on the terrain you plan to attack. With 25mm aluminum oil-filled shocks, high-angle front U-joint/CVD shafts, steel driveshafts, and a modular body mounting system, the platform provides a capable foundation that can be finished and tuned to your exact preferences.
Features:
- Pre-assembled competition chassis
- TRI-Unity30 FOC brushless system
- Integrated motor, transmission, and ESC
- Built-in WiFi tuning
- Lightweight titanium frame
- 21° angled skid
- Wide aluminum axles
- 25mm aluminum oil-filled shocks
- High-clearance aluminum suspension links
- Clear unpainted competition body
Includes:
- (1) Pre-assembled Krawl 30 titanium competition chassis with 21° angled skid
- (1) TRI-Unity30 FULLRANGE DRIVE™
- (1) Clear Polycarbonate Body
- (1) Aluminum Modular Body Mounting Set
- (1) Wide Aluminum Front & Rear Axles
- (2) Brass Steering Knuckles
- (4) 25mm Aluminum Oil-filled Shocks
- Product Manual
Needed To Complete:
- (1) +2 Channel Transmitter/Receiver System
- (1) Compatible Steering Servo
- (4) 0.7" Wheels & Tires
- (1)
- (1)
- (1) 2-3S LiPo Battery (7.4-11.1V) w/PH2.0 Connector
- (1) Compatible Battery Charger
- Polycarbonate Body Paint
Specifications:
| Scale | 1:30 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Drive | 4WD | ||||||||
| Power Source | 2S-3S LiPo | ||||||||
| Length | - | ||||||||
| Wheelbase | - | ||||||||
| Width | - | ||||||||
| Height | - | ||||||||
| Weight | - | ||||||||
Electronics
|
|||||||||
Wheels
|
|||||||||
Tires
|
|||||||||
| Assembly Level | Roller* | ||||||||
*Tech Note: Roller models come equipped with some electronics. Please check the "Needed To Complete" above to make sure you have everything you need to get out and enjoy your RC model.
