Furitek

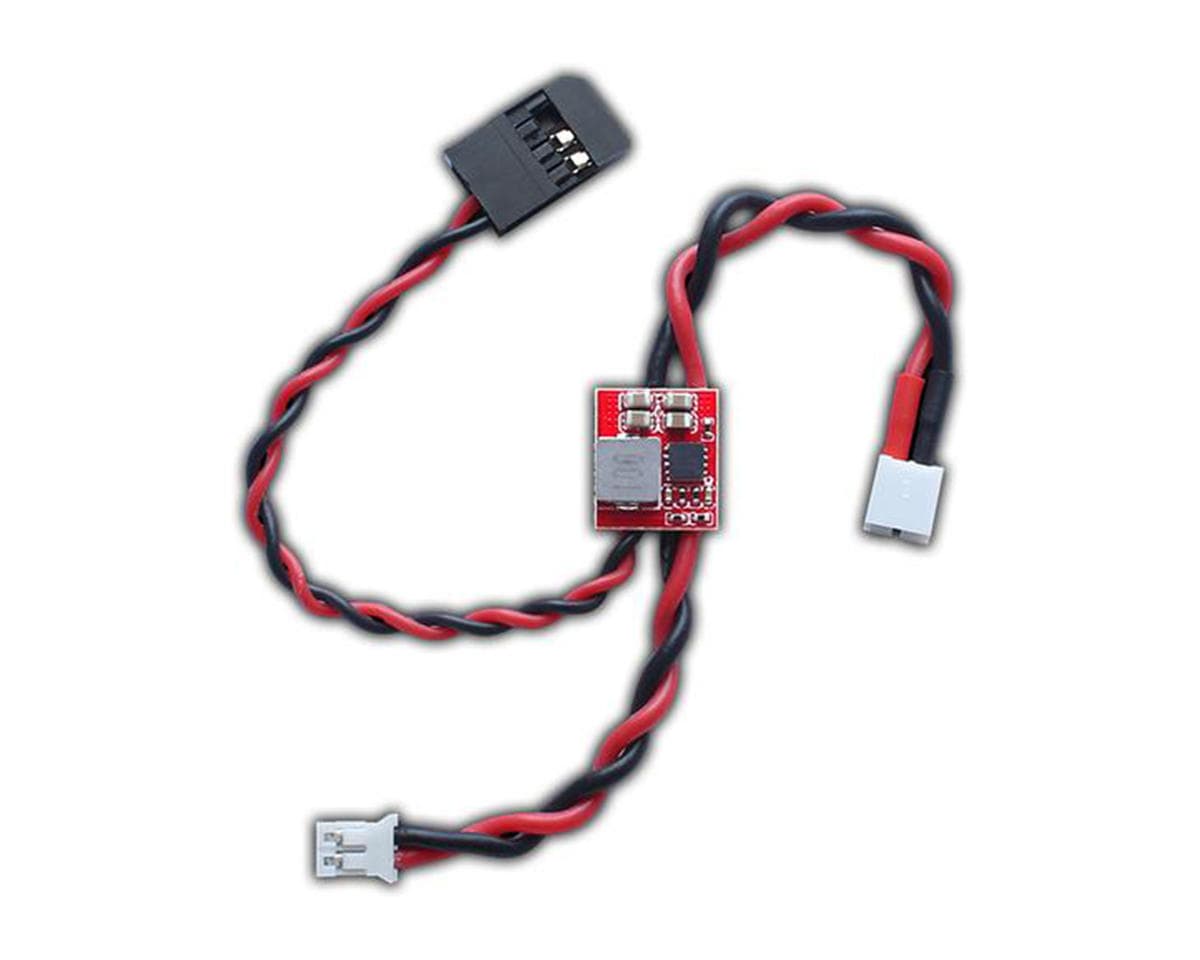

Furitek Micro 2.5A BEC
Part # FTK-FUK-20601.0(1)
Fits
Where to buy
$14.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Furitek Micro 2.5A BEC is mostly universal, and can be adapted to any application that needs up to a 2.5A power source, and can be powered between 7-16V (2s-4s LiPo). By default, the Micro 2.5A BEC is designed for SCX24 owners in mind, and can be used with a variety of ESCs on the market - both stock, and upgrade alternatives such as those from Furitek.
The input and output connectors feature the original JST PH2.0 style connection, allowing for ease of connectivity. The BEC output features a standard servo connector, which can be connected to any AUX channel that is open on your receiver.
Specifications:
Input Voltage: 7.4-14.8V, 2s-4s LiPo
Output Voltage: 5V @ 2.5A
Dimensions (LxW): 12x10.5mm
Weight: 3g
The input and output connectors feature the original JST PH2.0 style connection, allowing for ease of connectivity. The BEC output features a standard servo connector, which can be connected to any AUX channel that is open on your receiver.
Specifications:
Input Voltage: 7.4-14.8V, 2s-4s LiPo
Output Voltage: 5V @ 2.5A
Dimensions (LxW): 12x10.5mm
Weight: 3g
Reviews1.0 · 1 review
Americo VelezVerified owneron Furitek Micro 2.5A BEC
Worked great for about an hour and then it burnt.
