ESC Combo Overview:

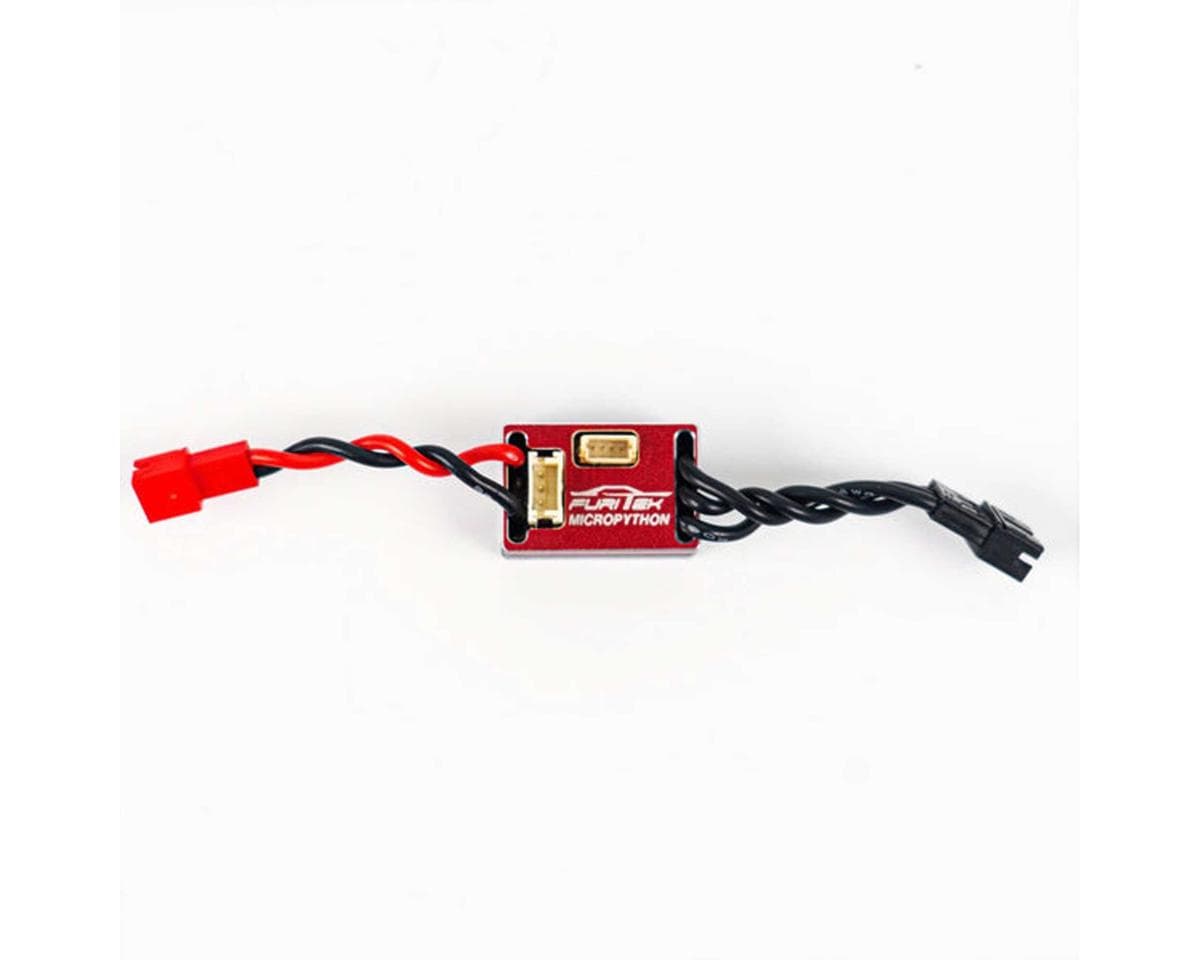

This is the MicroPython 25A Brushed/Brushless ESC from Furitek. Designed to revolutionize micro crawler performance, this ultra-compact ESC combines cutting-edge technology with unmatched space-saving features, making it the ultimate solution for tight truck builds. Its innovative upward wire configuration, powerful built-in BEC, and smooth control algorithm ensure superior performance without compromise.
Features:
- FOC (Field-Oriented Control) technology
- Live tuning via Furicar app
- Super slow and ridiculously smooth throttle control

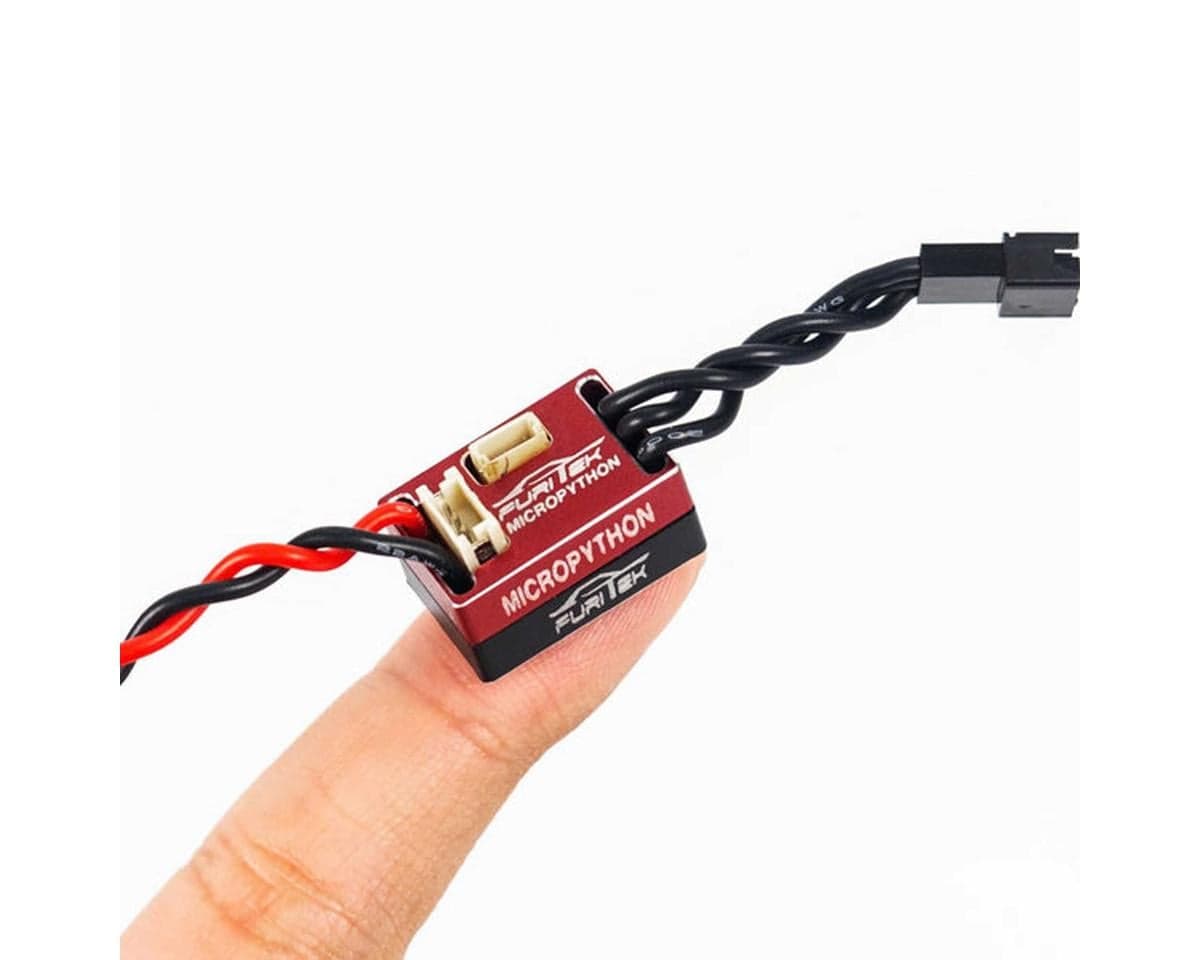

- Micro size and lightweight for tight spaces
Specifications:
- Suggested Application: 1/18-1/24 Crawlers
- Motor Type: Brushless/Brushed
- Input Voltage: 2-3S LiPo (7.4-11.1V)
- Continuous Current: 25A
- Peak Current: 50A
- Dimensions (LxWxH): 0.87x0.55x0.39in (22x14x9.8mm)
- Weight: 0.27oz (7.6g)
- Motor Limits: -
- BEC Voltage: 5.5V/7.4V
- BEC Continuous Current: 5A
- BEC Peak Current: -
- Motor Connector: 3 Pin
- Battery Connector: JST
- Motor Wire: -
- Battery Wire: -
- Programmable: Furicar App

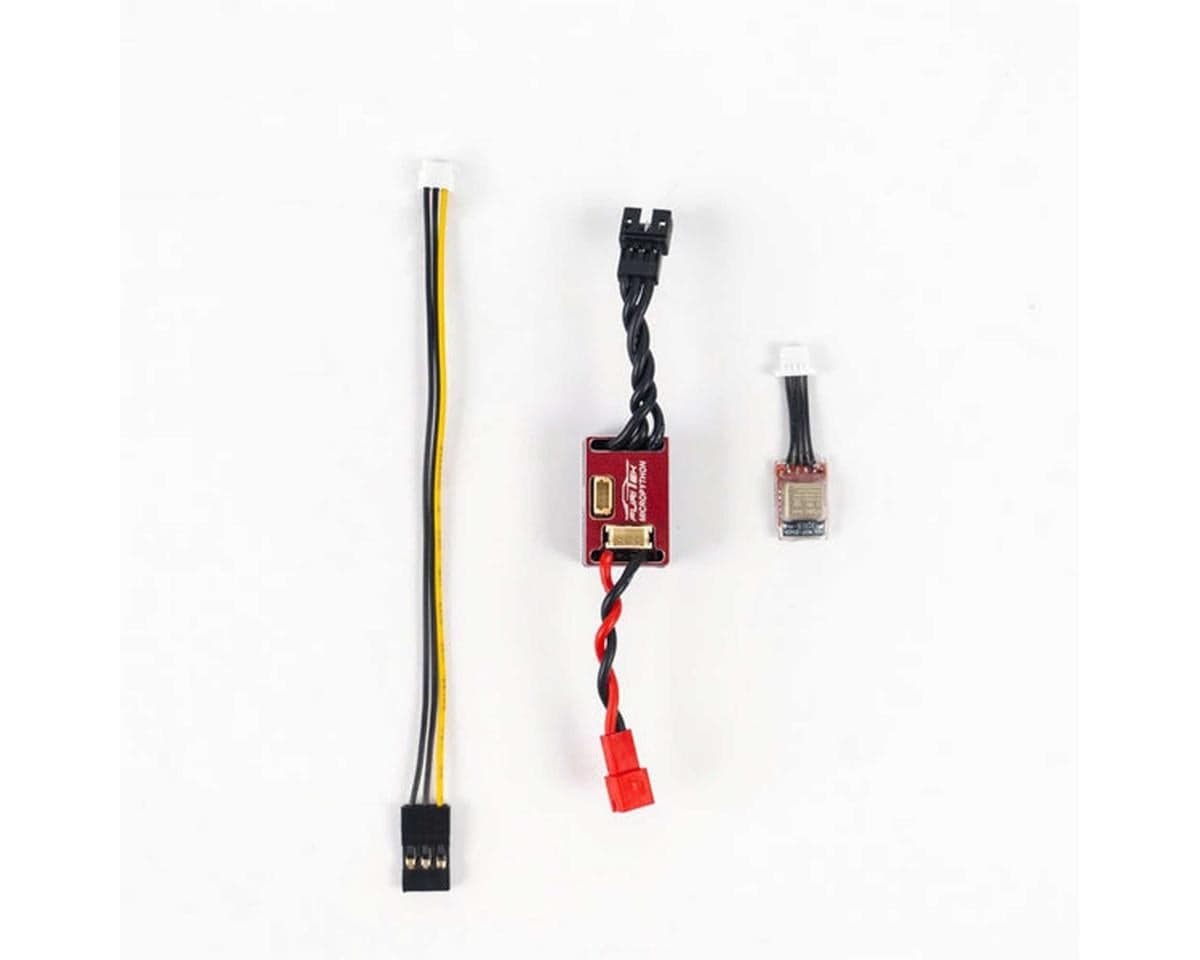

Includes:
- (1) MicroPython 25A Brushed/Brushless ESC
- (1) Wireless module for app control
- (1) Wiring Harness
Needed to Complete:
- 2-3S lipo battery
- Compatible motor (brushed or brushless)
- Micro crawler setup
