Furitek

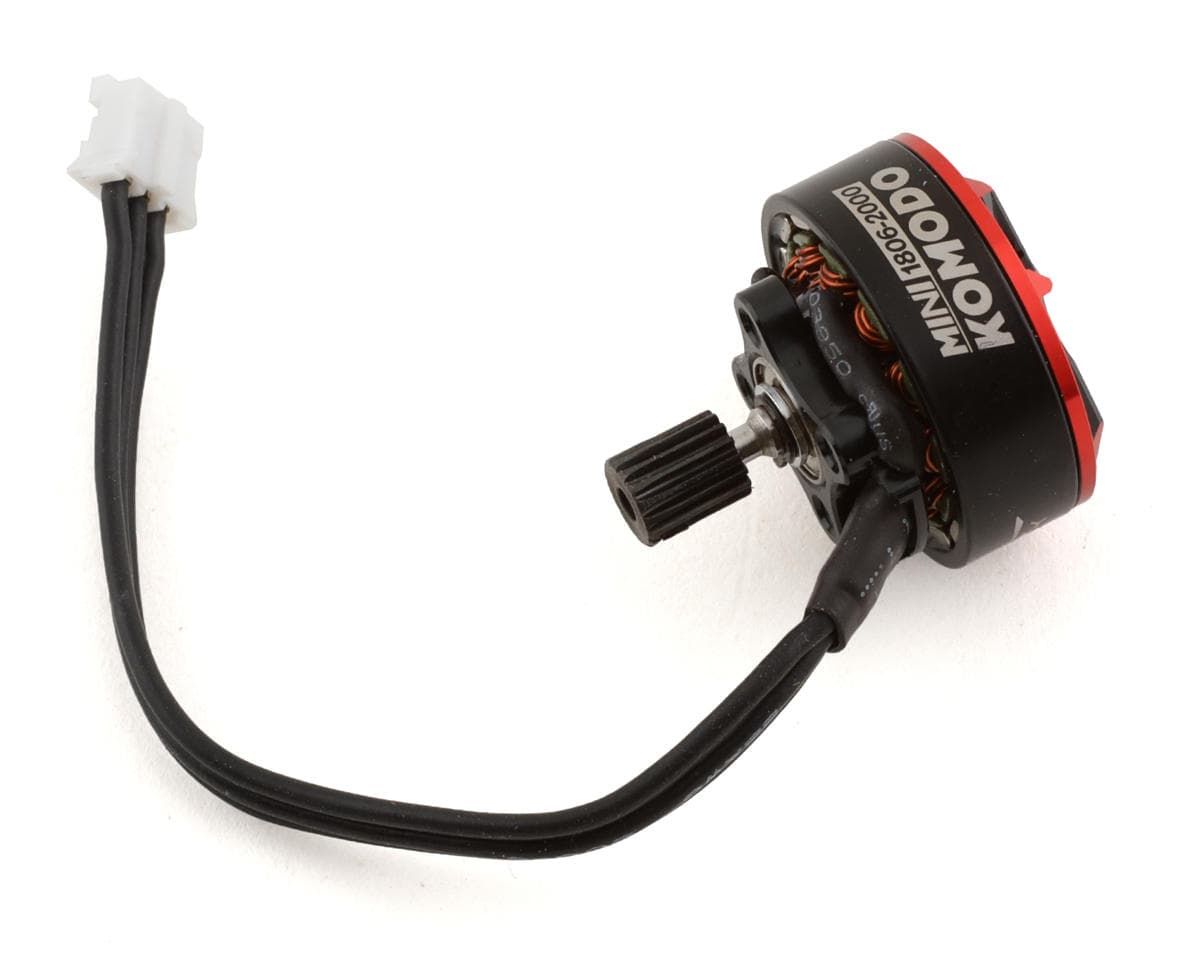

Furitek Mini Komodo 1806-2500kV Brushless Motor (SCX24)
Part # FTK-FUR-22562.0(1)
Fits
Where to buy
$35.99
Prices are as last seen at the store; stock is not tracked.
About this part
Furitek Mini Komodo 1806-2500kV Brushless Motor. Furitek has taken their popular 2204 size Komodo motor and made it even smaller with this 1806 version. Featuring a smaller size for less weight, compact size and still making plenty of power, the Mini Komodo 1806 is an excellent addition to the Axial SCX24 rock crawler.
Features:
Features:
- 14 Pole 12 slot hi-torque motor design
- High purity and higher temperature single copper windings lower copper losses lowering temps and increasing efficiency
- Super thin (0.2mm) stator laminations offer lower eddy losses and maximizes efficiency
- Japanese NMB High RPM ABEC5 bearings
- Precision balanced rotor, smoothness for best reliability and maximum RPM
- CNC machined 6061-T6 billet aluminum heatsink
- Precision engineered for maximum energy conversion
Kv (RPM/Volt): 2500
No-load Current (@10v): -
Wattage: 160W
Battery: 2-4S
Resistance: 0.20ohm
Max Current: 14A
Slot/Pole: 12S14P
Motor Size (DxL): 23x15mm
Stator Size: 1806
Weight (g): 19g
Includes:
Includes:

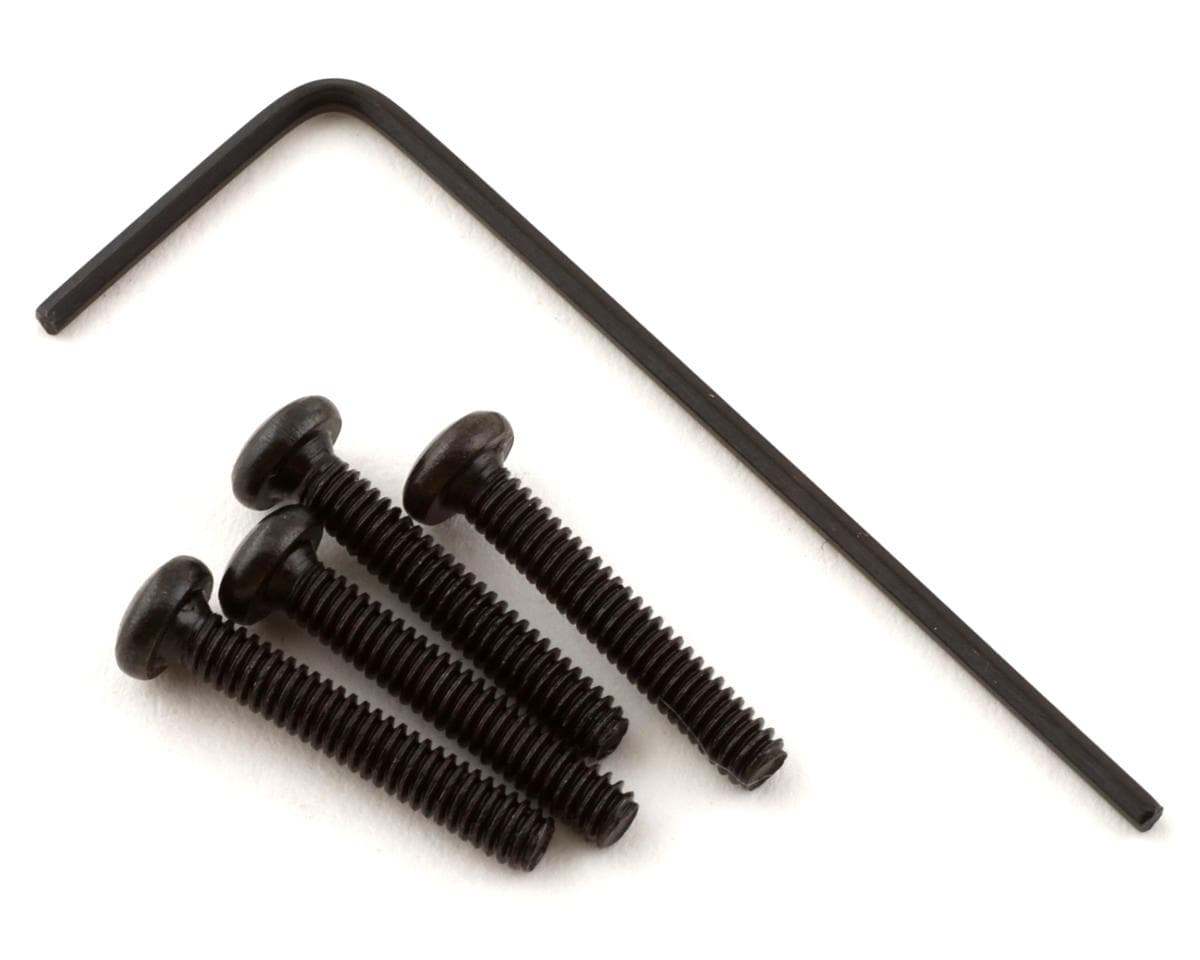

- (1) Mini Komodo 1806-2500kV Brushless Motor with Pinion Gear
- (1) Allen Wrench
- Mounting Hardware
Reviews2.0 · 1 review
John ScheinbergVerified owneron Furitek Mini Komodo 1806-2500kV Brushless Motor (SCX24)
Came with pinion backwards: putting the grub screw in the way of the pinion/spur mesh. Pinion can’t be removed: just rounds out, even using heat and the included hex wrench.
1 found this helpful
