High-Performance R/C Drift ESC
Unleash precision drifting with the Furitek PIXI Drift ESC — compact, powerful, and fully tunable with WiFi and built-in cooling for unbeatable control and performance.
About the PIXI Drift ESC
Compact High-Power ESC
The Furitek PIXI Drift delivers pro-level performance in an ultra-compact 34.7 × 34.7 × 25 mm housing, weighing only 45g. This sensored 180A brushless ESC provides ultra-smooth throttle control, stable power delivery, and precise drift accuracy, making it ideal for competitive 1/10 RWD drift cars where space and weight savings matter.
Advanced Tuning & Control
With support for the optional Furitek WiFi Module and SlideDash OLED Display, drivers can wirelessly adjust parameters like throttle curves, turbo/boost timing, and braking in real time. Adjustable PWM up to 64 kHz ensures industry-leading smoothness, while firmware updates keep your setup future-proof for evolving drift performance needs.
Smart Cooling & Durability
The integrated micro cooling fan maintains stable ESC temperatures during aggressive runs, while the dust-resistant, sealed enclosure protects sensitive electronics from debris. Additional features like pre-run self-diagnostics, reinforced BEC output, and A–C flip wiring make the PIXI a reliable, long-lasting solution for drifters seeking compact size without compromising power or precision.
Features:
- Sensored 180A brushless ESC for smooth throttle control
- Ultra-compact 34.7 × 34.7 × 25 mm design
- Built-in micro cooling fan for stable temperatures
- Supports Furitek WiFi Module for wireless tuning
- SlideDash OLED Display compatible for real-time telemetry (sold separately)
- Adjustable PWM up to 64 kHz for precise drift transitions
- Turbo and boost timing for advanced acceleration control
- Built-in high-power BEC (6V–7.4V / 10A peak) for strong servo performance
- Advanced ABS braking for enhanced stability during drifts
- Dust-resistant sealed enclosure for long-lasting durability
Includes:

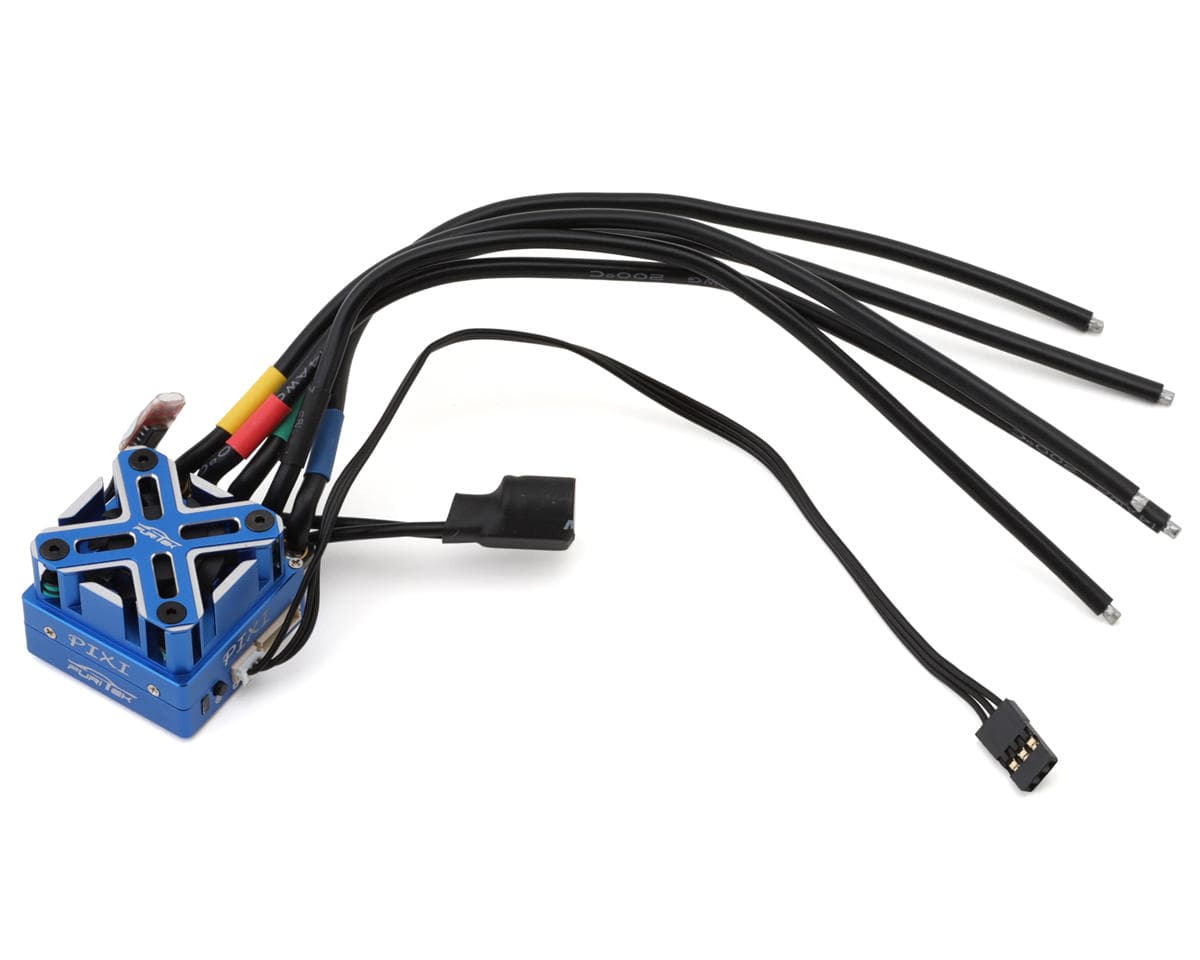

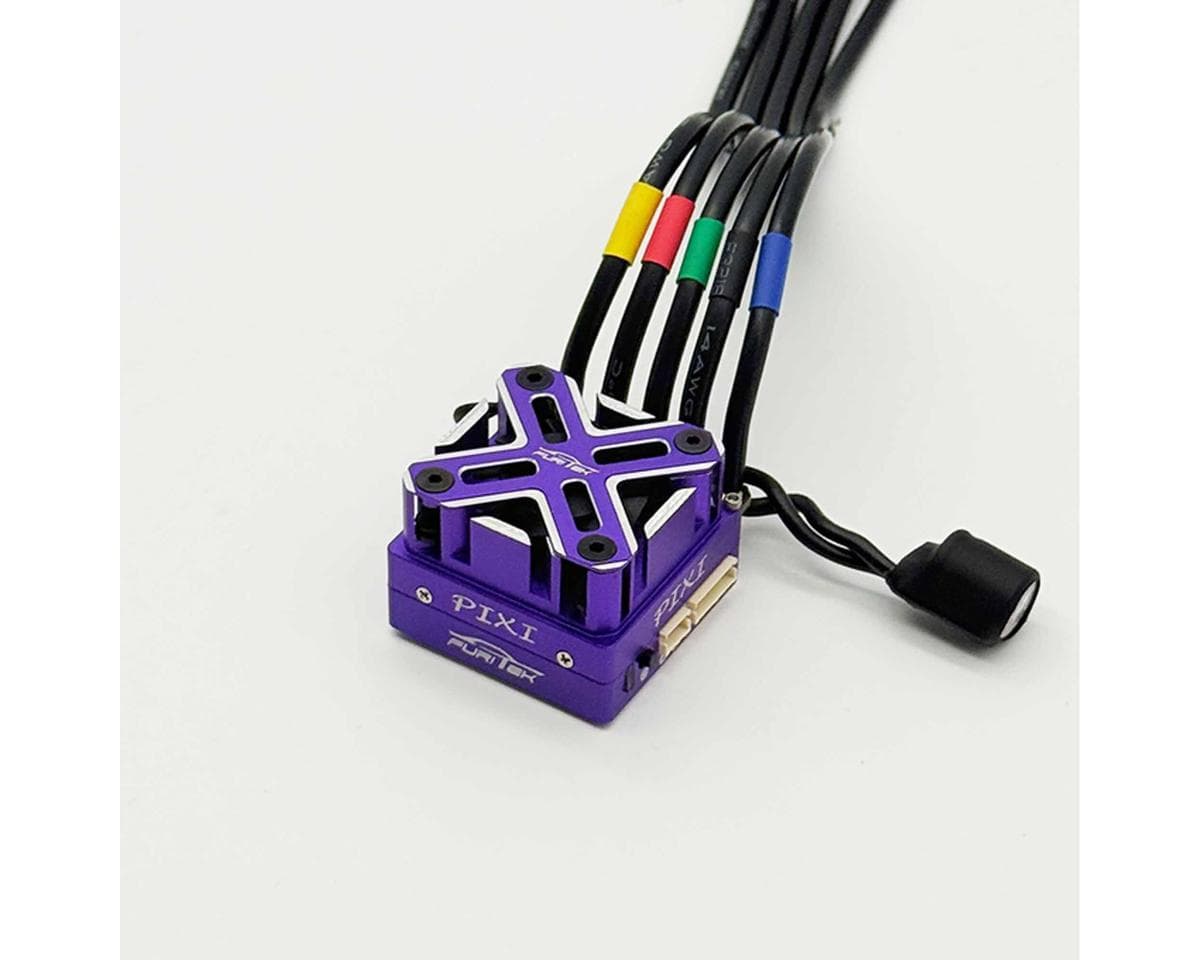

- (1) PIXI 1/10 Competition Drift Sensored Brushless ESC
- (1) Manual
Specifications:
| Suggested Application | 1/10 Drift |
|---|---|
| Motor Type | Sensored Brushless |
| Input Voltage | 2S LiPo (7.4V) |
| Continuous Current | 180A |
| Burst Current | 800A |
| Dimensions (LxWxH) | 1.37×1.37×0.98in (34.7×34.7×25mm) |
| Weight | 1.59oz (45g) |
| Motor Limits | 6.5T |
| BEC Voltage | 6.0/7.4V (Adjustable) |
| BEC Continuous Current | - |
| BEC Peak Current | 10A |
| Motor Connector | - |
| Battery Connector | - |
| Motor Wire | - |
| Battery Wire | - |
| Programmable | Yes/WiFi Module |
