About this part
High-Performance R/C Stock & Mod ESC
Unleash precision racing with the Furitek PIXI Stock and Mod Race ESC — compact, powerful, and fully tunable with WiFi and built-in cooling for unbeatable control and performance.

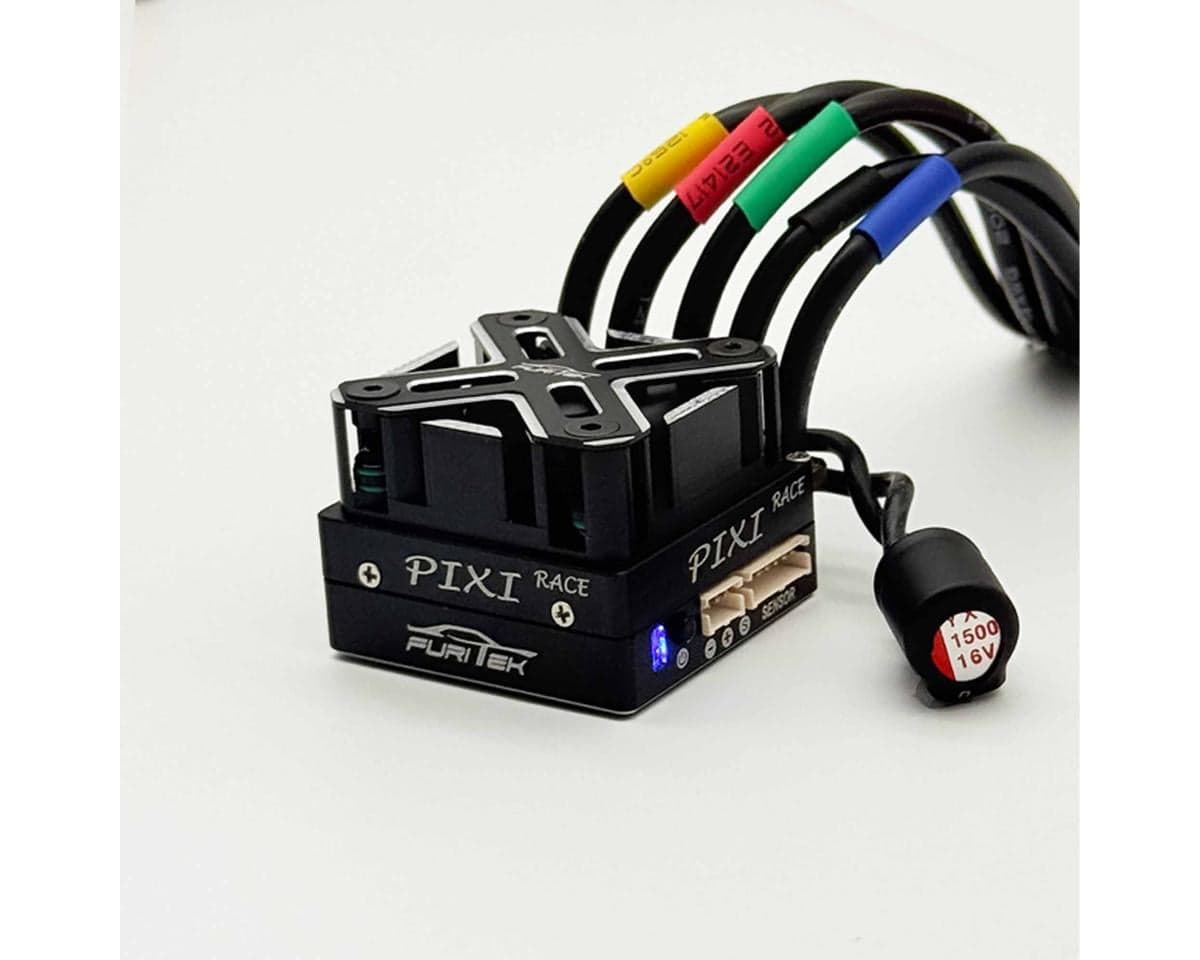

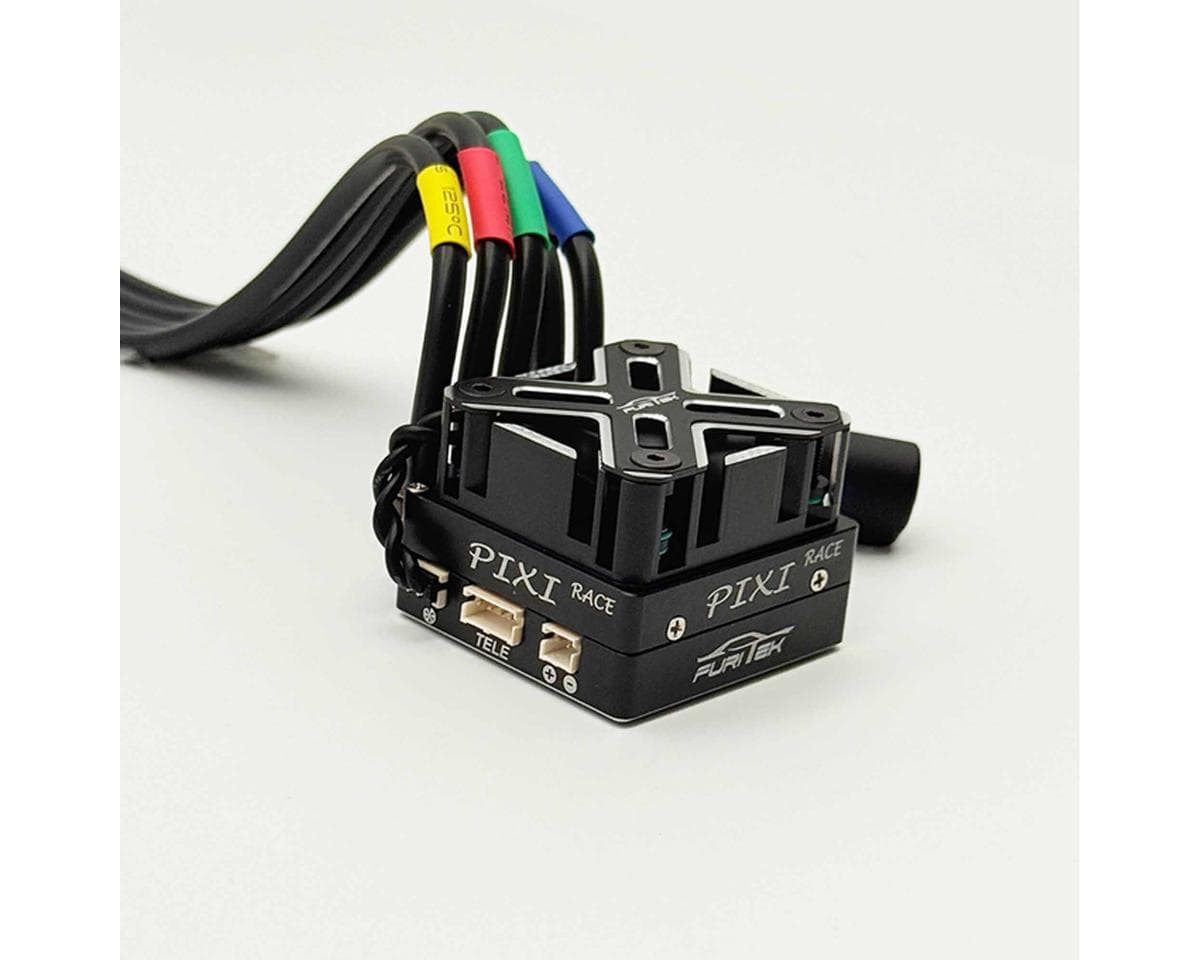

About the PIXI Stock and Mod Race ESC
Compact High-Power ESC
The Furitek PIXI Stock and Mod Racing ESC delivers pro-level performance in an ultra-compact 34.7 × 34.7 × 25 mm housing, weighing only 45g. This sensored 180A brushless ESC provides ultra-smooth throttle control, stable power delivery, and precise accuracy, making it ideal for competitive 1/10 race cars where space and weight savings matter.
Advanced Tuning & Control

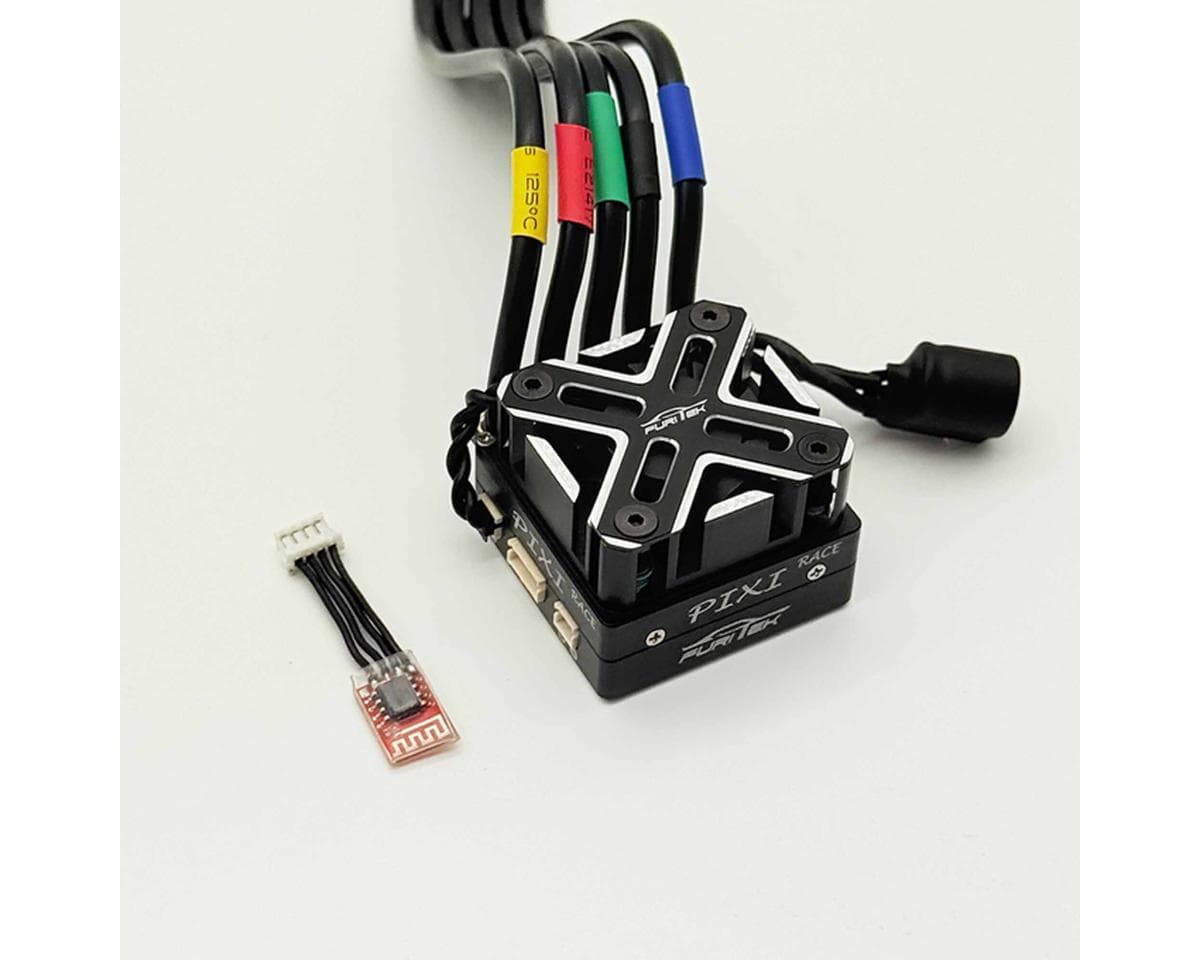

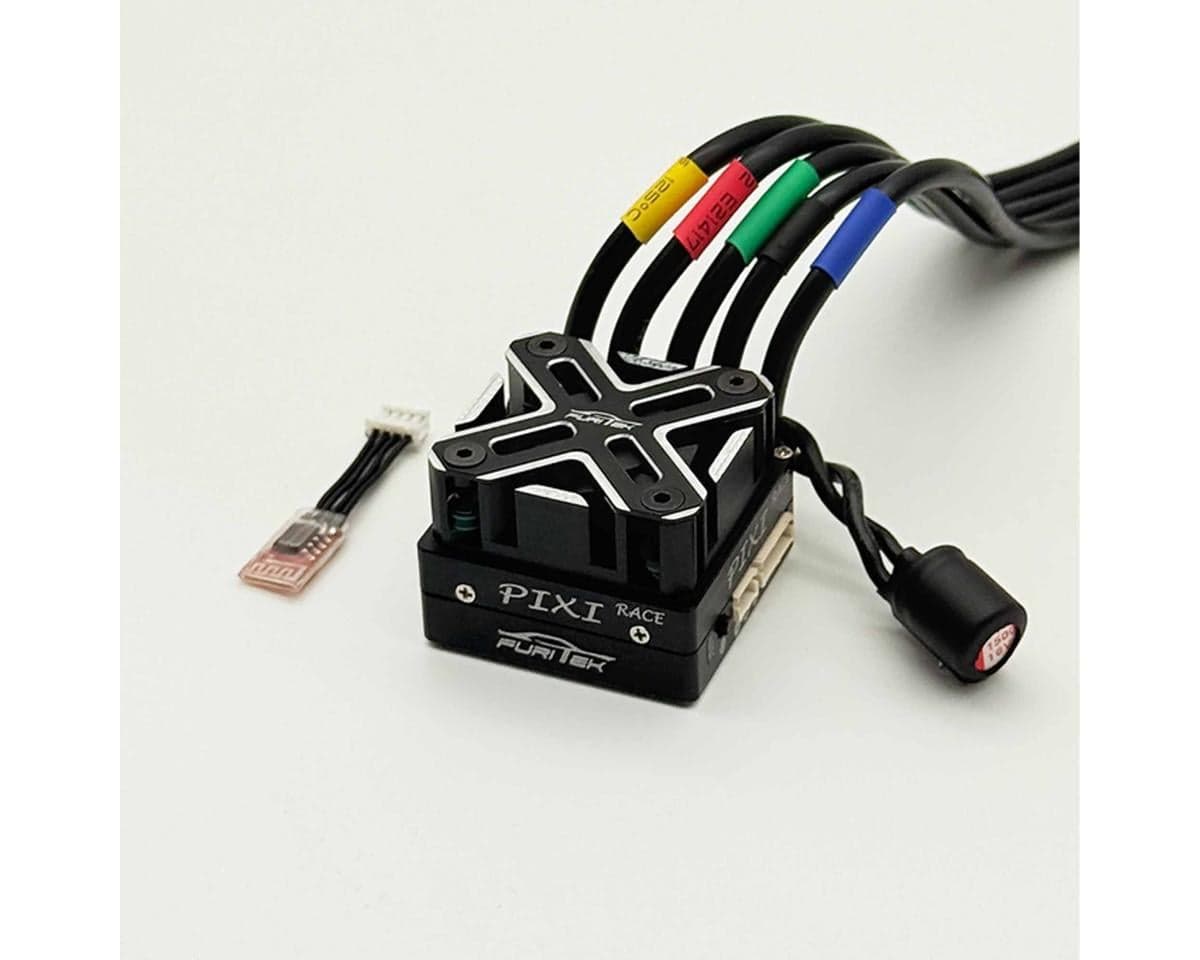

With support for the optional Furitek WiFi Module and SlideDash OLED Display, drivers can wirelessly adjust parameters like throttle curves, turbo and boost timing, and braking in real time. Adjustable PWM up to 64 kHz ensures industry-leading smoothness, while firmware updates keep your setup future-proof for evolving performance needs.
Smart Cooling & Durability
The integrated micro cooling fan maintains stable ESC temperatures during aggressive runs, while the dust-resistant, sealed enclosure protects sensitive electronics from debris. Additional features like pre-run self-diagnostics, reinforced BEC output, and A–C flip wiring make the PIXI a reliable, long-lasting solution for racers seeking compact size without compromising power or precision.
Features:
- Sensored 180A brushless ESC for smooth throttle control
- Ultra-compact 34.7 × 34.7 × 25 mm design
- Built-in micro cooling fan for stable temperatures
- Supports Furitek WiFi Module for wireless tuning
- SlideDash OLED Display compatible for real-time telemetry (sold separately)
- Adjustable PWM up to 64 kHz for precis transitions
- Turbo and boost timing for advanced acceleration control
- Built-in high-power BEC (6V–7.4V / 10A peak) for strong servo performance
- Advanced ABS braking
- Blinky mode competition-ready setup for stock classes
Includes:
- (1) PIXI 1/10 Competition Stock and Mod Race Sensored Brushless ESC
- (1) Manual
Specifications:
| Suggested Application | 1/10 Stock and Mod Racing |
|---|---|
| Motor Type | Sensored Brushless |
| Input Voltage | 2S LiPo (7.4V) |
| Continuous Current | 180A |
| Burst Current | 800A |
| Dimensions (LxWxH) | 1.37×1.37×0.98in (34.7×34.7×25mm) |
| Weight | 1.59oz (45g) |
| Motor Limits | 448c33.5T |
| BEC Voltage | 6.0/7.4V (Adjustable) |
| BEC Continuous Current | - |
| BEC Peak Current | 10A |
| Motor Connector | - |
| Battery Connector | - |
| Motor Wire | 12 AWG |
| Battery Wire | 12 AWG |
| Programmable | Yes/WiFi Module |
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews4.0 · 1 review
Hello, RC people I run this esc from Furitek Pixi in my 1/10 Stadium Truck and buggy on in door dirt off road. So far I have found set up to be simple for me. There are all kinds of different things you can ajust. With the link to my phone I'm able to change set up on track as I am running in real time. One lap change the brake settings, pull over change and keep going with out having to go back to the pit .To me this is real time...
