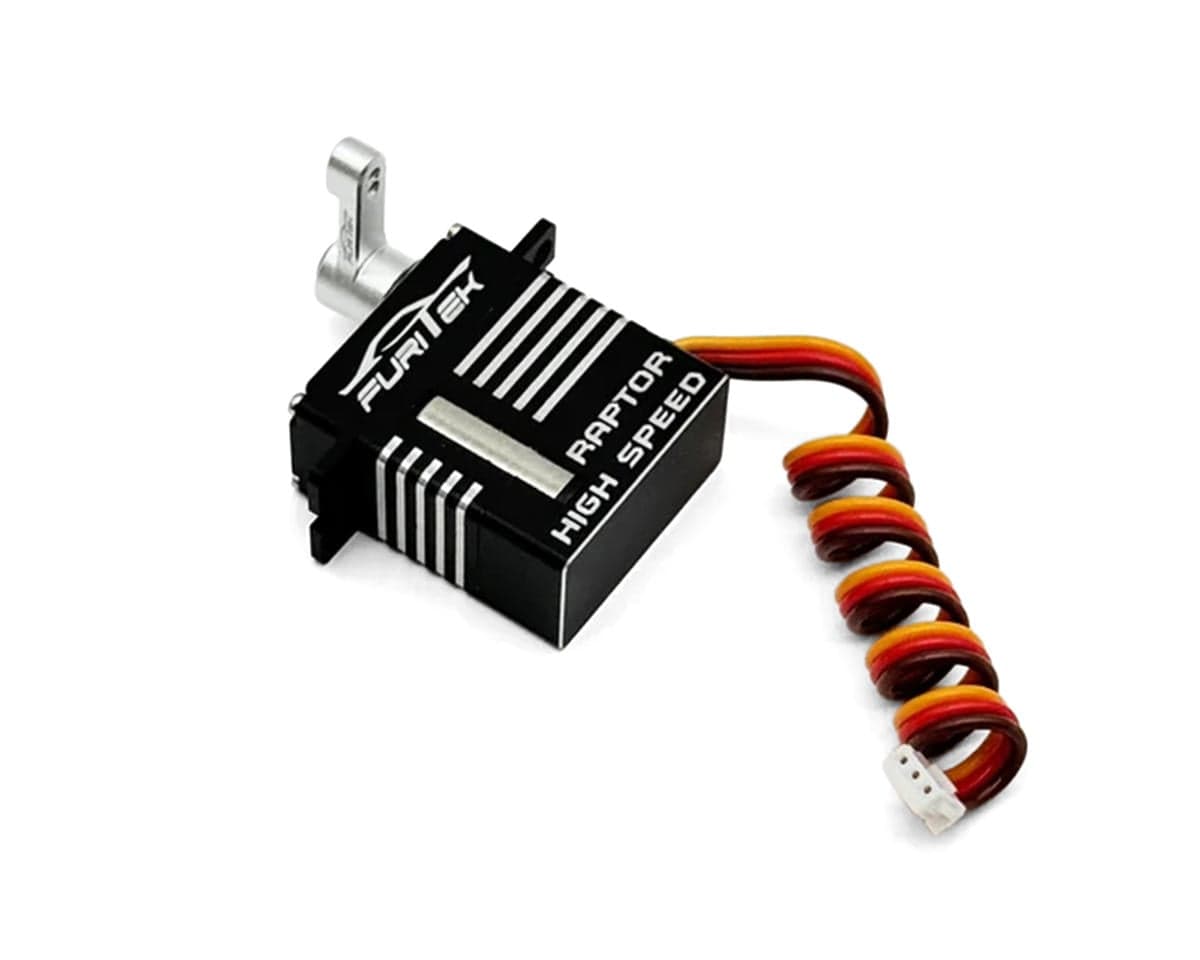

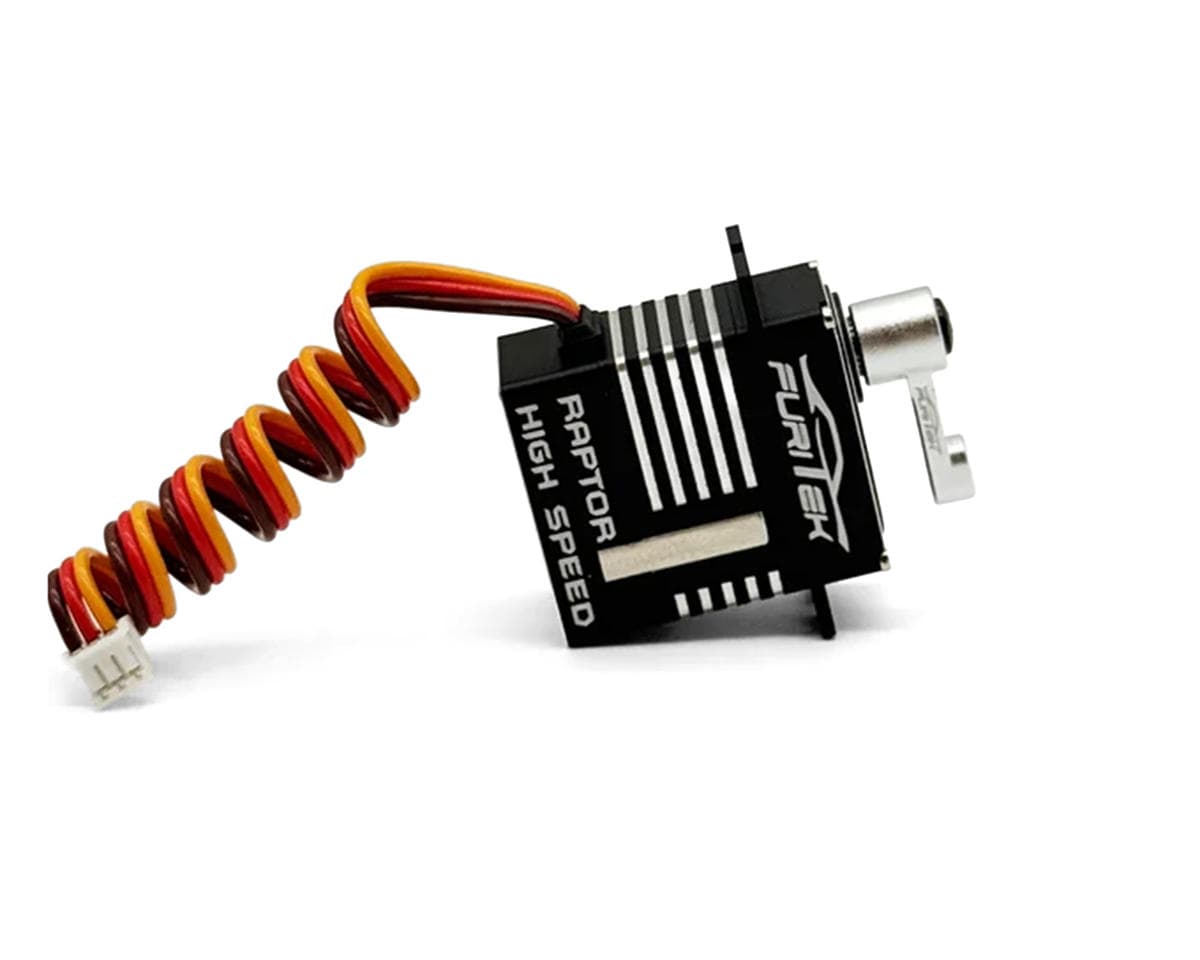

Furitek Raptor 11kg High-Speed Aluminum Micro Steering Servo w/Aluminum Servo Horn

Servo Overview:

Pack serious steering power into a compact package. The Furitek Raptor 11kg delivers high-torque, high-speed performance with a rugged aluminum housing, steel gears, and direct Furitek Micro RX compatibility for demanding 1/24 and 1/18 RC crawler applications.

About the Raptor 11kg High-Speed Steering Servo

High-Torque Steering

The Raptor 11kg delivers up to 11 kg-cm of steering torque for increased control in technical crawling, steep side-hills, and high-load steering conditions. The added torque helps maintain precise wheel position when tires are heavily loaded against rocks and obstacles. Its compact design makes it an ideal steering upgrade for Furitek 1/24 and 1/18 crawler platforms.

Fast Steering Response

Built for both power and speed, the Raptor provides fast, precise steering response for demanding terrain. At 8.4V, steering speed reaches up to 0.08 sec/60°, helping deliver quick steering corrections during technical and competition crawling. A tight 2?s deadband further improves response for accurate steering inputs.

Rugged Compact Construction

A full 6061-T6 aluminum housing, high-strength steel gears, and dual ball bearings provide the durability needed for aggressive steering loads. The 25T output spline includes a 25T aluminum servo horn, while the JST ZHR-3 1.5mm connector provides direct compatibility with supported Furitek Micro RX systems without requiring a bulky standard servo connector or adapter.

Features:

• Delivers up to 11 kg-cm of torque at 8.4V
• High-speed response for precise steering control
• Reaches 0.08 sec/60° at 8.4V
• 6061-T6 aluminum housing
• High-strength steel gears
• Dual ball bearings
• 25T aluminum servo horn
• JST ZHR-3 1.5mm connector
• Supports 4.8–8.4V high voltage
