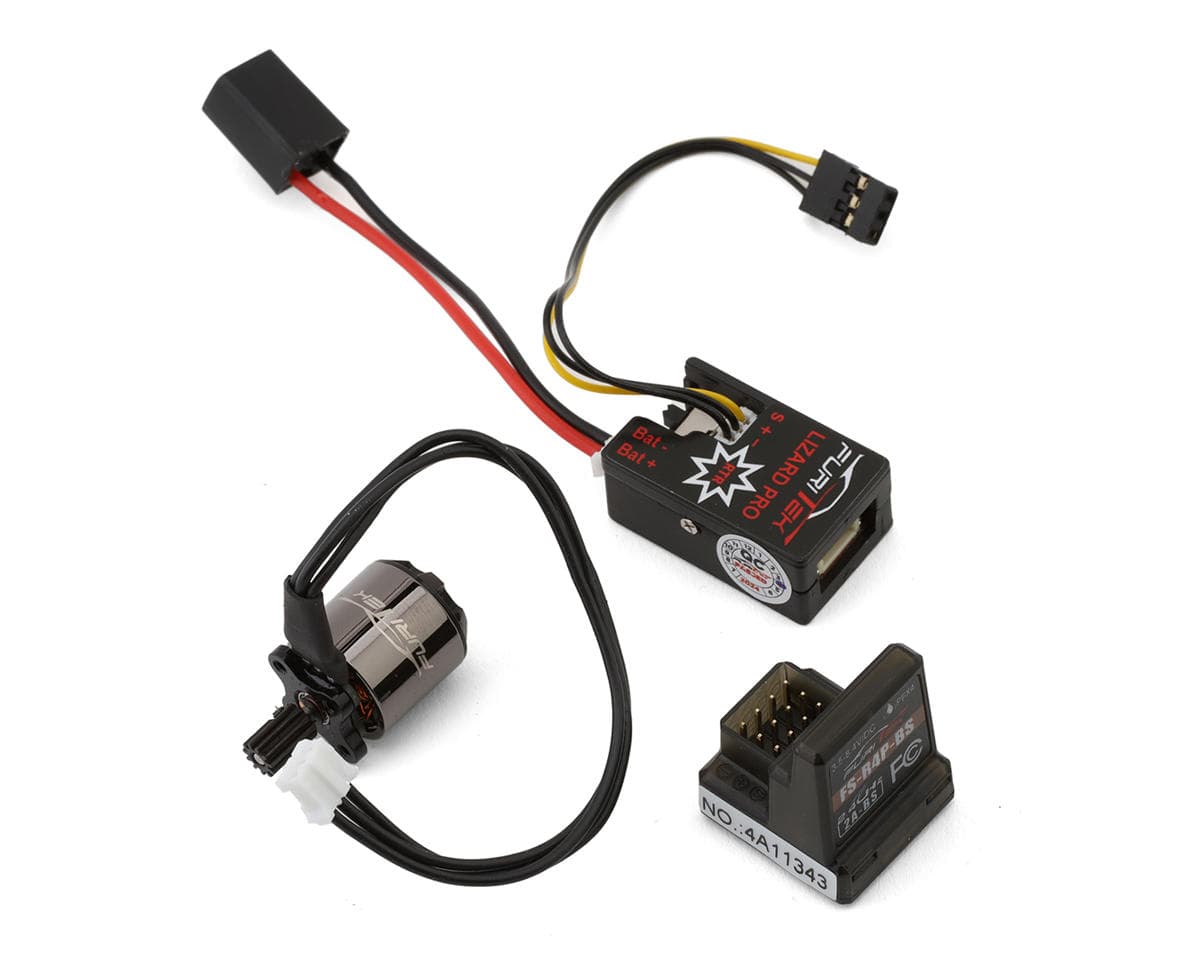

Furitek Redcat Ascent-18 Starter 2S Brushless ESC Combo w/Venom Motor (3450kV) & FlySky Receiver
About this part
Combo Overview:
The Furitek Lizard Pro 30A Micro element resistant ESC is a Powerful ESC that delivers huge performance to small scale rock crawlers. Boasting a 30 amp continuous rating, adjustable 5A BEC, up to 3S LiPo support, and built-in wireless module programming capability! This ESC supports both brushed and brushless motors and uses FOC technology to give you a buttery smooth performance on the trail. The Furitek Venom 1212 3450kV 12-Pole hi-torque brushless Outrunner motor is designed to provide a buttery smooth feel at low and high RPM with incredibly high torque that will turn your Ascent-18 into a crawling performance weapon! Designed to be a plug-and-play option for Ascent-18 rock crawlers, this combo is an excellent upgrade if you are looking to bring your Ascent-18 to the next level of high performance!
Features:
- Lizard Pro ESC
- Support Sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
- FOC (Field-oriented control) technology
- Compatible with stock battery
- Built-in wireless
- Built-in switchable BEC
- Built-in switch power
- Super easy programming via App on both Android and IOS
- Lifetime free firmware updates
- Compact and lightweight
- Real-time telemetry up to 10Hz
- Venom Motor
- 12-Pole Outrunner design
- Super thin (0.2mm) stator laminations
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- Quiet and compact without sacrificing performance
- Extreme quality high temperature copper windings
- High strength steel pinion gear
Specifications:
- ESC:
- Input Voltage: 2S-3S LiPo
- Waterproof: No
- BEC: 5V-6.5V Switchable
- Current:
- Continuous: 30A
- Peak: 50A
- Dimensions (LxW): 28x15.5mm
- Weight: (3.5g)
- Motor:
- Motor Type: Outrunner
- KV: 3450kV
- Pole: 12-Pole
- LiPo: 2S
- Power: 120W
- Resistance: 0.16 Ohm
- No Load Current(@10V): .07A
- Size (Diameter x Length): 20x15.5mm
- Weight: (17.5g)
- Application: Micro Crawler
Includes:
- (1) Lizard Pro 30A Brushless ESC
- (1) Venom 1212 3450kV Brushless Motor
- (1) FlySky 4-Channel Receiver Connector
Reviews4.0 · 4 reviews
Installed this setup, 2 days later it caught fire while my son was playing with it.
Great motor/ESC, good low speed control, good torque, good speed, drop in with Redcat Ascent 18 receiver and radio.
Excellent price point. Easy install, plug and play with stock remote. Still a bit of cogging. I wish the instructions better explained how to set it up through the app. Its a great brushless system non the less
Super easy to install. I like that you can use the stock Redcat radio. It binds in seconds. It runs extremely smooth. The app is easy to navigate as well.
Reviewers generally praise this 2S brushless ESC and motor combo for easy installation, plug-and-play compatibility with the stock Redcat Ascent 18 radio and receiver, smooth running, and good low-speed control, torque and speed. Several note it offers good value for the price. One reviewer reported the system caught fire within two days of installation while in use, which is a serious safety concern and the only negative report. Another reviewer mentioned some cogging and found the app setup instructions unclear, though they still considered it a strong brushless system. Reviews are few, and the fire report conflicts sharply with the otherwise positive feedback.
- + Easy installation
- + Plug-and-play with stock Redcat radio
- + Smooth running and good low-speed control
- + Good value for price
- − Reported fire within two days of installation
- − Some cogging
- − Unclear app setup instructions
