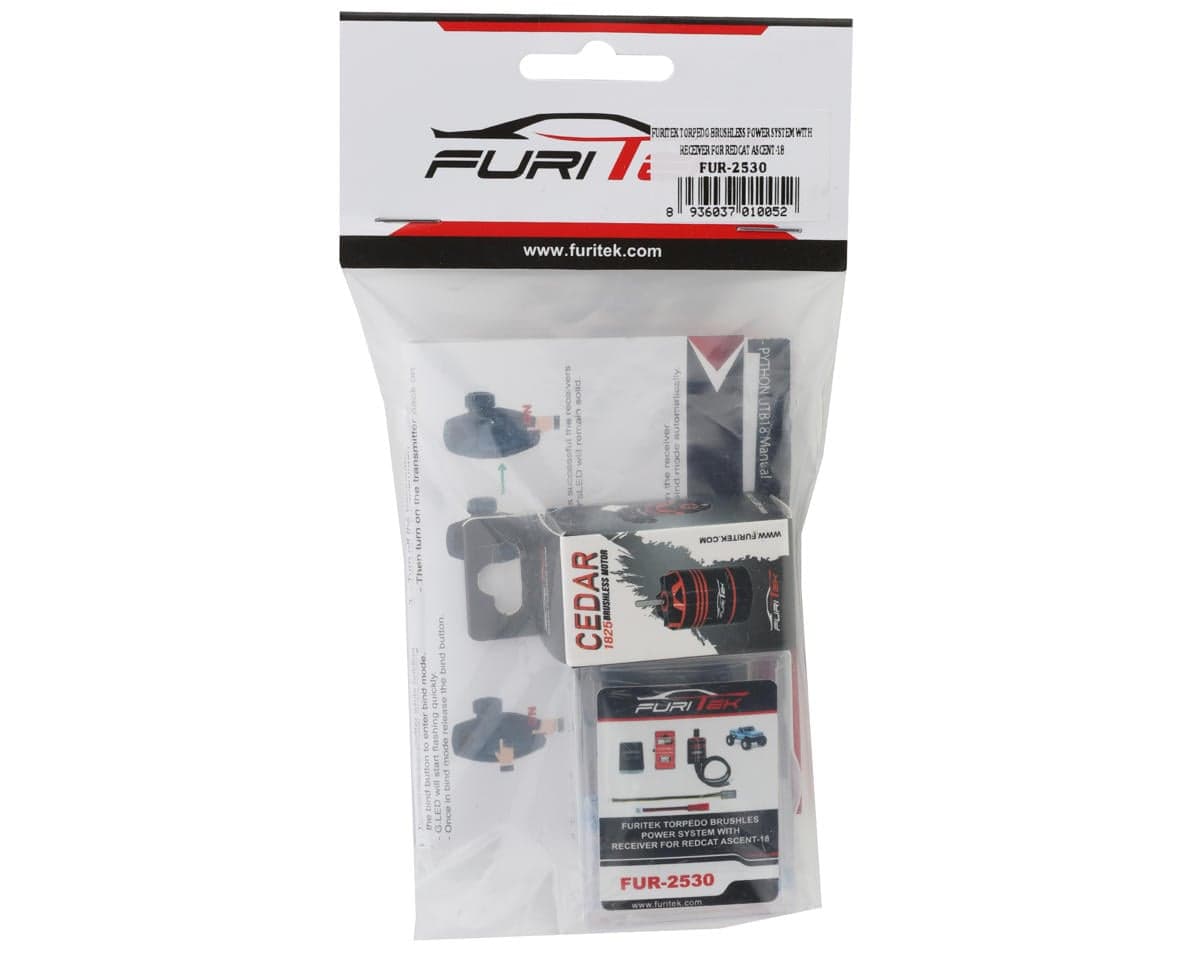

Furitek Redcat Ascent-18 Torpedo Brushless Combo w/Python Pro 40A ESC ,Cedar 3456kV Motor & FlySky Receiver
About this part
Torpedo Combo Overview:
The Furitek Redcat Ascent-18 Python Pro 40A Micro element resistant ESC is a Powerful ESC that delivers huge performance to small scale rock crawlers. Boasting a 40 amp continuous rating, adjustable 5A BEC, up to 4S LiPo support, and built-in wireless module programming capability! This ESC supports both brushed and brushless motors and uses FOC technology to give you a buttery smooth performance on the trail. Designed to be a plug-and-play option for micro rock crawlers, this is an excellent upgrade if you are looking to bring your micro crawler to the next level of high performance!
Furitek Inrunner Cedar 1825 3456kV brushless motor incorporates the awesome features of an Outrunner style motor but in the form of a sealed can making it resistant to the harsh rigors the elements can put your hardware through. With a 12-pole pepped-up High purity and higher temperature single copper windings and a sleek CNC machined 6061 T6 billet aluminum design, this motor is up for the challenge. This style of motor no longer has you worrying about the outside of the motor needing clearance to spin. Whether you take to the mountains or your own back yard this motor has the power you need to get over any obstacle!
Features:
- Python Pro ESC
- Support Sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
- FOC (Field-oriented control) technology
- Water-proof CNC-machined aluminum case
- Built-in wireless module
- Built-in HV switchable BEC
- Built-in switch power
- Super easy programming via App on both Android and IOS
- Lifetime free firmware updates
- Compact and lightweight
- Real-time telemetry up to 10Hz
- Cedar Motor
- 12 Pole Inrunner design
- Element resistant
- Fancy black and red aluminum case
- Quiet and compact without sacrificing performance
- Extreme quality high temperature copper windings
- Redcat Ascent-18 compatible pinion gear
Specifications:
- ESC:
- Input Voltage: 2S-4S LiPo
- Waterproof: Yes
- BEC: 5.5V-8.4V Switchable
- Current:
- Continuous: 40A
- Peak: 70A
- Dimensions (LxWxH): 1.57x0.78x0.6" (40x20x15mm)
- Weight: 0.2oz (5.6g)
- Motor:
- Motor Type: Inrunner
- KV: 3456kV
- Pole: 12-Pole
- LiPo: 2-3S
- Power: 120W
- Resistance: 0.170 Ohm
- No Load Current(@10V): .07A
- Size (Diameter x Length): 18x25mm
- Weight: 0.7oz (20g)
- Application: Micro Crawler
Includes:
- (1) Python Pro 40A ESC
- (1) Cedar 3456kV Inrunner Motor
- (1) Battery Connector
- (1) FlySky 4-Channel Receiver Connector
Reviews4.3 · 3 reviews
Easy install, lots of power and the slow crawl is insane https://youtu.be/aTBMXV6irjA?si=VLAR8sW2Xiez8TZc
A must upgrade for your Ascent 18. Big game changer with better throttle control. Completely improves drive quality and performance vs stock
The product is great and the pricing was as expected. I will say that I was disappointed in shipping. When I ordered, the estimate was for a Thursday delivery which was great as I had a crawler comp on Sunday. There was then a notification of delay until Saturday. The part then was delayed until and eventually delivered Monday evening. This was disappointing as I had to pay for shipping. I will think twice before ordering through here again.
Three verified owners review the Furitek Redcat Ascent-18 Torpedo brushless combo with Python Pro 40A ESC, Cedar 3456kV motor and FlySky receiver. Two reviewers rate it 5/5, describing easy installation, strong power, good low-speed crawling and improved throttle control over stock. One reviewer rates it 3/5, praising the product and its pricing but reporting a shipping delay that pushed delivery past its expected date and left them dissatisfied with the seller's shipping. Reviewers disagree on overall satisfaction, though the product itself is praised by all three. Sample size is small.
- + Easy installation
- + Strong power
- + Good slow crawl control
- + Improved throttle control over stock
- − Shipping delay past estimated delivery
- − Customer paid for shipping after delay
