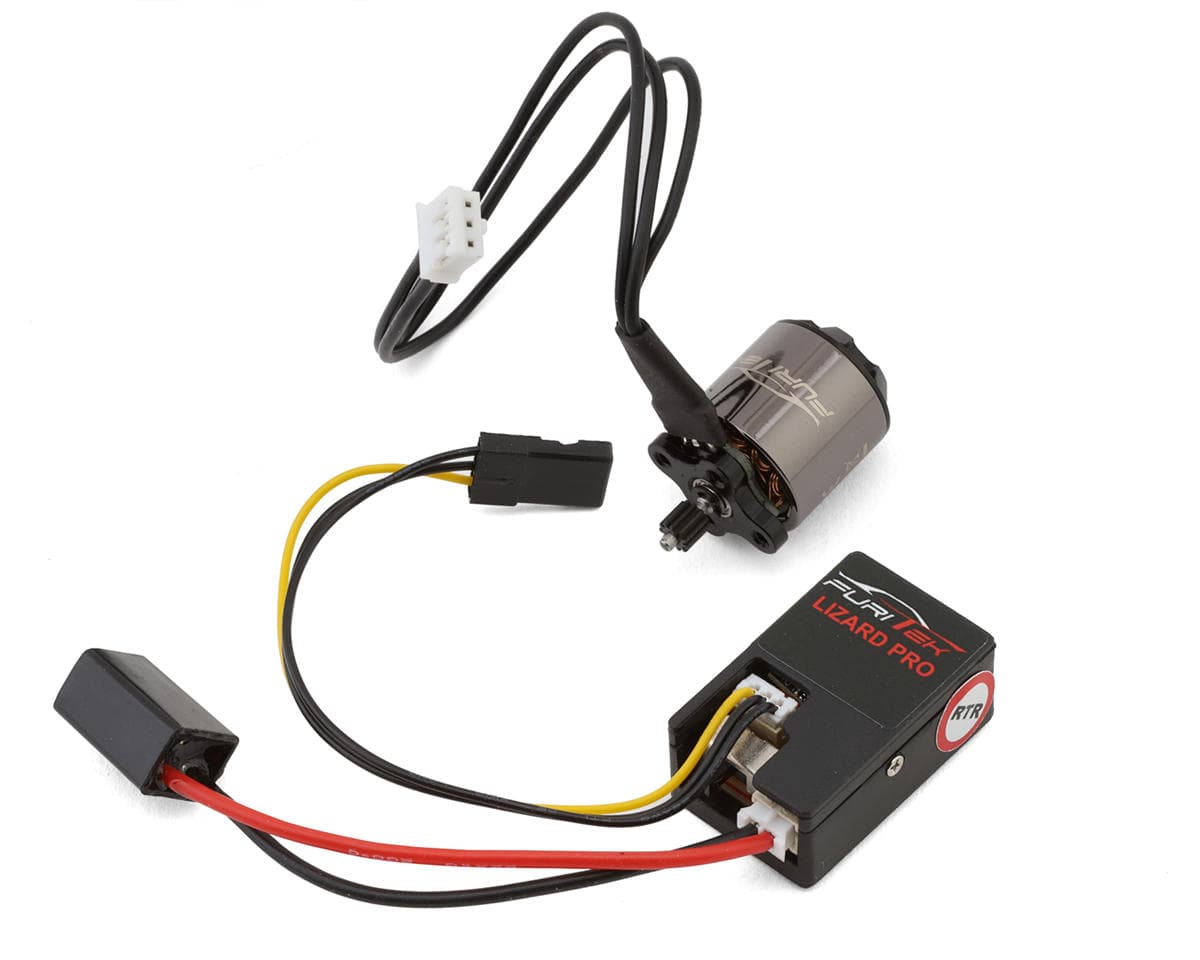

Furitek Starter 118 2S Brushless ESC & Venom Motor Combo for Traxxas TRX-4M (3450kV)
About this part
TRX-4M Starter Combo Overview:
The Furitek Lizard Pro 30A Micro element resistant ESC is a Powerful ESC that delivers huge performance to small scale rock crawlers. Boasting a 30 amp continuous rating, adjustable 5A BEC, up to 3S LiPo support, and built-in wireless module programming capability! This ESC supports both brushed and brushless motors and uses FOC technology to give you a buttery smooth performance on the trail. The Furitek Venom 1212 3450kV 12-Pole hi-torque brushless Outrunner motor is designed to provide a buttery smooth feel at low and high RPM with incredibly high torque that will turn your TRX-4M into a crawling performance weapon! Designed to be a plug-and-play option for TRX-4M rock crawlers, this combo is an excellent upgrade if you are looking to bring your TRX-4M to the next level of high performance!
Note: This Combo is not compatible with stock TX/RX due to no channel 2 for external esc and requires a separate RX unit.
Features:
- Lizard Pro ESC
- Support Sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
- FOC (Field-oriented control) technology
- Compatible with stock battery
- Built-in wireless
- Built-in switchable BEC
- Built-in switch power
- Super easy programming via App on both Android and IOS
- Lifetime free firmware updates
- Compact and lightweight
- Real-time telemetry up to 10Hz
- Venom Motor
- 12-Pole Outrunner design
- Super thin (0.2mm) stator laminations
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- Quiet and compact without sacrificing performance
- Extreme quality high temperature copper windings
- High strength steel pinion gear
Specifications:
- ESC:
- Input Voltage: 2S-3S LiPo
- Waterproof: No
- BEC: 5V-6.5V Switchable
- Current:
- Continuous: 30A
- Peak: 50A
- Dimensions (LxW): 28x15.5mm
- Weight: (3.5g)
- Motor:
- Motor Type: Outrunner
- KV: 3450kV
- Pole: 12-Pole
- LiPo: 2S
- Power: 120W
- Resistance: 0.16 Ohm
- No Load Current(@10V): .07A
- Size (Diameter x Length): 20x15.5mm
- Weight: (17.5g)
- Application: Micro Crawler
Includes:
- (1) Lizard Pro 30A Brushless ESC
- (1) Venom 1212 3450kV Brushless Motor
- (1) Built-in Wireless Module
- (1) 11T CNC Steel Pinion
Reviews5.0 · 1 review
Excellent replacement for both the stock motor, and Injora brushed motor which is what I had. Simple to install, paired with the Radiolink micro receiver and now I have all my cars connected to 1 radio which is ideal for me. Modulation is excellent, torque is great, no complaints, absolutely love what it did to my rig.
