Furitek Stinger Brushless Motor & ESC Combo Power System (Axial AX24)
About this part
This is the Furitek Stinger Brushless Motor and ESC Combo for Axial AX24. With high performance offerings for the SCX24, FCX24, Traxxas TRX-4M, and Axial UTB18, Furitek has expanded their line to cater to the Axial AX24 rock crawler kit. At the heart of this power system is the Micro Komodo 1212 3450Kv motor. Despite its compact and lightweight design, this motor packs a punch, delivering exceptional power and torque at low speeds, while still maintaining impressive speed at high RPMs. Thanks to a special ESC FOC firmware the Micro Komodo operates incredibly smoothly without any cogging, ensuring a seamless crawling experience at both low and high speeds.
What sets the Furitek Stinger brushless system for AX24 apart is its compatibility with the stock radio and receiver. You won't need to invest in a new radio and receiver to upgrade to brushless power. This makes it an incredibly user-friendly and cost-effective solution, allowing you to seamlessly enhance your crawler's performance without any additional complications. Additionally the Furitek Stinger brushless system features the integration of the Furitek FURICAR mobile phone app and built-in wireless module. With this innovative combination, users can conveniently adjust and fine-tune various parameters on the fly, without even needing to touch the truck. This allows for seamless customization and optimization of your favorite settings, giving you unparalleled control over your crawler's performance.
For added convenience and durability, the package includes a CNC aluminum skid plate specifically designed to mount the Stinger system directly onto the Axial AX24 kit. This not only ensures a secure and hassle-free installation process but also enhances the overall ruggedness and longevity of the system.
Features:
- Smaller and lighter brushless motor for a low C.G. setup
- High performance and powerful 30A/50A brushless ESC with FOC technology
- Built-in wireless module for wireless connectivity
- Precision CNC aluminum motor mount
- Precision CNC brass pinion
- High torque for incredible low speed crawling
- Super smooth operation without any cogging at both low and high speed operation
- Lifetime FREE firmware upgrades!
- Drop in replacement for stock AX24 brushed system and skid plate.
- Compatible with stock radio and receiver (Not compatible with HRZ00015 board)
Specifications:
- Lizard Pro 30A Brushed/Brushless ESC:
- Input Voltage: 2-3S LiPo
- Constant Current: 30A
- Burst Current: 50A
- BEC: 5V/ 6.5V 2.5A
- Telemetry: Yes (10Hz)
- Dimensions: 28x15.5mm
- Weight: 3.7g
- Micro Komodo 1212 3450KV Brushless Motor:
- Input Voltage: 2-3S LiPo
- Kv: 3450
- Output Power: 120W
- No-Load Current: @10V – 0.7A
- Resistance: 0.16 Ohms
- Maxiumum Current: 10A
- Slot/Pole: 12
- Dimensions: 115.5x20.6mm
- Shaft: 1.5x6mm
- Weight: 17.5g

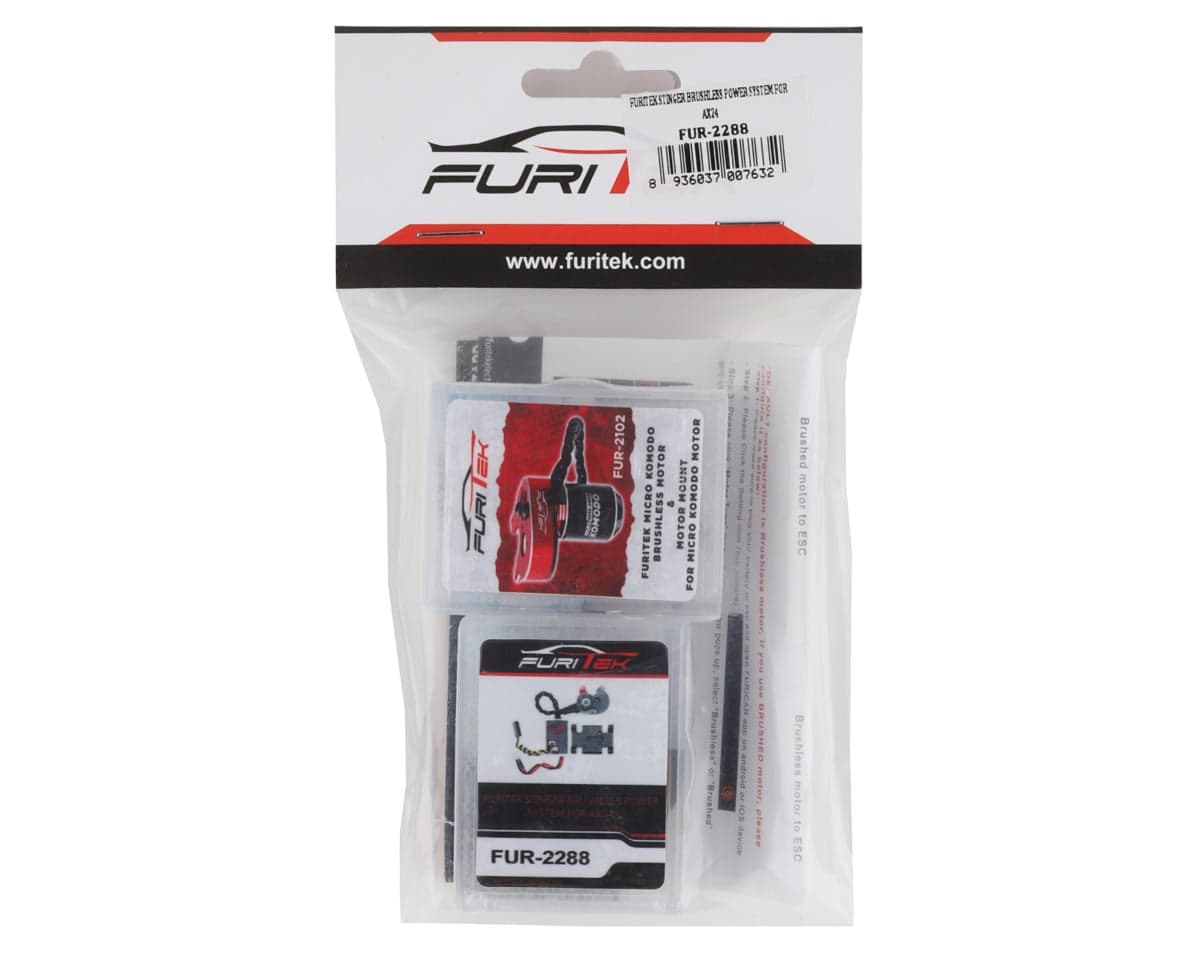

Includes:
- (1) Lizard Pro 30A Brushed/Brushless ESC
- (1) Micro Komodo 1212 3450KV Brushless Motor
- (1) 11T 0.3M CNC Brass Pinion
- (1) CNC Aluminum Motor Mount
- (1) CNC Aluminum Skid
Reviews4.7 · 6 reviews
Performance-wise, this is a nice system. Has plenty of power and then some. Slow crawl is amazing. However, there are a couple of things to be aware of; and tbh, should be addressed by Furitek in the next version. 1. If you plan on dropping the chassis (like I did on two of my builds) to achieve a lower COG, be aware that the outboard motor of this system can, and most likely will hit and wear on the driveshaft. IMO, Furitek should have made this a much shorter outrunner. There’s really no need for a motor this long for the AX24. In order to get around this, I flipped the driveshaft so that the smaller end was closer to the transmission. I also ran stiffer springs and used the Injora chassis mounting holes to pull that front end up high enough (definitely the opposite of what we want to do on this rig). 2. Make sure you use a shorter screw on the motor side upper link mount point. Otherwise, it’ll hit the outrunner. It’s a very tight squeeze. I’m debating whether I want to pick a sparrow chassis up and see how it pairs with this kit. Like much of what Furitek makes, it has incredible performance, but it really forces you to unnecessarily MacGyver or even compromise some things in order to get it to work. 2FM RC on YouTube has a couple incredible AX24 rigs. I may reach out to see how he has overcome this driveshaft issue. I know I’m not that only one who’s experienced this. It would have also been nice to see a higher voltage BEC in there too.
It fits pretty good. The only problem I’m having is the drive shaft is rubbing the motor at full articulation.
Amazing slow crawl. Like others have said, the stock axial xc-1 driveshaft does rub the motor at full flex but I haven’t noticed it binding up the motor. I had a screw shear off in the skid plate and I couldn’t get it out but Amain customer service was awesome and I got a new skid plate very fast. Overall the fit and performance is excellent for the xc-1 and I highly recommend it.
Great combo. Very good slow speed response and plenty of torque. Would recommend this to everyone in the market.
Installed this on my Axial XC-1 and it will crawl so slow you can hardly see the tires move. I do notice a bit of cogging or binding at about a quarter throttle when not under load, but none when under load. I have not turned the ESC yet, so this could just be a curve away from perfection.
Reviewers consistently praise the Furitek Stinger's slow-crawl response, torque and power, and most describe a good fit in Axial AX24 or XC-1 chassis. Several note that the stock XC-1 driveshaft rubs the motor at full articulation, and one owner who dropped the chassis for a lower centre of gravity reports the long outrunner wearing the driveshaft; that owner worked around it by flipping the driveshaft. One reviewer reports slight cogging or binding at about quarter throttle when unloaded, though not under load, and had not yet adjusted the ESC. One reviewer fitted it to an Angry Sparrow kit with an Injora transmission and reported a good fit. The sample is small, with six reviews, all from verified owners.
- + Excellent slow-crawl response
- + Plenty of power and torque
- + Good fit in AX24 and XC-1
- − Driveshaft rubs motor at full articulation
- − Long motor can wear driveshaft when chassis is dropped
- − Possible cogging at quarter throttle unloaded
