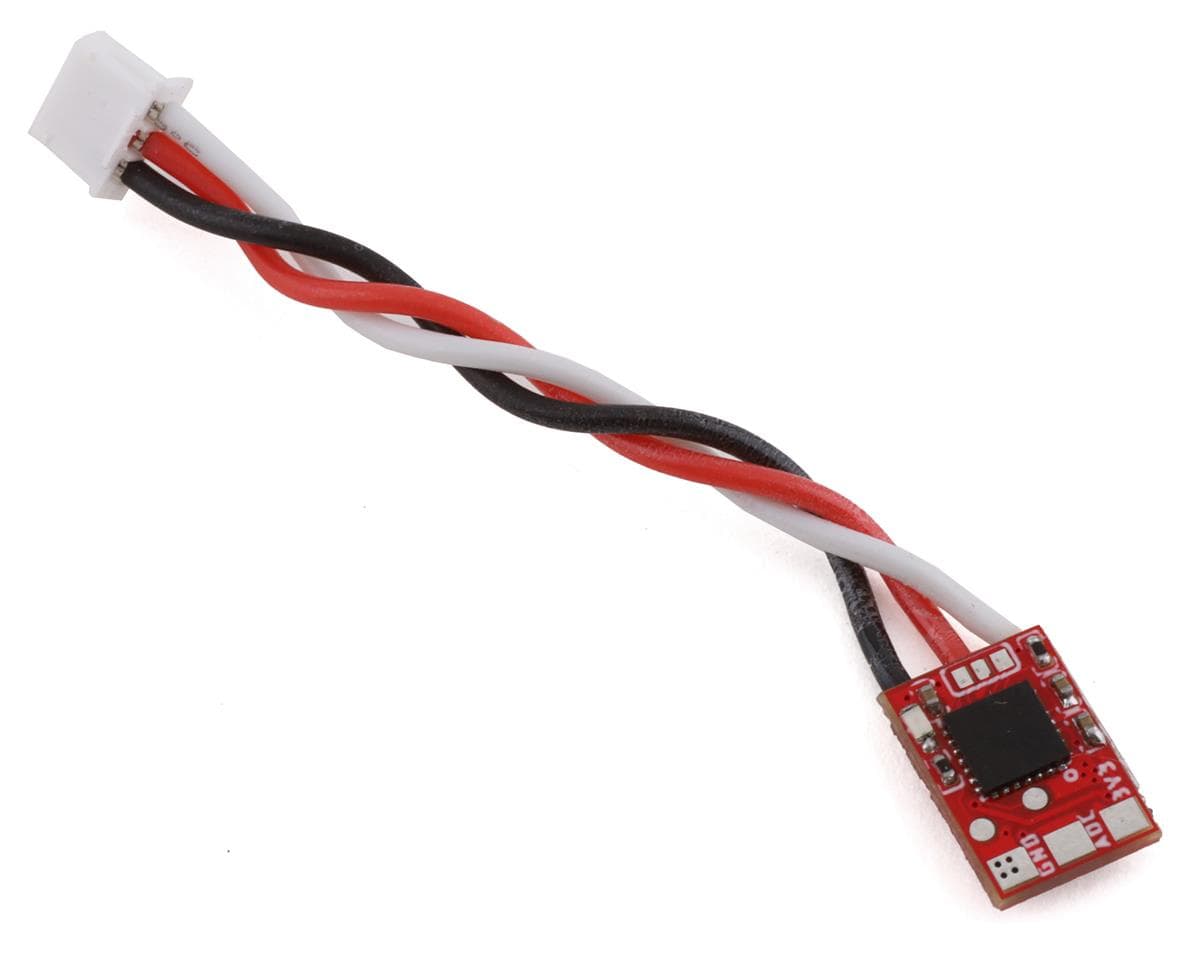

Furitek Swift Digital Servo Controller

The Furitek Swift Digital Servo Controller is a great option for those who want to use the Furitek ESC and RX in combination with the Kyosho Mini-Z servo. By using this servo controller, the servo speed and response of the servo will be increased allowing for better cornering. This controller also allows the user to choose from four different servo speed settings. Package includes one servo controller intended for the Kyosho Mini-Z MR03, AWD.

In order to change the servo controller speed settings, the user has to bridge solder pads found on the controller. Choose between slow, normal fast and very fast speed setting to best suit your driving style.

Features:

• Digital servo controller for Mini-Z MR03, AWD
• High speed response, support up 400Hz
• Extremely smooth and high resolution (12bit ADC)
• Speed level options selectable and switchable.
• Micro size with barely 1g in weight
• Easy soldering

Specifications:
Dimensions: 11x7.5mm (LxW)

Supported voltage: 5-6V DC
Weight: 1g
ADC Resolution: 12bit
Input Signal: 50-400Hz
