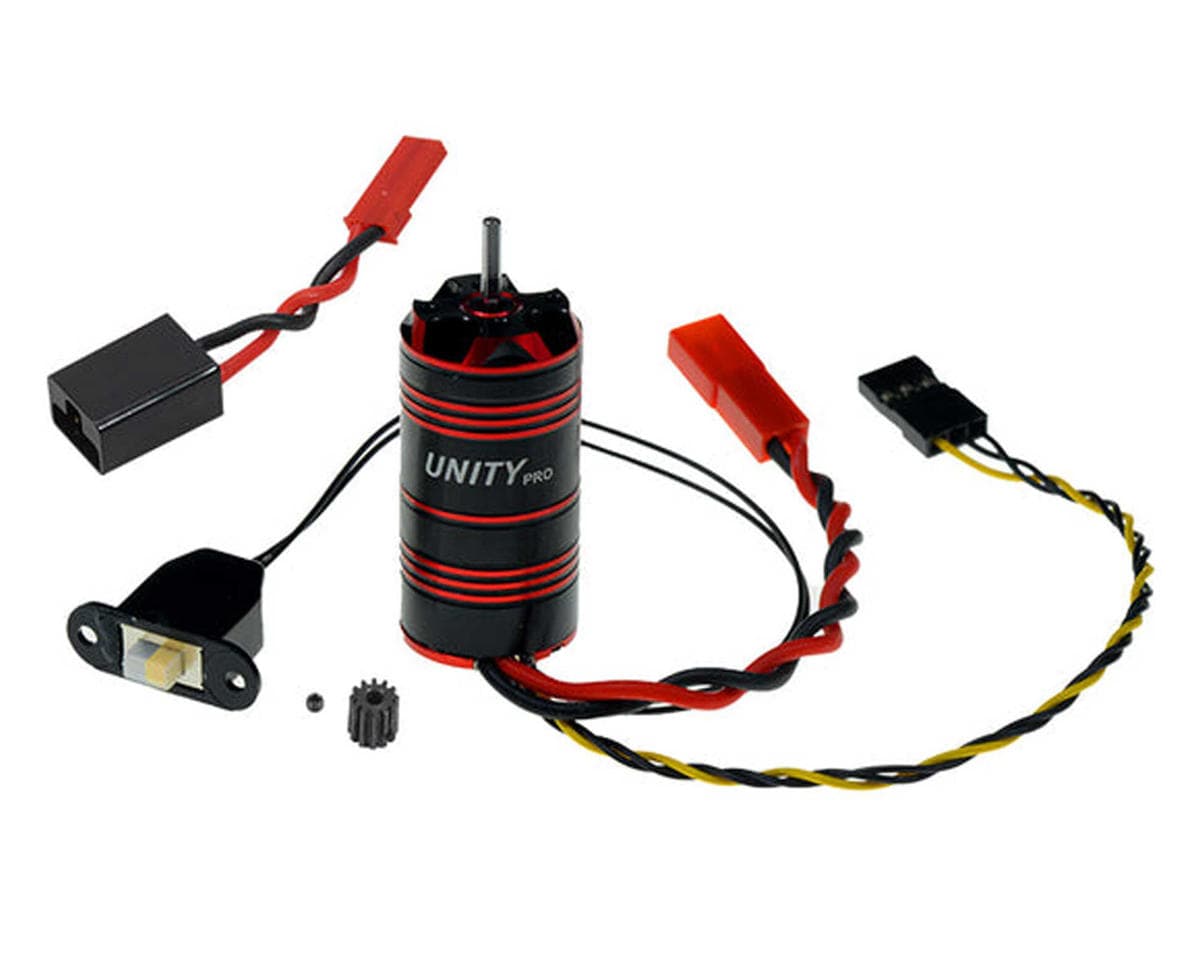

Furitek UNITY PRO 2-in-1 Micro FOC Brushless System (3500kV) For Traxxas® TRX-4M
About this part
UNITY PRO Combo Overview:
Furitek TRX-4M UNITY PRO 2-in-1 Micro FOC Brushless System. Introducing the Furitek UNITY PRO, a groundbreaking 2-in-1 brushless system designed specifically for 1/24 and 1/18 scale RC crawlers using low-reduction gearing. As a leader in mini crawler electronics, Furitek brings you cutting-edge technology with the UNITY PRO, combining a brushless motor and brushless ESC into a single, compact unit. Equipped with FOC technology, this system delivers exceptional smoothness, powerful start-up punch, and seamless power transitions. The UNITY PRO offers optimal performance and convenience. It's a perfect drop-in upgrade for the Traxxas TRX-4M, elevating your RC experience to the next level.
Note: For maximum performance, Furitek recommends using this motor on crawlers equipped with low-reduction gearing.
Features:
- FOC (Field-oriented control) technology
- Water-proof CNC-machined aluminum case
- Built-in wireless
- Built-in HV switchable BEC
- Built-in switch power
- Super easy programming via App on both Android and IOS
- Lifetime free firmware updates
Specifications:
- ESC:
- Input Voltage: 2S-3S LiPo
- Waterproof: Yes
- BEC: 5.5V-8.4V Switchable
- Current:
- Continuous: 30A
- Peak: 50A
- Motor:
- Motor Type: Inrunner
- KV: 3500kV
- Pole: 12-Pole
- LiPo: 2-3S
- Application: Micro Crawler

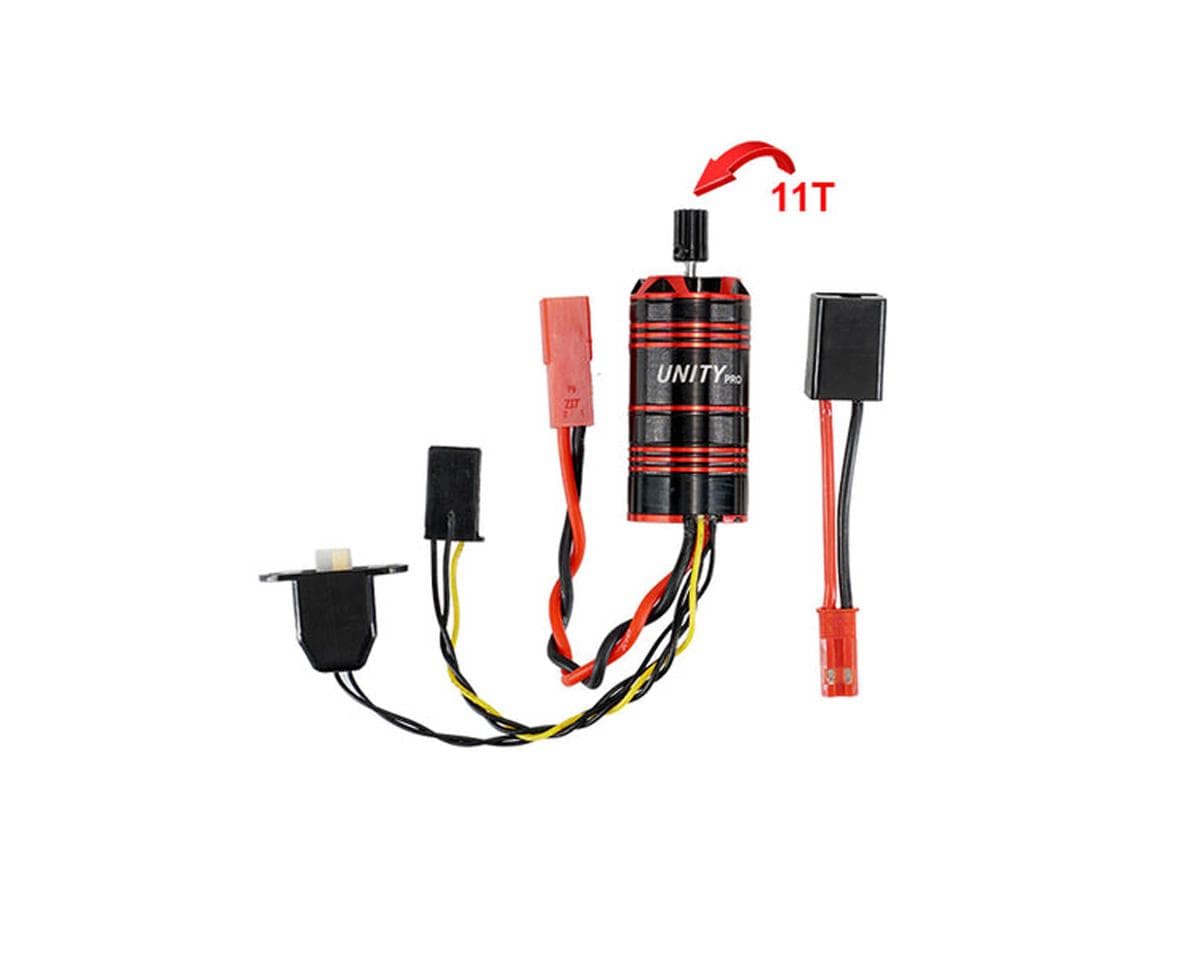

Includes:
- (1) UNITY PRO 2-in-1 Micro FOC Brushless System
- (1) Battery Adapter
- (1) 11T Pinion
Reviews5.0 · 2 reviews
I highly recommend these 2in1 brushless systems, I have them in all my micros now and they are very smooth and easy to program. I will be buying this system from now on as I get more micro crawlers
Very smooth, lots of torque, runs cool. Purchased after watching Nate's RC and Cape Crawlers video's on them, very helpful. Running in TRX4-M High Trail, speed with crawl gears is about 75% as fast as stock setup (180 titan with trail gears) Would buy again ***Update*** Had an issue with one of the systems, contacted Furitek, still under warranty, Replacement sent out after confirmed defective. They were very polite and professional. They stand behind their product.
